Product Introduction

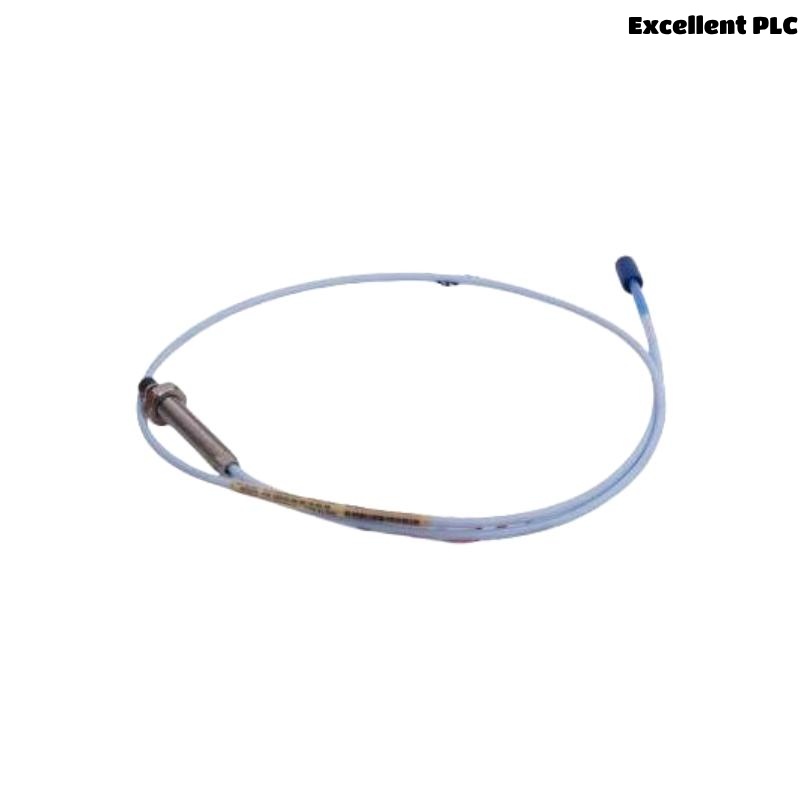

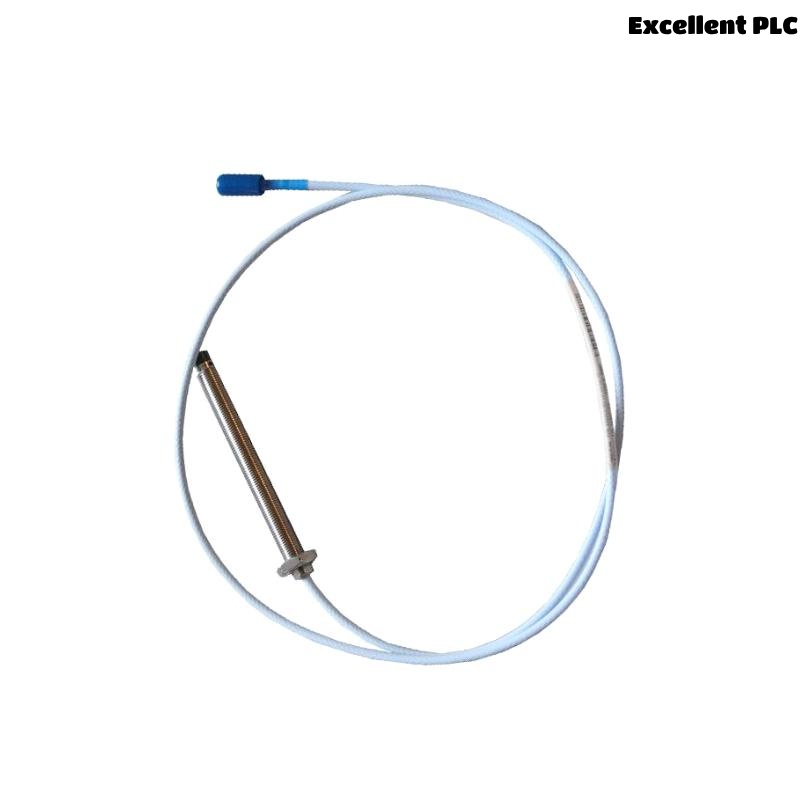

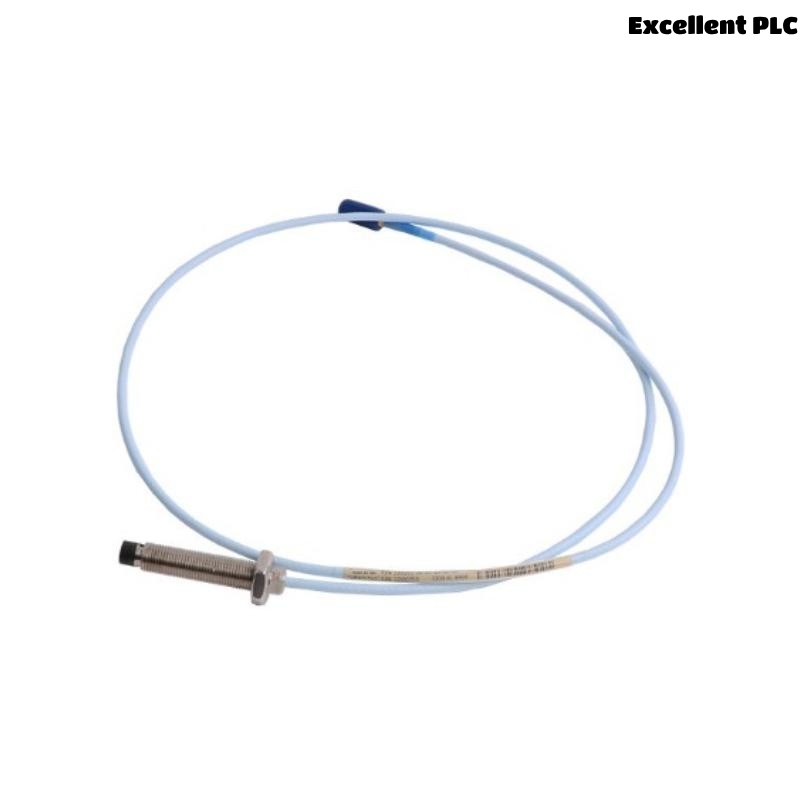

The Bently Nevada 330103-00-10-10-01-00 is part of the industry-leading 3300 XL 8mm proximity transducer system, specifically designed to provide highly accurate, stable, and robust shaft vibration and position measurements in critical rotating machinery. As an integral part of Bently Nevada’s condition monitoring and machinery protection platform, this probe offers field-proven reliability across various industrial environments including power generation, oil & gas, and chemical processing.
This model is equipped with a 10 mm probe tip, a 1.0 meter total length, and uses a Mini-Coax connector for connection to the proximitor sensor. It is configured for radial mounting and is compatible with standard 3300 XL proximitor sensors and extension cables. The 330103-00-10-10-01-00 meets API 670 compliance standards and is engineered to deliver consistent performance even under severe operating conditions such as high temperature, vibration, and pressure.
Product Specifications
| Parameter | Details |
|---|---|
| Product Code | 330103-00-10-10-01-00 |
| Manufacturer | Bently Nevada (A Baker Hughes Company) |
| Product Type | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm (sensing tip) |
| Body Thread Size | 3/8-24 UNF-2A |
| Total Length | 1.0 meter |
| Connector Type | Mini-Coax (connects to proximitor sensor) |
| Mounting Type | Radial mount |
| Sensing Range | 2 mm (0.078 in) typical for 8 mm system |
| Sensitivity | 200 mV/mil (7.87 mV/μm) ±5% |
| Linearity | ±0.25 V over linear range |
| System Compatibility | 3300 XL Proximitor sensors and extension cables |
| Target Material | Conductive ferrous materials (e.g., steel shafts) |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Vibration Tolerance | 50 g peak, 10–2000 Hz |
| Ingress Protection | IP67 (when mated and sealed) |
| Certifications | CE, RoHS, ATEX, CSA (depending on full system configuration) |
| Weight | 0.323 kg |
Product Applications
The Bently Nevada 330103-00-10-10-01-00 is utilized in a wide variety of industrial applications that demand reliable, continuous condition monitoring and machinery protection:
-
Turbines (Gas, Steam, Hydro): Real-time shaft vibration and thrust position monitoring
-
Compressors: Monitoring radial displacement and detecting bearing wear
-
Pumps: Identifying cavitation or imbalance through vibration analysis
-
Motors and Generators: Detecting misalignment and shaft movement
-
Gearboxes: Monitoring high-speed gears for early failure detection
-
API 670 Compliance Systems: Standard proximity transducer for critical rotating equipment
-
Industrial Rotating Machinery: General-purpose vibration and displacement monitoring
Product Advantages
-
Field-Proven Reliability: Trusted by industries worldwide, with millions of hours in real-time operation.
-
High Accuracy: Provides consistent sensitivity and linearity to ensure precise data capture for critical decisions.
-
Wide Temperature Range: Performs effectively under elevated ambient and shaft temperatures, ideal for turbines and compressors.
-
Modular Design: Seamlessly integrates with 3300 XL proximitor sensors and extension cables, simplifying maintenance and replacements.
-
Superior Signal Stability: EMI/RFI-resistant cabling and shielding minimize noise interference.
-
API 670 Compliance: Fully compatible with machinery protection systems requiring compliance with API industry standards.
-
Rugged Construction: Designed to withstand mechanical shocks, high vibration, and chemically aggressive environments.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the 330103-00-10-10-01-00 probe?
A: It measures both dynamic vibration and static shaft position in rotating equipment. -
Q: Is this model compatible with other Bently Nevada 3300 XL series components?
A: Yes, it integrates with 3300 XL proximitor sensors and matching extension cables. -
Q: Can the probe operate in extreme temperatures?
A: Yes, it is rated from -35°C up to +177°C. -
Q: What industries typically use this probe?
A: Power generation, oil & gas, chemical, pulp & paper, and other heavy industrial sectors. -
Q: What is the length of the probe cable?
A: This model comes with a 1.0 meter. -
Q: What is the probe’s sensitivity and linear range?
A: It has a sensitivity of 200 mV/mil and a linear sensing range of 2 mm. -
Q: Does this probe require calibration?
A: It is factory-calibrated, but field calibration may be needed when installed in unique machinery configurations. -
Q: Is the probe resistant to oil and chemical exposure?
A: Yes, it has IP67 ingress protection and is built for harsh industrial environments. -
Q: What is the mounting thread size?
A: The probe has a 3/8-24 UNF-2A threaded body for standard radial mounting. -
Q: Can this probe be used in hazardous areas?
A: Certified configurations are available with ATEX and CSA certifications. Always verify specific certifications before deployment.
Recommended Related Models (Same Series or Compatible)
| Model | Description | Cable Length | Mounting Type |
|---|---|---|---|
| 330103-00-08-10-01-00 | 3300 XL 8mm Probe with 8m cable | 8 m | Radial |
| 330103-00-09-10-01-00 | 3300 XL 8mm Probe with 9m cable | 9 m | Radial |
| 330104-00-10-10-01-00 | Reverse mount version of 8mm probe | 10 m | Axial (Reverse) |
| 330106-05-30-10-02-00 | Short-form proximity probe for tight-space installations | 5 m | Radial |
| 330130-040-00-00 | Extension Cable for 3300 XL probes (40 ft) | 12.2 m | N/A |
| 330180-91-05 | 3300 XL Proximitor Sensor (DIN mount) | N/A | Panel/DIN Mount |
