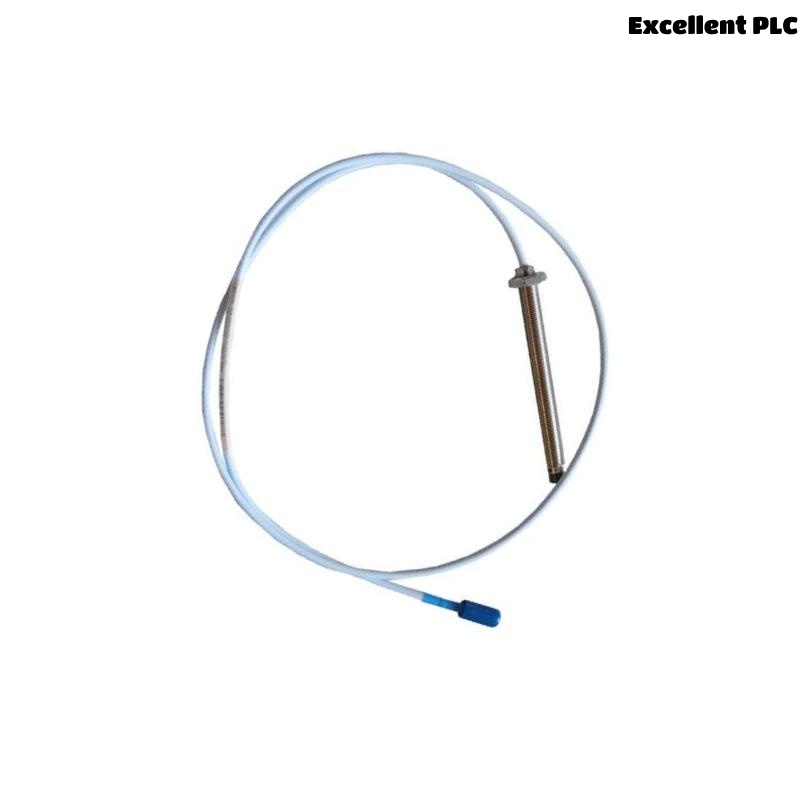

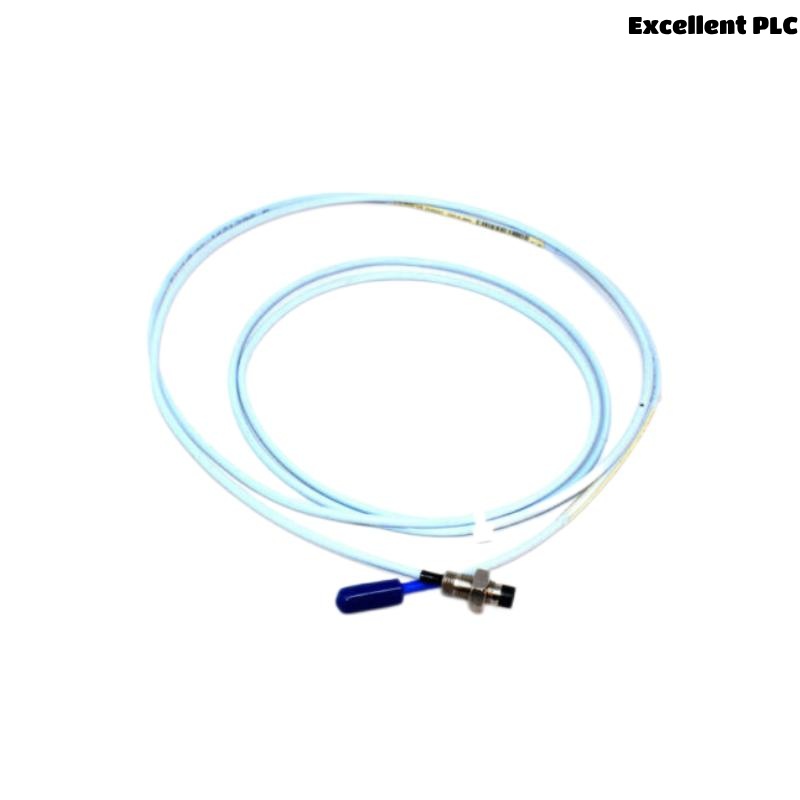

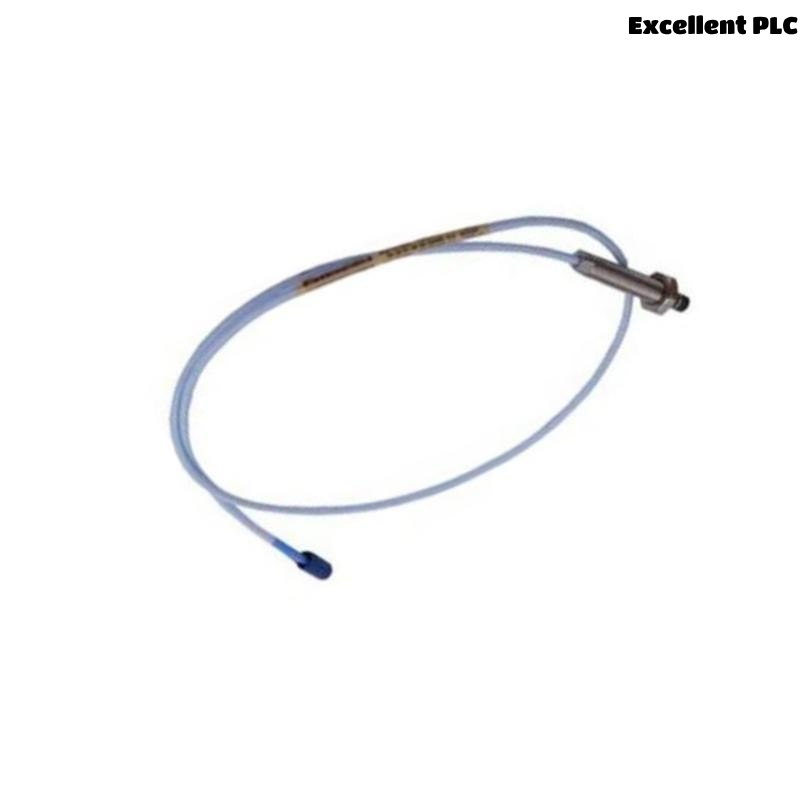

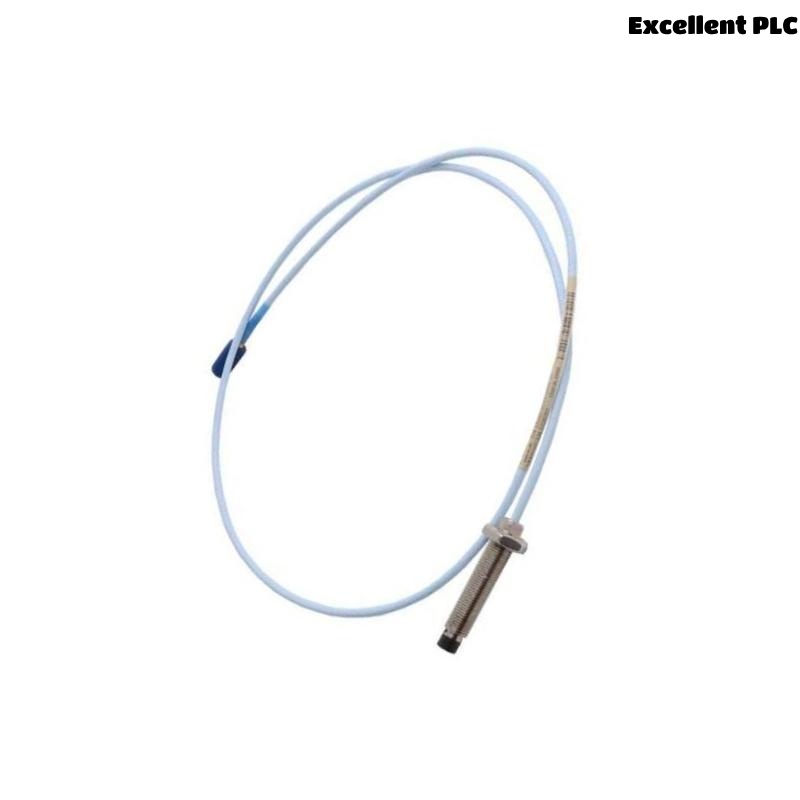

Bently Nevada 330103-00-10-10-01-05 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-10-10-01-05 is an 8 mm non-contact proximity probe from the rugged 3300 XL series, engineered to provide precise shaft vibration and displacement monitoring. This model stands out for its 10 meter integral low‑noise cable and a straight connector, making it ideal for installations requiring extended cable runs with a direct connection. Built in stainless steel and sealed to IP68 standards, it is designed to withstand harsh industrial conditions.

Key Features

• 8 mm probe tip for accurate, repeatable measurements

• 10 m integrated triaxial, shielded cable

• Straight connector for direct installations

• 5/8‑18 UNF threaded body for secure mounting

• Stainless steel housing resists corrosion and wear

• IP68 rating protects against moisture, dust, and oil

• Withstands high shock (5,000 g) and vibration (50 g)

• Factory calibration, plug-and-play compatibility with 3300 XL systems

• Suitable for extreme temperature environments

• Compliant with API 670 and CE standards

Technical Specifications

Industry Applications

Widely used across industries where remote or hard-to-access installations demand long cable lengths:

• Power generation (steam/gas turbine monitoring)

• Oil & gas flow compressors and high-speed pumps

• Petrochemical mixers and agitators

• Mining crushers and drive shafts

• Marine propulsion systems

• HVAC fans and blower shafts

• Pulp & paper rollers

• Water pumping systems

Product Advantages

• 10 m cable offers installation flexibility and reach

• Durable stainless steel body resists harsh environments

• IP68 rating ensures operation in wet or oily conditions

• Non-contact sensing eliminates wear and maintenance

• Straight connector simplifies vertical or direct cable routing

• Factory calibration ensures accurate readings from day one

• High shock/vibration tolerance suits extreme-duty equipment

• Compatible with full ecosystem of 3300 XL modules

• Meets stringent API 670 safety and performance standards

• Offers reliable data transmission over long cable runs

Frequently Asked Questions (FAQ)

1. What is the cable length of this probe?
   It comes with a 10 meter integrated cable.

2. What is the mounting thread size?
   5/8‑18 UNF‑2A thread.

3. Is the connector straight or angled?
   It uses a straight connector.

4. Can this probe handle outdoor and wet environments?
   Yes, it’s IP68 rated when properly installed.

5. What industries commonly use this probe?
   Power generation, petrochemical, mining, marine, and more.

6. Does the probe require field calibration?
   No, it comes factory calibrated.

7. What is the operating temperature range?
   –35 °C to +177 °C (–31 °F to +351 °F).

8. What is the maximum vibration rating?
   Up to 50 g at 10–2,000 Hz.

9. Is the probe compatible with extension cables?
   No; it already includes an integrated 10 m cable, negating the need for extensions.

10. What accuracy does this model offer?
    ±0.07 mm (±2.8 mils) typical.
