Product Introduction

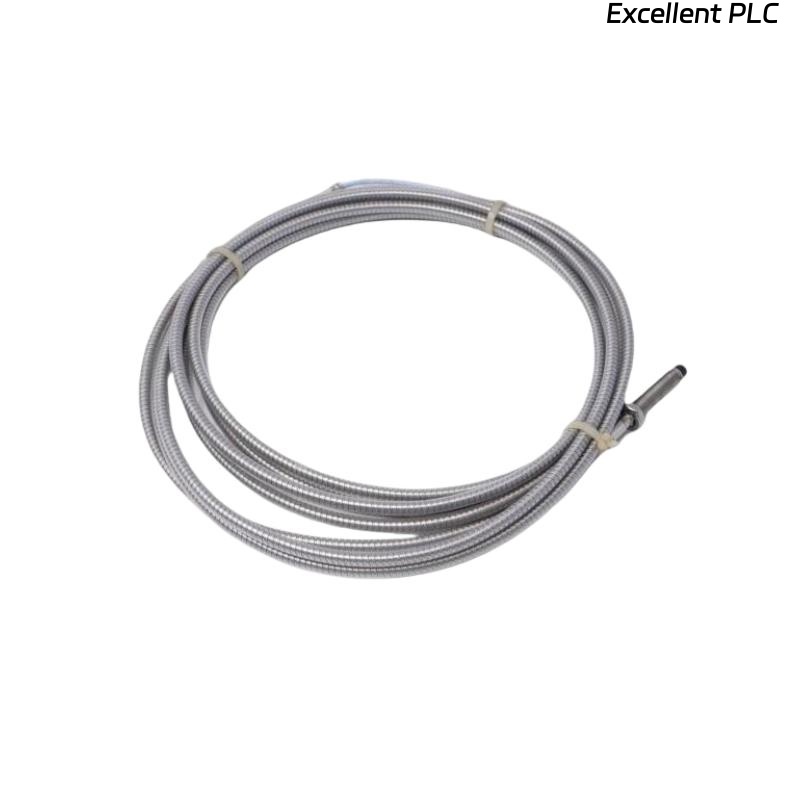

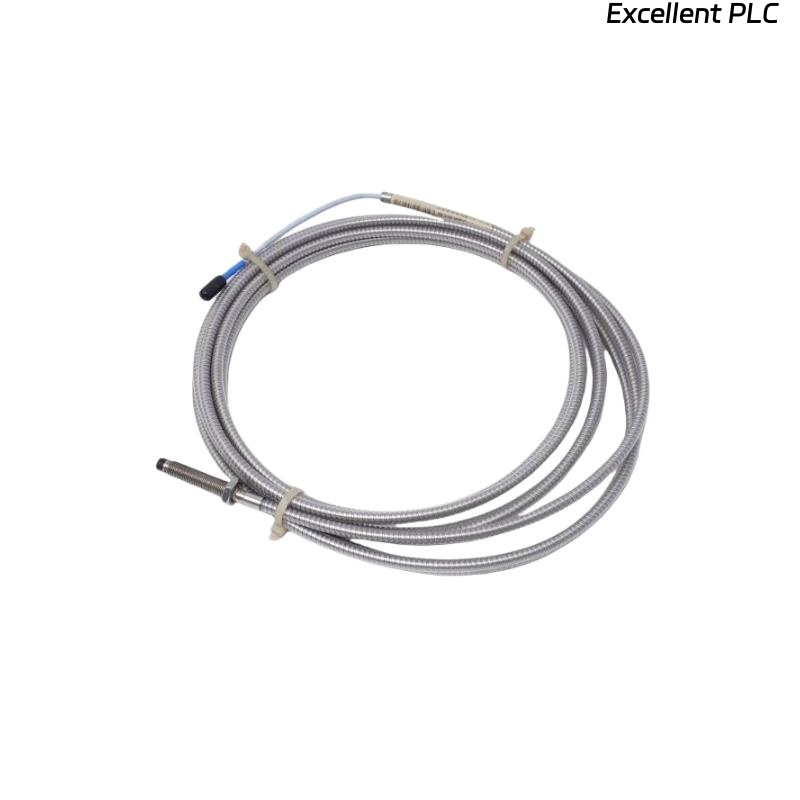

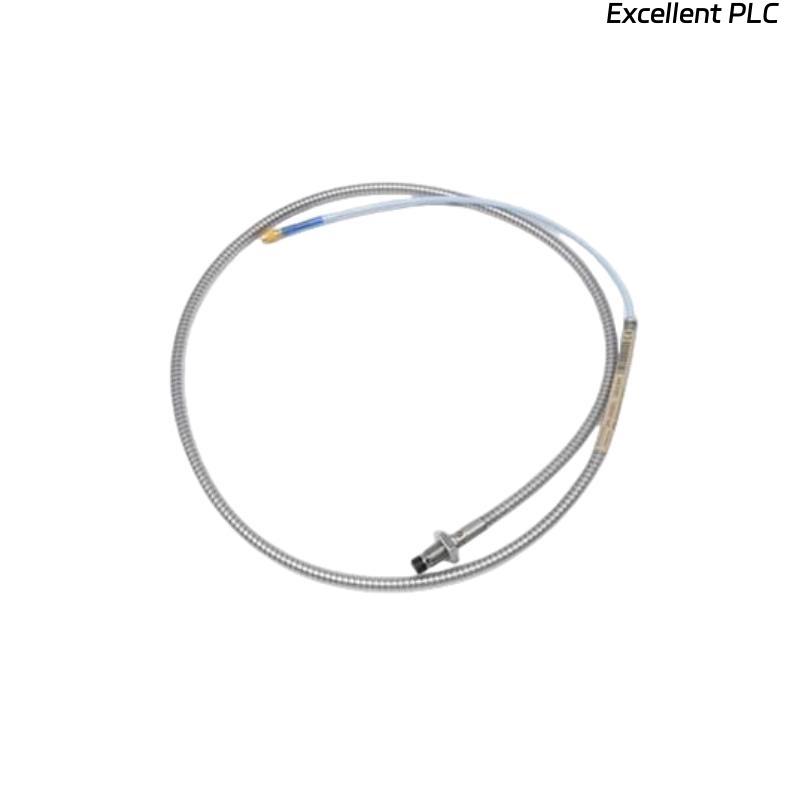

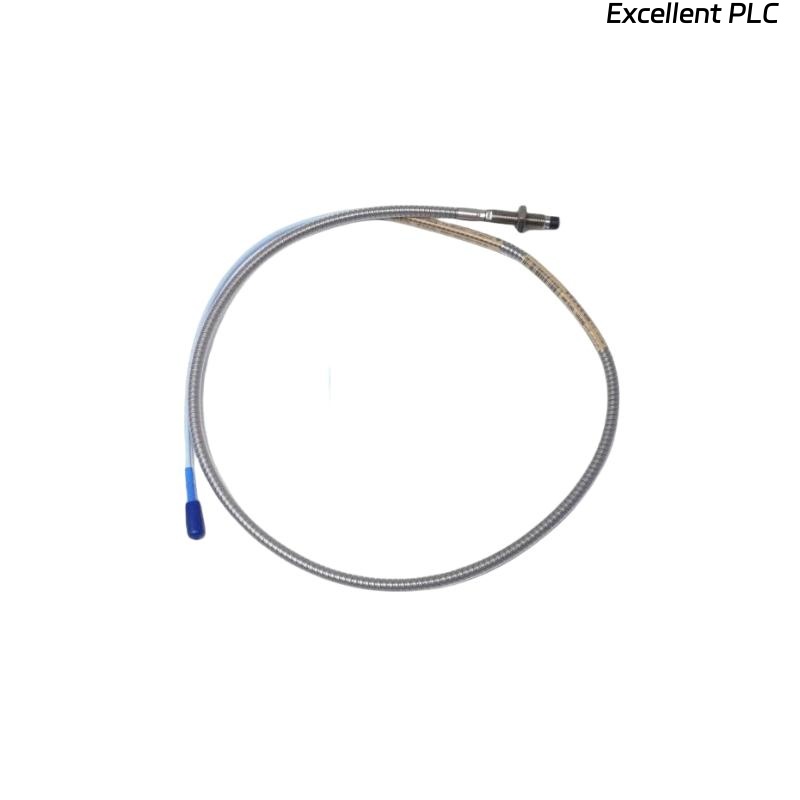

The Bently Nevada 330103-00-10-90-12-00 is an 8 mm proximity probe from the 3300 XL series designed for high-precision, non-contact monitoring of shaft vibration and displacement in rotating machinery. Featuring a 9.0-meter cable, it is well-suited for installations requiring extended reach while maintaining signal integrity. Its PPS probe tip and stainless steel housing ensure reliable operation under challenging industrial environments, including elevated temperatures, humidity, and contamination.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-10-90-12-00 |
| Measurement Range | 8 mm |
| Total Length | 9.0 meters |
| Weight | 2.907 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 × 1 |
| Operating Temperature | –40 °C to +120 °C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Provides continuous detection of radial and axial vibrations for predictive maintenance.
-
Shaft Displacement Measurement: Offers precise real-time displacement data for alignment and rotor balancing.
-
Keyphasor® Pulse Output: Supplies synchronized pulses to machinery protection and control systems.
-
Extended Reach Installations: The 9 m cable supports installations where the probe must be distant from the monitoring rack.
-
Harsh Environment Adaptation: Operates reliably in high temperature, humid, and dusty conditions.
Product Advantages
-
High Accuracy: Non-contact measurement ensures excellent repeatability and reliability.
-
Durable Design: PPS tip and stainless steel housing resist wear, corrosion, and harsh conditions.
-
System Compatibility: Fully compatible with the 3300 XL monitoring system.
-
Compliance with Standards: Meets API 670 requirements for machinery protection.
-
Flexible Installation: 9 m cable allows for flexible positioning and routing in complex systems.
FAQ
Q1: How should the probe-to-shaft clearance be set?
A1: Use a feeler gauge to ensure the gap aligns with recommended specifications.
Q2: Can the probe maintain accuracy across different rotational speeds?
A2: Yes, the probe remains accurate within its rated speed range.
Q3: How to minimize electrical interference?
A3: Properly shield and ground the cable, and route it away from noise sources.
Q4: How can the probe’s operation be verified after installation?
A4: Conduct system self-tests and observe Keyphasor® pulses along with vibration signals.
Q5: Is the PPS tip suitable for all target shaft materials?
A5: Yes, it is compatible with standard steel and alloy targets.
Q6: How is Keyphasor® signal timing confirmed?
A6: Compare the pulse output to a reference signal under stable operating conditions.
Q7: Can the cable be extended beyond 9 meters?
A7: Extensions may affect signal quality; please contact us for guidance.
Q8: What do irregular or noisy signals indicate?
A8: Irregular pulses or noise spikes may point to issues with the probe, cable, or grounding.
Q9: Does replacing the probe require recalibration?
A9: No, 3300 XL probes are designed for plug-and-play operation.
Q10: How should signal anomalies be addressed?
A10: Verify the probe gap, cable integrity, and grounding; for technical assistance, please contact us.
