Product Introduction

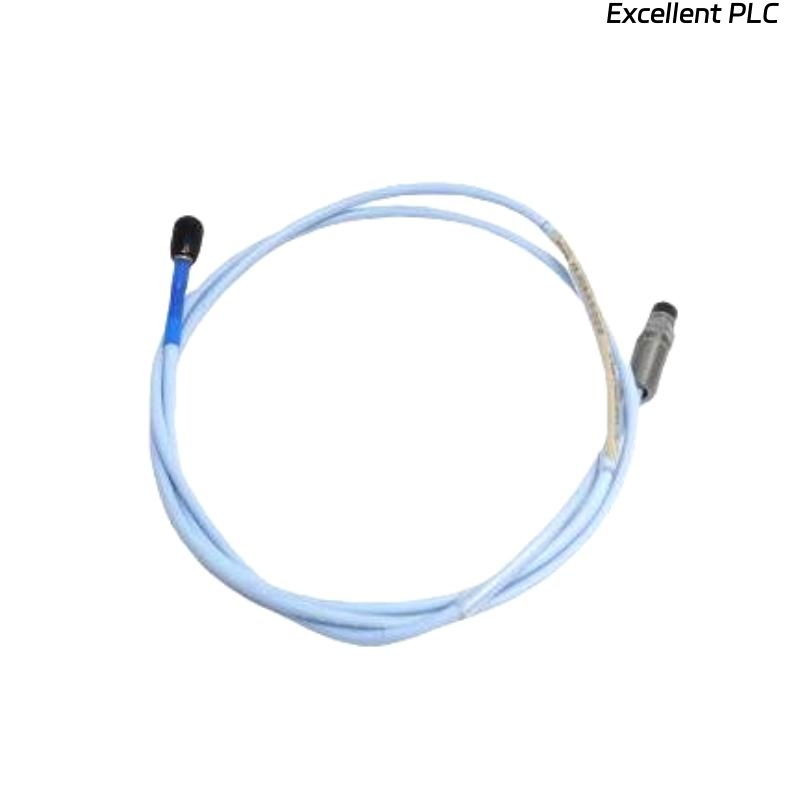

The Bently Nevada 330103-00-12-50-02-00, 3300 XL 8mm Proximity Probe is a high-precision sensor used for measuring shaft vibration and displacement in critical rotating machinery. It belongs to the widely adopted 3300 XL series, which has become a global standard for condition monitoring and machinery protection.
This probe provides consistent, reliable measurements in demanding environments. Designed to work together with extension cables and Proximitor sensors, it delivers accurate shaft position and vibration data to monitoring systems, supporting predictive maintenance strategies and protecting high-value assets from unexpected failures.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 330103-00-12-50-02-00 |
| Series | Bently Nevada 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 meters |
| Weight | 1.615 kg |
| Connector Type | Standard coaxial connector |
| Material | Corrosion-resistant housing and probe tip |
| Frequency Response | DC to 10 kHz (typical for displacement/vibration measurement) |
| Operating Temperature Range | –35 °C to +180 °C |
| Linear Measurement Range | Up to 2 mm (when paired with matching Proximitor) |
| Interchangeability | Fully interchangeable with other 3300 XL 8mm probes |
| Compliance | API 670 compliant |
Applications
The 330103-00-12-50-02-00 probe is widely used in industries where precise shaft monitoring is critical. Its typical applications include:
-
Monitoring radial vibration in turbines, compressors, and centrifugal pumps.
-
Measuring axial shaft position in large rotating equipment.
-
Integration into protection systems to prevent machine damage.
-
Condition monitoring for predictive maintenance programs.
-
Use in oil & gas, petrochemical, power generation, and heavy industrial sectors.
-
Long-cable installations where probes need to be routed at a distance from monitoring equipment.
Advantages
The Bently Nevada 3300 XL 8mm probe offers a series of benefits that make it a trusted solution for engineers and maintenance teams:
-
High Accuracy: Provides precise vibration and displacement data essential for safe machine operation.
-
Extended Cable Option: The 5 m cable length supports flexible installation in complex machinery layouts.
-
Wide Environmental Tolerance: Operates reliably across a broad temperature range and in corrosive atmospheres.
-
API 670 Compliance: Meets international standards for machinery protection systems.
-
Interchangeability: Designed for drop-in replacement with other 3300 XL probes without recalibration.
-
Robust Construction: Built with durable materials to withstand industrial wear, vibration, and thermal stress.
-
Proven Reliability: Part of the industry-standard Bently Nevada monitoring ecosystem.
FAQ
1. What is the recommended linear range of this probe?
The probe offers a typical linear range of up to 2 mm when used with the correct Proximitor sensor.
2. Does the 5 m cable length affect calibration?
No, as long as the probe, extension cable, and Proximitor are ordered and matched as a system, calibration is preserved.
3. Can the probe be used for both radial and axial measurements?
Yes, it can be installed for either radial shaft vibration monitoring or axial thrust position measurement.
4. How does the probe interface with the monitoring system?
It connects to an extension cable and Proximitor sensor, which converts displacement into a proportional voltage signal for monitoring modules.
5. What is the signal output characteristic?
It provides a voltage signal linearly proportional to the distance between the probe tip and the shaft surface.
6. Can the probe be used in hazardous or classified environments?
Yes, with proper installation and certified Proximitor systems, it is suitable for hazardous industrial zones.
7. What impact does probe tip size have on measurement?
The 8 mm probe tip is optimized for balance between measurement range and installation space, making it suitable for a wide range of machinery.
8. Does this probe require grounding or shielding?
Yes, proper grounding and shielding are required to minimize electrical noise and ensure accurate measurements.
9. How does temperature variation influence probe accuracy?
The probe is designed with thermal stability features, ensuring minimal drift across its –35 °C to +180 °C operating range.
10. Is the probe backward compatible with legacy Bently Nevada systems?
Yes, it is compatible with most existing 3300 and 3500 series monitoring systems, supporting legacy installations.
