Product Introduction

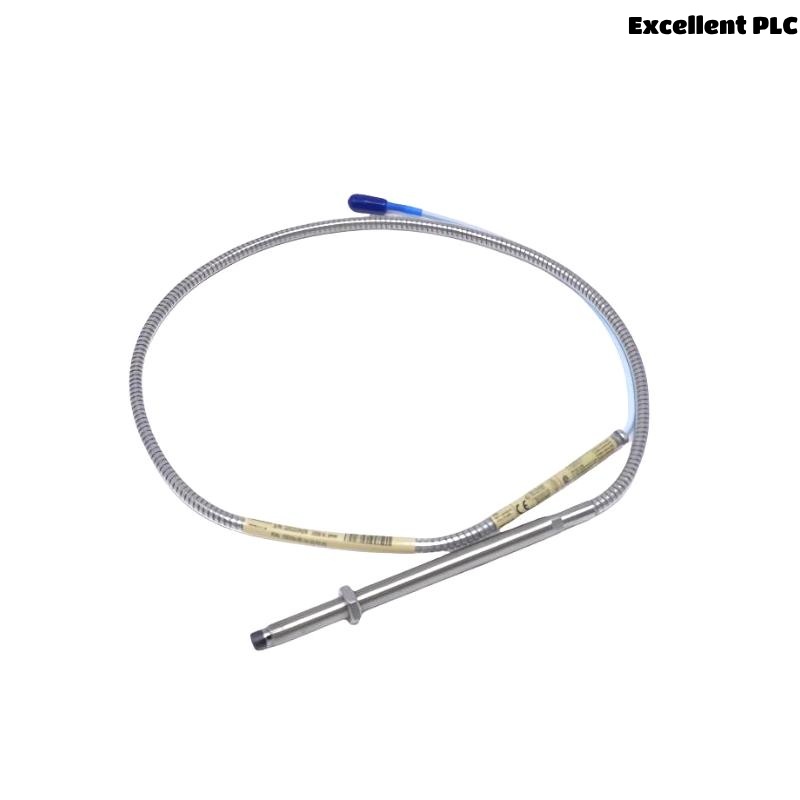

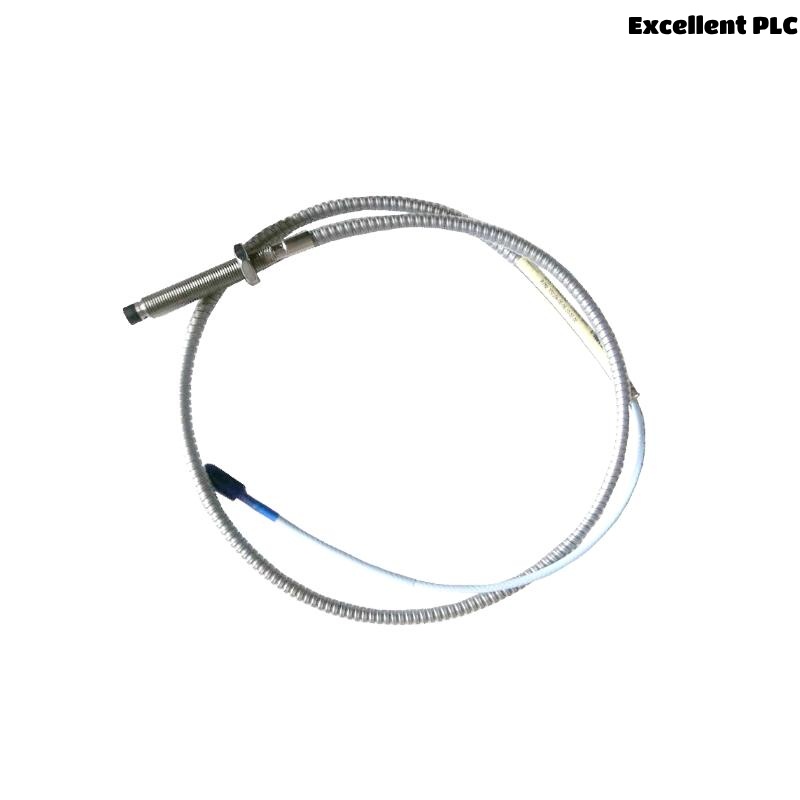

The Bently Nevada 330103-00-13-10-02-00 is an 8mm proximity probe from the well-established 3300 XL series. This probe is designed specifically for precision vibration and shaft displacement monitoring in industrial rotating machinery. It uses eddy current technology to provide non-contact measurement of shaft movement, which is critical for early detection of machinery faults such as imbalance, misalignment, and bearing wear.
With a robust construction and integrated 1 meter cable, this model is engineered for flexibility in installation while maintaining signal accuracy and reliability. The 3300 XL probes are favored worldwide in sectors like power generation, petrochemical plants, and heavy manufacturing for their proven performance in harsh environments.
This particular model balances durability and sensitivity, making it ideal for continuous, real-time condition monitoring to improve machine uptime and reduce maintenance costs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-13-10-02-00 |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Probe Type | Eddy current proximity probe |
| Operating Temperature Range | -40°C to +120°C |
| Probe Body Material | Stainless steel |
| Connector Type | Integral cable |
| Weight | 0.323 kg |
| Frequency Response | DC to 25 kHz |
| Measuring Range | Up to 1.5 mm (dependent on setup) |
| Electrical Interface | 2-wire shielded cable |
Applications
-
Steam and Gas Turbines: Monitoring rotor displacement to prevent critical failure.
-
Compressors: Detecting shaft vibrations and movement for early fault diagnosis.
-
Generators: Ensuring rotor stability and alignment.
-
Centrifugal Pumps: Monitoring shaft movement and vibration patterns.
-
Motors and Gearboxes: Providing condition feedback to reduce unplanned downtime.
-
Heavy Industrial Machinery: Critical for predictive maintenance in oil refineries, chemical plants, and paper mills.
Product Advantages
-
Precision Measurement: The 8mm probe tip enables accurate detection of small shaft movements.
-
Extended Cable Length: 1 meter of integrated cable allows flexible placement and easy routing in complex installations.
-
Robust Construction: Stainless steel housing protects against mechanical damage, dust, and moisture.
-
Wide Operating Temperature Range: Maintains stable performance in environments from -40°C up to +120°C.
-
Non-Contact Sensing: Eddy current technology means no physical wear on the sensor or shaft.
-
Reliable Signal Output: Designed to maintain signal consistency for dependable machine condition monitoring.
-
Low Maintenance Needs: Built for long service life with minimal calibration and servicing.
-
Proven Industry Standard: Trusted globally for critical machinery protection and predictive maintenance programs.
-
Easy Compatibility: Seamless integration with Bently Nevada 3300 series monitors and many other vibration monitoring systems.
Frequently Asked Questions (FAQ)
-
What does the Bently Nevada 330103-00-13-10-02-00 measure?
It measures the displacement and vibration of rotating shafts using non-contact eddy current technology. -
Is the 10-meter cable fixed or replaceable?
The cable is integral to the probe and not designed for replacement; custom lengths are available on request. -
Can this probe be used in extreme cold environments?
Yes, it operates reliably down to -40°C. -
What industries commonly use this probe?
Power generation, oil & gas, petrochemical, manufacturing, and pulp & paper industries. -
What is the typical measuring range of this probe?
Up to 1.5 mm depending on system configuration. -
How does the probe connect to monitoring equipment?
Through a two-wire shielded cable designed for compatibility with Bently Nevada 3300 series and other monitors. -
Is this probe resistant to environmental contaminants?
The stainless steel housing offers good resistance to dust, moisture, and mild chemical exposure. -
How often should the probe be inspected or replaced?
Regular inspections during scheduled maintenance are recommended; probe lifespan depends on operating conditions. -
Can this probe detect axial and radial vibrations?
Yes, installation orientation and the number of probes determine the vibration direction detected. -
What makes the 3300 XL series better than other proximity probes?
The 3300 XL series is recognized for high reliability, long service life, and industry-wide acceptance in critical machinery monitoring.
Recommended Related Models (Same Series or Similar)
| Model Number | Probe Tip Diameter | Cable Length | Notes |
|---|---|---|---|
| 330103-00-13-05-02-00 | 8 mm | 5 meters | Standard cable length |
| 330103-00-13-20-02-00 | 8 mm | 20 meters | Extended cable length |
| 330103-00-11-05-02-00 | 5 mm | 5 meters | Smaller tip for tighter spaces |
| 330103-00-13-05-03-00 | 8 mm | 3 meters | Short cable for compact areas |
| 330103-00-12-10-02-00 | 12 mm | 10 meters | Larger tip for heavy equipment |
| 330103-00-13-10-03-00 | 8 mm | 10 meters | Alternate cable configuration |
Popular Bently Nevada Models (Same Brand)
| Model Number | Description | Application |
|---|---|---|
| 330130-00-40-00-00-00 | 3300 XL Monitor | Vibration and proximity monitoring system |
| 330103-00-12-10-02-CN | 8 mm probe, 10m cable | Heavy industrial use |
| 330108-00-04-05-02-00 | 5 mm probe, 5m cable | General machinery monitoring |
| 330090-00-03-05-00-00 | Replacement sensor cable | Replacement parts |
| 330199-00-01-00-00-00 | Proximitor Sensor Module | Signal conditioning |
| 330103-00-13-05-02-01 | 8 mm probe, 5m cable with temp rating | High-temperature applications |
