Product Introduction

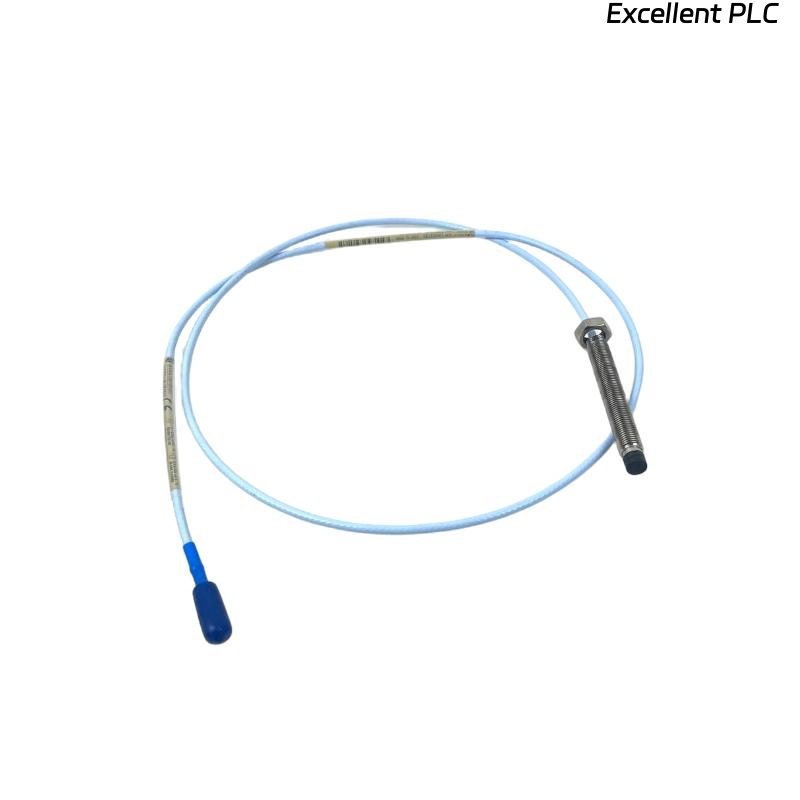

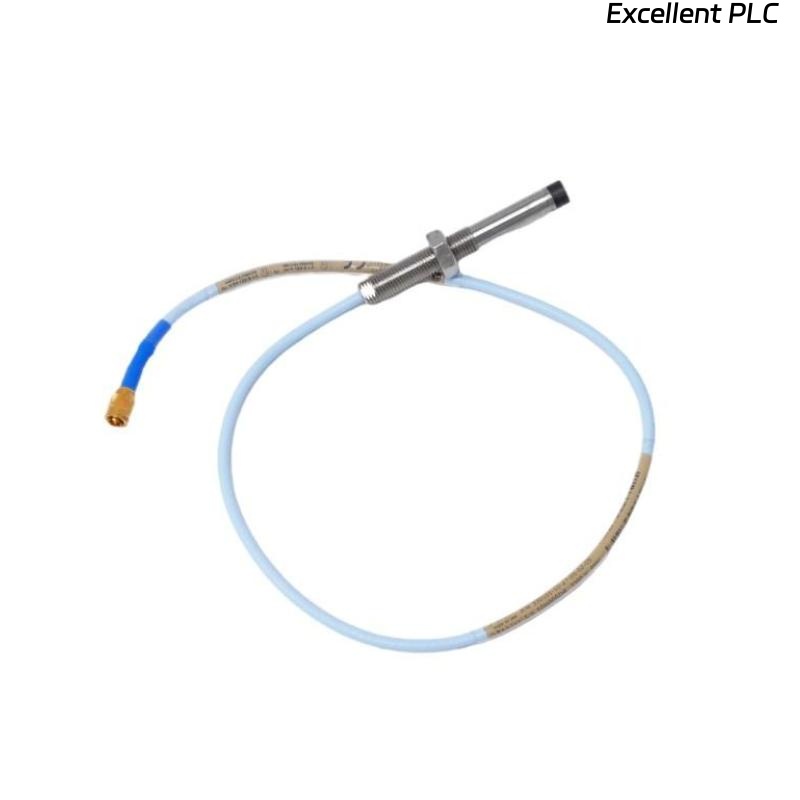

The Bently Nevada 330103-00-14-05-02-05 3300 XL 8mm Proximity Probe is a high-performance sensor specifically designed for precise vibration and displacement measurement in rotating machinery. As part of the renowned 3300 XL series, it provides outstanding stability, accuracy, and reliability in harsh industrial environments. This probe works seamlessly with proximity sensor systems, delivering continuous, real-time monitoring that ensures operators can detect mechanical issues before they escalate into costly failures.
The 3300 XL 8mm probe is engineered to maintain superior linearity and measurement accuracy across a wide range of operating conditions. With advanced shielding against electromagnetic interference and robust construction for long-term durability, it is ideal for critical machinery such as turbines, compressors, and pumps.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Model | 330103-00-14-05-02-05 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 meters |
| Weight | 1.615 kg |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Range | DC to 10 kHz |
| Linear Range | 2 mm (80 mils) typical |
| Nominal Gap | 2 mm (80 mils) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Compatibility | Works with 3300 XL Proximitor® Sensors and Cables |
| Insulation Resistance | > 10 MΩ |
| Shock Tolerance | 500 g, 1 ms half-sine |
| Vibration Tolerance | 10 g, 10–2000 Hz |
| Material | Corrosion-resistant stainless steel housing |
Product Applications
The 330103-00-14-05-02-05 probe plays a vital role in condition monitoring and machinery protection. Its applications include:
-
Turbomachinery monitoring: Provides real-time measurement of shaft vibration and position.
-
Compressors and pumps: Ensures reliable operation by detecting imbalance, misalignment, or mechanical looseness.
-
Generators and motors: Helps identify electrical or mechanical anomalies affecting rotor dynamics.
-
Industrial process equipment: Improves uptime in oil & gas, petrochemical, and power generation industries.
-
Predictive maintenance programs: Supports data collection for trend analysis and long-term performance assessment.
Product Advantages
-
High Accuracy and Stability: Maintains precise measurement even under fluctuating environmental and operating conditions.
-
Wide Compatibility: Fully integrates with 3300 XL monitoring systems and Proximitor® sensors.
-
Robust Design: Resistant to shock, vibration, and extreme temperatures.
-
Reliable Performance: Designed for continuous operation in mission-critical equipment.
-
Noise Immunity: Excellent shielding reduces susceptibility to electromagnetic interference.
-
Ease of Installation: Simplified mounting and cable connection for reduced downtime.
FAQ
1. What is the sensitivity of the 330103-00-14-05-02-05 probe?
The probe has a sensitivity of 200 mV/mil (7.87 mV/μm).
2. Can this probe operate in high-temperature environments?
Yes, it supports operating temperatures from -35 °C to +180 °C.
3. What frequency range does this probe support?
It operates from DC to 10 kHz.
4. Is it compatible with other Bently Nevada Proximitor® sensors?
Yes, it is fully compatible with 3300 XL Proximitor® sensors and extension cables.
5. How does it handle electromagnetic interference?
The probe is designed with advanced shielding to minimize EMI effects.
6. What is the linear measurement range of this probe?
It has a linear range of approximately 2 mm (80 mils).
7. Can this probe be used in high-vibration environments?
Yes, it can withstand vibration levels up to 10 g in the 10–2000 Hz range.
8. What industries commonly use this probe?
It is widely used in oil & gas, petrochemical, power generation, and heavy industry.
9. How does this probe ensure long-term reliability?
It is built with corrosion-resistant materials and designed to endure harsh conditions without performance degradation.
10. Does the probe require calibration after installation?
Yes, calibration with its matching Proximitor® sensor is recommended to ensure accuracy.
Recommended Related Models (Same Series)
| Model Number | Description |
|---|---|
| 330103-00-12-05-12-00 | 3300 XL 8mm Proximity Probe, 0.5 m length |
| 330103-00-12-50-02-00 | 3300 XL 8mm Proximity Probe, 5 m length |
| 330103-00-13-10-12-RU | 3300 XL 8mm Proximity Probe, 1 m length |
| 330103-00-13-50-12-RU | 3300 XL 8mm Proximity Probe, 5 m length |
| 330103-00-14-05-02-05 | 3300 XL 8mm Proximity Probe, 5 m length |
| 330103-00-14-10-05-00 | 3300 XL 8mm Proximity Probe, extended specifications |
