Product Introduction

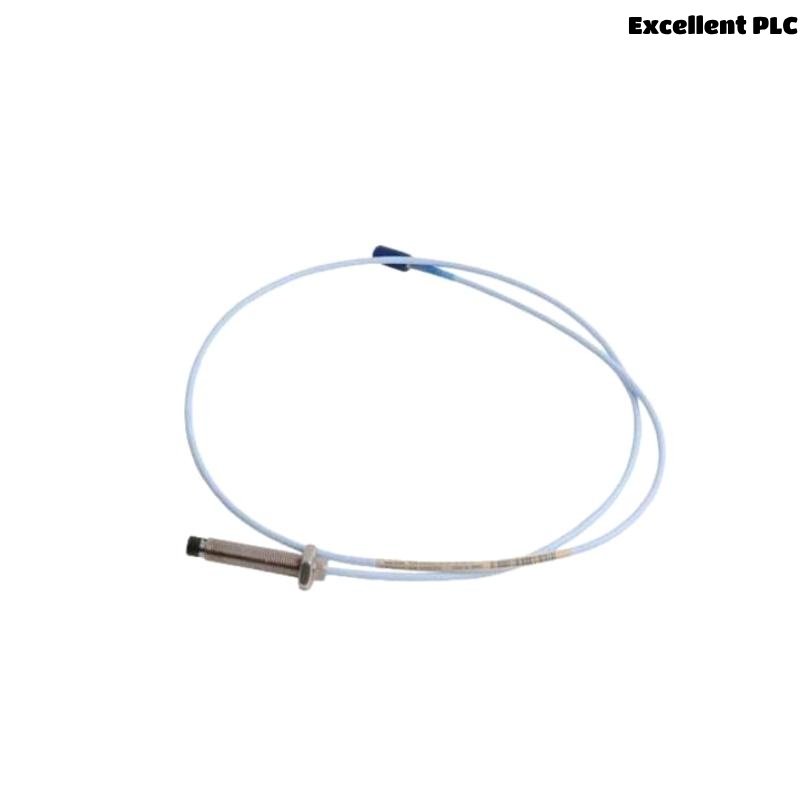

The Bently Nevada 330103-00-16-10-02-05 is part of the industry-standard 3300 XL 8mm Proximity Transducer System, designed and manufactured by Bently Nevada, a globally recognized leader in condition monitoring and machinery protection systems. This particular probe is engineered to offer highly reliable, accurate, and durable performance in demanding industrial environments, especially in rotating machinery applications such as turbines, compressors, pumps, and motors.
The 330103-00-16-10-02-05 model represents a with a 1.0 meter total length and a Proximitor Sensor, all tailored to the API 670 standard and optimized for ruggedness, electrical integrity, and long-term stability. The 3300 XL Proximity Probe System is fully interchangeable and compatible with other Bently Nevada monitoring systems, ensuring flexible integration into a variety of setups.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-16-10-02-05 |
| Series | 3300 XL 8mm Proximity Probe System |
| Manufacturer | Bently Nevada |
| Sensing Principle | Eddy Current (non-contact measurement) |
| Target Material | Ferromagnetic (typically 4140 steel or similar) |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Body Thread Type | 3/8-24 UNF-2A |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Frequency Response | Up to 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25 V over the linear range |
| Standard Compliance | API 670, CE, RoHS |
| Mounting Thread Options | 3/8-24 UNF, M10x1, or customer-specified |
| Connector Type | ClickLoc™ Keyed Connector (for secure locking) |
| System Compatibility | Compatible with 3300 XL Proximitor sensors and other Bently Nevada systems |
Applications
The 330103-00-16-10-02-05 proximity probe is primarily utilized in applications requiring precision, high reliability, and rugged performance under extreme environmental and mechanical conditions. Typical use cases include:
-
Steam, gas, and hydro turbines
-
Centrifugal and axial compressors
-
Electric motors and large industrial fans
-
Gearboxes and generators
-
Reciprocating machinery monitoring
-
Predictive and preventive maintenance systems
-
API 670 compliant machine protection systems
-
OEM machine building and retrofit projects
Its robust design and superior signal integrity make it ideal for both vibration monitoring and shaft position measurements, particularly in high-speed or critical rotating equipment.
Product Advantages
-
High Accuracy and Sensitivity: Delivers consistent 7.87 mV/μm sensitivity across the measurement range.
-
Robust Design: Engineered for harsh environments with high temperatures and vibration levels.
-
API 670 Compliance: Meets strict industry standards, making it ideal for safety-critical installations.
-
ClickLoc™ Connector System: Ensures secure and error-free connections, minimizing signal loss.
-
Full System Compatibility: Seamless integration with all Bently Nevada 3300 series systems.
-
Corrosion-Resistant Materials: Long-lasting performance in corrosive industrial environments.
-
Field Proven Reliability: Installed globally across industries for decades with strong performance track records.
-
Ease of Installation: Multiple mounting options, flexible cable lengths, and interchangeable sensor heads.
Frequently Asked Questions (FAQ)
-
Q: What does the model number 330103-00-16-10-02-05 signify?
A: It indicates the 3300 XL 8mm probe with a 1.0 meter total length, and specified connector/mounting thread options. -
Q: Is this proximity probe compatible with older Bently Nevada systems?
A: Yes, the 3300 XL series is designed for backward compatibility with legacy systems. -
Q: What is the typical linear range of this probe?
A: The linear range is approximately 2 mm (80 mils) for standard applications. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it supports continuous operation up to 177°C (350°F). -
Q: What is the function of the Proximitor sensor in the system?
A: It conditions the raw signal from the probe and converts it into a standardized output for monitoring systems. -
Q: Does it support vibration and axial position measurements?
A: Yes, it is suitable for both radial vibration and axial position monitoring. -
Q: What industries typically use this probe?
A: Power generation, oil & gas, petrochemical, pulp & paper, and mining industries. -
Q: How do I ensure proper mounting depth?
A: A thread-matching probe driver tool is used to maintain proper insertion depth and spacing. -
Q: Are custom lengths or thread types available?
A: Yes, Bently Nevada supports customer-specific configurations for cable length and mounting threads. -
Q: Is field calibration required?
A: Typically no, as the system is pre-calibrated; however, calibration may be required in certain regulatory environments.
Related Models from the Same Series
| Model Number | Cable Length | Description |
|---|---|---|
| 330103-00-05-10-02-00 | 5 ft | Standard 8mm probe with 5 ft cable and no extension |
| 330103-00-10-10-02-00 | 10 ft | 8mm probe with 10 ft cable, no extension |
| 330103-00-20-10-02-00 | 20 ft | Extended 8mm probe for long-reach installations |
| 330104-00-12-10-02-05 | 12 ft | Alternative length version with full Proximitor set |
| 330130-040-00-00 | N/A | Extension cable for 3300 XL 8mm systems |
| 330180-91-05 | N/A | Proximitor sensor module for 3300 XL 8mm systems |
Popular Models from the Same Brand (Bently Nevada)
| Model Number | Product Type | Key Feature |
|---|---|---|
| 3500/22M | System Interface Module | TDI module for 3500 monitoring systems |
| 3500/42M | Vibration Monitor Module | 4-channel monitor for proximity or velocity |
| 330180-50-05 | Proximitor Sensor | Standard 8mm proximitor sensor |
| 330106-05-30-10-02-00 | 5mm Proximity Probe | Shorter tip for smaller installation spaces |
| 330400-01-05 | Velocity Sensor | For casing vibration monitoring |
| 146031-01 | Power Supply for 3500 Series | Delivers stable power to Bently Nevada racks |
