Product Description

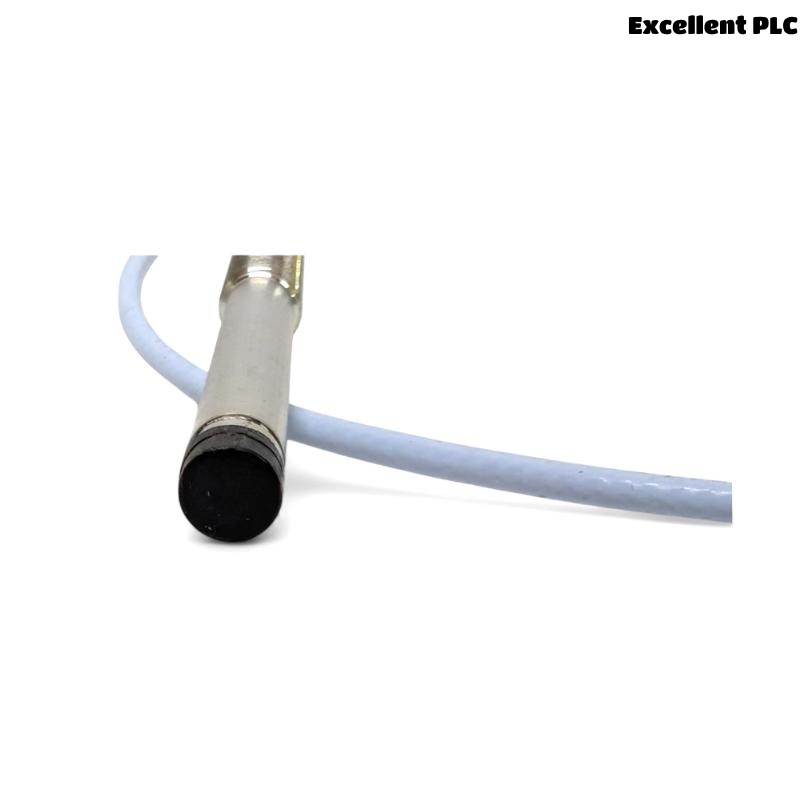

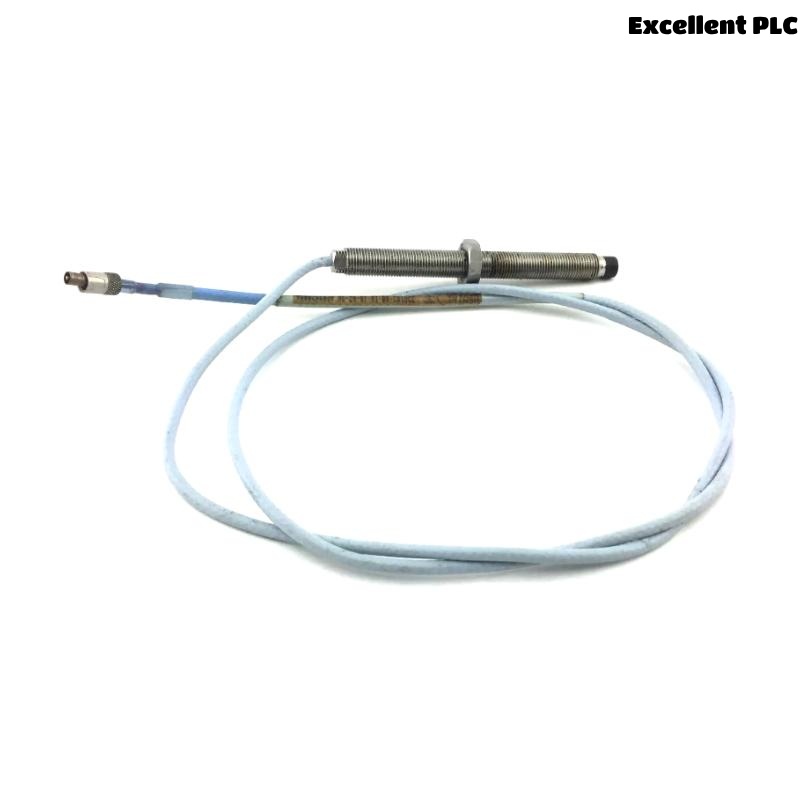

The Bently Nevada 330103-00-17-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is designed for measuring static and dynamic displacements on rotating machinery. With robust construction, high temperature tolerance, and advanced RFI immunity, it ensures reliable performance in harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-17-10-02-05 |
| Thread | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Temperature Range | -52°C to +177°C (standard) |
| Frequency Response | 0 to 10 kHz |
| Minimum Target Diameter | 15.2 mm |
| Shaft Diameter (recommended) | ≥76.2 mm |
| Output Sensitivity | 200 mV/mil ±5% |
| Housing Material | Stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Gold-plated ClickLoc |
Applications
-
Vibration and position monitoring on fluid-film bearing machines
-
Shaft displacement and eccentricity measurements
-
Keyphasor speed and phase reference detection
-
Overspeed protection systems
-
High-density and hazardous area installations
Advantages
-
Fully API 670 compliant
-
Backward compatible with non-XL 3300 systems
-
ClickLoc connectors prevent loosening
-
Excellent RFI/EMI immunity for reduced installation cost
-
Robust mechanical design with enhanced pull strength
-
Optional FluidLoc prevents oil ingress
-
Extended temperature range versions available
FAQ
Q1: What is the primary use of this probe?
A1: It measures vibration and shaft position on rotating machinery.
Q2: Can it be installed in hazardous areas?
A2: Yes, it has ATEX, IECEx, and CSA approvals for hazardous environments.
Q3: Is the probe interchangeable with older 3300 series?
A3: Yes, it is backward compatible both electrically and mechanically.
Q4: What is the recommended gap setting?
A4: Approximately 1.27 mm (50 mils) at -9 Vdc.
Q5: Does it require calibration for different metals?
A5: Standard calibration is for AISI 4140 steel; other materials require recalibration.
Q6: What temperature can it withstand?
A6: Standard probes operate up to +177°C; extended versions up to +218°C.
Q7: Are special tools needed for installation?
A7: No, thanks to ClickLoc connectors, installation is tool-free.
Q8: How long is the cable on this model?
A8: This model includes a 1.0 meter cable.
Q9: What is the linear measurement range?
A9: 2 mm (80 mils).
Q10: Does it comply with API 670?
A10: Yes, fully compliant with API 670 mechanical and performance standards.
