Product Description

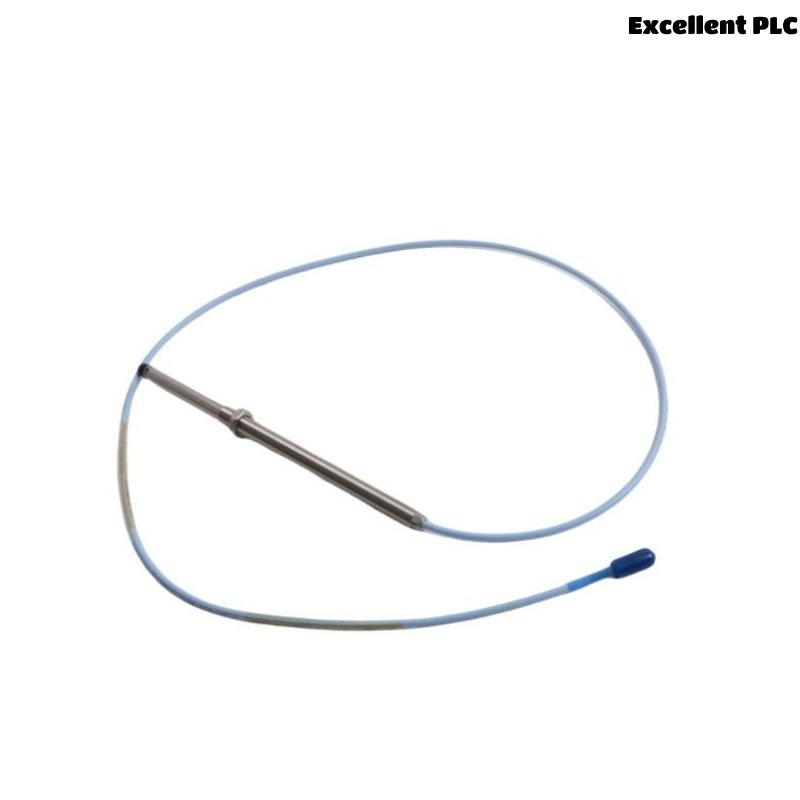

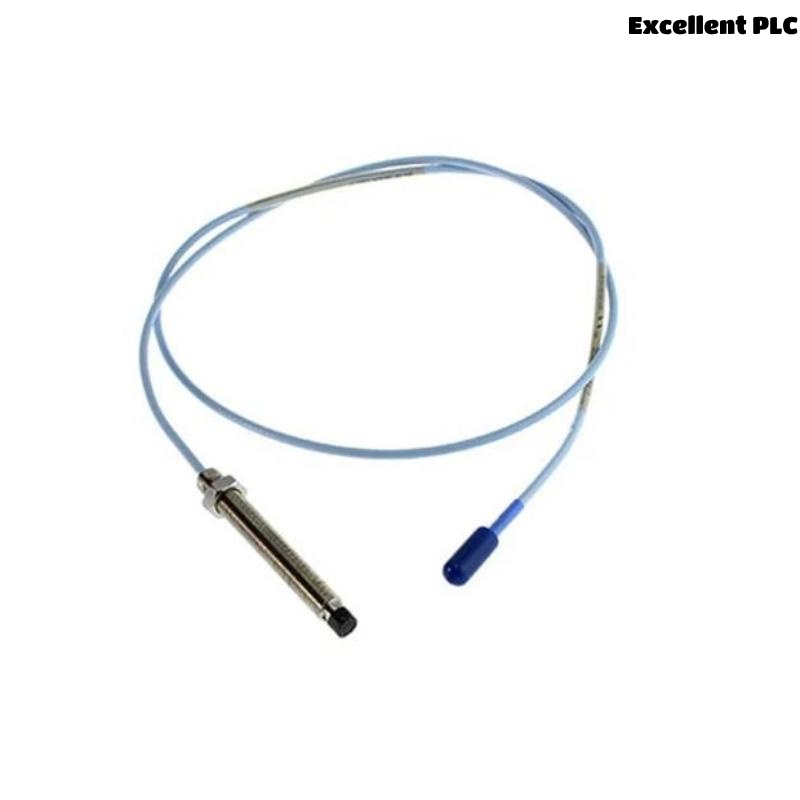

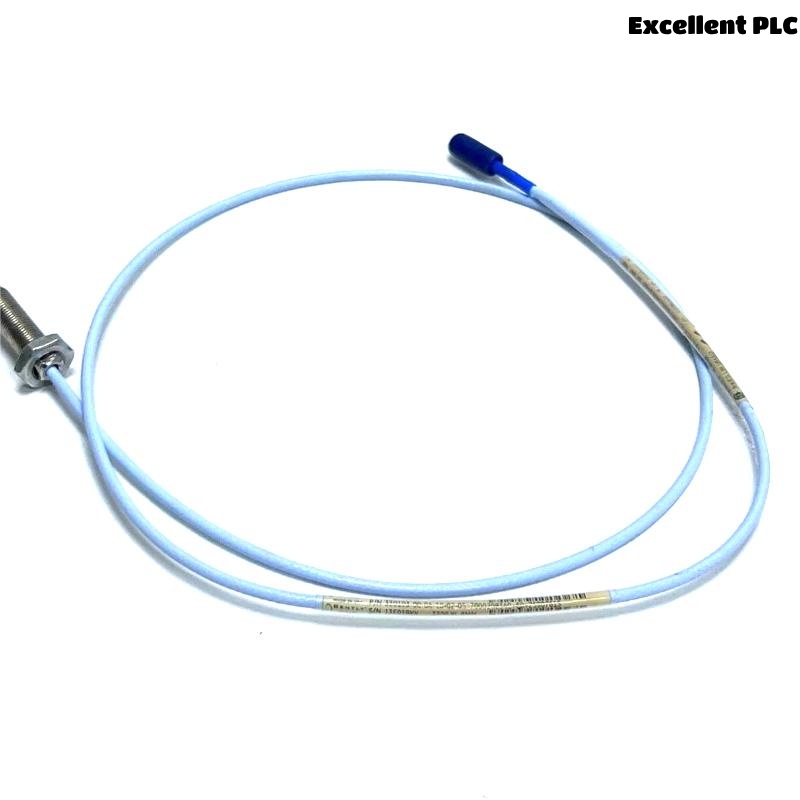

The Bently Nevada 330103-00-18-05-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is a high-performance probe used for measuring shaft vibration and position on rotating machinery. It works with a matching extension cable and Proximitor Sensor, delivering precise, non-contact measurement for both static and dynamic applications. This model features M10 x 1 thread, 0.5-meter length, and robust design optimized for fluid-film bearing machines.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330103-00-18-05-02-05 |
| Thread Type | M10 x 1 |

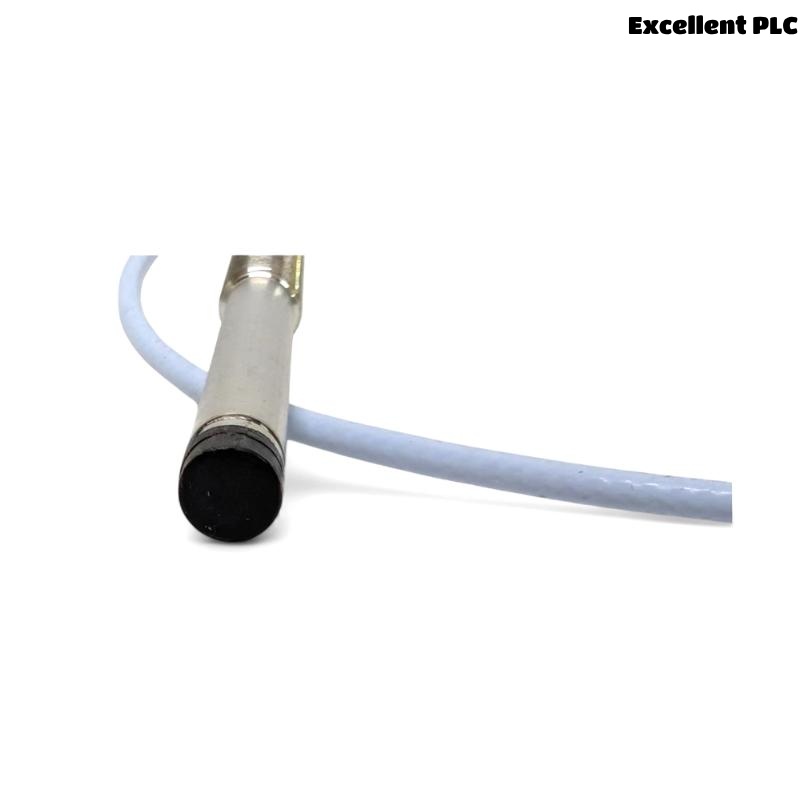

| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) @ –9 Vdc |
| Operating Temperature | –52°C to +177°C (Standard); up to +218°C (ETR version) |
| Pressure Sealing | Viton® O-ring (not pressure-tested by default) |
| Connector Type | Miniature coaxial ClickLoc (finger-tight installation) |
| Cable Type | 75 Ω triaxial with FEP insulation |
| Pull Strength | 330 N (probe tip to body) |
| Environmental Rating | IP54 (when mounted properly) |
| Certification | CSA, ATEX, IECEx, SIL 2/3 (with appropriate system design) |
Applications
-
Shaft vibration monitoring
-
Radial and axial position measurement
-
Keyphasor® reference signal generation
-
Overspeed and speed measurement
-
Turbine, compressor, motor, and pump monitoring
-
Fluid-film bearing equipment diagnostics
Product Advantages
-
Full API 670 Compliance
Meets linearity, accuracy, and mechanical configuration standards. -
High Interchangeability
Compatible with XL and non-XL 3300 8 mm components; no recalibration needed. -
Robust Design
TipLoc and CableLoc ensure strong connections and high durability. -
Extended Temperature Options
Optional ETR probe and cables support up to 260°C for demanding environments. -
Simple Installation
ClickLoc connectors and SpringLoc terminals reduce setup time and complexity.
FAQ
Q1: What is the primary use of the 330103-00-18-05-02-05 probe?
A1: It is used for precise vibration and position monitoring in rotating machines with fluid-film bearings.
Q2: Is this probe compatible with older 3300 systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does it require recalibration when replacing a component?
A3: No, all components are factory-matched and interchangeable.
Q4: What shaft sizes is it suitable for?
A4: Minimum shaft diameter recommended is 50.8 mm, with optimal performance above 76.2 mm.
Q5: Can it be used in hazardous areas?
A5: Yes, with proper installation per certified drawings, it meets hazardous area standards.
Q6: What type of connector is used?
A6: Gold-plated miniature ClickLoc coaxial connectors.
Q7: What is the operating temperature range?
A7: Standard probe: –52°C to +177°C; ETR probe: up to +218°C (tip) and +260°C (cable).
Q8: How is the probe protected against oil leaks?
A8: Optional FluidLoc cable prevents fluid ingress through the cable.
Q9: Is it suitable for high-density DIN installations?
A9: Yes, the Proximitor Sensor can be DIN-rail mounted for compact setups.
Q10: What environmental protection does it offer?
A10: When installed with protectors, it provides IP54 protection and resists EMI/RFI interference.
Related Series Models
| Model Number | Thread Type | Cable Length | Features |
|---|---|---|---|
| 330103-00-04-10-02-00 | M10 x 1 | 1.0 m | Standard, unarmored |
| 330104-00-06-10-02-00 | M10 x 1 | 1.0 m | Armored version |
| 330105-02-12-05-02-00 | 3/8-24 UNF | 0.5 m | Reverse mount, unarmored |
| 330106-05-30-10-02-00 | M10 x 1 | 1.0 m | Reverse mount, unarmored |
| 330191-00-20-05-02-00 | 3/8-24 UNF | 0.5 m | Extended temperature probe |
| 330193-00-20-05-02-00 | M10 x 1 | 0.5 m | Metric ETR probe, unarmored |
Popular Bently Nevada Models
| Model Number | Description | Application |
|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe with armor (M10 x 1) | Harsh environment vibration sensing |
| 330130-045-00-00 | Extension Cable 4.5 m | Extends signal to Proximitor sensor |
| 330180-50-05 | Proximitor Sensor 5 m, panel mount | Signal processing for probe |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Machine condition monitoring |
| 3500/22M | Transient Data Interface Module | Data communication in 3500 system |
| 330500 | Velocity Transducer | Low-frequency vibration measurement |
