Product Description

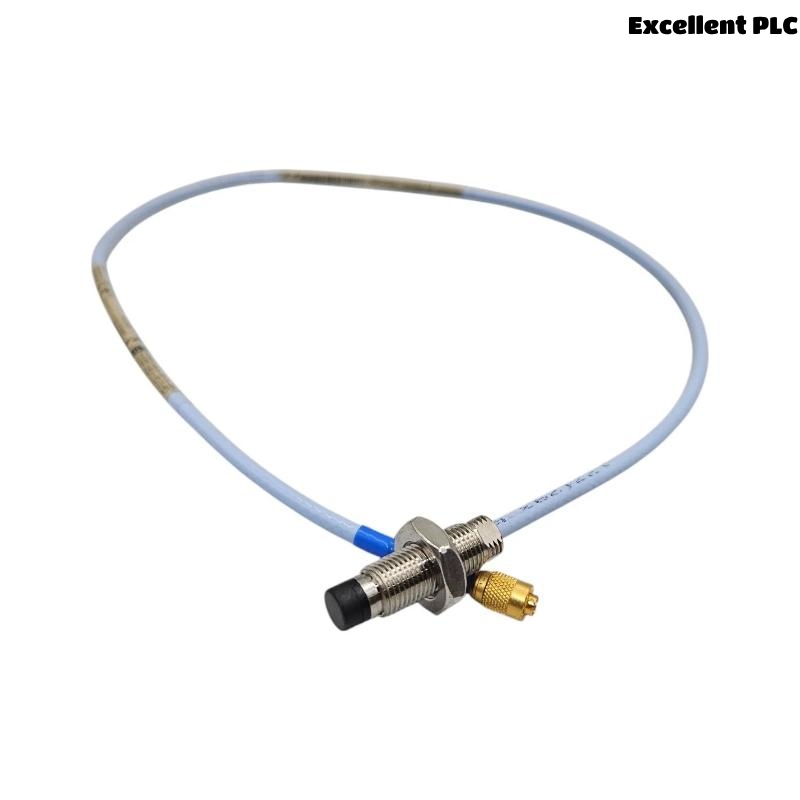

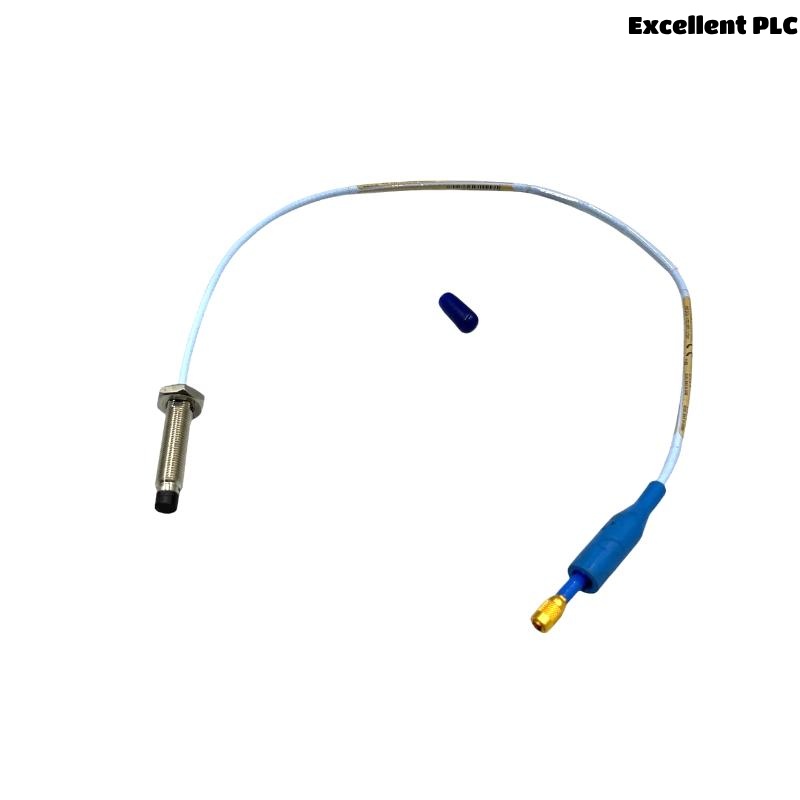

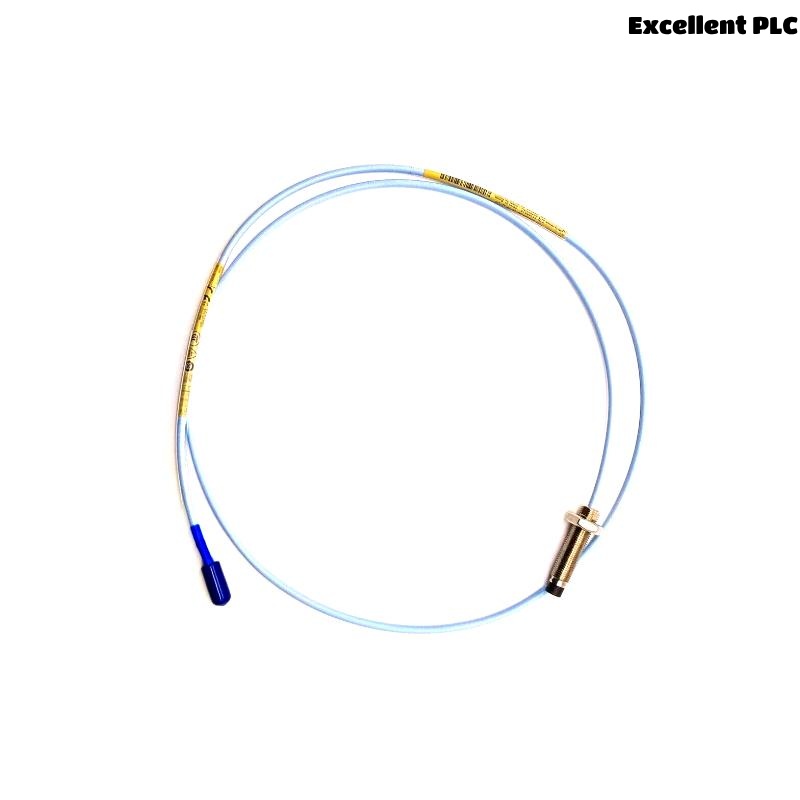

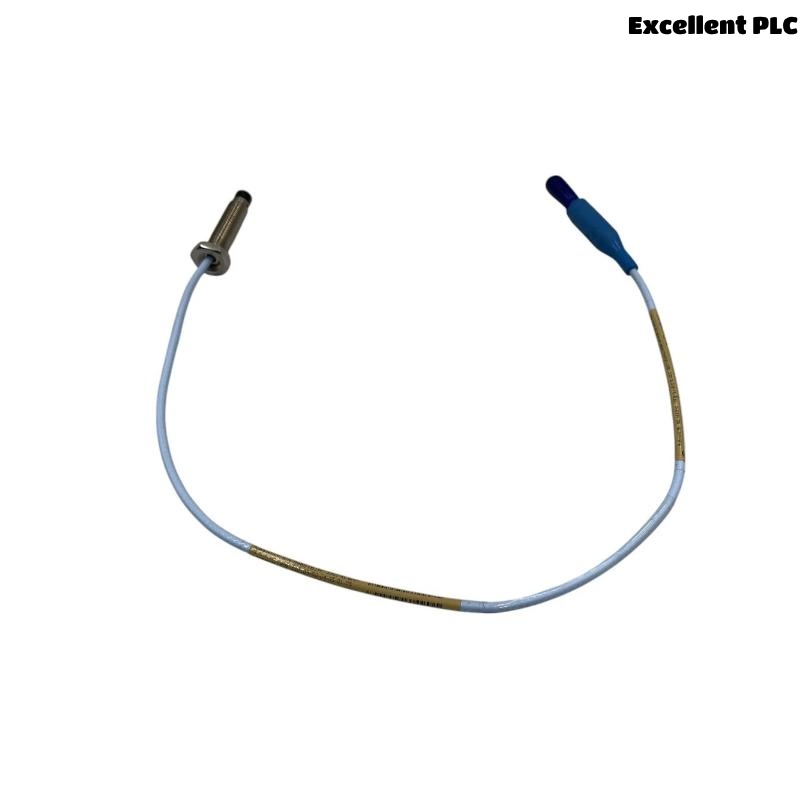

The Bently Nevada 330103-00-19-10-12-00 is part of the 3300 XL 8 mm Proximity Transducer System. This probe measures static and dynamic displacements (position and vibration) of rotating machinery, and is widely used in fluid-film bearing machines for vibration monitoring and Keyphasor speed reference. It meets API 670 standards, ensuring high performance, reliability, and full interchangeability among system components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Thread Type | M10 x 1 metric thread |
| Total Length | 1.0 meter (3.3 feet) |
| Weight | Approx. 0.323 kg (11.4 oz) |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Minimum Shaft Diameter | 50.8 mm (2 inches), recommended ≥76.2 mm (3 in) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Connector | Miniature coaxial ClickLoc, gold-plated |
Applications
-
Vibration and position monitoring in turbines, compressors, and pumps.
-
Shaft position and runout measurements.
-
Keyphasor reference signal generation.
-
Suitable for harsh industrial environments.
Advantages
-
Meets API 670 requirements for critical machinery.
-
High immunity to RFI/EMI, suitable for fiberglass housings.
-
SpringLoc terminals enable easy, tool-free wiring.
-
ClickLoc connectors provide secure, tool-free assembly.
-
Interchangeable with non-XL 3300-series components.
FAQ
Q1: What is the primary use of this proximity probe?
A1: It measures vibration and position of rotating machinery shafts.
Q2: Does this probe meet API 670 requirements?
A2: Yes, it fully complies with API 670 standards.
Q3: Can it operate in high temperatures?
A3: Yes, up to +177°C with standard cables, higher with ETR options.
Q4: What is the recommended shaft diameter for optimal performance?
A4: At least 76.2 mm (3 inches) is recommended.
Q5: Is the probe compatible with older Bently Nevada systems?
A5: Yes, it is backward compatible with 3300-series components.
Q6: Does it require special tools for connector assembly?
A6: No, ClickLoc connectors are finger-tight.
Q7: What is the output sensitivity?
A7: 7.87 V/mm (200 mV/mil) ±5%.
Q8: How is the environmental protection ensured?
A8: With corrosion-resistant materials and optional connector protectors.
Q9: Can it be used in hazardous areas?
A9: Yes, with appropriate agency-approved configurations.
Q10: Is the calibration material adjustable?
A10: Yes, it can be factory-calibrated to different target materials if needed.
Related Models (Same Series or Compatible)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-05 | 3300 XL 8 mm Probe, UNF thread | 0.5 m | ~0.25 kg |
| 330102-00-08-10 | 3300 XL 8 mm Probe, UNF thread, armored | 1.0 m | ~0.33 kg |
| 330104-00-06-10 | 3300 XL 8 mm Probe, M10x1, armored | 1.0 m | ~0.34 kg |
| 330105-02-12-10 | 3300 XL 8 mm Reverse Mount Probe | 1.0 m | ~0.32 kg |
| 330193-00-10-50 | 3300 XL 8 mm ETR Probe, M10x1 thread | 5.0 m | ~0.50 kg |
| 330140-00-20-90 | 3300 XL 8 mm Smooth Case Probe | 9.0 m | ~0.70 kg |
Popular Bently Nevada Models
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 3300/42M | Proximitor Seismic Monitor | Vibration Monitoring | ~0.8 kg |
| 3500/22M | Transient Data Interface Module | Data Acquisition | ~1.1 kg |
| 3500/25 | Keyphasor Module | Speed/Phase Monitoring | ~0.9 kg |
| 3500/32M | 4-Channel Relay Module | Machinery Protection | ~0.7 kg |
| 3300/16 | Dual Vibration Monitor | Vibration/Position | ~0.8 kg |
| 3500/33 | Temperature Monitor | Thermal Monitoring | ~0.85 kg |
