Product Overview

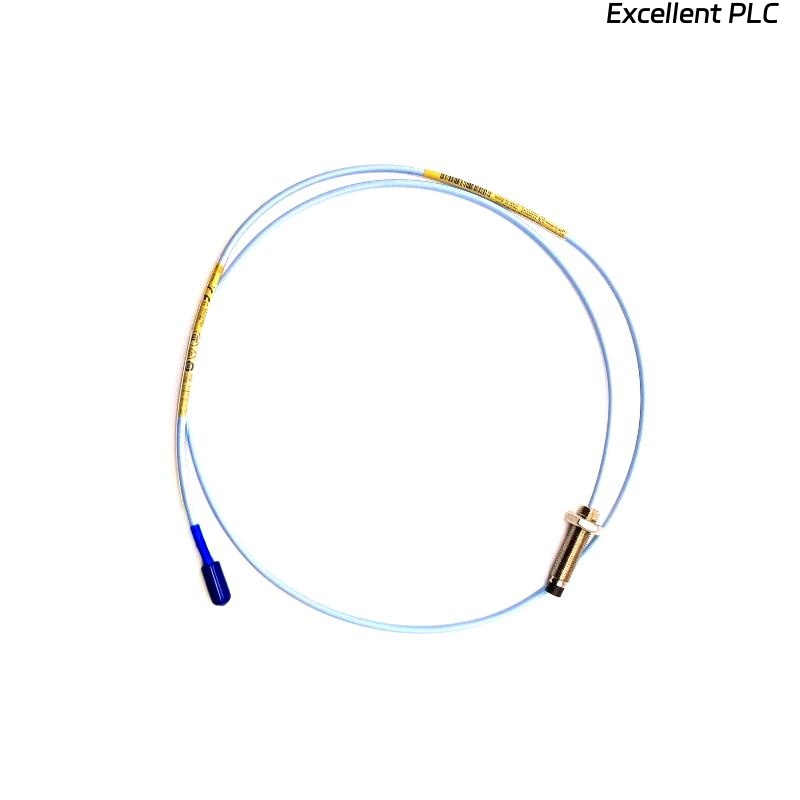

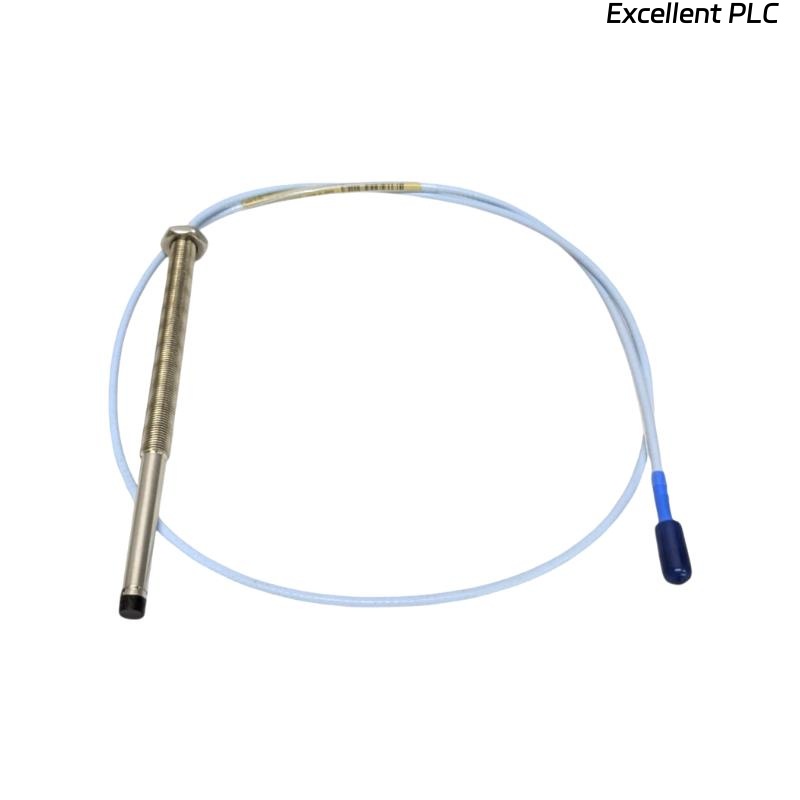

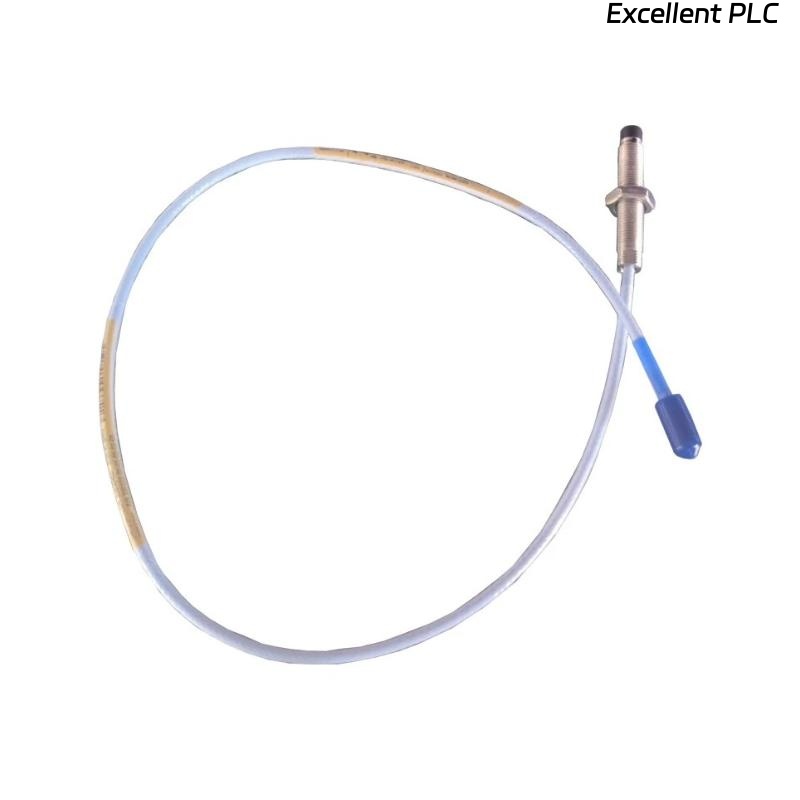

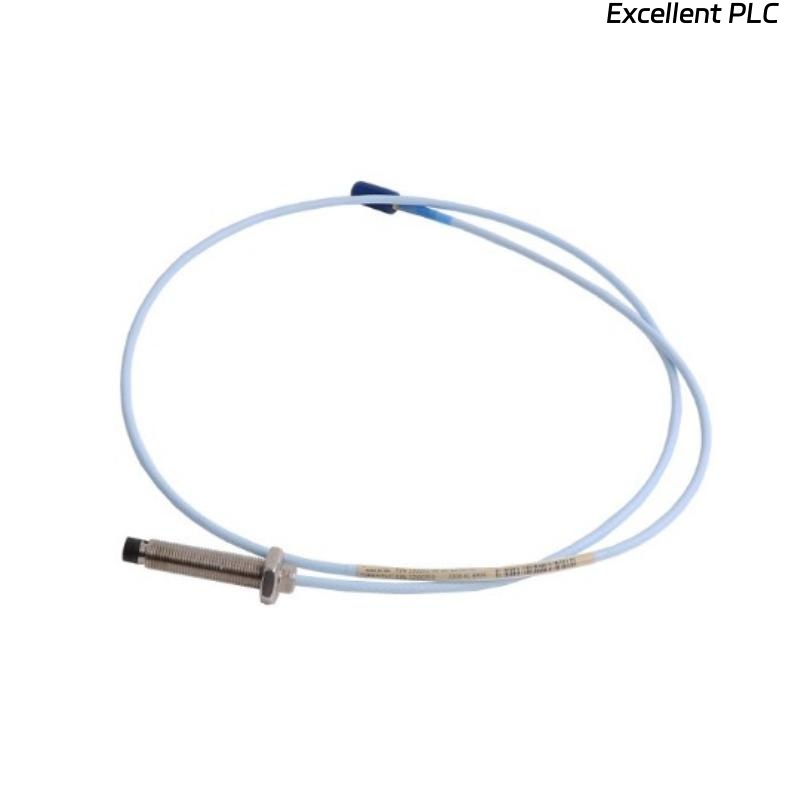

The Bently Nevada 330103-00-22-10-02-00 is an 8 mm eddy current proximity probe designed for precise non-contact measurement of shaft position and vibration in critical rotating machinery. It is a core component of the 3300 XL Proximity Transducer System, widely used in industrial turbines, compressors, pumps, and other high-speed machinery. This probe ensures reliable performance even in harsh operational environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Eddy Current Proximity Probe |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard cable |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Temperature Range | +18°C to +27°C (+64°F to +80°F) |
| Power Supply | -24 Vdc |
| Load Resistance | 10 kΩ |
| Target Material | AISI 4140 Steel |
| Gap Setting | 1.27 mm (50 mils) |
Applications
-
Power Generation: Turbines and generators
-
Oil & Gas: Compressors and pumps
-
Manufacturing: Rotating equipment monitoring
-
Chemical Processing: Critical rotating machinery vibration monitoring
Advantages
-
High-precision, non-contact shaft displacement measurement
-
Robust and durable for harsh industrial conditions
-
Interchangeable components with backward compatibility in 3300 series
-
Accurate and repeatable vibration monitoring
-
Easy integration with existing 3300 XL systems
FAQ
1. What is the sensing principle of this probe?
It operates using eddy current technology to measure shaft displacement and vibration without contact.
2. What is the recommended target material?
The probe is optimized for AISI 4140 steel targets.
3. Can it operate at high temperatures?
Its standard operating temperature is +18°C to +27°C; extended ranges require specialized versions.
4. What is the gap setting for accurate measurement?
The probe is calibrated with a gap of 1.27 mm (50 mils).
5. What is the total length and weight of the probe?
Total length is 1.0 meter, and the weight is 0.323 kg.
6. Is it compatible with older 3300 series components?
Yes, it maintains backward compatibility with consistent electrical length.
7. What is the power supply requirement?
It requires a -24 Vdc power supply.
8. How robust is the probe in industrial environments?
The probe is designed for high reliability in harsh conditions with strong mechanical stability.
9. What type of connector is used?
Miniature coaxial ClickLoc connector ensures secure and precise connections.
10. Can this probe measure vibration as well as position?
Yes, it provides accurate vibration data along with shaft position measurement.
Related 3300 XL Models
| Model Number | Probe Type | Total Length | Weight |
|---|---|---|---|
| 330103-00-22-10-01-00 | 8 mm | 1.0 m | 0.323 kg |
| 330103-00-06-10-02-00 | 8 mm | 1.0 m | 0.320 kg |
| 330103-00-22-50-02-00 | 8 mm | 1.5 m | 0.350 kg |
| 330103-00-06-50-02-00 | 8 mm | 1.0 m | 0.323 kg |
| 330104-00-06-10-11-00 | 8 mm | 1.0 m | 0.325 kg |
| 330104-00-06-50-01-00 | 8 mm | 1.0 m | 0.326 kg |
