Product Introduction

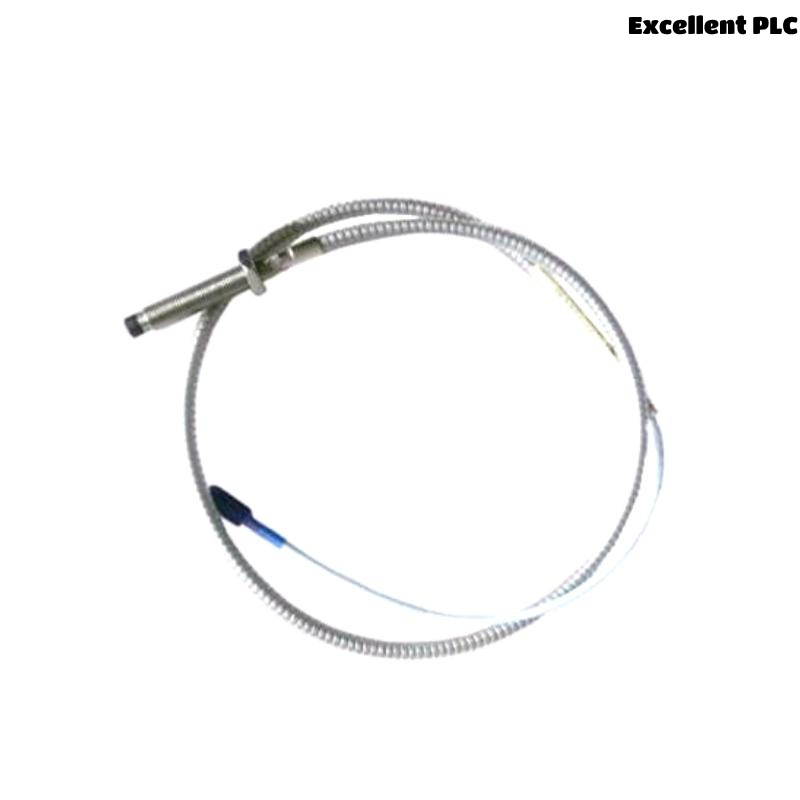

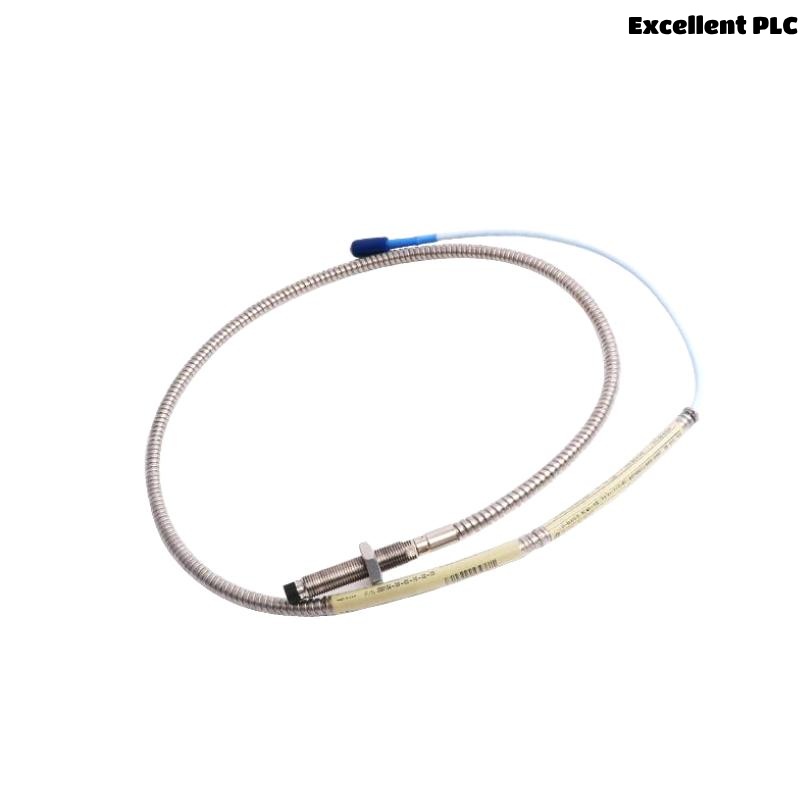

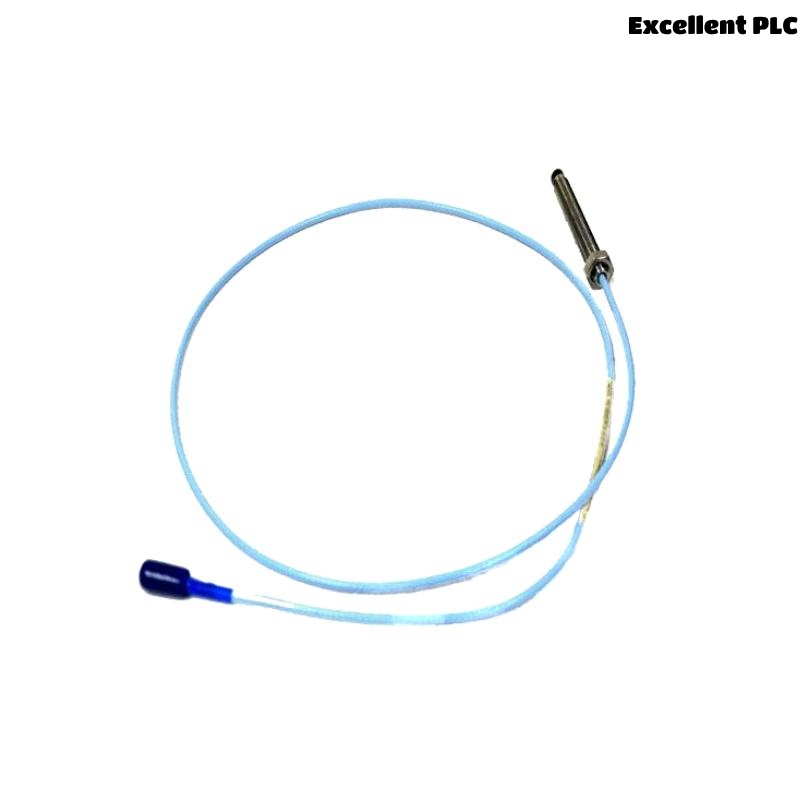

The Bently Nevada 330103-01-03-05-02-05 8 mm Proximity Probe is part of the 3300 XL Series, a comprehensive line of proximity probes designed for precise monitoring of displacement and vibration in industrial machinery. With a shaft diameter of 8 mm, this probe is ideal for use in a wide range of applications, including turbines, pumps, motors, and compressors.
The probe operates based on the eddy current principle, providing highly accurate measurements without making physical contact with the machinery. This non-contact technology ensures that the probe does not wear down over time, significantly increasing its lifespan and reducing maintenance costs.
The 330103-01-03-05-02-05 proximity probe is designed to provide real-time feedback to operators, helping them identify early signs of potential failures, such as misalignment, imbalance, and wear. This allows for early intervention and reduces the risk of costly downtime and unscheduled repairs.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330103-01-03-05-02-05 |
| Type | 8 mm Proximity Probe |
| Total Length | 0.5 meter |
| Weight | 0.161 kg |
| Shaft Diameter | 8 mm |
| Operating Temperature | -40°C to +120°C |
| Range | 1-25 mil (0.0254-0.635 mm) |
| Mounting Type | Direct Mount |
| Measurement Principle | Eddy Current |
| Cable Length | 0.5 meter |
| Accuracy | ± 0.001 inch (± 0.0254 mm) |
Product Applications
The Bently Nevada 330103-01-03-05-02-05 8 mm Proximity Probe is used across a wide array of industries for the precise monitoring of rotating equipment:
-
Power Generation: Used to monitor gas turbines, steam turbines, and generators to ensure optimal performance and reduce the risk of unexpected failures.
-
Oil and Gas Industry: Essential for monitoring compressors, pumps, and motors in refineries, offshore rigs, and pipelines, ensuring that machinery operates smoothly and efficiently.
-
Aerospace: Commonly used in the aerospace industry to monitor engines and turbines, where accuracy and reliability are paramount.
-
Manufacturing: Widely used in factories to monitor machines such as conveyor belts, robotic arms, and production line equipment, preventing mechanical failures that could halt production.
-
Marine Industry: Used in ships and offshore drilling rigs to monitor engines and other rotating machinery, enhancing safety and operational efficiency.
-
Transportation: In the transportation industry, it is used for monitoring engines and mechanical systems in vehicles like trains, airplanes, and industrial transport.
Product Advantages
-
High Accuracy: With an accuracy of ± 0.001 inch (± 0.0254 mm), the 330103-01-03-05-02-05 probe provides highly precise measurements, ensuring reliable monitoring of machinery.
-
Durability: Designed to operate in harsh industrial environments, this probe withstands extreme temperatures ranging from -40°C to +120°C, making it ideal for a variety of applications.
-
Non-contact Measurement: The eddy current technology used in this probe allows for non-contact measurements, reducing wear and tear and extending the lifespan of the probe.
-
Real-time Monitoring: The probe provides real-time data on displacement and vibration, allowing operators to detect potential issues before they lead to catastrophic failures.
-
Versatility: The 8 mm shaft diameter makes this probe suitable for a wide range of equipment, from turbines and compressors to smaller motors and pumps.
-
Predictive Maintenance: By identifying potential problems early, the 330103-01-03-05-02-05 probe supports predictive maintenance strategies, reducing downtime and minimizing repair costs.
-
Cost-effectiveness: Its long lifespan and minimal maintenance requirements make the probe a cost-effective solution for machinery monitoring, reducing overall maintenance expenses.
-
Easy Integration: The probe integrates seamlessly with Bently Nevada’s 3300 XL vibration monitoring systems, providing a comprehensive solution for industrial machinery monitoring.
-
Minimal Maintenance: Designed to be rugged and reliable, the probe requires little to no maintenance over its operational life, making it highly efficient and economical.
-
Long Operational Life: The probe’s robust design and non-contact measurement technology ensure that it operates effectively over long periods, providing continuous performance without frequent replacements.
Frequently Asked Questions (FAQ)
Q1: What technology does the 330103-01-03-05-02-05 probe use for measurement?
A1: The probe utilizes eddy current technology, which allows for non-contact measurements of displacement and vibration.
Q2: What is the accuracy of the 330103-01-03-05-02-05 probe?
A2: The probe provides an accuracy of ± 0.001 inch (± 0.0254 mm), ensuring precise and reliable measurements.
Q3: What is the total length of the 330103-01-03-05-02-05 probe?
A3: The total length of the probe is 0.5 meters.
Q4: What is the weight of the 330103-01-03-05-02-05 probe?
A4: The probe weighs 0.161 kg, making it lightweight and easy to handle during installation.
Q5: What is the operating temperature range for this probe?
A5: The probe operates in temperatures ranging from -40°C to +120°C, making it suitable for a wide range of industrial environments.
Q6: How does the 330103-01-03-05-02-05 probe support predictive maintenance?
A6: By providing real-time vibration and displacement data, the probe helps operators detect problems before they cause major failures, enabling predictive maintenance.
Q7: What industries can benefit from using the 330103-01-03-05-02-05 probe?
A7: This probe is widely used in industries such as power generation, oil and gas, aerospace, manufacturing, marine, and transportation for monitoring critical rotating equipment.
Q8: Can the 330103-01-03-05-02-05 probe be used with other monitoring systems?
A8: While designed for Bently Nevada’s 3300 XL series, the probe can be integrated into other compatible vibration monitoring systems.
Q9: How does non-contact measurement benefit the 330103-01-03-05-02-05 probe?
A9: Non-contact measurement reduces wear and tear on the probe, extending its operational life and minimizing the need for maintenance.
Q10: How does the probe help detect mechanical problems?
A10: The 330103-01-03-05-02-05 probe detects changes in displacement and vibration, which can indicate issues like misalignment, imbalance, or mechanical wear.
Recommended Related Models (Same Series or Related)
| Model | Description | Range | Accuracy | Mounting |
|---|---|---|---|---|
| 330103-01-03-05-02-04 | Extended range 8 mm proximity probe | 1-50 mil (0.0254-1.27 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
| 330103-01-03-05-02-03 | High temperature 8 mm proximity probe | 1-25 mil (0.0254-0.635 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
| 330103-01-03-05-02-02 | 8 mm proximity probe with extended cable | 1-25 mil (0.0254-0.635 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
| 330103-01-03-05-02-01 | 8 mm proximity probe with custom length | 1-25 mil (0.0254-0.635 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
| 330103-01-03-05-02-06 | Hazardous area 8 mm proximity probe | 1-25 mil (0.0254-0.635 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
| 330103-01-03-05-02-07 | 8 mm proximity probe for aerospace applications | 1-25 mil (0.0254-0.635 mm) | ± 0.001 inch (± 0.0254 mm) | Direct Mount |
