Product Overview

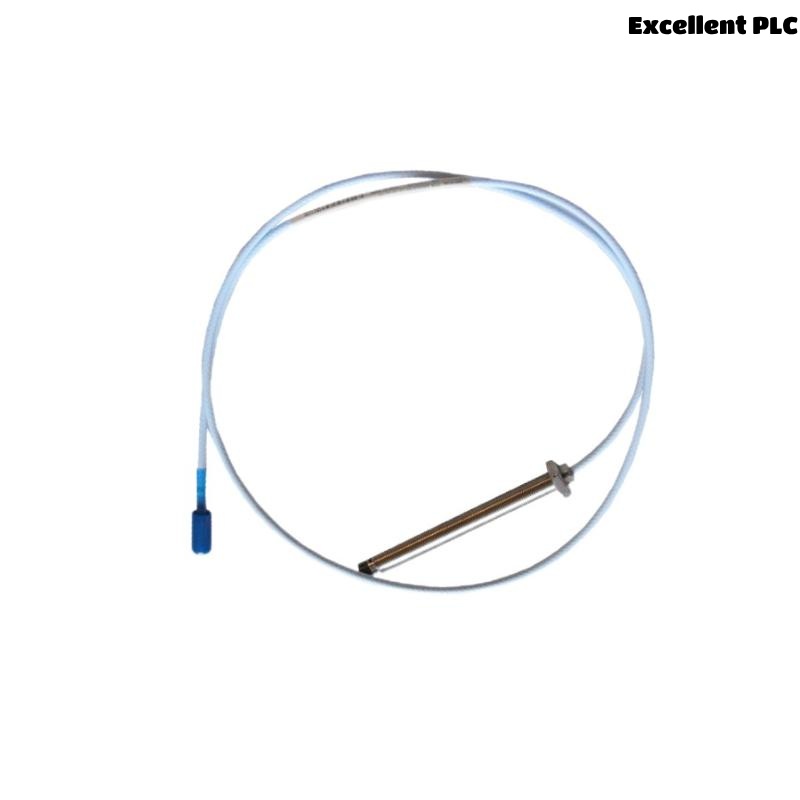

The Bently Nevada 330103-01-08-10-02-00 3300 XL 8 mm Proximity Probe is an advanced sensing device designed for precision vibration and position measurement in rotating machinery, such as turbines, compressors, motors, and pumps. This model is part of the 3300 XL Series, which is known for its rugged performance, high reliability, and advanced diagnostic capabilities. It is widely used in critical industries like power generation, oil and gas, and manufacturing, where accurate monitoring of machinery health is essential to avoid costly downtime and ensure smooth operations.
The 3300 XL 8 mm Proximity Probe provides highly accurate measurement of machine vibration, shaft position, and displacement. With its compact design and robust construction, the probe is suitable for harsh environments and ensures reliable data acquisition, making it an essential tool for predictive maintenance and condition monitoring systems.
Key Features
-
High Accuracy: Provides precise measurement of displacement and vibration at 8 mm nominal gap distance.
-
Durable Construction: Designed to withstand harsh industrial environments, including high temperatures, vibration, and electrical noise.
-
Compatibility with Proximitor Sensors: Works seamlessly with Bently Nevada 3300 XL Proximitor Sensors for enhanced performance.
-
Wide Operating Temperature Range: Suitable for operation in extreme environmental conditions.
-
Non-contact Measurement: Ensures wear-free operation with non-contact sensing technology.
-
Longer Cable Lengths Available: Flexible installation options with support for extended cable lengths.
-
Enhanced Diagnostics: Enables the system to provide real-time feedback on machinery health and performance.
-
CE Certified: Meets international safety and quality standards, ensuring reliable performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-01-08-10-02-00 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal (measuring distance between probe and target) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard mounting thread for easy installation |
| Cable Length | Customizable; typically up to 10 meters |
| Output | Compatible with Bently Nevada 3300 XL Proximitor Sensors |
| Weight | 0.323 kg |
| Dimensions | Total Length: 1.0 meters |
| Material | Stainless steel housing for durability |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330103-01-08-10-02-00 3300 XL 8 mm Proximity Probe is ideal for a variety of industries that require precise vibration and displacement measurements in critical machinery:
-
Power Generation: Used for monitoring turbine shafts, motors, and other rotating equipment to ensure smooth and efficient operation.
-
Oil & Gas: Essential for tracking the health of compressors, pumps, and drilling equipment in harsh and remote environments.
-
Chemical Processing: Monitors agitators, mixers, and reactors for accurate condition-based monitoring.
-
Manufacturing: Provides essential data for monitoring large motors, fans, and pumps in industrial plants.
-
Mining and Metals: Used in conveyor systems, crushers, and mills to detect wear and prevent operational failures.
-
Transportation: Helps monitor engines, turbines, and high-speed rotating machinery in various transport systems.
Product Advantages
-
Precision Monitoring: Offers highly accurate measurement of machine displacement and vibration to improve overall system monitoring.
-
Rugged Design: The stainless steel housing and robust construction make it resistant to harsh industrial conditions.
-
Non-contact Sensing: Minimizes wear and tear, ensuring longevity and accuracy of the measurements over time.
-
Ease of Integration: Fully compatible with Bently Nevada 3300 XL Proximitor Sensors, offering a seamless solution for vibration monitoring.
-
Real-Time Diagnostics: The probe provides real-time feedback on machinery health, enabling predictive maintenance and avoiding unexpected failures.
-
Wide Range of Applications: Suitable for a broad range of industries and machinery types, making it a versatile and valuable tool.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the 3300 XL 8 mm Proximity Probe?
A: It is designed to measure the displacement and vibration of rotating machinery, providing real-time data for predictive maintenance and condition monitoring. -
Q: How accurate is the 3300 XL 8 mm Proximity Probe?
A: The probe offers highly precise measurements with a gap distance of 8 mm nominal and a typical measuring range of ± 0.50 mm. -
Q: What is the operating temperature range for this probe?
A: The probe can operate in environments with temperatures ranging from -40°C to +85°C (-40°F to +185°F). -
Q: Can this probe be used with any Bently Nevada sensor?
A: Yes, it is fully compatible with the Bently Nevada 3300 XL Proximitor Sensors for enhanced vibration monitoring. -
Q: How is the probe mounted?
A: The probe features a standard mounting thread for easy installation in various industrial systems. -
Q: Is the 3300 XL 8 mm Proximity Probe suitable for hazardous environments?
A: Yes, the rugged construction of the probe makes it suitable for use in harsh environments, including high vibration and temperature extremes. -
Q: How long can the cable length be for this probe?
A: The probe supports customizable cable lengths, with typical lengths up to 10 meters available. -
Q: What kind of material is the probe housing made from?
A: The probe is housed in stainless steel, offering durability and resistance to industrial conditions. -
Q: Does the probe provide real-time diagnostics?
A: Yes, the probe works in conjunction with Bently Nevada systems to provide real-time feedback on machinery health, helping to detect early signs of issues. -
Q: What industries commonly use the 3300 XL 8 mm Proximity Probe?
A: It is used in power generation, oil and gas, chemical processing, manufacturing, mining, and transportation industries for vibration and displacement monitoring.
