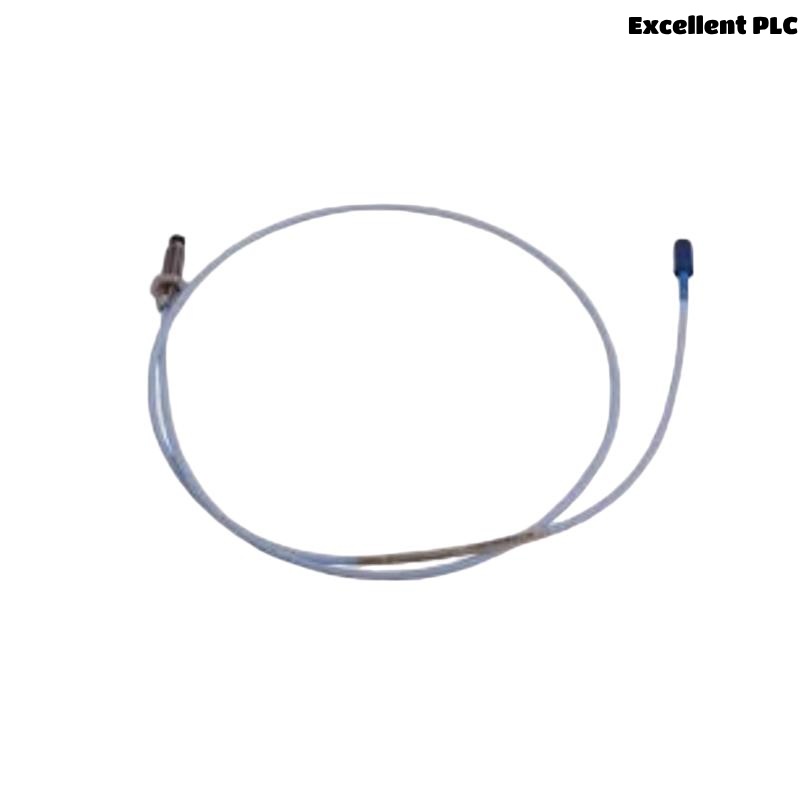

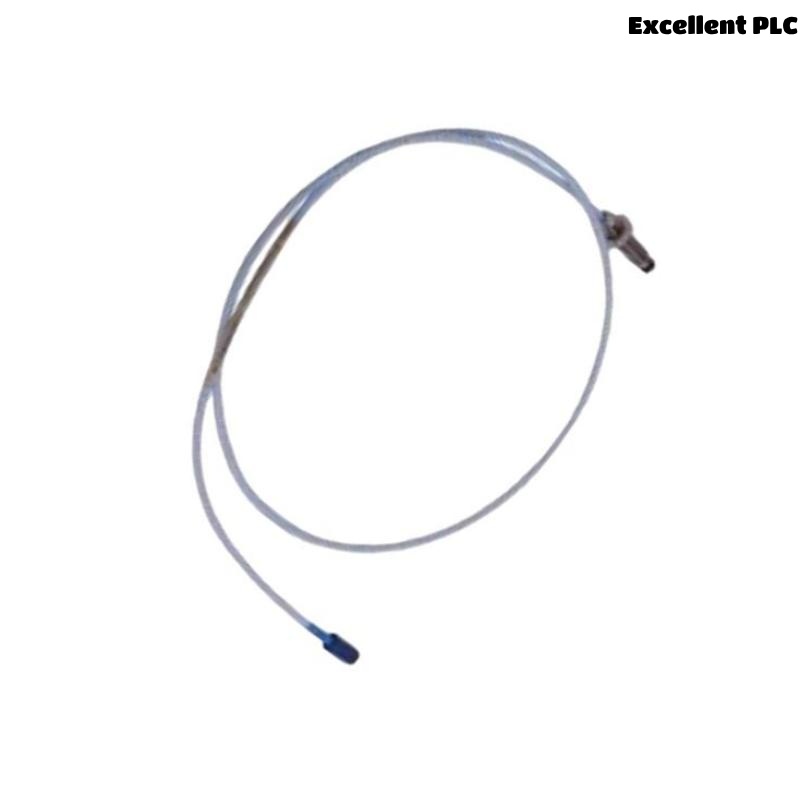

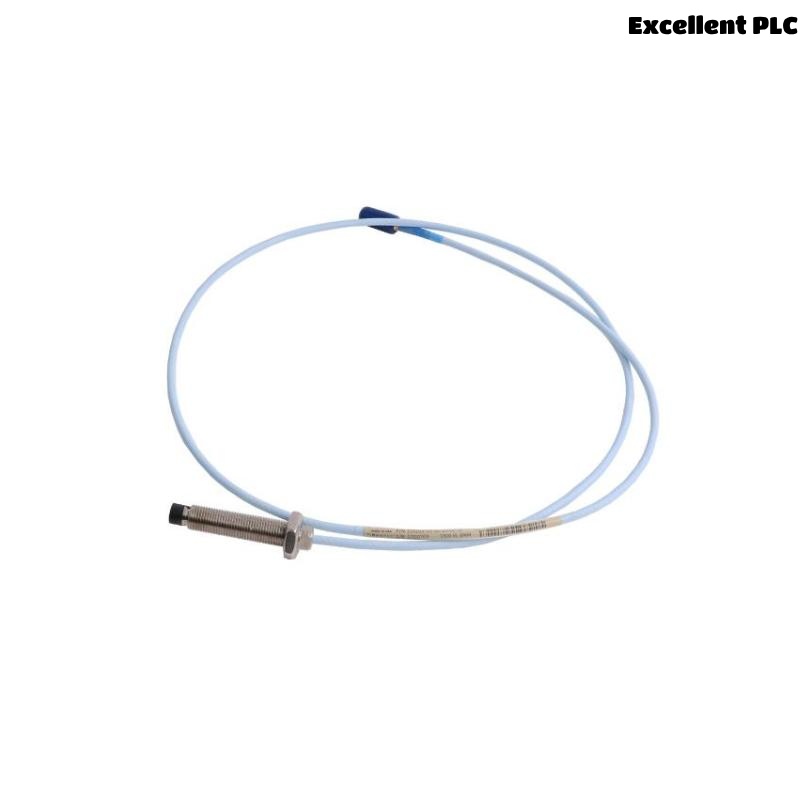

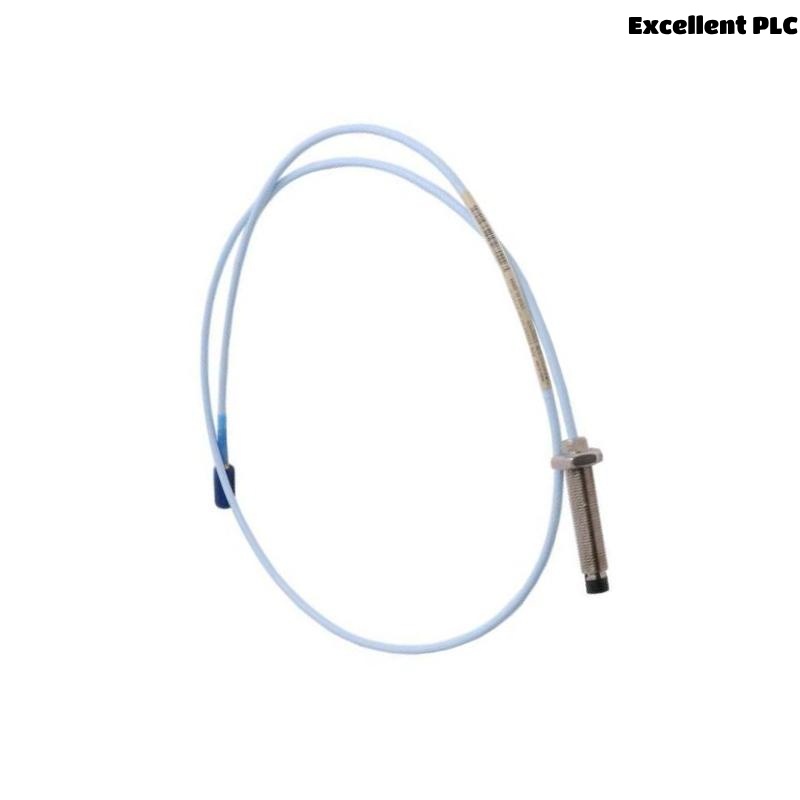

Bently Nevada 330103-02-04-10-02-05 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-02-04-10-02-05 is a precision-engineered proximity probe from the 3300 XL 8 mm series. Designed for high-reliability, non-contact measurement of shaft vibration and position, this probe is optimized for critical rotating machinery applications. The rugged construction and factory-matched cable configuration ensure long-term stable performance even under severe industrial conditions.

It is compatible with the Bently Nevada 3300 XL system, providing API 670-compliant condition monitoring and protection for turbines, compressors, pumps, and motors.

Key Features

• Eddy current, non-contact sensing technology

• 8 mm diameter probe tip with PPS tip material

• Stainless steel body for durability and corrosion resistance

• Factory-matched armored cable system for improved signal integrity

• Designed for compatibility with 3300 XL Proximitor sensors

• High sensitivity and linear response across a 2 mm range

• Compliance with API 670, CE, and RoHS standards

• Capable of operating in temperatures from -35°C to +177°C

Technical Specifications

Industry Applications

This probe is ideal for monitoring critical rotating equipment in:

• Steam and gas turbines

• Centrifugal and reciprocating compressors

• Industrial pumps and blowers

• Electric motors and generators

• Gearboxes and couplings

• Condition-based maintenance in petrochemical, power generation, and manufacturing sectors

Product Advantages

• High accuracy and repeatability with factory-matched components

• Robust stainless steel construction for harsh industrial environments

• Armored cable provides enhanced protection and signal integrity

• Wide operating temperature and vibration range

• API 670 compliance ensures suitability for mission-critical machinery protection

• Compact design for easy installation in tight spaces

• No field calibration needed due to factory matching

Frequently Asked Questions (FAQ)

1. What is the diameter of the probe tip?
   The probe tip diameter is 8 mm (0.315 in).

2. Is the cable armored or unarmored?
   This model comes with an armored cable for extra protection.

3. What is the maximum temperature rating?
   The probe operates within -35°C to +177°C (-31°F to +351°F).

4. Does this probe require field calibration?
   No, the probe and cable are factory-matched to eliminate field calibration.

5. What sensing technology does this probe use?
   It uses eddy current non-contact sensing.

6. Is the probe API 670 compliant?
   Yes, it meets API 670 standards for machinery protection.

7. What type of connector does it use?
   It uses a miniature coaxial connector.

8. What is the probe’s linear sensing range?
   The linear range is 2 mm (80 mils).

9. Can this probe be used in hazardous environments?
   Yes, when properly installed with the correct intrinsic safety equipment.

10. What material is the probe calibrated for?
    It is calibrated for AISI 4140 steel or equivalent.
