Product Introduction

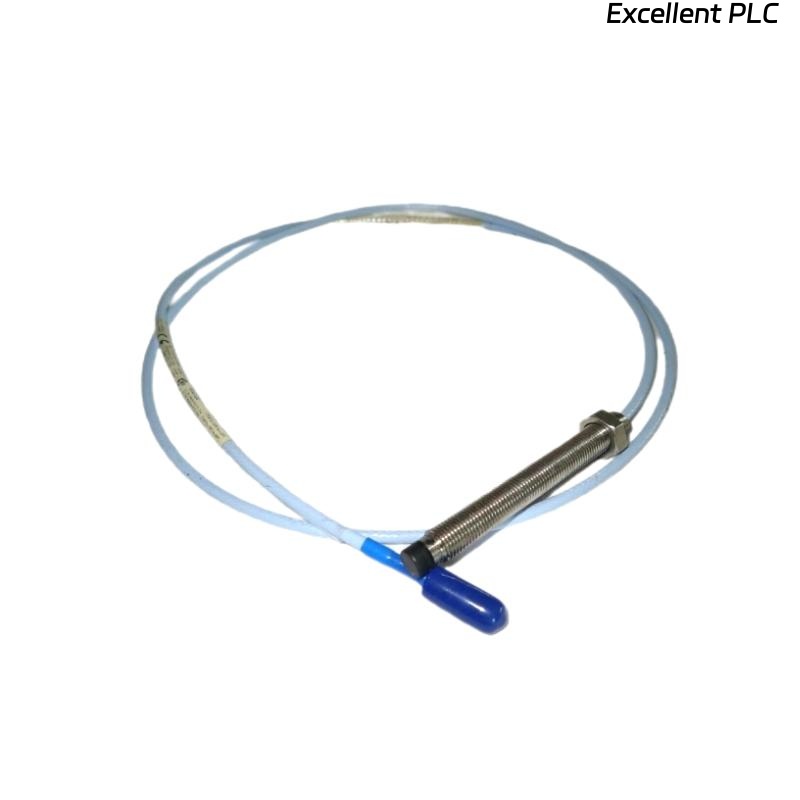

The Bently Nevada 330103-02-08-10-02-05-RU 3300 XL 8mm Proximity Probe is a precision-engineered sensor specifically designed for monitoring shaft vibration and displacement in critical rotating machinery. As part of the 3300 XL series, it provides high-fidelity, repeatable measurements essential for machinery protection, predictive maintenance, and operational efficiency.
This probe employs eddy current technology, which converts the gap between the probe tip and the rotating shaft into a reliable electrical signal. Its total length of 1 meter and weight of 0.323 kg make it suitable for medium-distance installations where signal stability and mechanical flexibility are required. The stainless steel housing ensures robust performance under vibration, shock, and corrosion. The RU designation indicates compliance with Russian industrial standards, making it suitable for both local and international applications. Fully compatible with Bently Nevada Proximitor sensors and 3300 XL monitoring systems, it delivers consistent, high-accuracy data for early fault detection and machinery health monitoring.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-02-08-10-02-05-RU |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Weight | 0.323 kg |
| Connector Type | Standard coaxial connector |
| Housing Material | Corrosion-resistant stainless steel |
| Frequency Response | DC to 10 kHz |
| Linear Measurement Range | 2 mm (typical with matching Proximitor sensor) |
| Nominal Gap | 2 mm |
| Operating Temperature Range | –35 °C to +180 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Shock Tolerance | 500 g, 1 ms half-sine |
| Vibration Tolerance | 10 g, 10–2000 Hz |
| Compliance | API 670 compliant |
Applications
The 330103-02-08-10-02-05-RU probe is used for precise monitoring and protection of rotating machinery. Its key applications include:
-
Monitoring radial vibration in turbines, compressors, pumps, and motors.
-
Detecting axial shaft displacement to identify misalignment or mechanical overload.
-
Providing real-time signals for predictive maintenance and early fault detection.
-
Integration into machinery protection systems in power plants, petrochemical facilities, and oil & gas operations.
-
Medium-range installations where a 1-meter cable allows optimal sensor placement.
-
Detection of mechanical problems such as imbalance, looseness, and bearing wear.
Advantages
-
High Accuracy: Provides precise and repeatable measurements of shaft vibration and displacement.
-
Medium Cable Length: 1-meter cable allows flexible installation while maintaining signal integrity.
-
Robust Construction: Stainless steel housing resists corrosion, vibration, and mechanical shock.
-
Thermal Stability: Operates effectively from –35 °C to +180 °C.
-
API 670 Compliant: Meets international machinery protection standards.
-
System Compatibility: Fully compatible with 3300 XL Proximitor sensors and monitoring modules.
-
EMI Immunity: Shielded cable ensures accurate signal transmission in electrically noisy environments.
-
Interchangeable: Can replace other 3300 XL 8mm probes without requiring recalibration.
FAQ
1. What sensing principle does this probe use?
It operates using eddy current technology to measure the gap between the probe tip and the shaft surface.
2. What is the linear measurement range?
The probe provides a linear range of approximately 2 mm when paired with a compatible Proximitor sensor.
3. How does the 1-meter cable affect calibration?
The probe and cable are factory-matched, ensuring calibration stability across the entire cable length.
4. Can it measure both radial and axial shaft movement?
Yes, depending on installation orientation, the probe can monitor radial vibration or axial displacement.
5. What type of electrical output does the probe provide?
It generates a voltage signal proportional to shaft displacement.
6. How is electromagnetic interference handled?
The shielded cable minimizes EMI, preserving accurate signal transmission even in electrically noisy environments.
7. Is this probe suitable for high-vibration environments?
Yes, it operates reliably under vibration levels up to 10 g across 10–2000 Hz.
8. What is the operating temperature range?
It operates reliably from –35 °C to +180 °C.
9. Can it be used with legacy Bently Nevada systems?
Yes, it is compatible with both 3300 and 3500 series monitoring modules.
10. What industry standards does this probe comply with?
It meets API 670 standards for vibration and displacement monitoring in rotating machinery.
