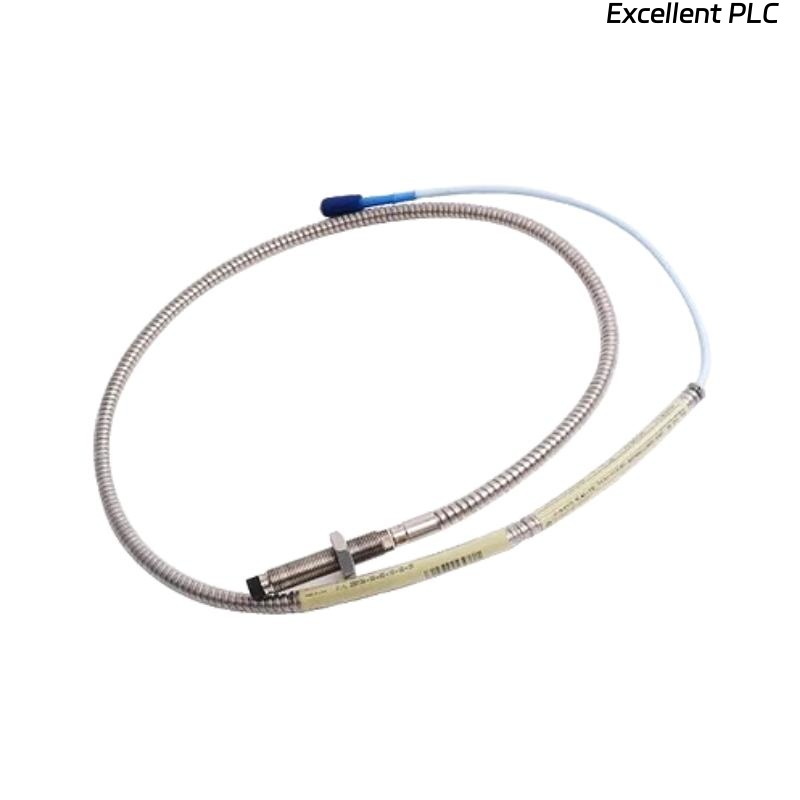

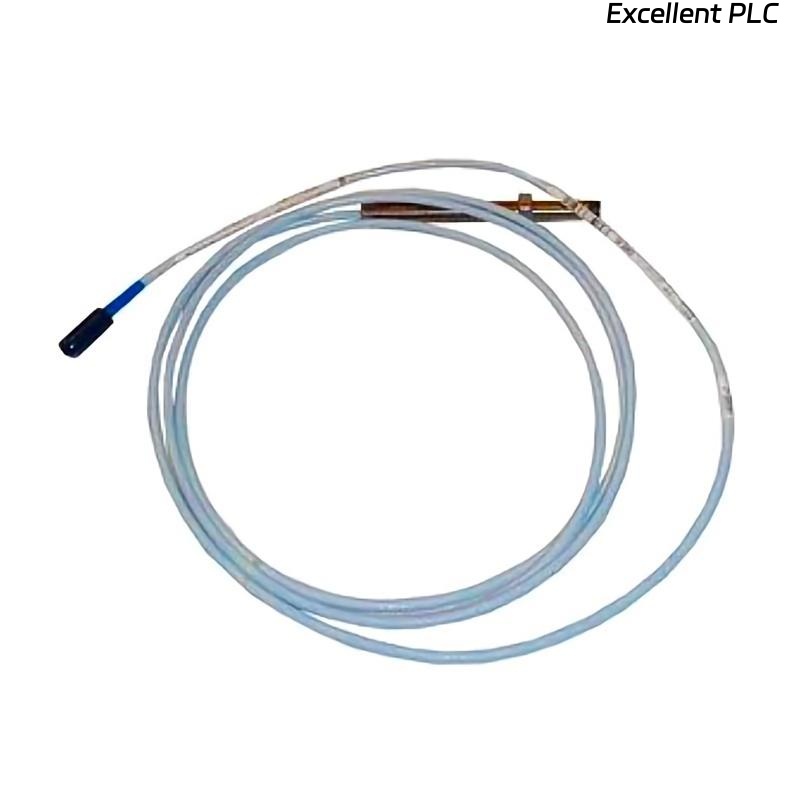

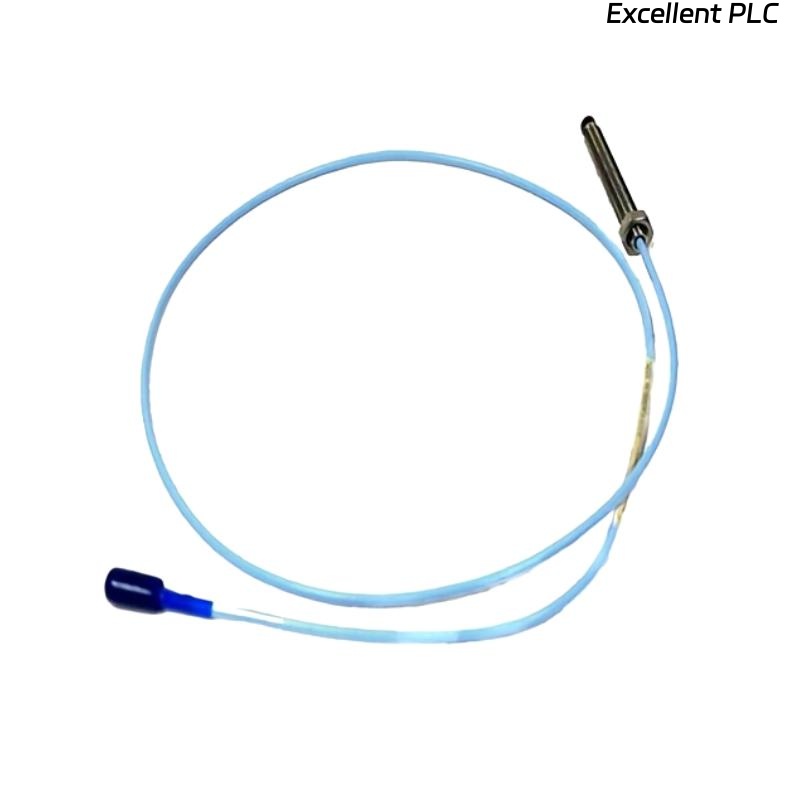

Bently Nevada 330103-02-10-05-02-05-CN 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330103-02-10-05-02-05-CN 3300 XL 8mm Proximity Probe is a high-precision sensor designed for rotating machinery monitoring. It forms part of the 3300 XL series, which is renowned for reliability and accuracy in vibration and position measurements.

This probe utilizes eddy-current technology to provide continuous non-contact measurements of shaft displacement, proximity, and vibration. Its 8mm probe tip diameter is optimized for applications requiring compact sensing with high measurement sensitivity.

Designed for industrial environments, this probe ensures stable readings under extreme temperature, vibration, and electrical noise conditions, making it ideal for turbines, compressors, pumps, and motors in oil & gas, power generation, and petrochemical plants.

Product Parameters

Product Applications

The 330103-02-10-05-02-05-CN probe is used in critical rotating machinery monitoring for:

• Steam and Gas Turbines – Measures rotor displacement, vibration, and proximity to detect misalignment and unbalance.

• Centrifugal Compressors – Monitors shaft position to prevent rotor rubs or excessive vibrations.

• Pumps and Motors – Detects axial or radial movement and vibration trends to prevent mechanical failure.

• Gearboxes – Provides early warning of abnormal wear or misalignment.

• Process Industries – Continuous condition monitoring in petrochemical, power generation, and refinery applications.

• Safety Systems – Integrated with machinery protection systems for trip and alarm functions.

Product Advantages

• High Precision – Accurate displacement measurements for reliable vibration analysis.

• Robust Design – Resistant to harsh industrial conditions including heat, moisture, and oil exposure.

• Compact Form Factor – 8mm tip enables installation in confined spaces.

• Non-Contact Measurement – Reduces mechanical wear and maintenance requirements.

• Fast Response – Capable of measuring high-frequency vibrations up to system limits.

• System Compatibility – Fully compatible with Bently Nevada 3300 XL monitoring systems.

• Durable Materials – Stainless steel housing and insulation for long-term stability.

• Reduced Noise Sensitivity – Provides reliable readings even in electrically noisy environments.

FAQ

1. What type of measurement does the probe provide?
   It provides non-contact shaft displacement and vibration measurements using eddy-current technology.

2. Is the probe compatible with 3300 XL systems?
   Yes, it is designed specifically for Bently Nevada 3300 XL monitoring systems.

3. What is the probe tip diameter?
   The probe tip diameter is 8 mm.

4. Can it operate in high-temperature environments?
   Yes, it operates reliably from -40 °C to +120 °C.

5. How is the probe mounted?
   It can be mounted in a probe holder or directly to the machine frame using standard mounting hardware.

6. What is the maximum signal frequency the probe can handle?
   It supports high-frequency vibration measurements, up to 25 kHz depending on system electronics.

7. Is the probe resistant to oil and dust?
   Yes, it is designed for harsh industrial environments with oil, dust, and EMI protection.

8. Does it require direct contact with the shaft?
   No, it is a non-contact probe that measures proximity without mechanical contact.

9. Can the cable length be customized?
   Standard cable length is 0.5 meters, but longer lengths can be specified depending on installation needs.

10. What type of output does the probe provide?
    It produces an AC voltage proportional to shaft displacement.
