Product Introduction

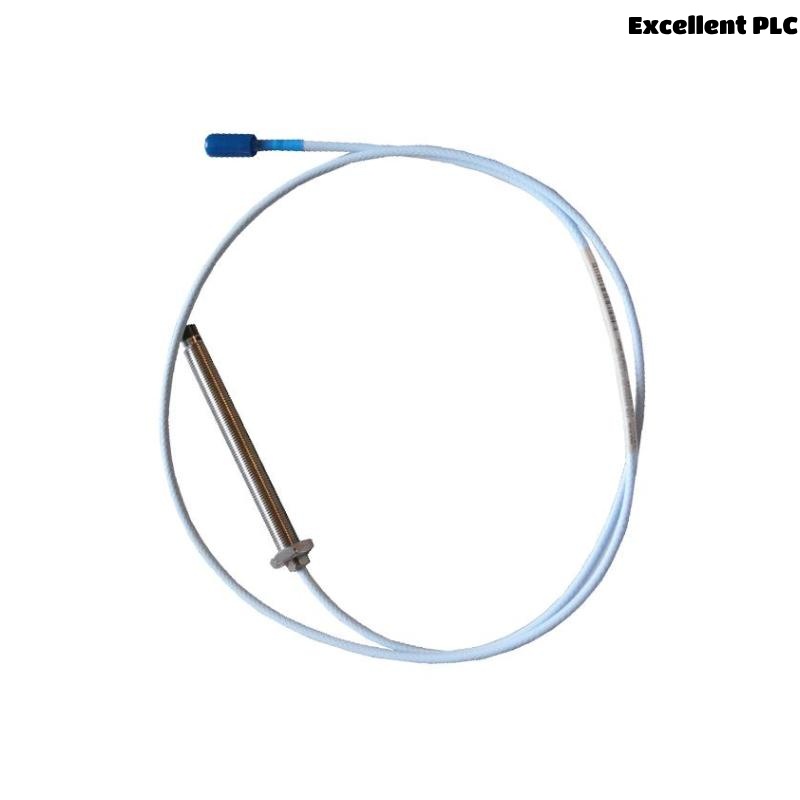

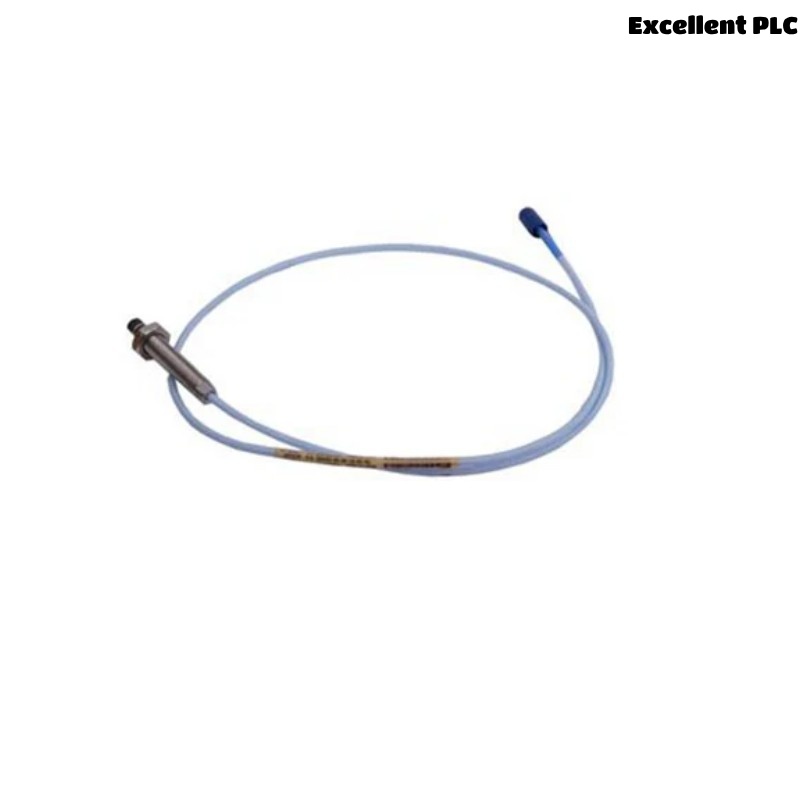

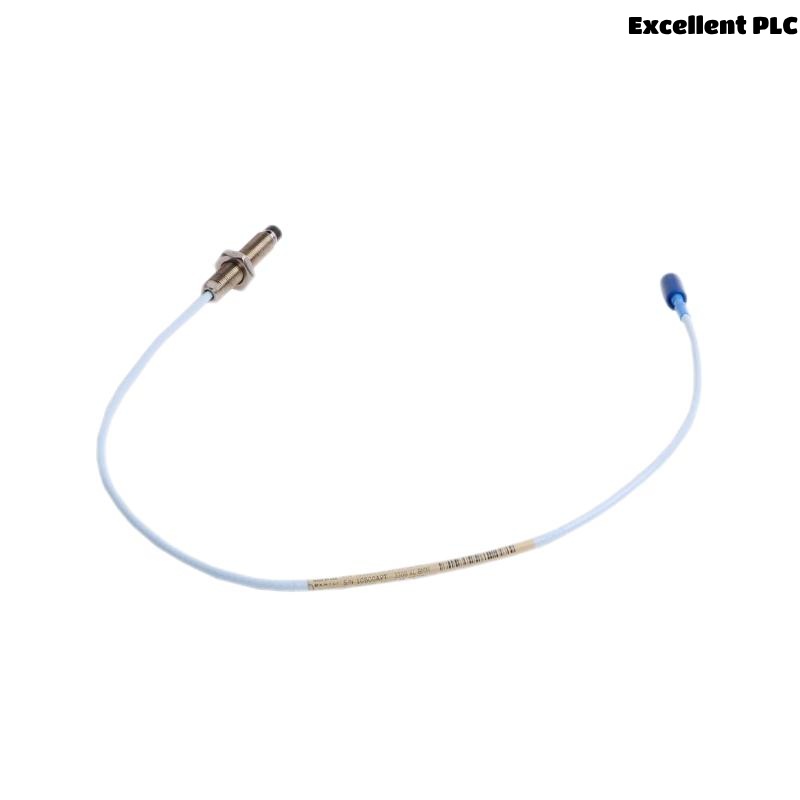

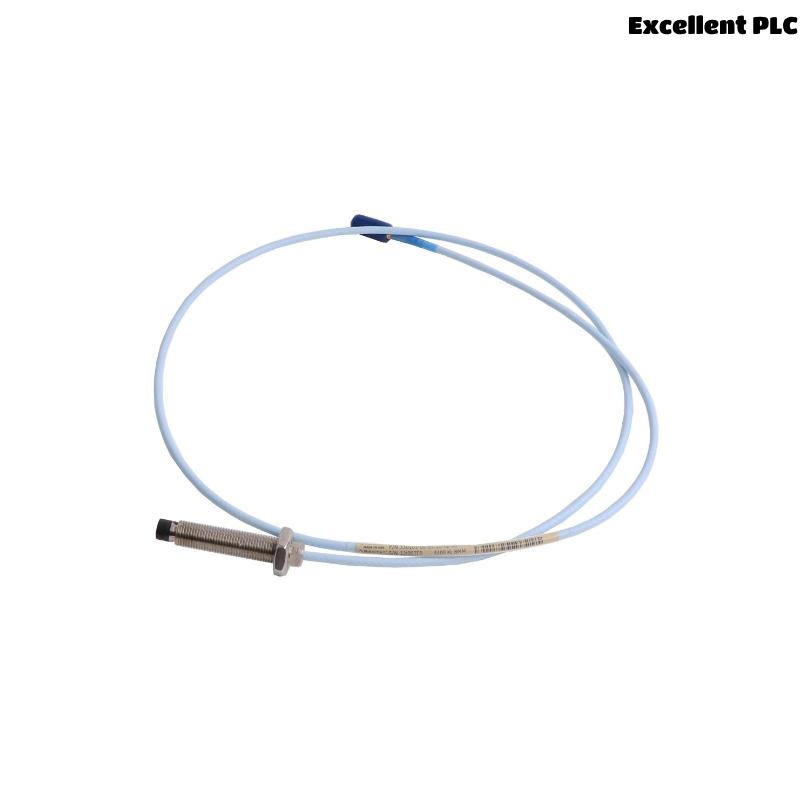

The Bently Nevada 330103-02-12-10-02-00 is a part of the Bently Nevada vibration monitoring systems, primarily designed for industrial machinery protection and condition monitoring. This device offers precise monitoring for critical assets such as motors, turbines, and pumps, ensuring operational efficiency, early detection of faults, and prevention of costly breakdowns. By analyzing vibration and other parameters, it helps operators detect and address potential issues before they lead to failure, which is essential for preventing downtime in high-value machinery.
Product Specifications
| Feature | Specification |
|---|---|
| Model | 330103-02-12-10-02-00 |
| Cable length | 1 m |
| Weight | 0.323 kg |
| Voltage | 24V DC |
| Power Consumption | 10W |
| Temperature Range | -10°C to +60°C |
| Vibration Frequency Range | 10 Hz to 10 kHz |
| Output | 4-20 mA, Digital Output |
| Housing Material | Stainless Steel |
| Mounting Type | Wall Mount / Panel Mount |
Applications
The Bently Nevada 330103-02-12-10-02-00 is widely used across various industries for monitoring the condition of rotating machinery. Its primary applications include:
-
Turbine Monitoring: Ensures optimal performance and safety of turbines by providing early warnings for vibration-related issues.
-
Motor Condition Monitoring: Helps in detecting mechanical faults, misalignments, or imbalance in motors.
-
Pump Monitoring: Used to monitor pumps in industries such as water treatment, oil & gas, and manufacturing to avoid unexpected failures.
-
Compressor Monitoring: Ensures smooth operation of compressors by tracking vibration data that might indicate wear or mechanical issues.
-
Industrial HVAC Systems: Integrated to monitor critical HVAC systems for smoother operations and extended life cycles.
Advantages
-
High Precision Monitoring: Accurate vibration analysis for early detection of faults such as misalignments, imbalance, and bearing wear.
-
Versatile Applications: Suitable for a wide range of industries including oil & gas, power generation, and manufacturing.
-
Reliable Data Outputs: Provides both analog and digital output signals (4-20 mA and digital), compatible with other industrial systems.
-
Rugged Construction: Designed with stainless steel housing for durability in harsh environments.
-
Easy Integration: Can be easily integrated into existing machinery protection systems.
-
Wide Temperature Range: Operates effectively across a broad temperature range from -10°C to +60°C, making it suitable for diverse environments.
-
Cost Savings: Early fault detection leads to fewer breakdowns, resulting in reduced maintenance costs and minimized downtime.
FAQs
1. What is the main function of the Bently Nevada 330103-02-12-10-02-00?
The main function is to monitor vibration and condition of industrial machinery, providing early warnings for maintenance to avoid unexpected breakdowns.
2. What industries use this product?
This product is widely used in industries such as oil & gas, power generation, water treatment, manufacturing, and heavy machinery.
3. How does the vibration monitoring system work?
The system analyzes vibrations from machinery and detects any abnormalities such as imbalances, misalignments, or bearing wear, providing operators with real-time data for quick decision-making.
4. What type of output does the device provide?
It provides both 4-20 mA analog output and digital output for easier integration into existing industrial control systems.
5. What is the operating temperature range of the product?
The product operates within a temperature range of -10°C to +60°C, suitable for both cold and hot environments.
6. Can this device be used for monitoring multiple types of machinery?
Yes, it is versatile and can monitor turbines, motors, pumps, compressors, and other industrial equipment.
7. How easy is it to install?
It is designed for easy installation with both wall and panel mounting options.
8. What material is the housing made of?
The device is housed in stainless steel for durability and protection in tough industrial environments.
9. Is the device compatible with existing monitoring systems?
Yes, it is designed for easy integration into existing machinery protection and control systems.
10. What maintenance is required for this product?
The device requires minimal maintenance but should be checked periodically for calibration and ensuring it is securely mounted.
