Product Introduction

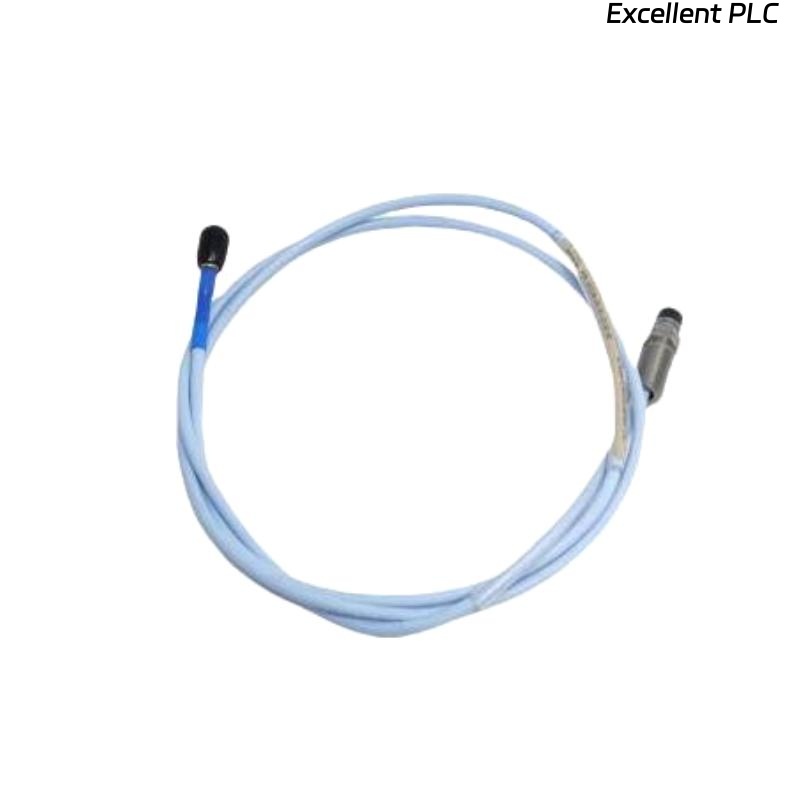

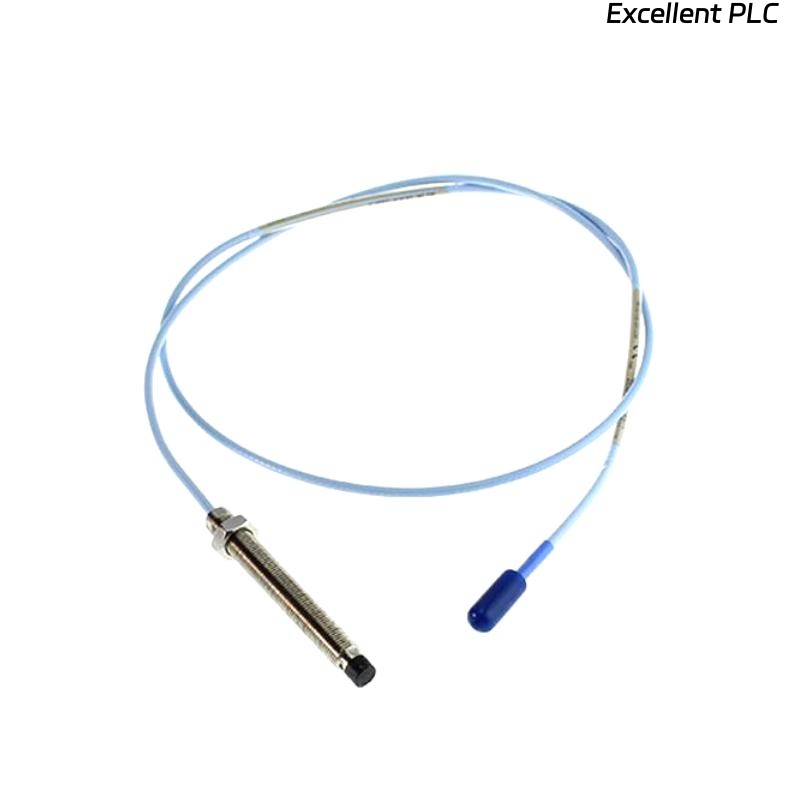

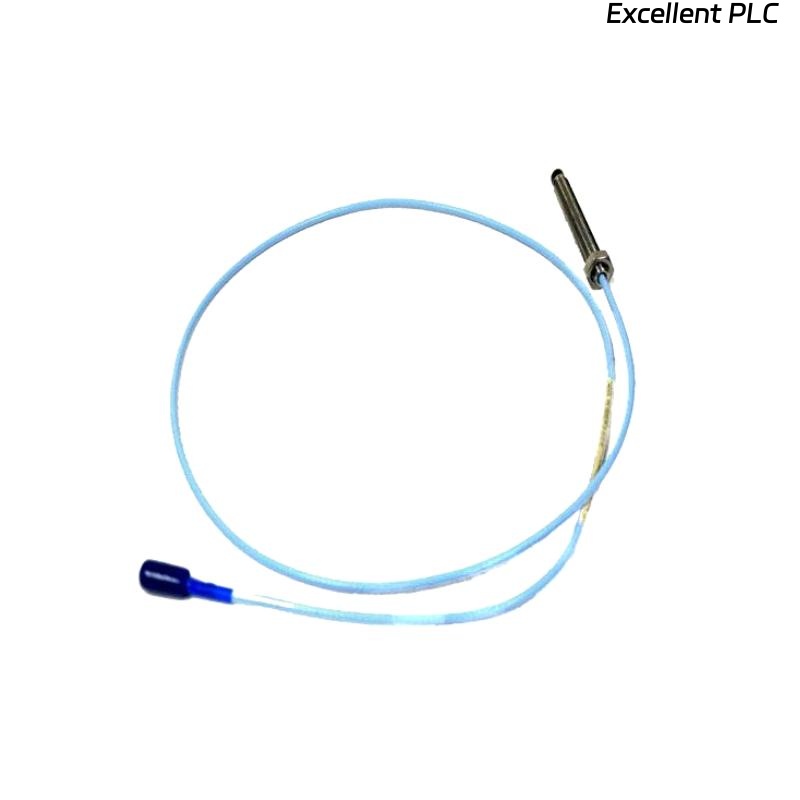

The Bently Nevada 330103-03-07-10-01-00 3300 XL 8mm Proximity Probe is a high-precision sensor designed for continuous monitoring of rotating machinery. As part of the 3300 XL series, this probe provides reliable measurement of shaft displacement and vibration using eddy-current non-contact technology.
With an 8mm probe tip and robust stainless-steel housing, this probe is suitable for industrial environments where space is limited but measurement accuracy is critical. It is widely used in turbines, compressors, pumps, and motors, delivering precise real-time data to ensure machinery protection and condition monitoring.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330103-03-07-10-01-00 |
| Type | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Measurement Technology | Eddy-current (non-contact) |
| Total Length | 1 meter |
| Weight | 0.323 kg |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40 °C to +120 °C |
| Storage Temperature | -50 °C to +125 °C |
| Sensor Material | Stainless steel housing with high-dielectric insulation |
| Mounting | Probe holder or machine frame mounting |
| Environmental Protection | Resistant to oil, dust, and EMI |
| Response Frequency | Up to 25 kHz (depending on system electronics) |
| System Compatibility | Bently Nevada 3300 XL monitoring systems |
Product Applications
The 330103-03-07-10-01-00 probe is designed for critical machinery applications, including:
-
Steam and Gas Turbines – Monitors shaft vibration and displacement to detect misalignment or imbalance.
-
Compressors – Tracks rotor position to prevent mechanical contact and failures.
-
Pumps and Motors – Measures axial and radial vibration for predictive maintenance.
-
Generators – Provides vibration monitoring for electrical rotating equipment.
-
Gear Systems – Detects wear, misalignment, and abnormal shaft motion.
-
Industrial Plants – Provides continuous monitoring for process-critical machinery.
Product Advantages
-
High Measurement Accuracy – Provides precise displacement and vibration data for machinery protection.
-
Rugged Design – Withstands vibration, high temperatures, and industrial contaminants.
-
Compact 8mm Tip – Allows installation in limited spaces without compromising sensitivity.
-
Non-Contact Technology – Eliminates mechanical wear on the shaft and probe.
-
High-Frequency Response – Detects vibrations up to 25 kHz.
-
System Compatibility – Fully compatible with 3300 XL series monitoring systems.
-
Durable Materials – Stainless steel housing ensures mechanical and environmental stability.
-
Noise Resistant – Maintains accurate readings in electrically noisy environments.
FAQ
-
What does this probe measure?
It measures shaft displacement and vibration using eddy-current non-contact technology. -
Is it compatible with Bently Nevada 3300 XL systems?
Yes, it works seamlessly with 3300 XL monitoring systems for real-time condition monitoring and protection. -
What is the probe tip diameter?
The tip is 8 mm, designed for compact installations while maintaining high measurement sensitivity. -
Can the probe operate in extreme temperatures?
Yes, it reliably functions between -40 °C and +120 °C, suitable for harsh industrial conditions. -
How should the probe be installed?
It can be mounted in a probe holder or directly to the machine frame, ensuring correct alignment to the shaft. -
What is the frequency response?
The probe can detect vibration frequencies up to 25 kHz, depending on the connected system electronics. -
Is the probe resistant to environmental contaminants?
Yes, it resists oil, dust, moisture, and electromagnetic interference, ensuring stable performance. -
Does the probe touch the shaft?
No, it is non-contact, which prevents wear on both the probe and the shaft. -
What is the standard cable length?
The standard cable length is 1 meter, providing flexible installation while maintaining signal integrity. -
What type of output signal does it provide?
It outputs an AC voltage proportional to shaft displacement, which can be interpreted for monitoring, diagnostics, and protection functions.
