Product Overview

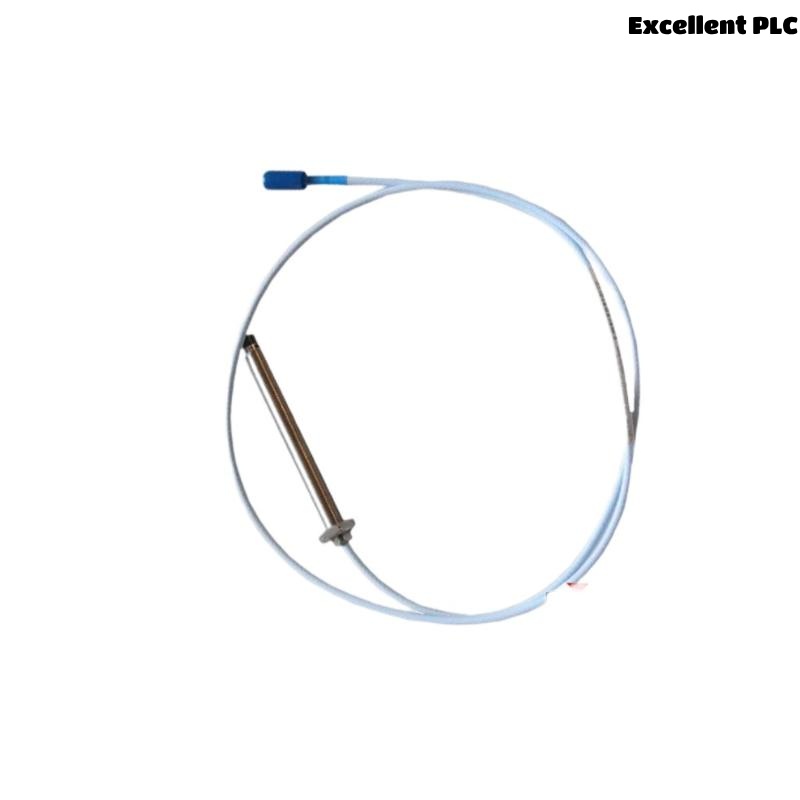

The Bently Nevada 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe is a high-performance, non-contact displacement sensor designed for precision vibration and position measurements in a wide range of rotating machinery. This model, part of the renowned 3300 XL Series, provides accurate and reliable data for monitoring machinery health, making it a vital component in predictive maintenance systems.
The 3300 XL 8 mm Proximity Probe offers exceptional measurement capabilities for critical equipment, such as turbines, compressors, motors, and pumps, in industries like power generation, oil and gas, and chemical processing. With its rugged construction and advanced sensing technology, it ensures long-lasting performance in harsh industrial environments.
Key Features
-
High Precision: Delivers accurate displacement and vibration measurements with an 8 mm gap distance.
-
Rugged Design: Engineered to endure extreme environments, including high vibration and temperature fluctuations.
-
Non-contact Measurement: Utilizes eddy current sensing technology for precise, wear-free measurement of machine displacement.
-
Compatible with 3300 XL Proximitor Sensors: Works seamlessly with Bently Nevada 3300 XL Proximitor Sensors for optimized machinery monitoring.
-
Wide Operating Temperature Range: Capable of operating in temperatures from -40°C to +85°C (-40°F to +185°F).
-
Durable Construction: Stainless steel housing ensures protection against physical damage and environmental factors.
-
Real-Time Feedback: Provides critical data for real-time diagnostics, supporting early detection of machine faults.
-
CE Certification: Meets international safety and regulatory standards for industrial equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-03-12-05-02-00 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard thread for easy installation |
| Cable Length | Up to 10 meters (customizable) |
| Output | Compatible with Bently Nevada 3300 XL Proximitor Sensors |
| Weight | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Material | Stainless steel housing for durability |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe is widely utilized across various industries where precision machinery monitoring is critical for operational efficiency:
-
Power Generation: Used for monitoring turbines, generators, and other rotating machinery to ensure reliable operation and prevent downtime.
-
Oil & Gas: Ideal for monitoring equipment like compressors, pumps, and drilling machines in harsh, remote environments.
-
Chemical and Petrochemical: Essential for monitoring agitators, mixers, and reactors in chemical processing plants.
-
Manufacturing: Provides vital data for monitoring large motors, fans, and pumps in industrial plants to ensure smooth operation.
-
Mining & Metals: Used in conveyor systems, crushers, and mills to prevent costly failures and maintain operational continuity.
-
Transportation: Applied in engines, turbines, and high-speed rotating machinery in various transportation systems for real-time health monitoring.
Product Advantages
-
Accurate Displacement Monitoring: Measures vibration and displacement with precision, providing essential data for predictive maintenance.
-
Durable and Reliable: Built with stainless steel and designed to perform under extreme conditions, ensuring longevity.
-
Non-contact Sensing: Uses advanced eddy current technology for wear-free, non-contact measurements, improving system reliability.
-
Versatile: Compatible with Bently Nevada 3300 XL Proximitor Sensors for comprehensive vibration monitoring solutions.
-
Real-time Monitoring: Enables continuous, real-time diagnostics to detect early signs of machine faults, preventing unexpected breakdowns.
-
Wide Temperature Range: The probe’s ability to function in a wide range of temperatures makes it suitable for diverse operational environments.
Frequently Asked Questions (FAQ)
-
Q: What does the Bently Nevada 330103-03-12-05-02-00 probe measure?
A: It measures machine displacement and vibration, providing real-time data for predictive maintenance and condition monitoring. -
Q: Is the probe suitable for extreme operating conditions?
A: Yes, the probe is built to withstand harsh environments, including high temperatures and vibrations, making it ideal for industrial use. -
Q: What is the gap distance for this probe?
A: The probe operates with an 8 mm nominal gap distance, offering high precision for vibration and displacement measurement. -
Q: Can the probe be used with other sensors?
A: It is specifically designed to work with Bently Nevada 3300 XL Proximitor Sensors for optimized monitoring of rotating machinery. -
Q: What is the operating temperature range of the probe?
A: The probe can function in temperatures ranging from -40°C to +85°C (-40°F to +185°F). -
Q: What type of sensor technology is used in the probe?
A: The probe utilizes eddy current sensing technology, which ensures accurate, non-contact measurement of machine vibration and displacement. -
Q: How long can the probe’s cable be?
A: The cable length is customizable, with a typical maximum length of 10 meters. -
Q: What industries benefit most from this probe?
A: The probe is used in power generation, oil and gas, chemical processing, manufacturing, mining, and transportation industries for machinery health monitoring. -
Q: How does this probe help in predictive maintenance?
A: By providing real-time data on machinery health, the probe helps detect potential issues early, enabling timely maintenance and reducing downtime. -
Q: Is the probe easy to install?
A: Yes, the probe features a standard mounting thread, making it easy to install in various industrial systems.
