Product Introduction

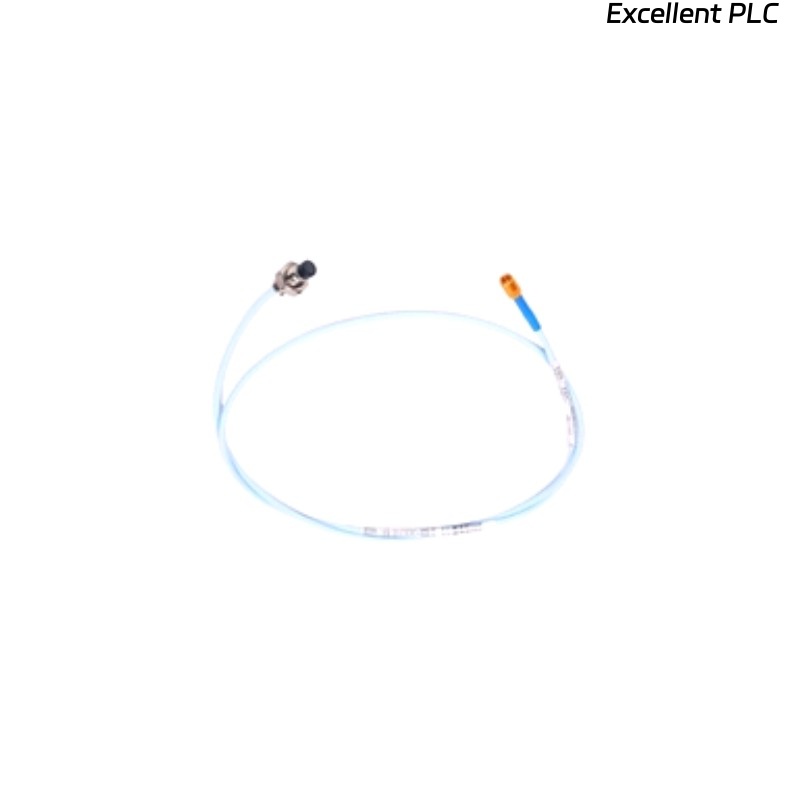

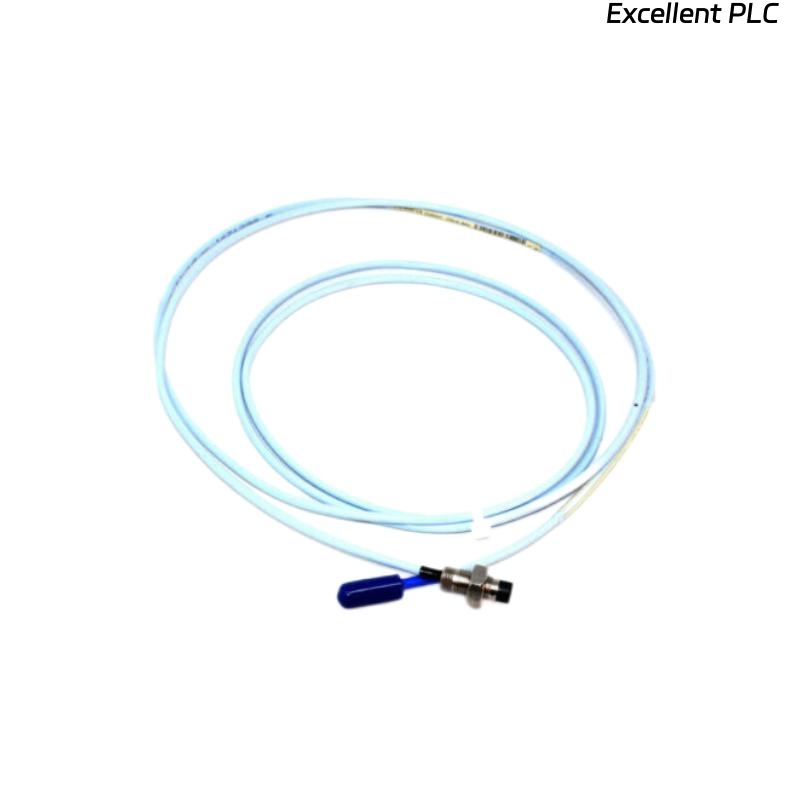

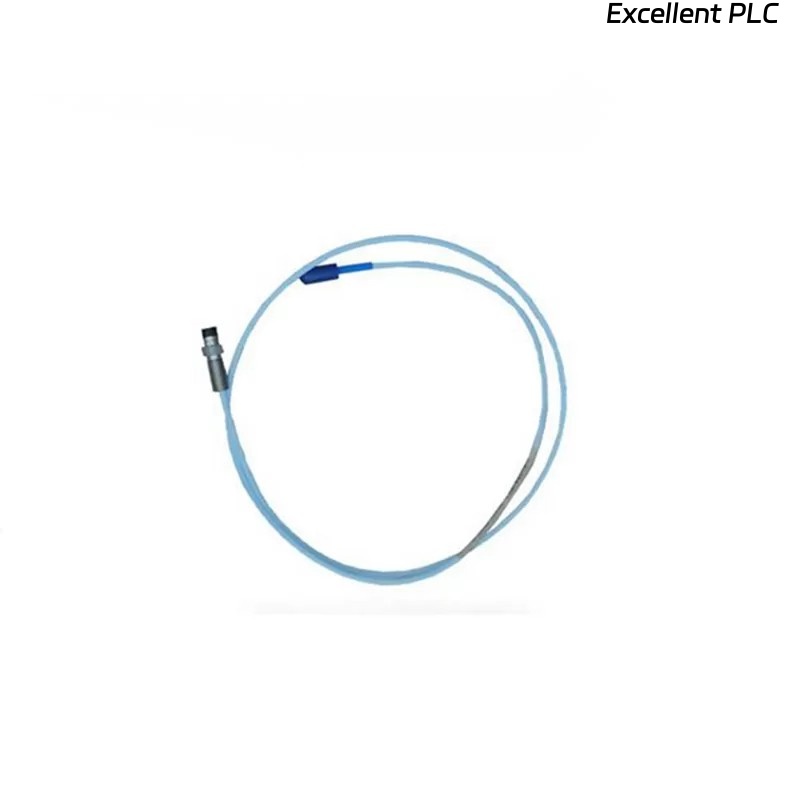

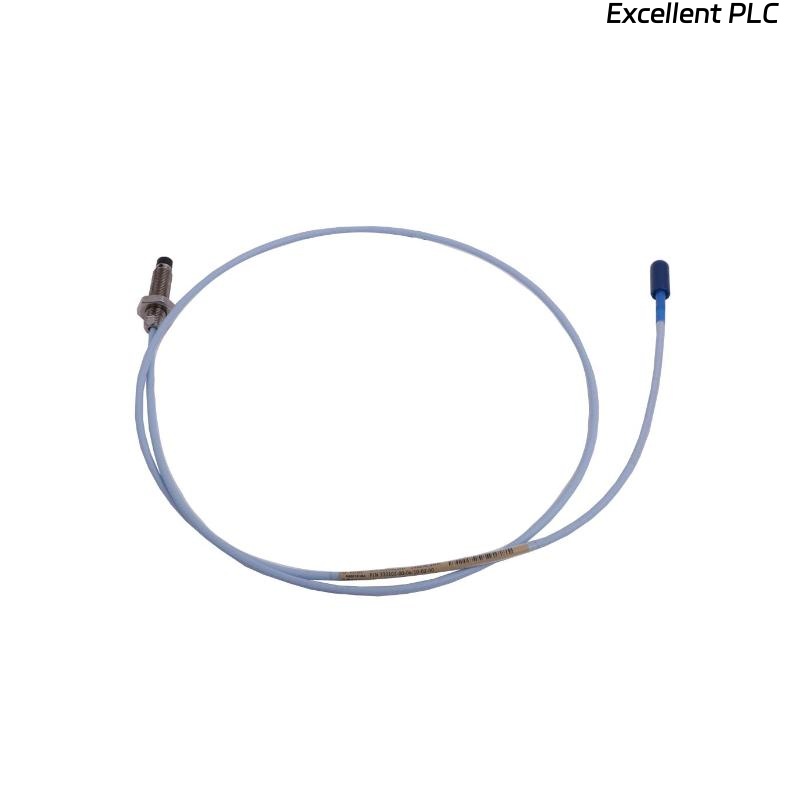

The Bently Nevada 330103-04-10-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the position and vibration of rotating machinery. Part of the renowned 3300 XL series, this probe offers robust performance in demanding industrial environments, delivering reliable measurements under high temperatures, pressures, and vibration conditions. Its 8 mm probe tip provides excellent sensitivity for critical machinery monitoring applications, ensuring early detection of machinery anomalies.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 8 mm Proximity Probe |
| Series | 3300 XL |
| Measurement Principle | Eddy-Current |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Operating Temperature | -40°C to 120°C |
| Probe Tip Material | Stainless Steel |
| Cable Type | Coaxial, shielded |
| Recommended Gap | 0.25–1.27 mm |
| Maximum Vibration | 100 g |
| Output Signal | AC or DC depending on system configuration |
| Connector Type | 2-pin LEMO or equivalent |
Applications
-
Monitoring critical rotating machinery, including turbines, compressors, and generators
-
Early detection of shaft misalignment, imbalance, and vibration abnormalities
-
Integration with Bently Nevada 3300 XL machinery protection systems
-
Continuous condition monitoring in power generation, petrochemical, and industrial plants
-
Supporting predictive maintenance programs to reduce unplanned downtime
Advantages
-
High sensitivity and repeatability ensure accurate displacement measurements
-
Robust construction withstands harsh industrial environments
-
Compatible with the 3300 XL system for seamless integration
-
Long cable lengths (up to 1 m) provide flexibility in probe installation
-
Eddy-current technology allows non-contact measurement for minimal wear
-
Early anomaly detection improves machinery safety and reduces maintenance costs
FAQ
Q1: What is the recommended gap for optimal performance?
A1: The recommended gap between the probe tip and the target is 0.25–1.27 mm, depending on the application and rotor size.
Q2: Can this probe operate in high-vibration environments?
A2: Yes, the 3300 XL probes are designed to tolerate vibration up to 100 g without affecting accuracy.
Q3: What type of signal output does this probe provide?
A3: The probe provides AC or DC output depending on the 3300 XL system configuration used.
Q4: Is the probe compatible with existing 3300 XL monitors?
A4: Yes, this probe is fully compatible with all 3300 XL system monitors.
Q5: Can this probe measure both radial and axial displacement?
A5: It is primarily designed for radial displacement measurement; axial measurement may require system configuration adjustments.
Q6: What materials are used for the probe tip?
A6: The probe tip is made of high-grade stainless steel to ensure durability and corrosion resistance.
Q7: Can the probe operate in extreme temperatures?
A7: Yes, it operates reliably between -40°C and 120°C.
Q8: Is the probe shielded against electromagnetic interference?
A8: Yes, it uses a coaxial shielded cable to minimize electromagnetic interference.
Q9: How precise is the displacement measurement?
A9: The probe provides high-precision displacement measurement with sub-micron sensitivity, suitable for critical machinery monitoring.
Q10: Can the cable length be customized?
A10: Standard length is 1 m, but longer cables can be requested to meet specific installation requirements.
Related or Same-Series Models
| Model | Description |
|---|---|
| 330103-04-10-10-02-06 | 3300 XL 8 mm Proximity Probe, standard variant |
| 330103-04-10-10-02-07 | 3300 XL 8 mm Proximity Probe, extended temperature range |
| 330103-04-10-10-02-08 | 3300 XL 8 mm Proximity Probe, high vibration tolerance |
| 330103-04-10-10-02-09 | 3300 XL 8 mm Proximity Probe, cable length 2 m |
| 330103-04-10-10-02-10 | 3300 XL 8 mm Proximity Probe, LEMO connector variant |
| 330103-04-10-10-02-11 | 3300 XL 8 mm Proximity Probe, reinforced cable |
