Product Introduction

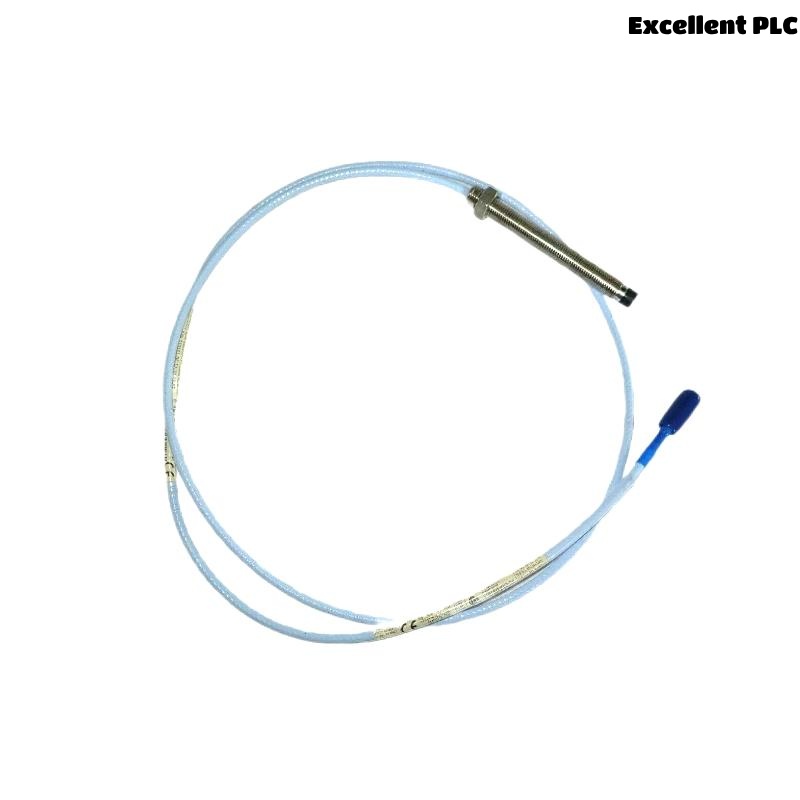

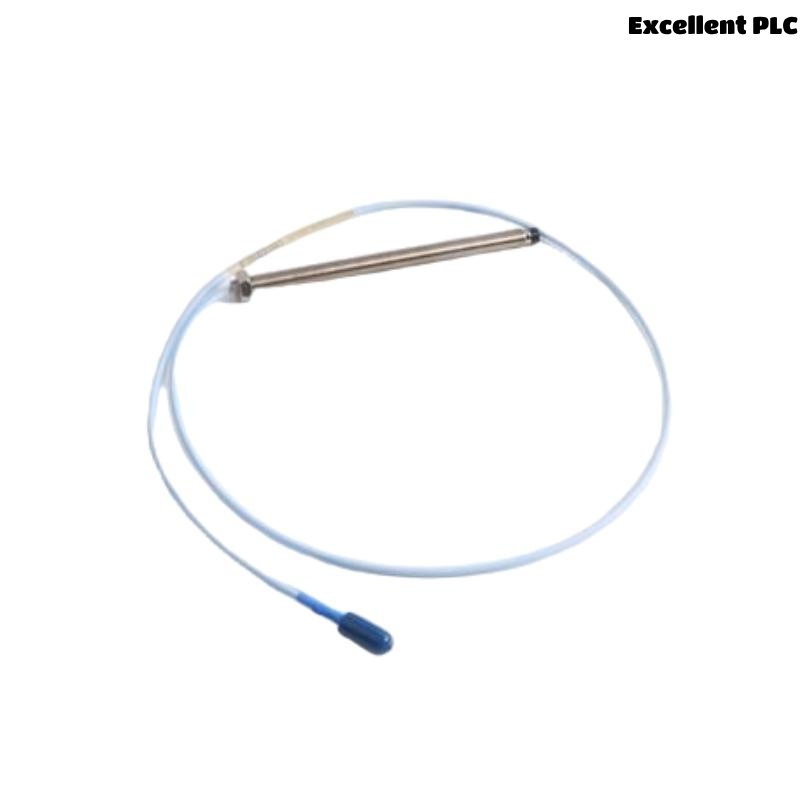

The Bently Nevada 330103-05-10-10-02-05 3300 XL 8mm Proximity Probe is part of the renowned 3300 XL series developed by Bently Nevada, a global leader in vibration monitoring and machinery protection solutions. The 3300 XL 8mm proximity probe offers unparalleled performance in monitoring shaft position and vibration in rotating machinery.
This product is engineered with superior materials and advanced electronics to ensure consistent accuracy in the harshest industrial environments. It is primarily used in conjunction with proximity sensor systems, providing critical input for machine protection and condition monitoring systems.
The probe meets the stringent standards of API 670, making it the choice of reliability engineers worldwide for monitoring critical rotating assets such as turbines, compressors, pumps, and motors.
Product Specifications
| Specification | Details |
|---|---|
| Model | 330103-05-10-10-02-05 |
| Series | 3300 XL 8mm Proximity Probes |
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Sensing Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2 mm (10 mils to 80 mils) |
| Non-linearity | ±0.75% of full-scale range |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Thread Type | 3/8-24 UNF or M10 x 1 |
| Probe Body Material | Stainless Steel |
| Cable Jacket Material | Polyethylene or optional FEP for harsh environments |
| Temperature Range (Probe) | -35°C to +177°C |
| Temperature Range (Cable) | -51°C to +177°C |
| System Compatibility | Compatible with Bently Nevada 3300 XL drivers and monitors |
| Compliance | Meets API 670 standards |
| Weight | 0.323 kg |
Applications
The Bently Nevada 330103-05-10-10-02-05 3300 XL 8mm Proximity Probe is used across a wide range of industries where continuous monitoring of rotating equipment is vital:
-
Power Generation
Monitoring turbine shafts, ensuring safe and efficient operation of steam, gas, and hydro turbines. -
Oil & Gas
Monitoring vibration and shaft position in compressors, pumps, and motors at refineries and production facilities. -
Petrochemical & Chemical Processing
Monitoring condition of critical rotating equipment in complex chemical processes. -
Pulp & Paper Industry
Tracking bearing wear and shaft vibration in large paper-making machinery. -
Steel & Metals Processing
Protecting rolling mills, motors, and high-speed machinery. -
Marine & Naval Applications
Monitoring propulsion systems, generators, and compressors on large ships.
Advantages
The Bently Nevada 330103-05-10-10-02-05 probe provides numerous technical and operational benefits:
-
High Accuracy and Stability
Delivers precise measurements across a wide temperature range, ensuring accurate monitoring over the equipment’s lifespan. -
Rugged and Reliable
Built with stainless steel construction and flexible cable options for harsh operating environments. -
Compliance with API 670
Meets industry standards for machinery protection systems. -
Long-Term Stability
Provides stable output over extended service life, reducing recalibration needs. -
High Compatibility
Seamlessly integrates with the 3300 XL series drivers and monitors, simplifying installation and system maintenance. -
Wide Temperature Range
Operates reliably in extreme environments—ideal for industries with variable operating conditions. -
Flexible Installation Options
Available in various thread sizes, cable lengths, and materials to suit specific application needs. -
Low Maintenance
Engineered to provide years of trouble-free service, minimizing operating costs.
FAQs
-
What is the primary use of the 330103-05-10-10-02-05 probe?
It is used for continuous monitoring of shaft vibration and position in rotating machinery. -
What standard does this probe comply with?
It meets the API 670 standard for machinery protection. -
What is the sensing range of this proximity probe?
The probe has a sensing range of 0 to 2 mm (80 mils). -
Is the probe suitable for high-temperature environments?
Yes, it can operate up to +177°C for both the probe and cable (depending on cable type). -
What cable length is provided with this model?
This particular model is supplied with a 1 meter cable. -
Can I use this probe with older Bently Nevada systems?
Yes, it is compatible with the 3300 XL drivers and monitors. -
What thread type does the probe use?
It is available with either 3/8-24 UNF or M10 x 1 thread types. -
What is the diameter of the probe tip?
The tip diameter is 8 mm. -
What material is used for the probe body?
The probe body is constructed from stainless steel. -
What industries commonly use this proximity probe?
It is widely used in oil & gas, power generation, chemical processing, marine, and manufacturing industries.
Related Models
| Model | Description | Key Features |
|---|---|---|
| 330103-00-05-10-02-05 | 3300 XL 8mm Proximity Probe (5 m, standard tip) | Standard vibration monitoring |
| 330103-00-10-10-02-05 | 3300 XL 8mm Proximity Probe (10 m cable) | For extended distance applications |
| 330104-00-10-10-02-05 | 3300 XL 11mm Proximity Probe | Larger tip for extended gap range |
| 330105-02-12-10-02-05 | 3300 XL 25mm Proximity Probe | For large shaft diameters |
| 330106-05-10-10-02-05 | 3300 XL NSv Proximity Probe | For narrow or limited space installations |
| 330130-040-00-00 | 3300 XL Extension Cable (4 m) | Connects probe to driver |
Popular Models from Bently Nevada
| Model | Description | Key Features |
|---|---|---|
| 3300 XL 8mm Proximity Probes | Standard 8mm proximity probe series | API 670 compliant, high accuracy |
| 3300 XL 11mm Proximity Probes | 11mm probe for greater sensing distances | Robust performance in harsh environments |
| 3300 XL NSv Proximity Probes | Narrow surface probes for tight installations | Ideal for small radial clearances |
| 3300 XL 25mm Proximity Probes | 25mm large-diameter probes | For large rotating machinery |
| 330130 Extension Cable Series | Extension cables for 3300 XL probes | Flexible installation distances |
| 330400 Velomitor Sensor Series | Velocity sensors for vibration monitoring | High sensitivity and accuracy |
