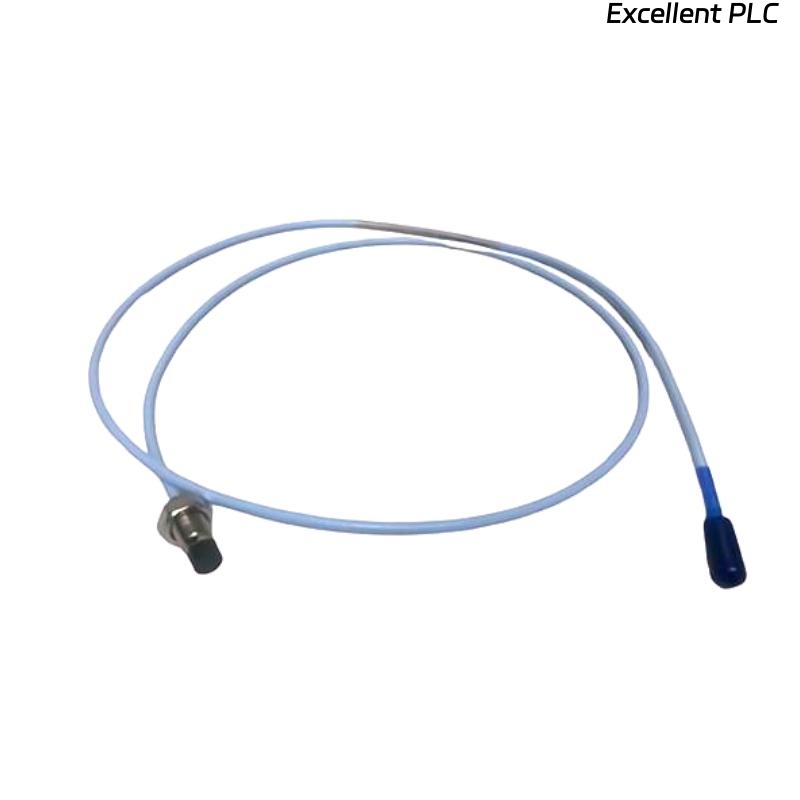

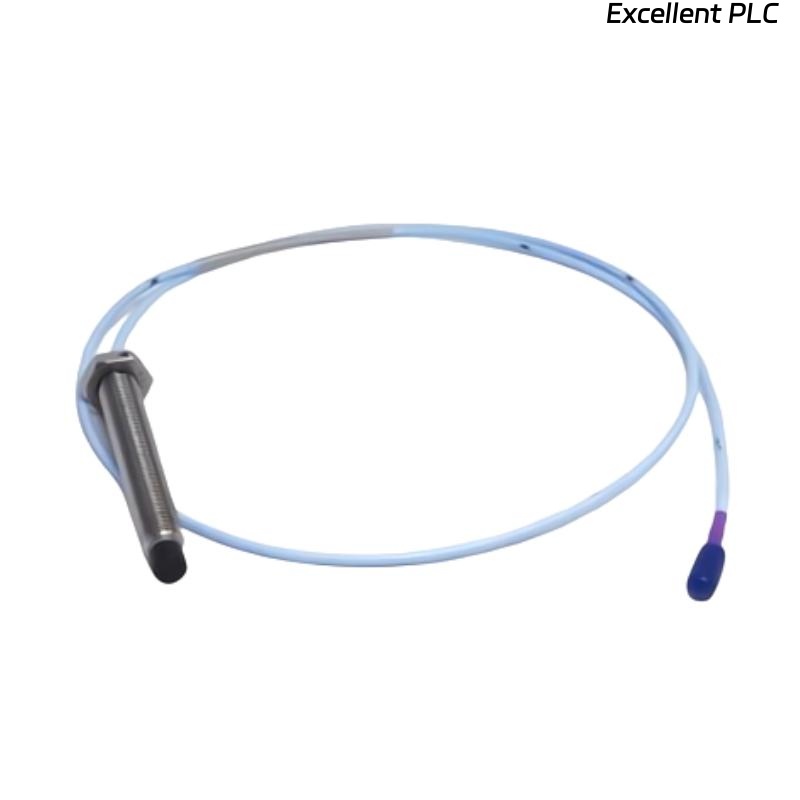

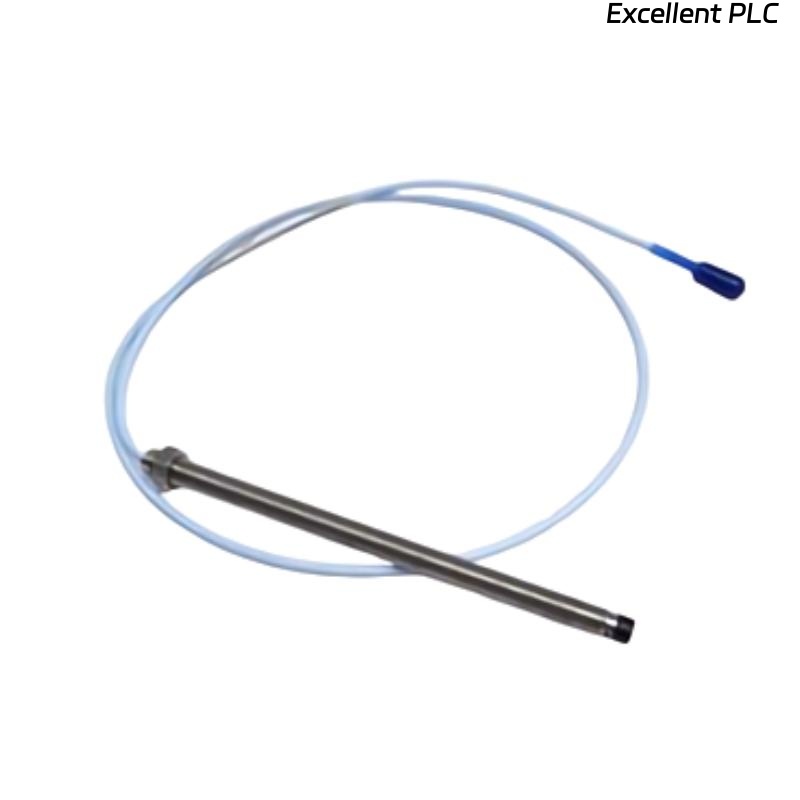

Bently Nevada 330103-05-10-10-12-RU 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330103-05-10-10-12-RU 3300 XL 8mm Proximity Probe is a high-performance sensor engineered to deliver precise and reliable shaft vibration and displacement measurements in critical rotating machinery. Part of the well-established 3300 XL series, it is designed for industrial environments where accuracy, durability, and stability are paramount.

This probe works in conjunction with an extension cable and a proximitor sensor to provide a fully conditioned output signal, which can be directly integrated into the Bently Nevada monitoring systems. The 8mm tip size ensures superior resolution and accuracy, making it suitable for turbines, compressors, motors, pumps, and other heavy-duty machinery.

Its rugged construction, resistance to electromagnetic interference, and ability to operate under extreme temperature conditions make it a trusted choice in predictive maintenance strategies across multiple industries.

---

Product Parameters

---

Product Applications

The 330103-05-10-10-12-RU proximity probe is widely used in rotating machinery condition monitoring applications. Its precision and stability make it indispensable for:

• Gas and steam turbines for shaft vibration and thrust position monitoring.

• Compressors in petrochemical and refinery operations.

• Electric motors and generators for imbalance and misalignment detection.

• High-speed pumps where cavitation and bearing wear monitoring is critical.

• Gearboxes to detect misalignment or excessive gear tooth wear.

• Industrial fans and blowers in heavy-duty environments.

This probe ensures early detection of faults, minimizing unplanned downtime and supporting continuous plant reliability.

---

Product Advantages

• High Measurement Accuracy – Provides reliable shaft displacement readings with an 8mm tip, ensuring detailed vibration analysis.

• Rugged Design – Built to withstand high temperatures, pressures, and harsh industrial conditions.

• Factory-Matched Calibration – Each probe and cable pair is calibrated together, guaranteeing signal accuracy.

• Electromagnetic Protection – Shielded against EMI and RFI to maintain stable performance even in electrically noisy environments.

• Wide Compatibility – Fully compatible with Bently Nevada’s 3300 XL monitoring systems, offering seamless integration.

• Predictive Maintenance Enabler – Helps plants adopt proactive maintenance strategies by detecting potential machinery faults early.

---

FAQ

1. What is the operating principle of the 330103-05-10-10-12-RU probe?
   The probe works on the eddy-current principle, generating a voltage signal proportional to the distance between the probe tip and the conductive shaft surface.

2. Why is the probe tip size fixed at 8mm?
   The 8mm design balances high sensitivity with durability, ensuring accurate readings even in confined spaces and high-speed machinery applications.

3. How does this probe interact with the proximitor?
   The probe detects shaft displacement, the signal is transmitted through the extension cable, and the proximitor conditions it into a voltage output suitable for monitoring systems.

4. What kind of output signal does the probe deliver?
   It provides a linear voltage output of 7.87 mV/µm (200 mV/mil), standardized across the 3300 XL series.

5. Does cable length affect performance?
   Yes, the probe is factory-calibrated with a specific extension cable length. Using mismatched lengths can result in inaccurate readings.

6. Can this probe operate in hazardous areas?
   When paired with approved proximitor systems, the probe can be applied in hazardous environments as part of certified installations.

7. What is the maximum frequency range supported?
   The probe supports a frequency range up to 10 kHz, ensuring reliable monitoring of both slow-speed and high-speed rotating equipment.

8. Is the probe resistant to electromagnetic interference?
   Yes, it is fully shielded to protect against EMI and RFI, which are common in industrial environments.

9. How does this probe contribute to predictive maintenance programs?
   It provides continuous vibration and position data, enabling early fault detection in bearings, shafts, and rotors, helping prevent unexpected breakdowns.

10. Can the probe be integrated with third-party monitoring systems?
    While optimized for Bently Nevada systems, integration with third-party monitoring systems is possible if proper calibration and signal conditioning are applied.

---
