Product Overview

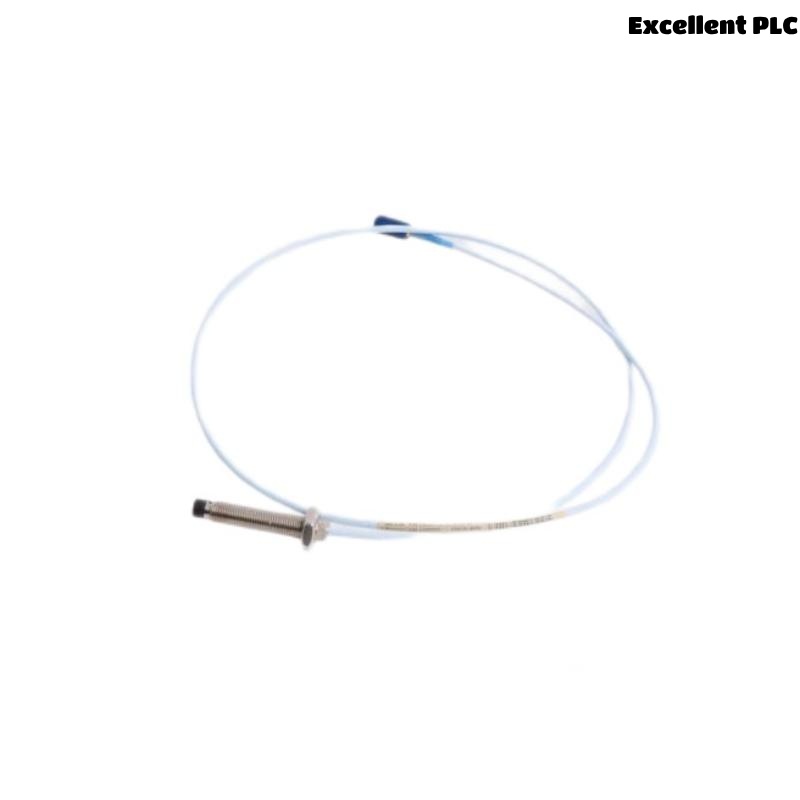

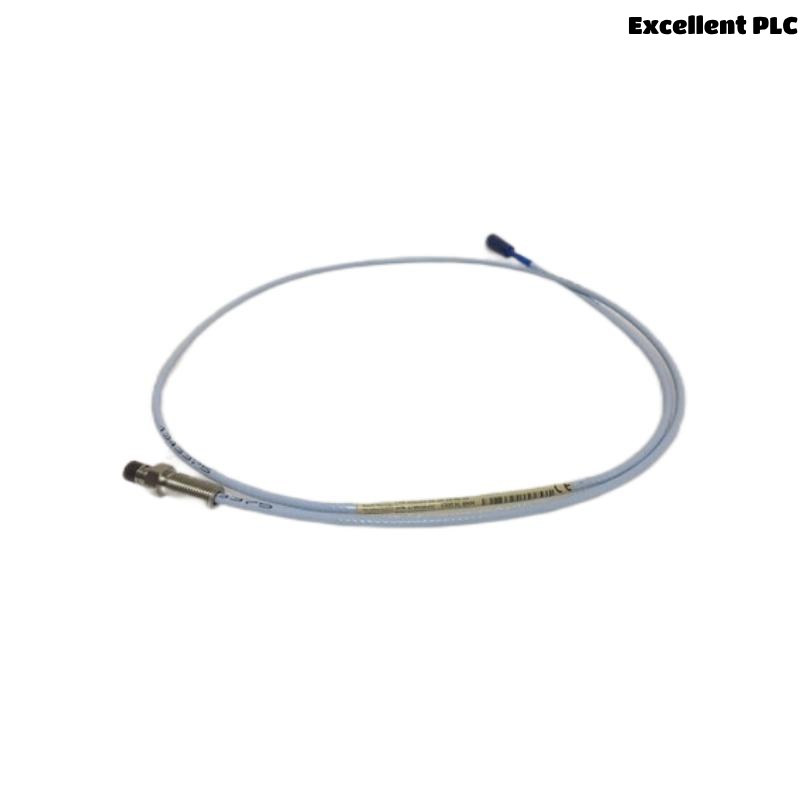

The Bently Nevada 330103-05-12-10-01-00 3300 XL 8 mm Proximity Probe is an advanced, high-precision proximity probe designed for measuring the displacement of rotating machinery. This model is part of the renowned 3300 XL Series, specifically engineered to deliver highly accurate and reliable data in demanding industrial environments. The 8 mm gap design allows for precise non-contact measurement, making it suitable for applications in power generation, oil & gas, manufacturing, and other critical industries where accurate vibration and displacement monitoring is essential.
The 3300 XL 8 mm Proximity Probe is a vital component in predictive maintenance systems, providing real-time feedback on machinery health. Its robust construction ensures durability in harsh environments, delivering reliable performance and long-term operational benefits.
Key Features
-
High Precision: Provides exact displacement and vibration measurements with an 8 mm nominal gap distance.
-
Rugged Design: Built to withstand harsh environments, including extreme temperatures and vibrations.
-
Non-contact Measurement: Utilizes advanced eddy current sensing technology to ensure precise, wear-free measurement of machine displacement.
-
Works with 3300 XL Proximitor Sensors: Compatible with Bently Nevada 3300 XL Proximitor Sensors for optimized monitoring of rotating machinery.
-
Wide Temperature Range: Operates effectively in temperatures from -40°C to +85°C (-40°F to +185°F), making it ideal for a variety of industrial applications.
-
Stainless Steel Housing: The rugged stainless steel housing provides resistance against physical damage and environmental exposure.
-
CE Certified: Meets international standards for safety and performance in industrial applications.
-
Real-time Data: Enables continuous monitoring of machinery health, providing early warnings for potential failures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-05-12-10-01-00 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard thread for easy installation |
| Cable Length | Customizable (Up to 10 meters) |
| Output | Compatible with Bently Nevada 3300 XL Proximitor Sensors |
| Weight | 0.323 kg |
| Dimensions | Total Length: 1.0 meters |
| Material | Stainless steel housing for durability |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330103-05-12-10-01-00 3300 XL 8 mm Proximity Probe is widely used in industries where high-precision machinery monitoring is crucial for maintaining operational efficiency and preventing downtime:
-
Power Generation: Used for monitoring turbines, generators, and other critical rotating machinery to ensure reliable operation.
-
Oil & Gas: Essential for monitoring equipment such as compressors, pumps, and drill rigs, especially in harsh environments.
-
Manufacturing: Provides continuous monitoring of motors, conveyors, and other high-speed rotating equipment in manufacturing plants.
-
Chemical Processing: Ideal for monitoring reactors, agitators, and other machinery that operates under intense conditions.
-
Mining & Metals: Used in crushers, mills, and other mining equipment to monitor health and reduce operational disruptions.
-
Transportation: Used in engines and turbines to ensure performance in high-speed transportation systems, including trains, aircraft, and marine vessels.
Product Advantages
-
Accurate Displacement Monitoring: Offers precise measurements of machinery displacement and vibration, which are essential for predicting potential equipment failure.
-
Durable and Reliable: Constructed from high-quality stainless steel to withstand physical damage and environmental stress.
-
Non-contact Sensing: Uses eddy current technology for wear-free, non-contact measurement, reducing the risk of sensor damage.
-
Wide Operating Temperature Range: Operates reliably across a broad temperature range, from -40°C to +85°C, ensuring it can be used in various environments.
-
Seamless Integration: Compatible with Bently Nevada 3300 XL Proximitor Sensors, providing a comprehensive and integrated solution for machinery health monitoring.
-
Real-Time Feedback: Provides immediate data that supports quick decision-making in predictive maintenance and condition monitoring.
Frequently Asked Questions (FAQ)
-
Q: What is the purpose of the Bently Nevada 330103-05-12-10-01-00 3300 XL 8 mm Proximity Probe?
A: The probe is designed to measure the displacement and vibration of rotating machinery, providing critical data for predictive maintenance and real-time monitoring. -
Q: What type of technology is used in the proximity probe?
A: The probe uses eddy current sensing technology, which provides accurate, non-contact measurements of machine displacement. -
Q: What industries use this proximity probe?
A: It is used in various industries, including power generation, oil and gas, manufacturing, chemical processing, and transportation. -
Q: How accurate is the Bently Nevada 330103-05-12-10-01-00 probe?
A: The probe provides accurate measurements within a ± 0.50 mm range, ensuring precise displacement monitoring. -
Q: Can the probe be used in extreme environments?
A: Yes, the probe is designed to operate in extreme environments, with a wide temperature range of -40°C to +85°C. -
Q: What is the gap distance for this probe?
A: The nominal gap distance for the 3300 XL 8 mm Proximity Probe is 8 mm. -
Q: How is the probe installed?
A: The probe features a standard mounting thread for easy installation on machinery and equipment. -
Q: What is the lifespan of the probe?
A: With its rugged construction and non-contact measurement technology, the probe is designed for long-term, reliable performance in harsh industrial environments. -
Q: How does the probe help in predictive maintenance?
A: By providing continuous and accurate displacement data, the probe helps identify potential issues before they result in equipment failure, reducing downtime and maintenance costs. -
Q: Is this probe compatible with other Bently Nevada products?
A: Yes, the probe is designed to work seamlessly with Bently Nevada 3300 XL Proximitor Sensors, providing a comprehensive solution for machinery monitoring.
