Product Introduction

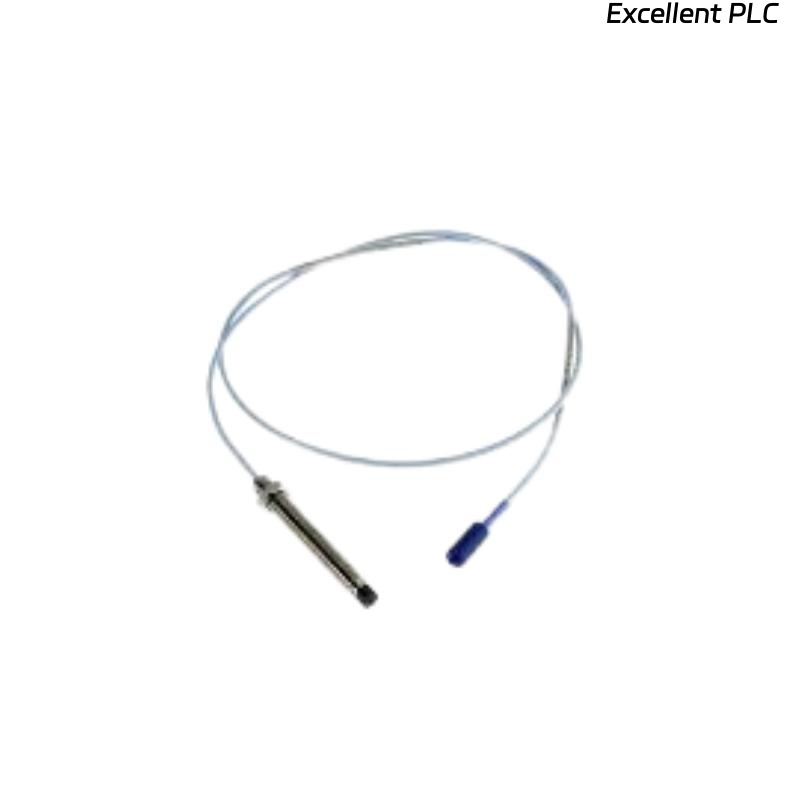

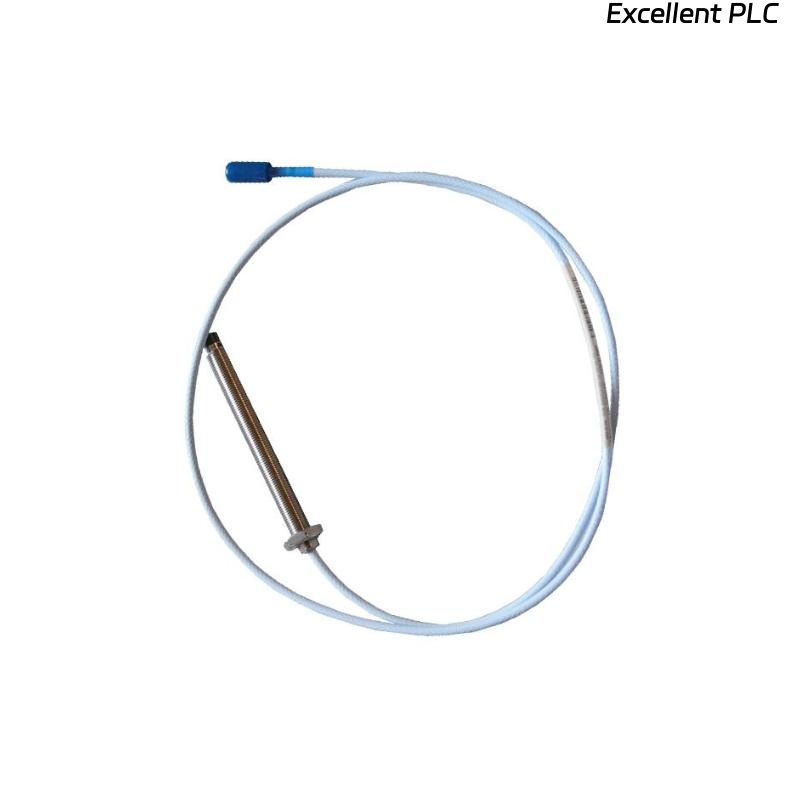

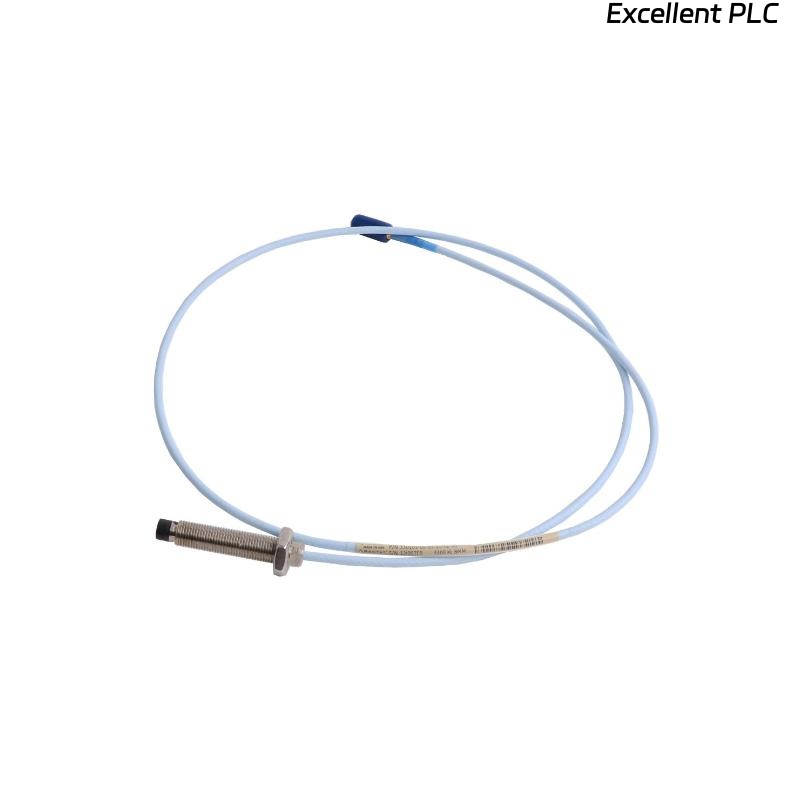

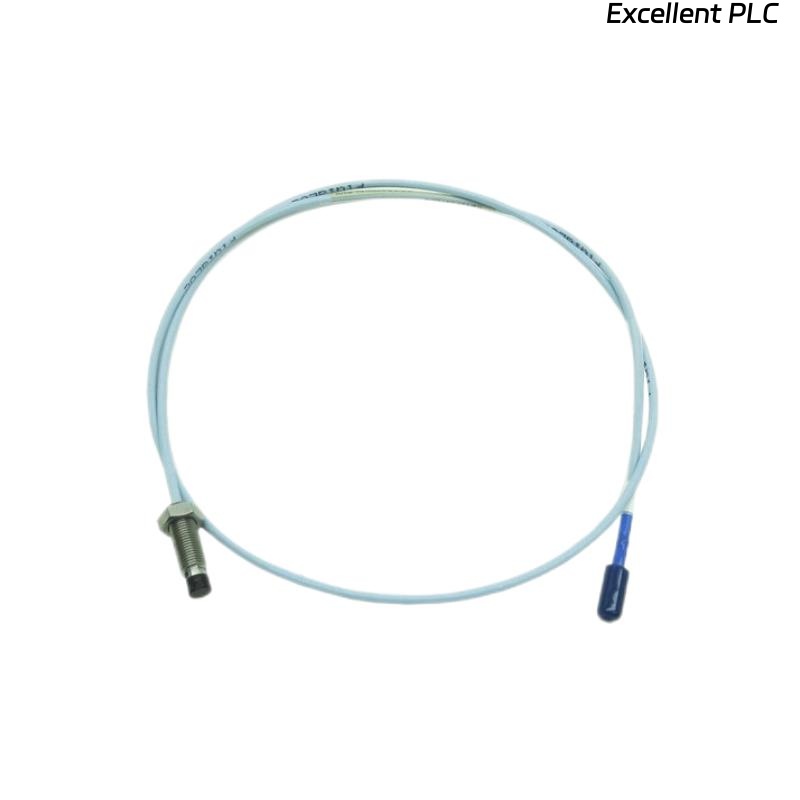

The Bently Nevada 330103-05-13-10-02-00 is an 8 mm 3300 XL Proximity Probe, part of Bently Nevada’s industry-leading monitoring solutions. Designed for precise rotor vibration measurement, this sensor provides reliable and accurate data in high-speed rotating machinery. Its rugged design ensures consistent performance even in demanding industrial environments, including turbines, compressors, and generators.
The probe is compatible with the 3300 XL monitoring system, supporting both continuous monitoring and advanced diagnostic capabilities. Its 8 mm diameter sensing tip ensures high sensitivity and responsiveness for detecting displacement, position, and vibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm 3300 XL Proximity Probe |
| Sensing Range | 0.25 mm to 2.54 mm (standard) |
| Output Type | AC Signal / Eddy Current |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Cable Type | Shielded coaxial |
| Cable Length | 1 m (Total Length) |
| Weight | 0.323 kg |
| Tip Material | Non-magnetic stainless steel |
| Mounting Style | Threaded or stud mount |
| Recommended Gap to Target | 0.25 mm nominal |
| Vibration Tolerance | Up to 200 g |
| Environmental Protection | IP67 |
Applications
-
Rotor vibration monitoring in turbines, compressors, and generators
-
Condition-based maintenance for critical rotating machinery
-
Integration with 3300 XL Machinery Protection Systems
-
High-speed shaft position measurement
-
Real-time diagnostics of mechanical instability
-
Industrial process monitoring requiring high reliability and accuracy
Advantages
-
High Precision: Ensures accurate measurement of rotor displacement and vibration.
-
Robust Design: Withstands high temperatures, shock, and industrial environments.
-
Reliable Performance: Compatible with the 3300 XL system for continuous monitoring.
-
Easy Installation: Flexible cable and standard mounting options allow straightforward setup.
-
Versatile Use: Supports multiple machinery types, including turbines, generators, and pumps.
-
Reduced Downtime: Enables predictive maintenance, reducing the risk of catastrophic failures.
FAQ
Q1: What is the operating frequency range of this probe?
A1: The probe supports a frequency response up to 20 kHz, making it suitable for high-speed rotor applications.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it can operate reliably in temperatures ranging from -40°C to +121°C.
Q3: What type of signal does the probe output?
A3: The probe outputs an AC signal proportional to the displacement via eddy current principle.
Q4: Is the probe compatible with other Bently Nevada systems besides 3300 XL?
A4: While optimized for 3300 XL, it can interface with compatible eddy-current signal conditioners if proper calibration is applied.
Q5: How should the probe cable be routed for best performance?
A5: Use shielded coaxial cable routing, avoid sharp bends, and maintain separation from high-current or high-voltage lines.
Q6: What is the recommended gap between the probe tip and the target?
A6: The nominal gap is 0.25 mm for standard operation, adjustable based on system calibration.
Q7: Can this probe measure vibration amplitude?
A7: Yes, it can accurately measure radial vibration amplitude in high-speed rotating machinery.
Q8: Does the probe require grounding?
A8: The probe shield should be grounded to reduce electromagnetic interference.
Q9: How resistant is the probe to mechanical shock and vibration?
A9: It can tolerate shock up to 200 g and continuous vibration typical of industrial rotating machinery.
Q10: What material is used for the probe tip?
A10: The tip is made of non-magnetic stainless steel, providing durability and stability in harsh environments.
Recommended Same-Series or Related Models
| Model Number | Description |
|---|---|
| 330103-05-13-10-01-00 | 8 mm 3300 XL Proximity Probe, standard cable |
| 330103-05-12-10-02-00 | 8 mm 3300 XL Probe with longer cable |
| 330103-05-15-10-02-00 | 8 mm 3300 XL Probe for high-temperature applications |
| 330103-05-14-10-02-00 | 8 mm Probe with extended sensing range |
| 330103-05-13-11-02-00 | 8 mm 3300 XL Probe with reinforced tip |
| 330103-05-16-10-02-00 | 8 mm Probe for heavy-duty industrial machinery |
Popular Models from Bently Nevada
| Model Number | Description |
|---|---|
| 330103-04-10-10-02-05 | 8 mm 3300 XL Proximity Probe |
| 330103-03-08-10-01-00 | 8 mm 3300 XL Proximity Probe |
| 330103-03-09-10-02-00 | 8 mm 3300 XL Proximity Probe |
| 330103-03-06-05-02-00 | 8 mm 3300 XL Proximity Probe |
| 330103-05-13-10-02-01 | 8 mm 3300 XL Probe with extended cable |
| 330103-05-13-10-02-02 | 8 mm 3300 XL Probe with reinforced tip |
