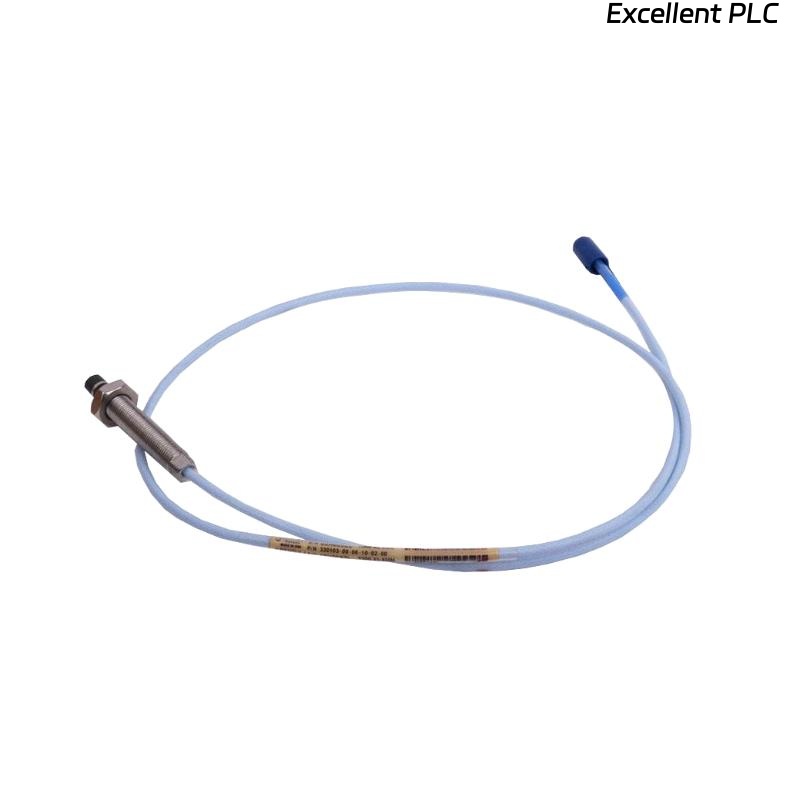

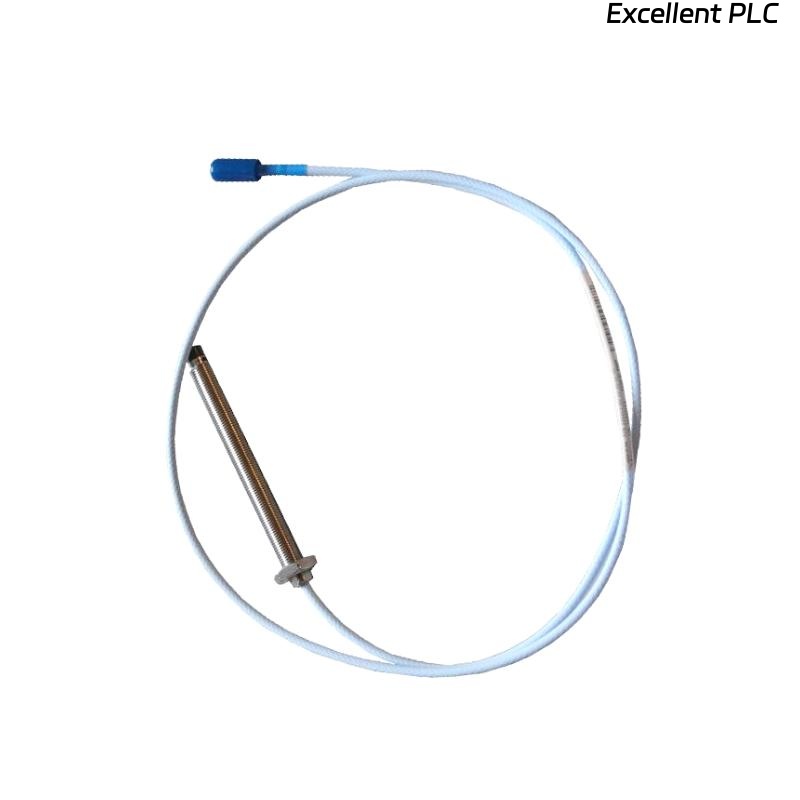

The Bently Nevada 330103-05-15-02-00 3300 XL 8mm Proximity Probe is a precision-engineered sensor designed to measure the vibration and position of rotating machinery. It is part of the renowned Bently Nevada 3300 XL series, known for its exceptional accuracy, reliability, and ruggedness in industrial monitoring systems. This proximity probe is typically used with the 3300 XL Proximitor Sensor and extension cables to provide precise displacement measurements in harsh environments.

The 3300 XL 8mm probe utilizes non-contact eddy current measurement technology to detect the distance between the probe tip and the target surface (usually a rotating shaft). With its robust design, it delivers stable performance even under conditions of high temperature, oil contamination, or electromagnetic interference.

---

Technical Specifications

---

Product Applications

The 330103-05-15-02-00 Proximity Probe is used in a wide range of industrial environments where precise monitoring of rotating equipment is essential. Its typical applications include:

• Turbomachinery such as steam turbines, gas turbines, and compressors for shaft vibration and axial position monitoring.

• Electric motors and generators, where the probe ensures the detection of imbalance or misalignment.

• Pumps and fans, for monitoring shaft motion and bearing health.

• Industrial gearboxes to track the condition of rotating shafts.

• Refinery and petrochemical plants, where reliability and long-term operation under harsh conditions are required.

Its non-contact design allows continuous operation without mechanical wear, making it ideal for mission-critical machinery that operates continuously in high-speed conditions.

---

Product Advantages

The Bently Nevada 330103-05-15-02-00 proximity probe offers several significant advantages that make it a trusted choice for machinery protection and condition monitoring systems:

1. Exceptional Accuracy and Stability – Provides precise measurement over wide temperature and vibration ranges.

2. Robust Mechanical Construction – Stainless steel body ensures corrosion resistance and long operational life.

3. High Electromagnetic Immunity – Shielded coaxial design minimizes noise and interference from nearby equipment.

4. Ease of Installation – ClickLoc™ connectors ensure secure and fast connection without tools.

5. Wide System Compatibility – Works seamlessly with 3300 XL series Proximitor sensors and cables.

6. Long-Term Reliability – Designed for continuous industrial use in demanding environments.

7. Sealed and Protected – IP67-rated design allows use in oil-contaminated or high-humidity areas.

8. Enhanced Linear Range – Suitable for both vibration and position monitoring applications.

---

FAQ

1. What measurement principle does the 330103-05-15-02-00 use?
   The probe operates using eddy current technology, generating an electromagnetic field that detects the distance between the probe tip and a conductive target surface.

2. Which monitoring systems are compatible with this probe?
   It is fully compatible with the Bently Nevada 3300 XL series systems, including 3300 XL Proximitor Sensors and matching extension cables.

3. Can the probe be used in high-temperature environments?
   Yes, it is designed to function reliably in environments up to +177°C, making it suitable for most industrial rotating machinery.

4. How is the probe signal transmitted to the monitoring system?
   The probe’s signal is transmitted through a coaxial cable to the Proximitor Sensor, which converts the signal into a proportional voltage output.

5. Is the probe affected by oil or contaminants?
   No. The 3300 XL design maintains high accuracy even in environments contaminated with oil or dirt, due to its sealed construction and material selection.

6. Does the probe require calibration after installation?
   Calibration is factory-set; only system verification is typically needed during commissioning to ensure proper installation and gap settings.

7. What kind of mechanical mounting options are available?
   The probe can be installed using threaded mounts, clamps, or adjustable brackets to ensure precise alignment with the target surface.

8. Can this probe be used with other sensor types in mixed configurations?
   It is recommended to use probes, cables, and sensors from the same 3300 XL series to maintain calibration accuracy and system performance.

9. What is the linear range of measurement?
   The probe has a linear range of approximately 2.0 mm (80 mils), ensuring high precision in detecting shaft vibration and displacement.

10. Is electrical isolation necessary for this probe?
    No external isolation is needed since the probe is internally isolated from ground to prevent electrical interference.

---
