Product Introduction

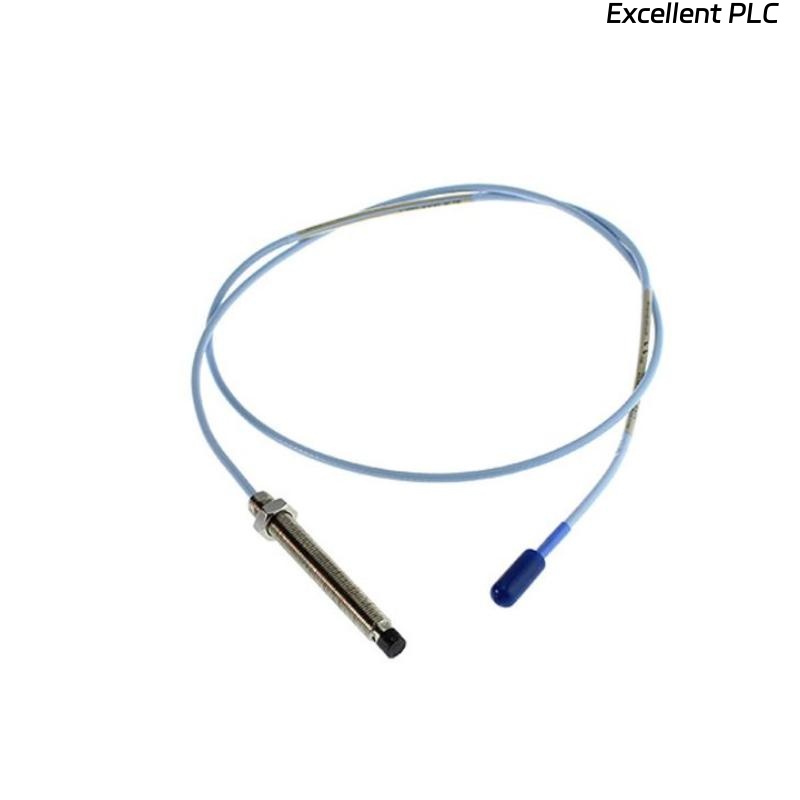

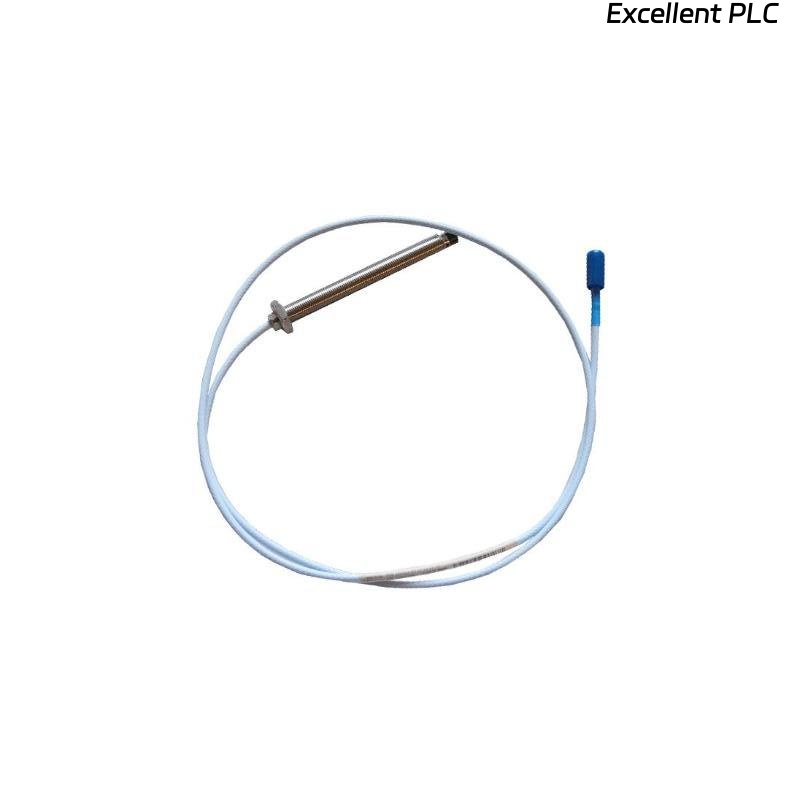

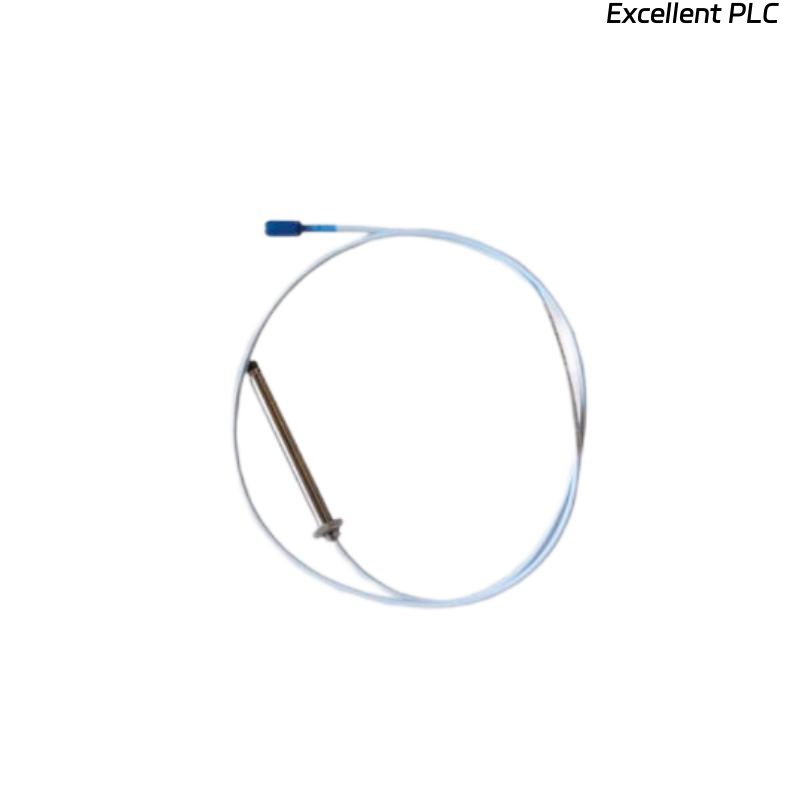

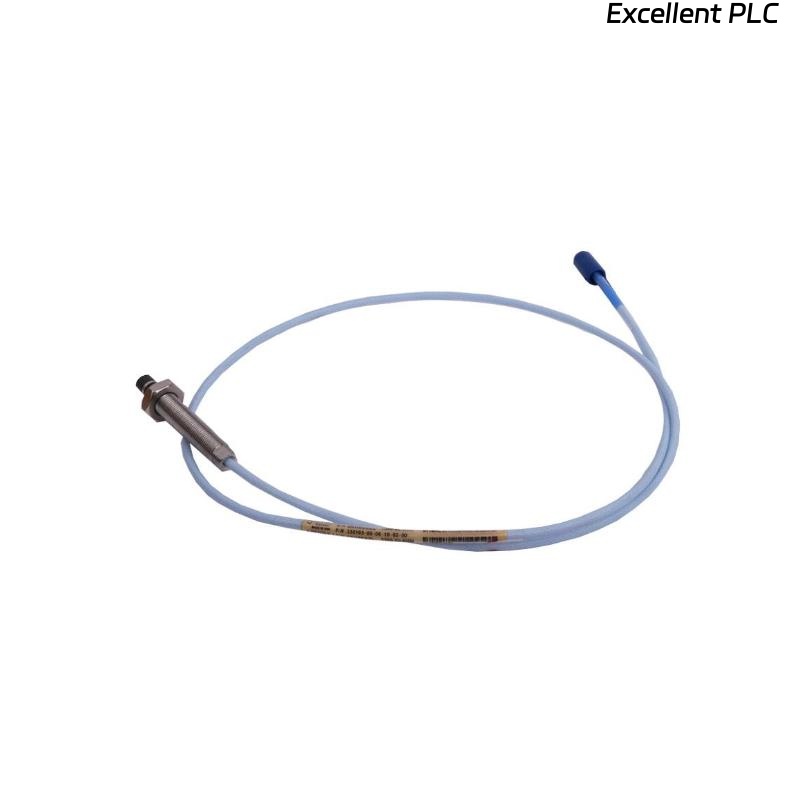

The Bently Nevada 330103-06-14-05-02-CN 3300 XL 8 mm Proximity Probe is a high-performance eddy-current proximity sensor designed for monitoring the position and vibration of rotating machinery in critical industrial applications. Part of the trusted 3300 XL series, this probe ensures accurate, reliable, and continuous measurements under challenging operating conditions. With its robust design, it supports machinery protection, predictive maintenance, and performance monitoring for turbines, compressors, pumps, and other high-speed rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm 3300 XL Proximity Probe |
| Total Length | 0.5 m |
| Weight | 0.162 kg |
| Cable Type | Shielded, twisted-pair |
| Operating Temperature | -40°C to 120°C |
| Probe Tip Material | Non-ferrous, corrosion-resistant |
| Measurement Range | 8 mm nominal |
| Frequency Response | DC to 10 kHz |
| Output Type | AC Voltage proportional to gap |
| Connection Interface | Standard Bently Nevada connector |
| Environmental Protection | IP65 or equivalent |
| Recommended Gap | 0.25 mm (typical) |
| Vibration Tolerance | High, suitable for industrial machines |
Applications
-
Continuous monitoring of rotating shafts in turbines, compressors, and motors
-
Machinery protection and trip systems in power plants
-
Predictive maintenance and condition monitoring in industrial plants
-
High-speed centrifugal pumps and compressors
-
Monitoring critical rotating equipment in oil & gas facilities
-
Integration with 3300 XL monitoring systems for early detection of shaft movement, vibration, and misalignment
Product Advantages
-
High Accuracy: Ensures precise measurement of shaft displacement and vibration.
-
Reliable Operation: Designed to operate under extreme temperatures, vibration, and industrial conditions.
-
Compatibility: Fully compatible with 3300 XL monitoring systems for seamless integration.
-
Robust Design: Resistant to corrosion, dust, and electrical noise interference.
-
Maintenance-Friendly: Simple installation with standardized connectors and minimal calibration needs.
-
Long-Term Stability: Delivers consistent measurement performance over time.
FAQ
Q1: What is the nominal measurement range of this probe?
A1: The probe is designed for an 8 mm nominal measurement range, with optimal performance at 0.25 mm gap.
Q2: Can this probe operate in high-temperature environments?
A2: Yes, it operates reliably in temperatures from -40°C to 120°C.
Q3: What type of signal output does the probe provide?
A3: The output is an AC voltage proportional to the gap between the probe tip and the target.
Q4: Is the cable shielded to prevent electrical noise interference?
A4: Yes, the probe uses a shielded twisted-pair cable for noise immunity.
Q5: Can this probe be used for both vibration and shaft position monitoring?
A5: Yes, it is suitable for both applications when integrated with 3300 XL monitoring systems.
Q6: How is the probe connected to the monitoring system?
A6: It uses the standard Bently Nevada connector compatible with 3300 XL monitoring systems.
Q7: What is the probe tip material, and why is it important?
A7: The tip is made of a non-ferrous, corrosion-resistant material to withstand industrial environments and avoid wear on rotating shafts.
Q8: Is this probe suitable for vertical or horizontal installations?
A8: Yes, it can be installed in both orientations as long as the recommended gap is maintained.
Q9: What is the frequency response of this probe?
A9: The probe provides a frequency response from DC to 10 kHz, suitable for high-speed machinery monitoring.
Q10: Can this probe be used in explosive environments?
A10: It is not intrinsically safe; consult safety standards and additional protective measures before using in hazardous areas.
Recommended 3300 XL Series / Related Models
| Model Number | Description |
|---|---|
| 330103-06-10-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-06-12-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-06-16-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-06-18-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-06-20-05-02-CN | 3300 XL 8 mm Proximity Probe |
| 330103-06-22-05-02-CN | 3300 XL 8 mm Proximity Probe |
