Product Introduction

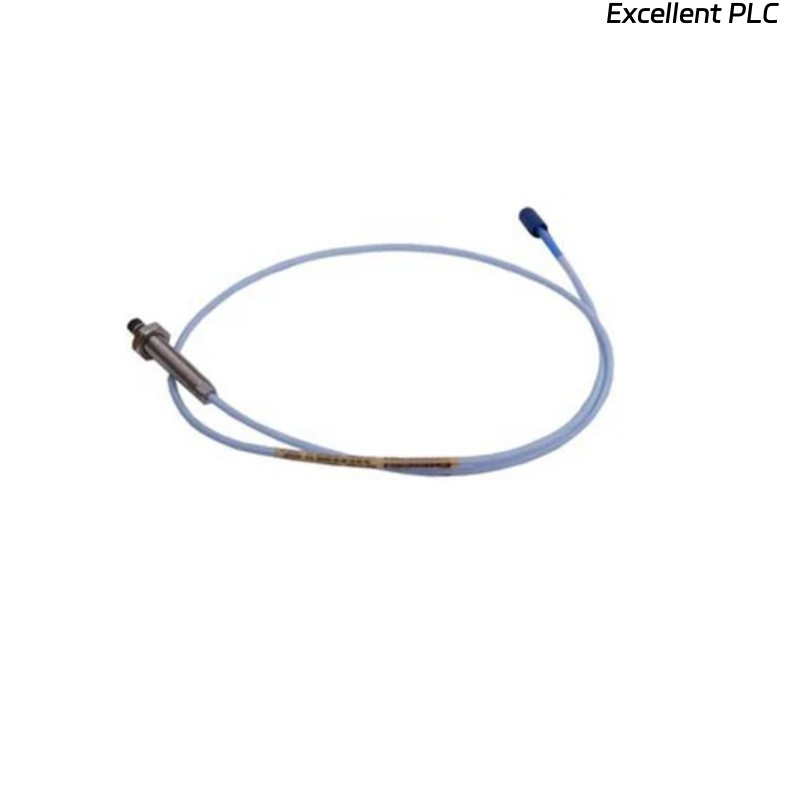

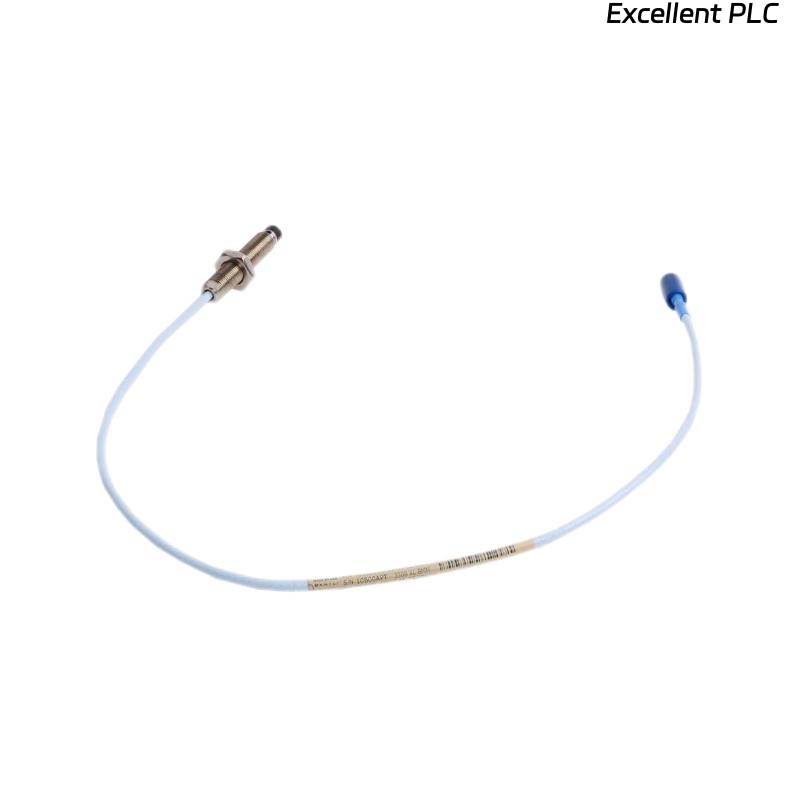

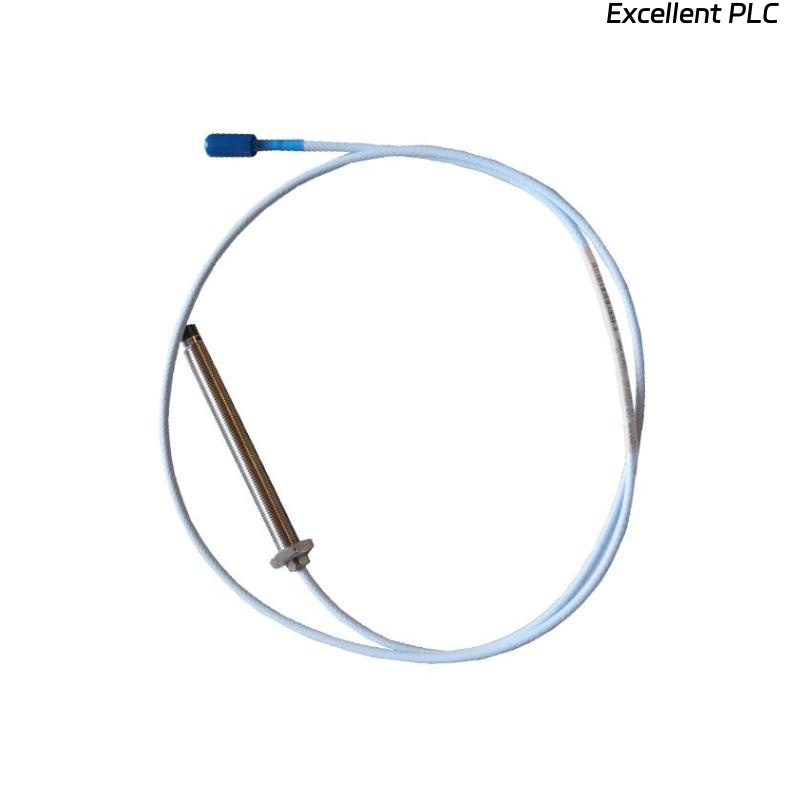

The Bently Nevada 330103-06-15-05-02-CN is a high-precision 3300 XL 8 mm Proximity Probe designed for industrial machinery monitoring and vibration analysis. This probe is part of the 3300 XL series, recognized for its reliable performance in harsh environments, including high temperatures, high vibration, and electrically noisy conditions. It is engineered to detect minute shaft displacements, enabling early fault detection and predictive maintenance.
The probe utilizes eddy-current technology to provide accurate proximity measurement, making it suitable for turbines, compressors, motors, and generators. Its robust design ensures consistent performance under demanding operating conditions.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-06-15-05-02-CN |
| Probe Type | 8 mm Proximity Probe |
| Series | 3300 XL |
| Sensing Method | Eddy-Current |
| Total Length | 0.5 m |
| Weight | 0.162 kg |
| Probe Tip Material | Stainless Steel |
| Cable Type | Shielded, twisted pair |
| Operating Temperature | -40°C to 120°C |
| Maximum Vibration | 30 g |
| Electrical Interface | 4-20 mA or Voltage Output Options |
Product Applications
-
Rotating Equipment Monitoring: Turbines, compressors, pumps, and motors.
-
Vibration Analysis: Real-time shaft displacement and vibration monitoring.
-
Predictive Maintenance Programs: Early fault detection to reduce downtime.
-
Industrial Process Control: Integration with condition monitoring systems.
-
Power Generation: Monitoring of steam, gas, and hydro turbines.
-
Heavy Industry: Mining, cement, and chemical plants requiring robust probe performance.
Product Advantages
-
High Accuracy: Provides precise displacement measurement for shaft vibration and alignment.
-
Robust Design: Capable of withstanding high temperatures, vibration, and electrical noise.
-
Reliable Signal Quality: Shielded cable ensures low-noise transmission over distances.
-
Predictive Maintenance Support: Enables early detection of equipment faults, reducing unexpected downtime.
-
Easy Integration: Compatible with the 3300 XL monitoring system for seamless installation.
-
Wide Range of Applications: Suitable for multiple industrial environments and equipment types.
FAQ
Q1: What is the sensing principle of the 330103-06-15-05-02-CN probe?
The probe uses eddy-current technology to detect variations in distance between the probe tip and target surface.
Q2: Can this probe operate in high-vibration environments?
Yes, it is designed to operate in environments with vibrations up to 30 g.
Q3: What kind of output signal does the probe provide?
It can provide either a 4-20 mA current output or a voltage output depending on the connected system.
Q4: Is the probe compatible with standard 3300 XL monitoring systems?
Yes, it is fully compatible with all 3300 XL proximity monitoring systems.
Q5: What is the operating temperature range for this probe?
The probe operates reliably between -40°C and 120°C.
Q6: Does the probe require shielding for long cable runs?
The probe comes with a shielded twisted pair cable, minimizing interference in extended runs.
Q7: Can this probe detect axial and radial vibrations?
It primarily measures radial shaft displacement; axial measurements require additional instrumentation.
Q8: How resistant is the probe to electrical noise?
The 3300 XL series probes are engineered for high immunity to electrical noise and EMI.
Q9: Is calibration required before installation?
Probes are factory-calibrated; field calibration may be performed for system integration accuracy.
Q10: Can the probe be used in explosive environments?
It can be used in standard industrial environments; hazardous area certifications should be verified for specific applications.
