Product Introduction

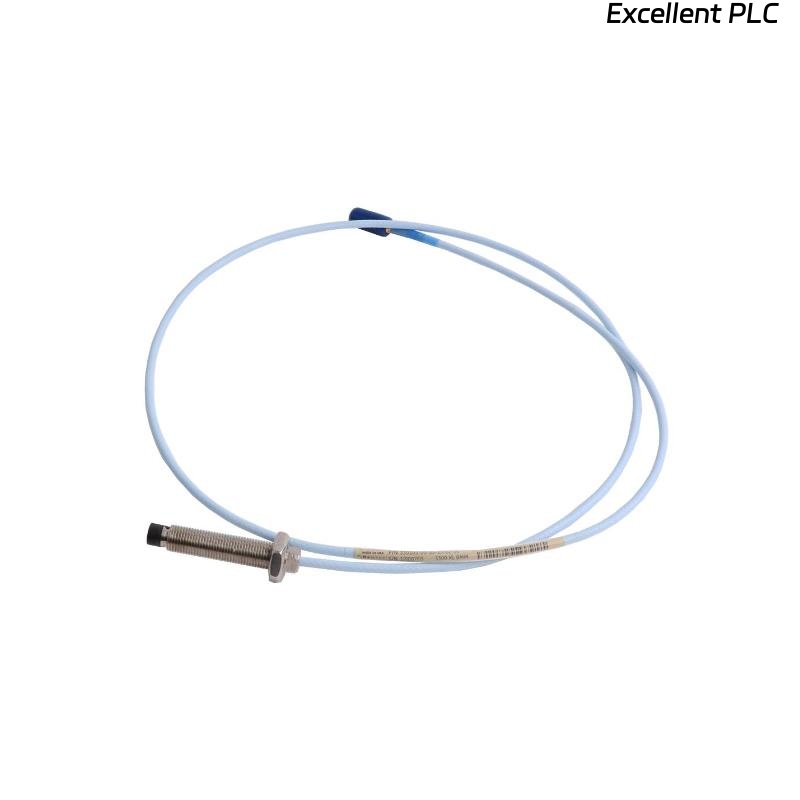

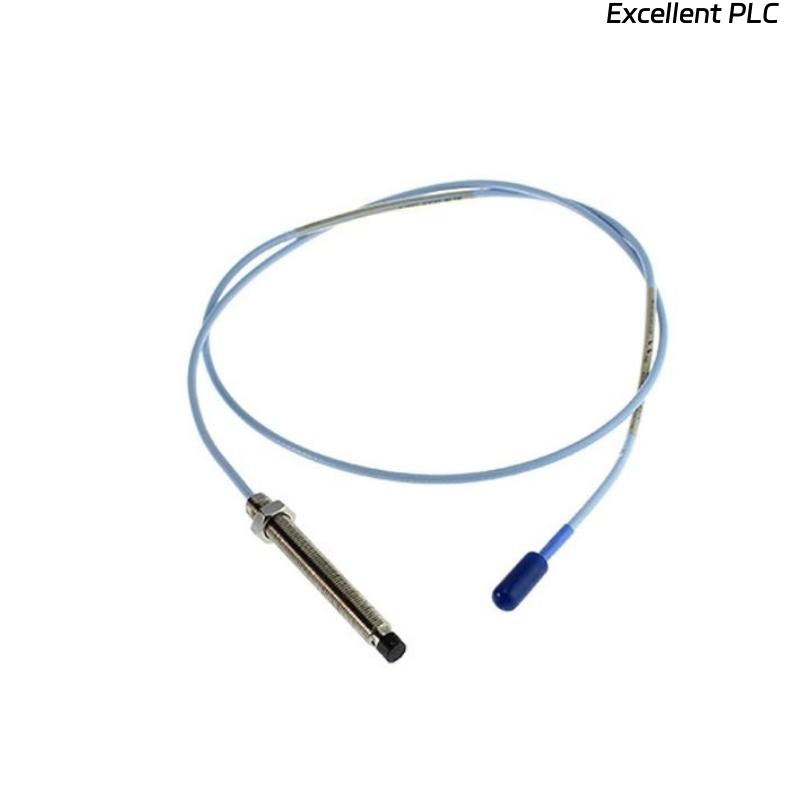

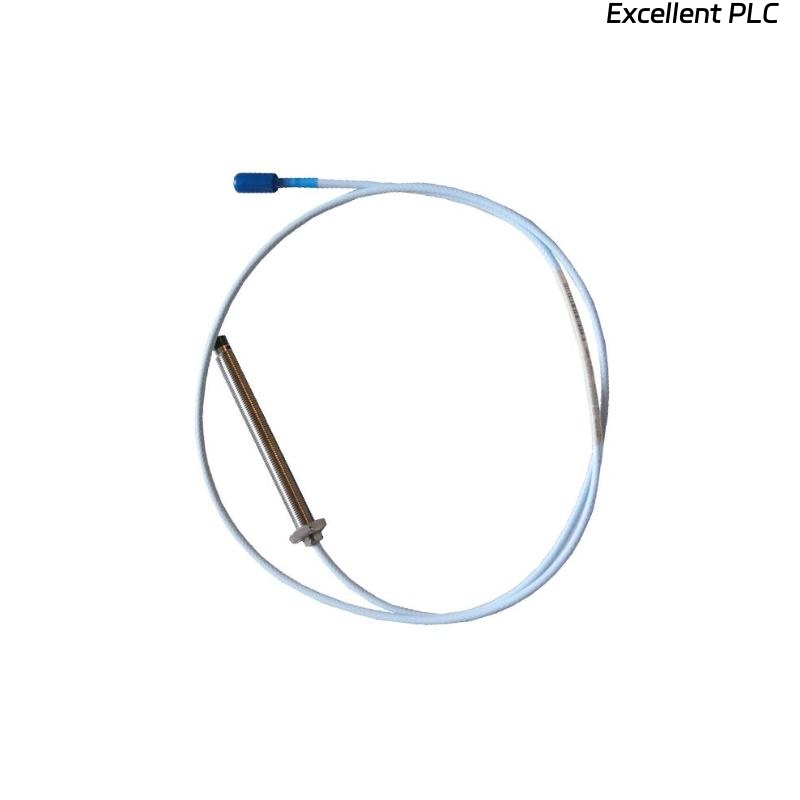

The Bently Nevada 330103-06-15-10-12-00 is part of the 3300 XL series of proximity probes designed for high-precision shaft vibration monitoring in rotating machinery. With an 8 mm measurement range, this probe offers reliable performance in challenging industrial environments, including turbines, compressors, pumps, and generators. The 3300 XL series has a proven track record of delivering accurate, high-fidelity data, which is essential for machinery protection and predictive maintenance programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 8 mm |
| Probe Type | Eddy-Current Proximity Probe |
| Total Length | 1 m |
| Weight | 0.323 kg |
| Probe Tip Material | Hardened Stainless Steel |
| Insulation Material | PTFE |
| Operating Temperature | -40°C to +120°C |
| Electrical Output | 0–10 V DC (typical) |
| Gap Linearity | ±1% full-scale |
| Capacitance to Shield | <100 pF |
| Frequency Response | DC to 25 kHz |
| Housing Material | Stainless Steel |
| Connector Type | 3300 XL Standard |
Applications
-
Shaft vibration monitoring on industrial machinery
-
Turbine, compressor, and generator condition monitoring
-
High-speed rotating equipment surveillance
-
Machinery fault detection and early-warning systems
-
Integration with 3300 XL monitoring systems for critical assets
-
Predictive maintenance programs for power plants and petrochemical facilities
Advantages
-
High accuracy with 8 mm measurement range, suitable for precise monitoring
-
Robust construction ensures operation under harsh industrial environments
-
Excellent frequency response, capable of detecting subtle vibrations
-
Compatible with Bently Nevada 3300 XL monitoring system for seamless integration
-
Reduced noise and signal distortion for reliable measurement
-
Easy installation and calibration with standard 3300 XL connectors
FAQ
Q1: What is the maximum operating temperature for this probe?
A1: The operating temperature range is -40°C to +120°C, suitable for most industrial applications.
Q2: Can this probe detect shaft displacement in real-time?
A2: Yes, the probe provides real-time shaft displacement measurements when connected to the 3300 XL system.
Q3: What type of output signal does this probe provide?
A3: It provides a DC voltage output, typically 0–10 V, proportional to the shaft displacement.
Q4: Is this probe suitable for high-speed machinery?
A4: Yes, with a frequency response up to 25 kHz, it can monitor high-speed rotating equipment accurately.
Q5: Can this probe be used in explosive environments?
A5: The probe itself is not intrinsically safe; it must be used with certified 3300 XL monitoring modules rated for hazardous locations.
Q6: How does the probe handle electromagnetic interference (EMI)?
A6: The probe features PTFE insulation and a shielded cable design to minimize EMI effects on measurements.
Q7: What is the linearity accuracy of the probe?
A7: The probe maintains ±1% full-scale linearity across its 8 mm range.
Q8: How do I ensure proper installation for accurate readings?
A8: Install according to 3300 XL system guidelines, maintaining recommended standoff and alignment to the shaft surface.
Q9: Can this probe measure both radial and axial displacement?
A9: It is primarily designed for radial measurements; axial displacement measurement requires specific mounting and system setup.
Q10: Is this probe compatible with other Bently Nevada 3300 XL modules?
A10: Yes, it is fully compatible with standard 3300 XL monitoring modules for integration into existing systems.
