Product Description

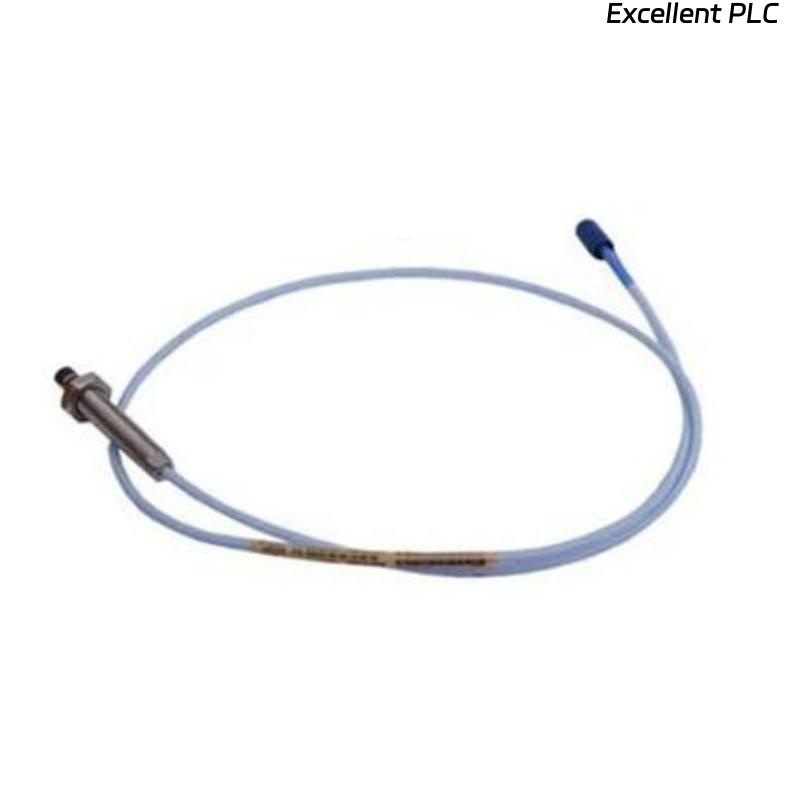

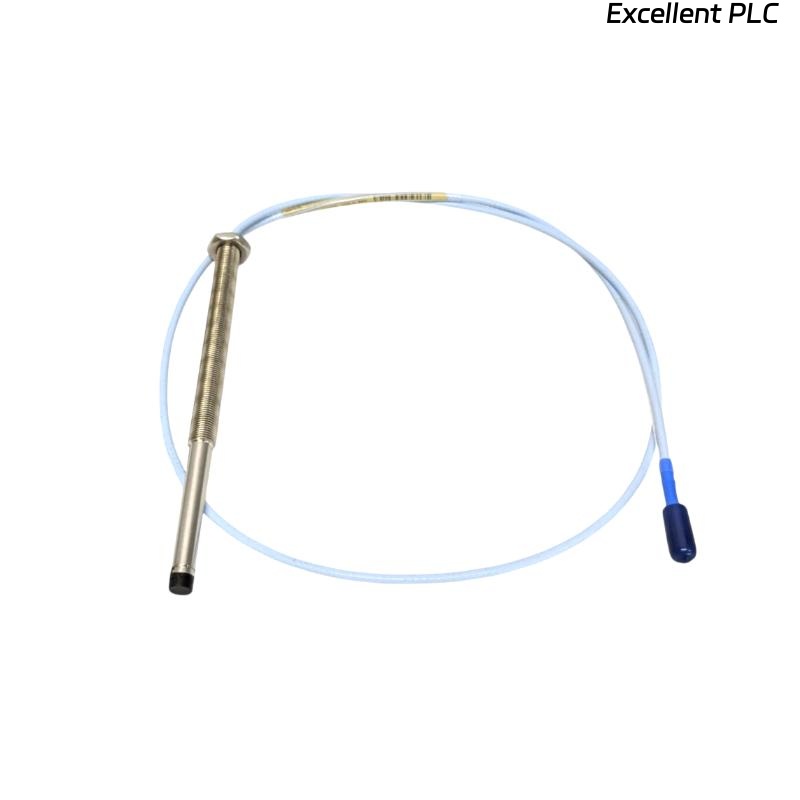

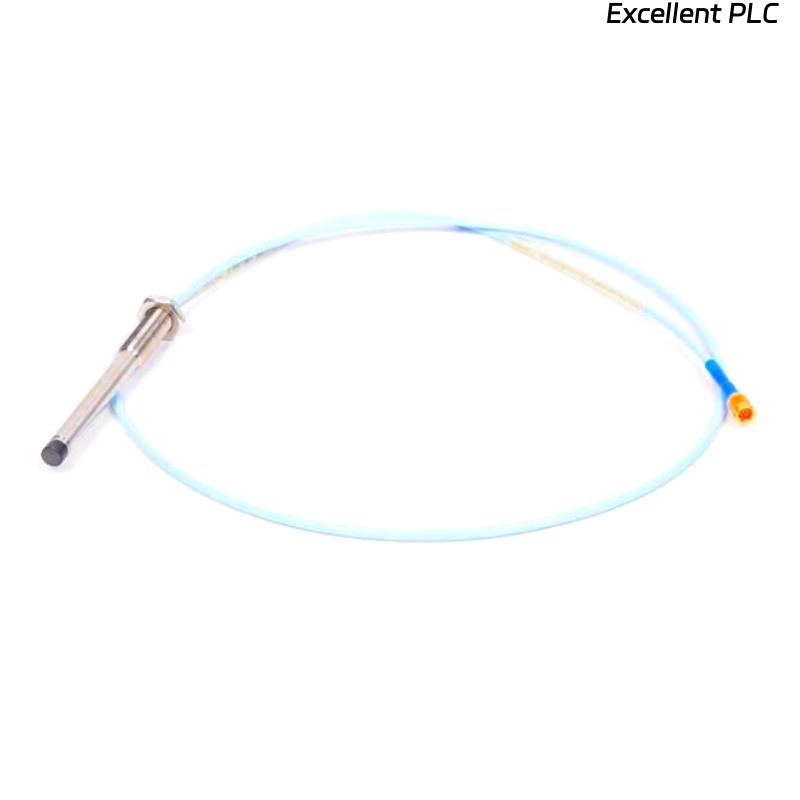

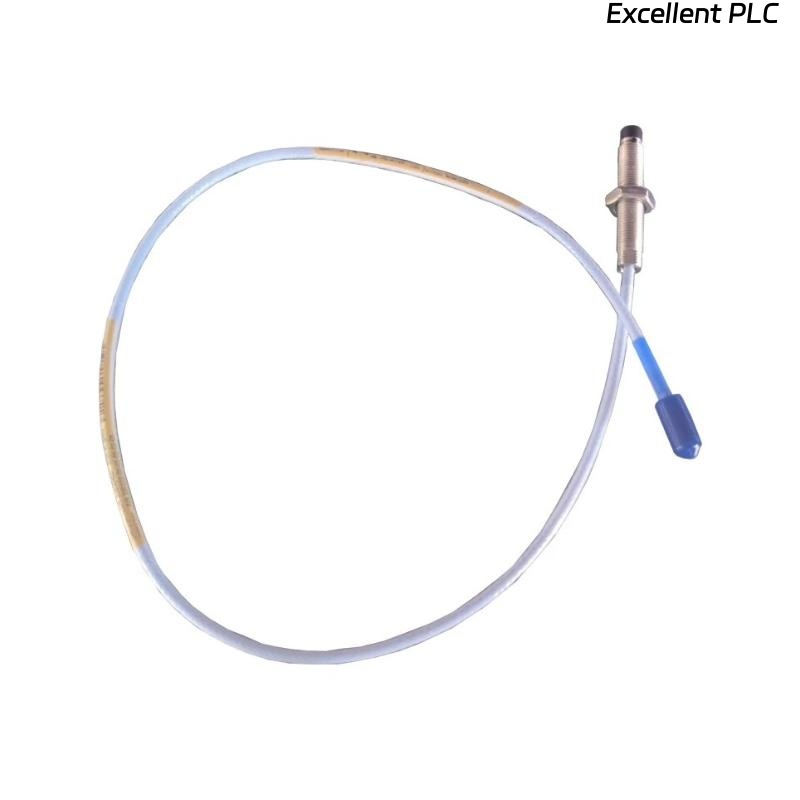

The Bently Nevada 330103-06-15-10-12-RU is an 8 mm XL Proximity Probe designed for high-precision vibration and shaft position monitoring in critical rotating machinery. Engineered with a rugged PPS probe tip and stainless steel case, it ensures reliable performance under harsh industrial conditions. The probe system features interchangeable components, a robust FluidLoc cable, and compliance with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-06-15-10-12-RU |
| Probe Type | 8 mm eddy current proximity probe |
| Thread Size | M10 x 1 |
| Unthreaded Length | 60 mm |
| Overall Case Length | 150 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Connector Type | Miniature coaxial ClickLoc with FluidLoc cable |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F) |
| Material | PPS probe tip, AISI 303/304 stainless steel case |
| Agency Approvals | CSA, ATEX, IECEx |
| Compliance | API 670 Standard |
Applications
-
Monitoring fluid-film bearings in turbines, compressors, and generators.
-
Industrial sectors: Power generation, oil & gas, petrochemical, and process industries.
-
Vibration analysis and condition monitoring of rotating machinery.
Advantages
-
Rugged Design: Thickly encapsulated probe tip for high durability.
-
High Accuracy: Maintains precision across temperature fluctuations.
-
Interchangeable Components: Reduces maintenance downtime.
-
Robust Cable: FluidLoc cable ensures stable signal transmission.
-
API 670 Compliance: Meets industry standards for reliability and safety.
FAQs
1. What is the measurement range of the probe?
The probe provides a linear measurement range typical for 8 mm proximity probes, suitable for small shaft displacements.
2. Can this probe be used in explosive environments?
Yes, it has ATEX and IECEx certifications for hazardous locations.
3. How durable is the probe tip?
The PPS material tip is designed for rugged industrial environments and resistant to wear.
4. Is the probe compatible with other 3300 XL Proximitor sensors?
Yes, components are interchangeable within the 3300 XL series without recalibration.
5. What is the operating temperature range?
The probe operates reliably from -35°C to +85°C (-31°F to +185°F).
6. How is the probe installed?
It is threaded with M10 x 1 and uses a miniature coaxial ClickLoc connector for easy installation.
7. What industries commonly use this probe?
Power generation, petrochemical, oil & gas, and chemical processing industries.
8. How long is the probe cable?
The standard total length is 1.0 meter, with customization available on request.
9. What standards does this probe comply with?
It complies with API 670 (4th Edition) for linear range, accuracy, and mechanical configuration.
10. How heavy is the probe?
The total weight is 0.323 kg, making it lightweight for ease of installation.
Related 3300 XL Series Models
| Model | Probe Type | Thread Size | Total Length | Weight |
|---|---|---|---|---|
| 330103-06-15-10-11 | 8 mm | M10 x 1 | 1.0 m | 0.320 kg |
| 330103-06-15-10-12 | 8 mm | M10 x 1 | 1.0 m | 0.323 kg |
| 330104-00-06-10-11-00 | 8 mm | M8 x 1 | 1.0 m | 0.310 kg |
| 330104-00-06-50-01-00 | 8 mm | M8 x 1 | 1.0 m | 0.312 kg |
| 330180-91-CN | 25 mm | M12 x 1 | 1.2 m | 0.450 kg |
| 330103-06-15-10-10 | 8 mm | M10 x 1 | 1.0 m | 0.318 kg |
