Product Overview

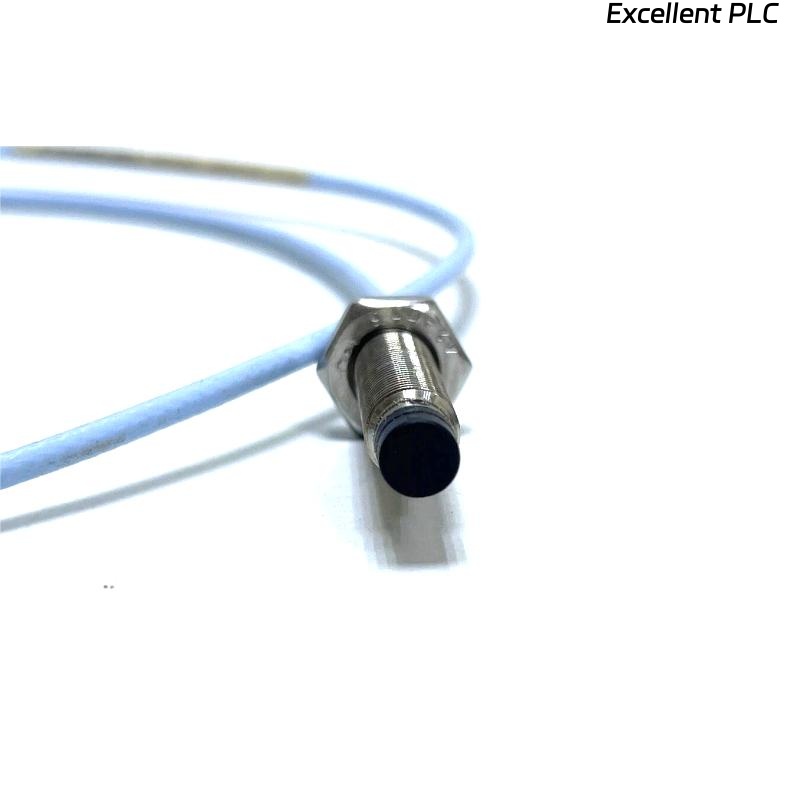

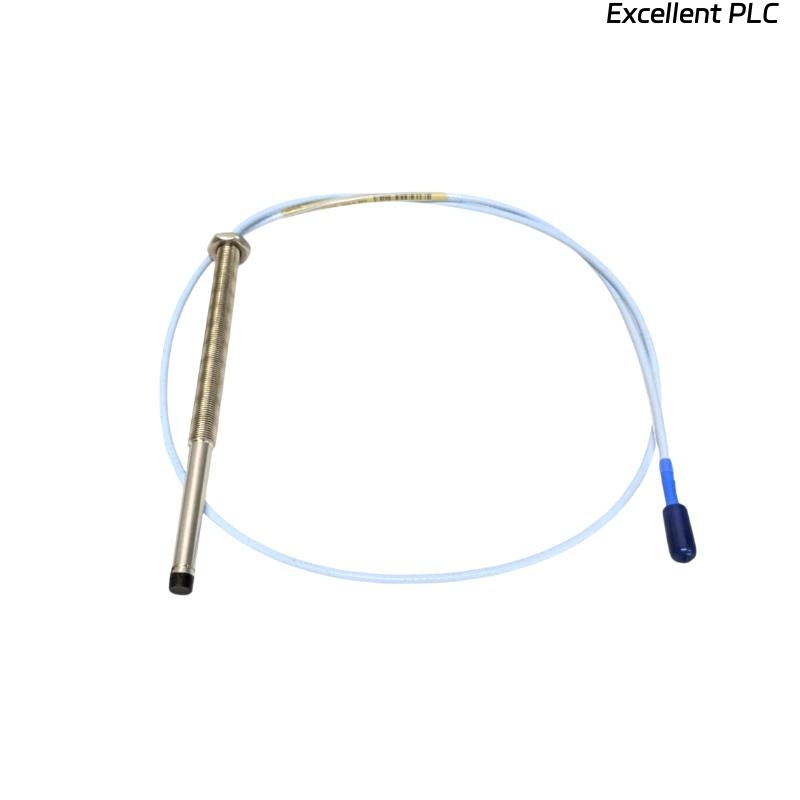

The Bently Nevada 330103-07-14-05-01-00 is an 8 mm proximity probe designed for high-precision vibration and position measurements in industrial machinery. It is a key component of the 3300 XL Proximity Transducer System, providing accurate monitoring for rotating equipment including pumps, compressors, and turbines. Its robust construction and API 670 compliance make it ideal for demanding operational environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |

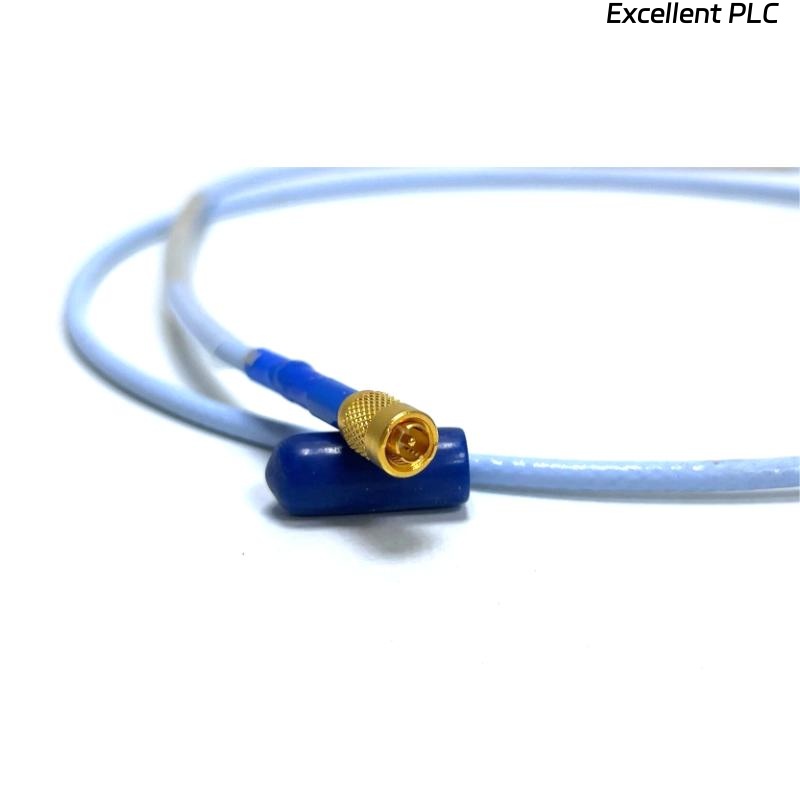

| Connector Type | Miniature coaxial ClickLoc with protector |
| Cable Type | Standard coaxial cable |
| Material | PPS probe tip, stainless steel case |
| Temperature Range | -51°C to 177°C (-60°F to 350°F) |
| Compliance | API 670 Standard |
Applications
-
Vibration and shaft displacement monitoring in rotating machinery
-
Fluid-film bearing machines
-
Keyphasor® and speed measurement for turbines, compressors, and generators
-
Industrial predictive maintenance and condition monitoring
Advantages
-
High-precision 8 mm probe tip ensures reliable displacement measurement
-
Rugged design with stainless steel case for extreme temperatures and mechanical stress
-
Fully compatible with the 3300 XL Proximitor Sensor system
-
Meets API 670 standards for linearity, accuracy, and temperature stability
-
Easy installation with ClickLoc miniature connector
Frequently Asked Questions (FAQ)
1. What is the maximum operating temperature for this probe?
-
It operates reliably between -51°C and 177°C (-60°F to 350°F).
2. Is the probe compatible with other 3300 series components?
-
Yes, fully compatible with 3300 XL 8 mm and non-XL 5 mm/8 mm series components.
3. What is the total cable length available?
-
The standard assembly has a total length of 0.5 meter. Custom lengths can be specified separately.
4. What is the measurement principle?
-
Eddy current displacement measurement for conductive surfaces.
5. Can this probe be used in high-vibration environments?
-
Yes, it is designed to withstand severe industrial vibration.
6. What materials are used for probe construction?
-
Probe tip is PPS, case is stainless steel.
7. Does it require calibration before use?
-
Minimal calibration is needed; system-level calibration ensures accuracy.
8. Is the connector industry-standard?
-
Yes, it uses a miniature coaxial ClickLoc connector with protector.
9. What types of machines is it typically installed on?
-
Compressors, turbines, pumps, and generators.
10. How does it support API 670 compliance?
-
Through linear range, accuracy, temperature stability, and robust mechanical design.
Related and Alternative Models (Same Series)
| Model Number | Probe Diameter | Total Length | Weight | Notes |
|---|---|---|---|---|
| 330103-00-05-10-01-00 | 8 mm | 0.5 m | 0.162 kg | Standard 8 mm XL probe |
| 330103-00-05-10-11-00 | 8 mm | 1.0 m | 0.320 kg | Extended cable version |
| 330103-00-03-10-01-00 | 5 mm | 0.5 m | 0.150 kg | Smaller diameter probe |
| 330103-07-14-05-01-01 | 8 mm | 0.7 m | 0.200 kg | High-temperature version |
| 330103-07-14-10-01-00 | 8 mm | 1.0 m | 0.320 kg | Long cable XL probe |
| 330103-07-14-05-02-00 | 8 mm | 0.5 m | 0.165 kg | Connector with protective cap |
Popular Bently Nevada Models (Same Brand)
| Model Number | Probe Diameter | Total Length | Weight | Notes |
|---|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm | 0.5 m | 0.165 kg | Standard proximity probe |
| 330104-00-06-50-01-00 | 8 mm | 1.0 m | 0.325 kg | Long cable version |
| 330180-91-CN | N/A | N/A | N/A | 3300 XL Proximitor Sensor |
| 31000-29-05-00-060-01-02 | N/A | N/A | N/A | Proximity probe housing |
| 330103-07-14-05-01-02 | 8 mm | 0.5 m | 0.162 kg | Replacement probe |
| 330103-00-05-10-11-01 | 8 mm | 1.0 m | 0.320 kg | Extended cable with ClickLoc |
