Product Description

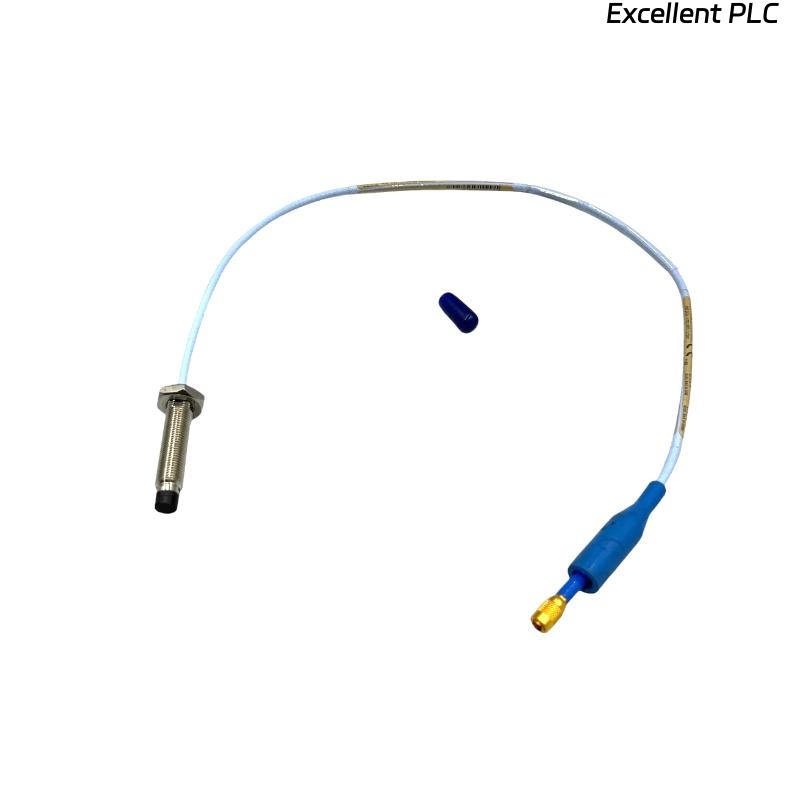

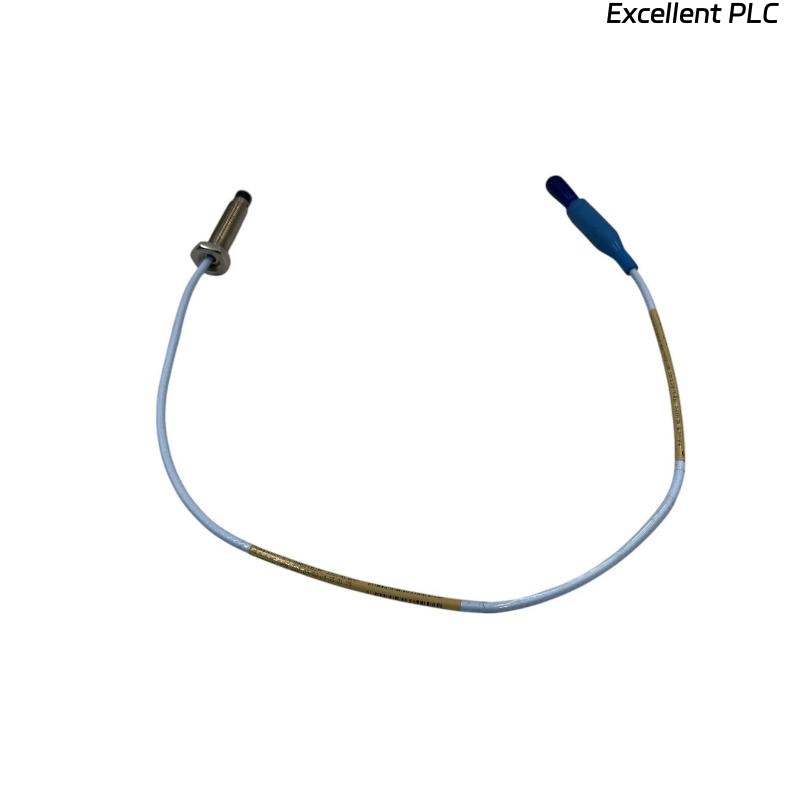

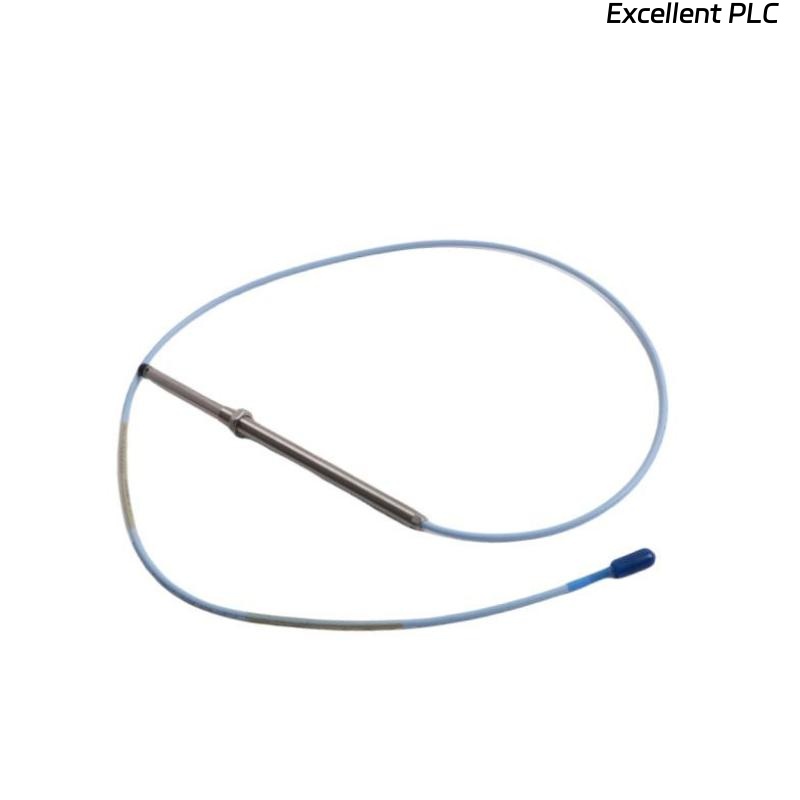

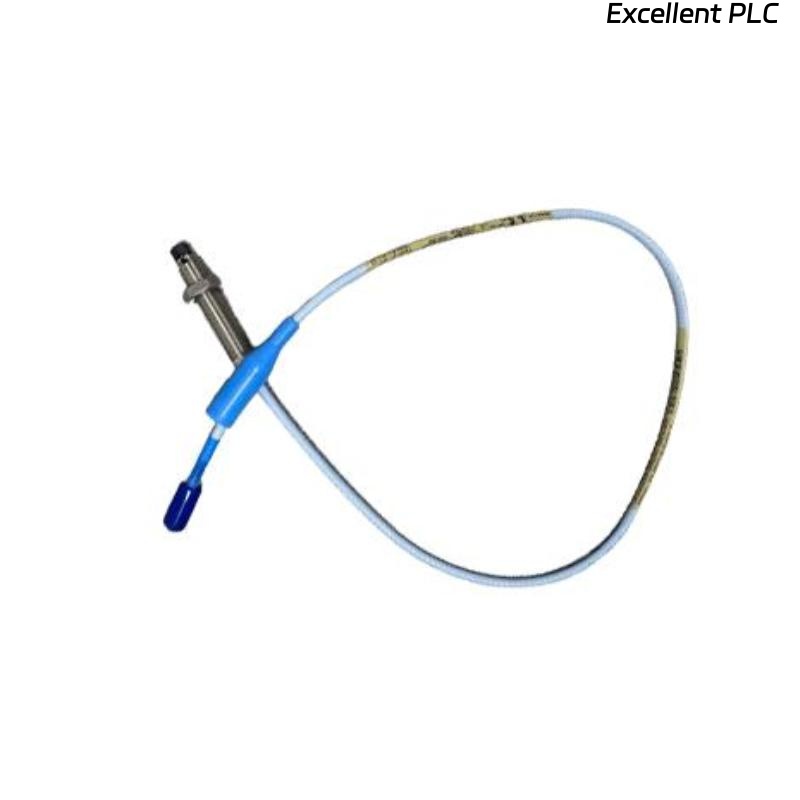

The Bently Nevada 330103-08-13-10-02-00 is an 8 mm proximity probe from the 3300 XL series, designed for precise non-contact measurement of displacement, vibration, and position in rotating machinery. It provides accurate real-time monitoring and is suitable for high-speed industrial equipment. Its robust design ensures reliable operation in harsh environments, supporting long-term machinery protection and condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-08-13-10-02-00 |
| Probe Type | 8 mm Proximity Probe |
| Thread Type | M10 x 1 (metric) |
| Unthreaded Length | 80 mm |
| Overall Case Length | 130 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Connector Type | Miniature coaxial ClickLoc connector |
| Agency Approvals | ATEX/IECEx/NEPSI optional |
| Operating Temperature | -40°C to +125°C |
| Measurement Range | 0.05 mm to 1.0 mm typical |
| Vibration Frequency Range | Up to 10 kHz |
| Cable Length | Standard 1 m |
Applications
-
Rotating machinery monitoring (turbines, compressors, pumps)
-
Shaft position and vibration measurement
-
Keyphasor reference and speed detection
-
Fluid-film bearing machinery monitoring
-
Industrial condition-based maintenance programs
Advantages
-
High accuracy and linearity over full measurement range
-
Robust design for harsh industrial environments
-
Compact 8 mm probe suitable for tight spaces
-
Quick installation and low maintenance
-
Compatible with 3300 XL Proximitor sensors and extension cables
-
Supports both static position and dynamic vibration measurements
FAQ
1. What is the measurement principle of the 3300 XL 8 mm probe?
The probe uses eddy-current proximity sensing to measure the distance between the probe tip and conductive target surface.
2. What is the maximum vibration frequency it can detect?
It can accurately measure vibration frequencies up to 10 kHz.
3. Can this probe operate in high-temperature environments?
Yes, it operates reliably from -40°C to +125°C.
4. Is the probe compatible with previous 3300 series sensors?
Yes, it is backward-compatible with other 3300 series Proximitor sensors.
5. What is the cable connection type?
It uses a miniature coaxial ClickLoc connector with standard cable.
6. Can it be used in hazardous areas?
Yes, optional certifications include ATEX, IECEx, and NEPSI for hazardous environments.
7. How precise is the probe?
It provides high linearity and accuracy within its specified measurement range.
8. What is the weight of the probe?
The total weight is 0.323 kg.
9. Is it suitable for both position and vibration monitoring?
Yes, it measures static shaft position and dynamic vibration simultaneously.
10. What maintenance is required?
Minimal maintenance is needed; periodic inspection of cable integrity and cleanliness of the probe tip is recommended.
Related 3300 XL Series Models
| Model Number | Probe Size | Cable Length | Weight | Notes |
|---|---|---|---|---|
| 330103-08-13-10-01-00 | 8 mm | 1.0 m | 0.320 kg | Standard XL Probe |
| 330103-08-13-10-02-05 | 8 mm | 1.0 m | 0.323 kg | With ATEX approval |
| 330103-08-13-10-03-00 | 8 mm | 2.0 m | 0.345 kg | Long cable version |
| 330103-08-13-10-04-00 | 8 mm | 3.0 m | 0.360 kg | Extended cable |
| 330103-08-10-10-02-00 | 8 mm | 1.0 m | 0.318 kg | Shorter case length |
| 330103-08-13-10-06-00 | 8 mm | 1.5 m | 0.330 kg | With armored cable |
