Product Introduction:

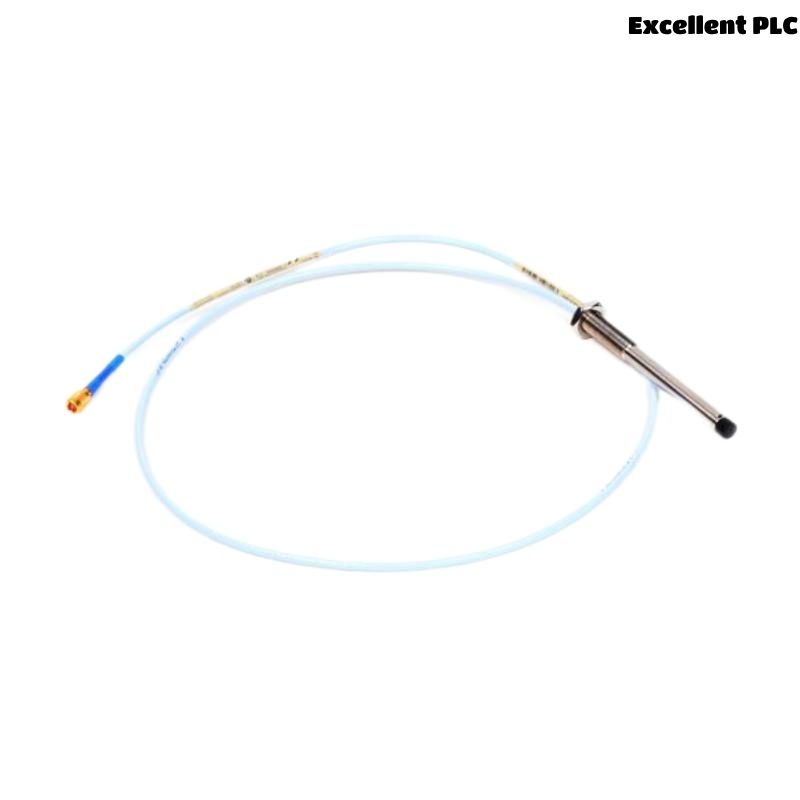

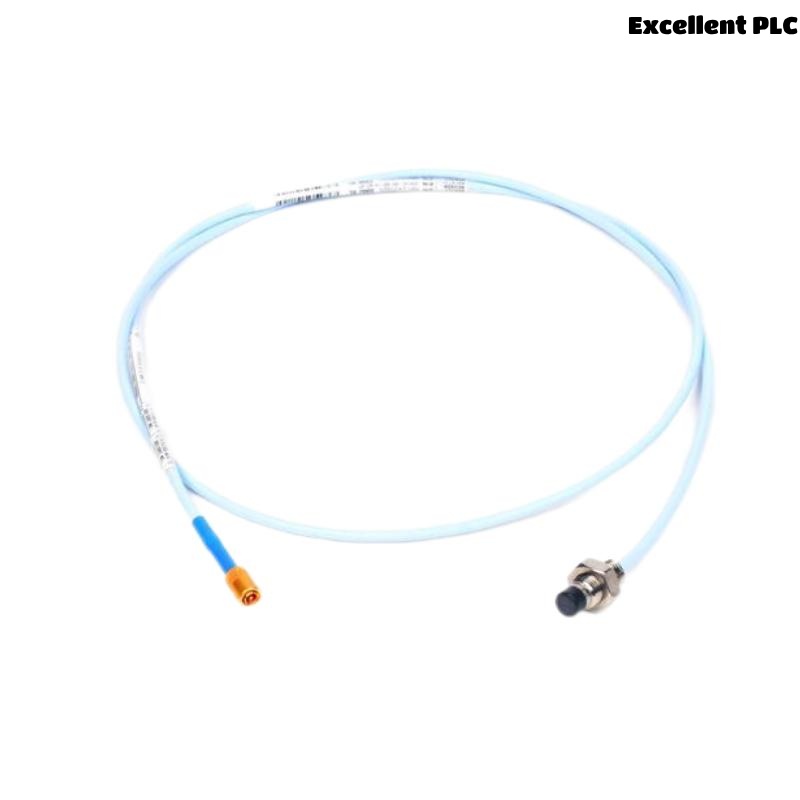

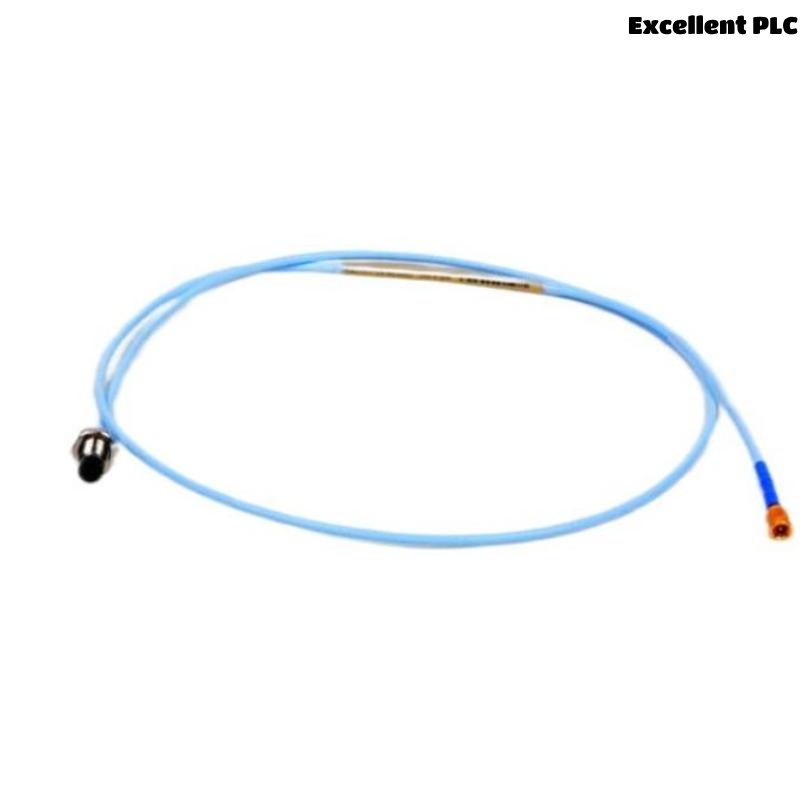

The Bently Nevada 330103-08-15-10-02-00 is an 8 mm proximity probe from the 3300 XL series, designed to provide high-precision vibration and displacement measurements for industrial machinery. This advanced proximity probe is engineered for use in demanding environments, offering accurate monitoring of shaft position, vibration, and displacement in critical rotating equipment.
The 3300 XL 8 mm proximity probe is often employed in industries such as power generation, oil and gas, and manufacturing, where the monitoring of machinery health is essential for preventing failures and ensuring smooth operations. It is commonly used for measuring shaft displacement in motors, turbines, compressors, and other rotating equipment.
The 3300 XL series is known for its durability and long-lasting performance, making it a reliable solution for continuous monitoring of machinery, even under extreme conditions. This probe is designed to detect even the smallest changes in shaft position, providing real-time data that helps to predict potential issues before they escalate into major problems.
Product Parameters:
Below are the specifications for the Bently Nevada 330103-08-15-10-02-00 proximity probe, outlined in a clear and structured format:
| Parameter | Value |
|---|---|
| Model | 330103-08-15-10-02-00 |
| Probe Type | 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | ±1.0 mm |
| Temperature Range | -40°C to +85°C |
| Mounting Type | Threaded or Flange Mount |
| Output Signal | Linear Voltage (4-20 mA) |
| Material | Stainless Steel |
| Resolution | 0.01 mm |
| Accuracy | ±0.2% of full scale |
Product Applications:
The 3300 XL 8 mm proximity probe is designed to be used in various industrial applications that require accurate monitoring of rotating machinery. Below are some of the primary uses:
-
Vibration Monitoring: It is used to detect and monitor vibration levels in rotating machinery, helping to identify faults early and preventing machine failures.
-
Shaft Displacement Measurement: This probe is essential for measuring shaft displacement and position, which is crucial for detecting misalignment, imbalance, and bearing wear.
-
Turbines and Compressors: Widely employed in turbines and compressors to measure shaft position and rotor dynamics, ensuring smooth operation and preventing mechanical issues.
-
Motors and Pumps: Ideal for use in motors and pumps, where it helps detect potential problems like bearing wear or shaft displacement.
-
Condition Monitoring Systems: Integrated into condition monitoring systems, the probe ensures continuous assessment of machinery health, providing real-time data for predictive maintenance.
Product Advantages:
-
High Accuracy: The 3300 XL proximity probe provides high precision in displacement and vibration measurements, ensuring that even small deviations in machine performance can be detected early.
-
Durability: Constructed from high-grade stainless steel, the probe is built to withstand the harshest industrial environments. Its robust design ensures a long lifespan, even in extreme conditions.
-
Wide Temperature Range: With an operating temperature range from -40°C to +85°C, the probe remains functional and accurate across a wide variety of temperatures, making it suitable for diverse industrial applications.
-
Easy Integration: The probe offers a linear voltage output (4-20 mA), which can easily be integrated into existing monitoring and control systems for streamlined data collection and analysis.
-
Minimal Maintenance: Due to its rugged construction and long lifespan, the 3300 XL proximity probe requires minimal maintenance, reducing downtime and associated costs.
-
Fast Installation: The probe can be easily mounted using threaded or flange mounting options, which reduces installation time and improves operational efficiency.
FAQs:
-
What is the sensing range of the Bently Nevada 3300 XL 8 mm proximity probe?
-
The sensing range is ±1.0 mm, providing high sensitivity and precision for shaft displacement measurement.
-
-
What is the operating temperature range for this proximity probe?
-
The probe operates within a temperature range of -40°C to +85°C, making it suitable for both cold and hot environments.
-
-
What materials are used in the construction of the 3300 XL proximity probe?
-
The probe is made from stainless steel, which provides excellent durability and resistance to corrosion, ensuring a long lifespan.
-
-
What industries use the 3300 XL 8 mm proximity probe?
-
The probe is commonly used in industries such as power generation, oil & gas, manufacturing, and any other industry with critical rotating machinery.
-
-
How is the 3300 XL proximity probe mounted?
-
It can be mounted via threaded or flange mounting options, which provides flexibility in installation.
-
-
What type of output does the 3300 XL probe provide?
-
The probe provides a linear voltage output (4-20 mA), which is compatible with most industrial monitoring and control systems.
-
-
What is the weight of the 3300 XL 8 mm proximity probe?
-
The weight of the probe is 0.323 kg, which is lightweight and easy to handle during installation.
-
-
Can the 3300 XL proximity probe be used for both vibration and displacement monitoring?
-
Yes, it is designed to monitor both vibration and displacement, ensuring comprehensive machinery condition monitoring.
-
-
How long is the cable on the Bently Nevada 3300 XL 8 mm probe?
-
The cable length is 1.0 meter, providing ample reach for most installation scenarios.
-
-
What is the accuracy of the 3300 XL proximity probe?
-
The accuracy is ±0.2% of full scale, ensuring high precision in measurement.
-
Related Models:
| Model | Description |
|---|---|
| 330103-08-13-10-02-04 | 3300 XL 5 mm proximity probe |
| 330103-08-13-10-02-06 | 3300 XL 10 mm proximity probe |
| 330103-08-13-10-02-07 | 3300 XL 4 mm proximity probe |
| 330103-08-13-10-02-08 | 3300 XL 12 mm proximity probe |
| 330103-08-13-10-02-09 | 3300 XL 15 mm proximity probe |
| 330103-08-13-10-02-10 | 3300 XL 20 mm proximity probe |
