Product Introduction:

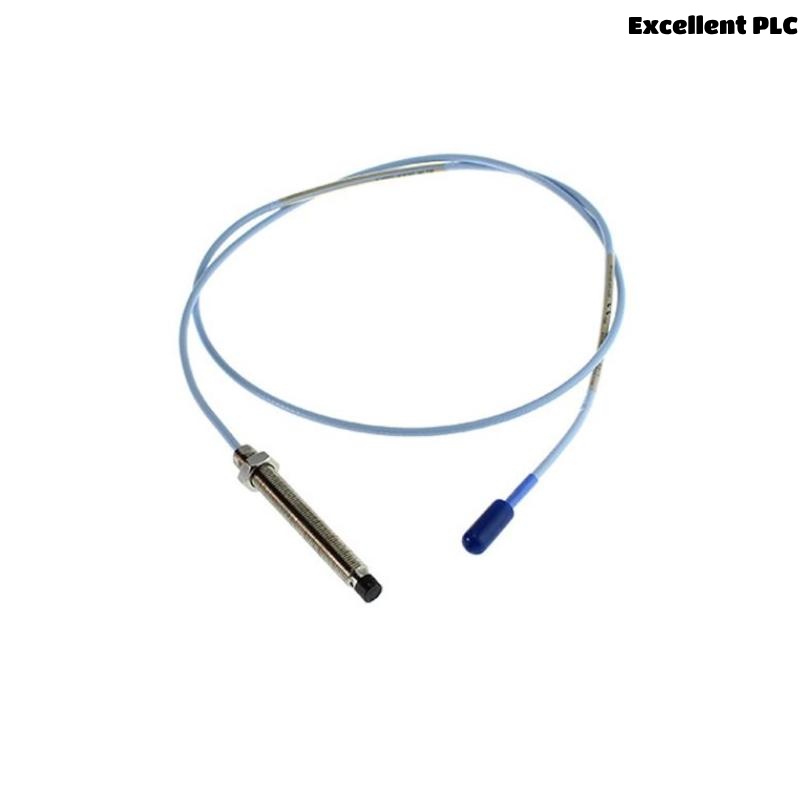

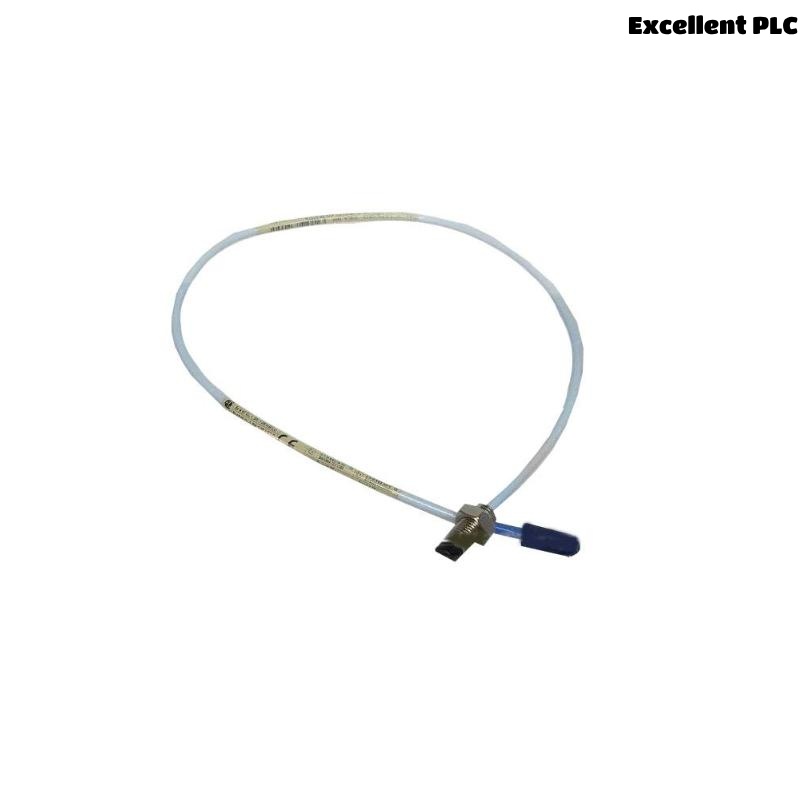

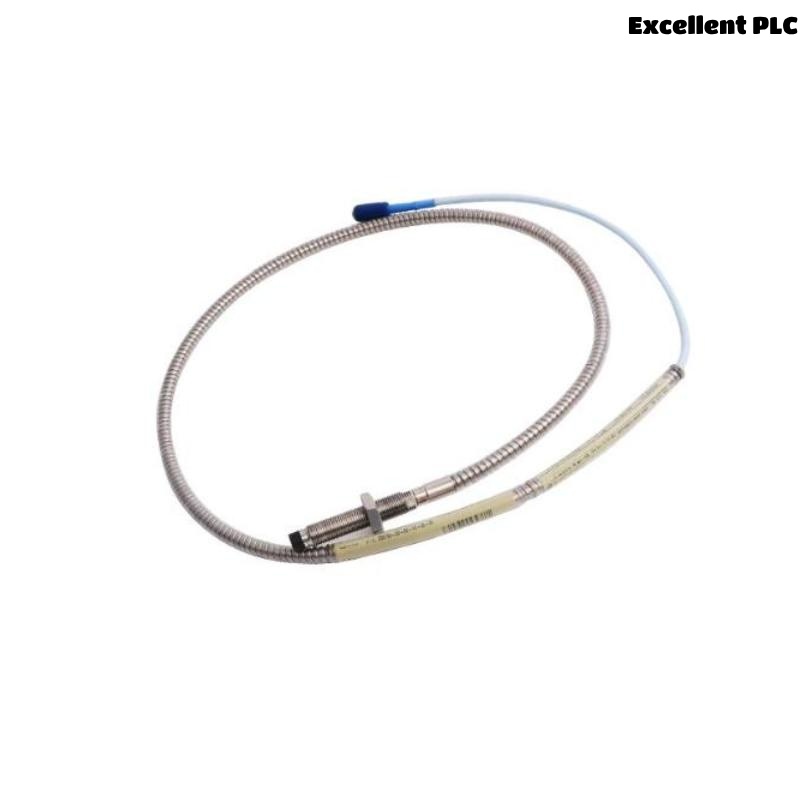

The Bently Nevada 330103-09-15-05-02-00 is part of the 3300 XL series and features an 8mm proximity probe designed for highly accurate displacement and vibration measurement in rotating machinery. This metric version is perfect for applications in industries that require reliable, real-time monitoring of machinery to prevent unplanned downtime and reduce maintenance costs. The 3300 XL probes are known for their precision, durability, and ability to perform consistently in extreme conditions.
Whether monitoring turbines, compressors, or pumps, the 330103-09-15-05-02-00 proximity probe is critical in ensuring that machinery operates at optimal performance. Its precision allows operators to detect mechanical issues at an early stage, before they escalate into costly failures.
With a total length of 0.5 meter and a weight of just 0.161 kg, the probe is lightweight and compact, making it ideal for applications where space is limited and precise measurements are crucial.
Product Specifications:
Below are the detailed specifications for the Bently Nevada 330103-09-15-05-02-00 3300 XL 8mm Proximity Probe:
| Parameter | Specification |
|---|---|
| Product Model | Bently Nevada 330103-09-15-05-02-00 |
| Probe Type | 3300 XL Proximity Probe |
| Nominal Gap | 8 mm |
| Total Length | 0.5 meter |
| Weight | 0.161 kg |
| Mounting Style | Direct mounting to machine surface |
| Measurement Type | Displacement (vibration) |
| Material | Stainless Steel |
| Sensitivity | High precision |
| Output Type | Analog (typically 4-20 mA) |
| Temperature Range | -40°C to +120°C |
| Shock Resistance | Up to 100 g |
| Vibration Resistance | High |
| Operating Frequency Range | Up to 25 kHz |
| Mounting Hole Diameter | 8 mm |
| Certification | CE Certified |
Product Applications:
The Bently Nevada 330103-09-15-05-02-00 8mm proximity probe is ideal for a variety of industrial applications where the accurate monitoring of rotating machinery is critical. Here are the main applications for this probe:
-
Turbine Monitoring: The probe is widely used in turbines, where precise measurement of shaft displacement and vibration is needed to ensure efficient operation and prevent mechanical failure.
-
Compressor Systems: This proximity probe is perfect for compressors, helping to detect misalignment, imbalance, and wear before it leads to a breakdown.
-
Pump Monitoring: In pump systems, the probe monitors displacement to ensure proper operation and prevent failures caused by excessive vibration or misalignment.
-
Rotating Equipment Monitoring: The probe can be used to monitor any rotating equipment, including motors, fans, blowers, and conveyors, ensuring smooth and continuous operation.
-
Power Generation: The 3300 XL 8mm proximity probe is an integral part of machinery monitoring systems in power plants, offering protection and reliability for turbines, generators, and other critical equipment.
-
Oil & Gas: In the oil and gas sector, this probe helps monitor machinery in challenging environments, ensuring that equipment runs efficiently and minimizing costly downtime.
Product Advantages:
-
Precise Measurement: The 3300 XL series provides highly accurate displacement and vibration measurements, ensuring that even minor mechanical issues are detected early.
-
Durable Construction: Built with stainless steel, the probe is designed to withstand harsh industrial environments and provide reliable performance over an extended period.
-
Wide Temperature Range: The probe can operate in temperatures ranging from -40°C to +120°C, making it suitable for both hot and cold environments.
-
Compact and Lightweight: The 330103-09-15-05-02-00 is only 0.5 meter in length and weighs just 0.161 kg, making it easy to install in tight spaces without compromising performance.
-
Shock and Vibration Resistance: The probe can resist up to 100 g of shock, allowing it to function effectively in high-vibration environments without losing accuracy.
-
Real-Time Monitoring: This proximity probe provides real-time data, allowing operators to make quick decisions and take corrective actions as soon as issues arise.
-
Ease of Integration: It integrates seamlessly with other Bently Nevada machinery monitoring systems, including the 3300 and 3500 series.
-
Predictive Maintenance: The data from the probe enables predictive maintenance strategies, allowing machinery issues to be detected before they cause significant problems.
-
Cost Efficiency: By detecting issues early, the probe helps prevent unscheduled downtime and costly repairs, ultimately reducing overall maintenance costs.
-
Enhanced Sensitivity: The high sensitivity of this probe ensures that even the smallest changes in vibration and displacement are accurately detected.
Frequently Asked Questions (FAQ):
-
What is the nominal gap of the Bently Nevada 330103-09-15-05-02-00 probe?
-
The nominal gap is 8 mm.
-
-
What is the total length of the Bently Nevada 330103-09-15-05-02-00 probe?
-
The total length is 0.5 meter.
-
-
How much does the Bently Nevada 330103-09-15-05-02-00 weigh?
-
The probe weighs 0.161 kg.
-
-
What is the operating temperature range of the probe?
-
The probe operates in temperatures from -40°C to +120°C.
-
-
What material is the Bently Nevada 330103-09-15-05-02-00 probe made of?
-
The probe is made from stainless steel, ensuring long-lasting durability and resistance to harsh environments.
-
-
What type of output does the Bently Nevada 330103-09-15-05-02-00 provide?
-
The probe provides analog output, typically within the 4-20 mA range.
-
-
Can the Bently Nevada 330103-09-15-05-02-00 be used in high-vibration environments?
-
Yes, it is designed to withstand up to 100 g of shock, making it ideal for high-vibration environments.
-
-
How is the Bently Nevada 330103-09-15-05-02-00 mounted?
-
The probe is mounted directly onto the machine surface to accurately measure displacement and vibration.
-
-
Is this probe compatible with other Bently Nevada systems?
-
Yes, the 330103-09-15-05-02-00 is fully compatible with the 3300 and 3500 series of Bently Nevada machinery monitoring systems.
-
-
What types of machinery can the Bently Nevada 330103-09-15-05-02-00 probe monitor?
-
It can monitor turbines, compressors, motors, pumps, and other rotating machinery in various industries.
-
Related Models (Same Series or Similar):
| Model | Description |
|---|---|
| 330103-09-15-05-02-01 | 3300 XL 8mm proximity probe with extended cable (1 meter) |
| 330103-09-15-05-02-02 | 3300 XL 8mm proximity probe with custom mounting options |
| 330103-09-15-05-02-03 | 3300 XL 8mm proximity probe for harsh environments |
| 330103-09-15-05-02-04 | 3300 XL 8mm proximity probe for high-precision tasks |
| 330103-09-15-05-02-05 | 3300 XL 10mm proximity probe for large gap applications |
| 330103-09-15-05-02-06 | 3300 XL proximity probe with enhanced shock resistance |
