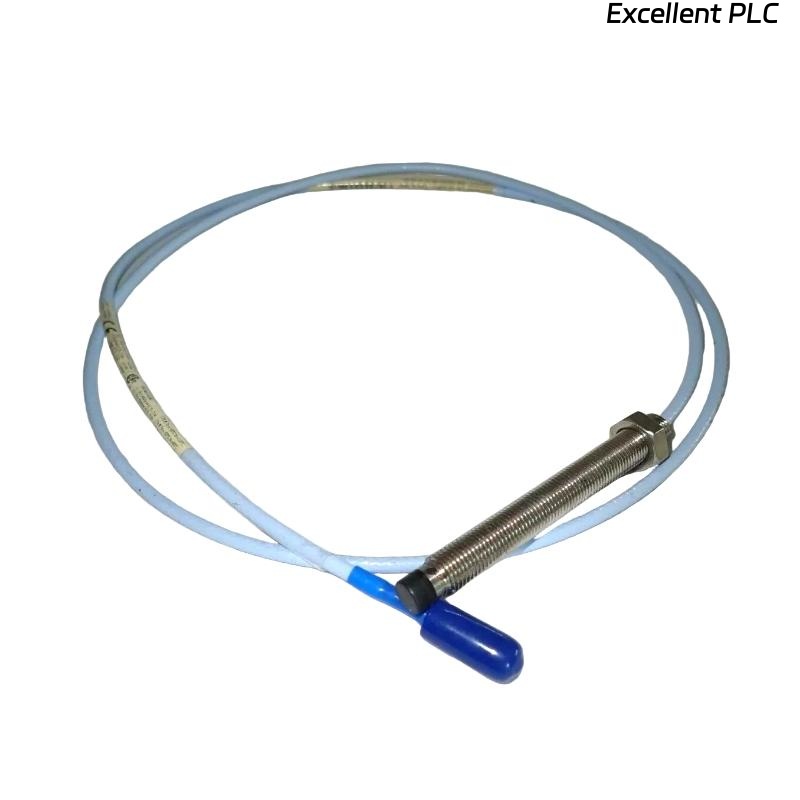

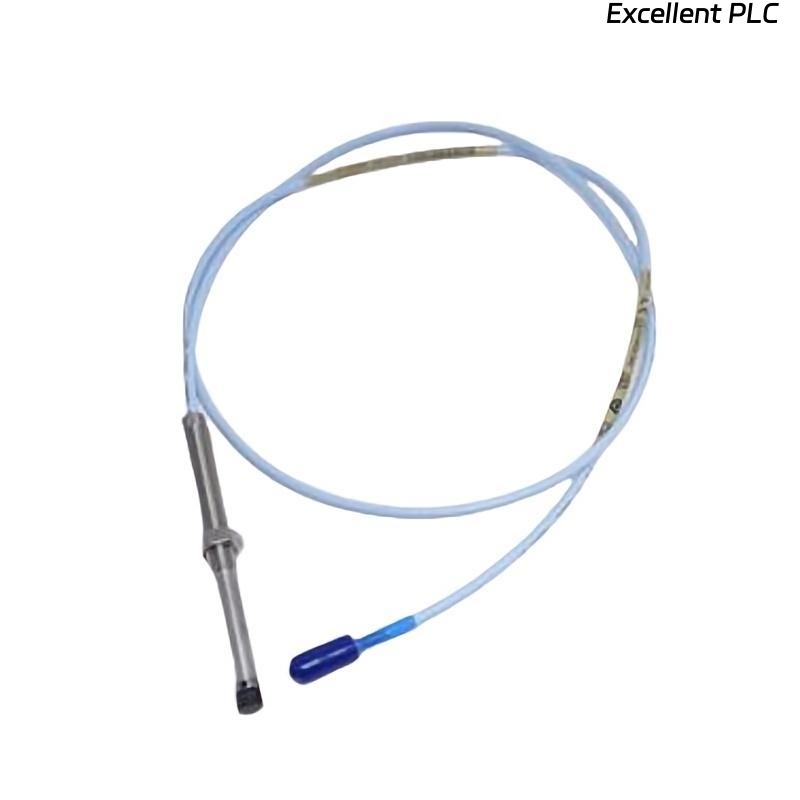

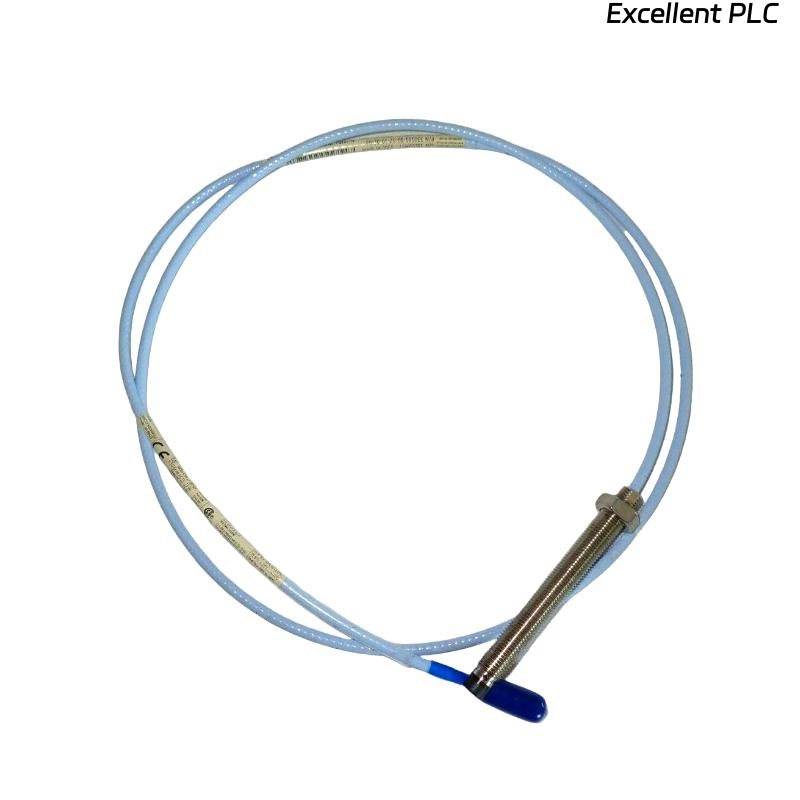

Bently Nevada 330103-10-20-10-02-CN 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330103-10-20-10-02-CN 3300 XL 8mm Proximity Probe is a high-precision sensor designed for critical machinery condition monitoring and vibration analysis. Belonging to the renowned 3300 XL series, it provides highly accurate measurements of shaft displacement and vibration by utilizing eddy-current technology. This model is engineered to work seamlessly with Bently Nevada proximitor systems, ensuring reliable and consistent monitoring in harsh industrial environments.

Its rugged construction, enhanced shielding, and stable calibration make it an ideal choice for long-term use in rotating equipment such as turbines, compressors, motors, and pumps. With superior linearity and robust design, it ensures continuous machine protection and diagnostics, reducing the risk of unplanned downtime and costly equipment failures.

Product Parameters

Product Applications

The Bently Nevada 330103-10-20-10-02-CN probe is widely used across industries where continuous monitoring of rotating machinery is critical. Key applications include:

• Steam and Gas Turbines – Monitoring shaft vibration and displacement to detect misalignment, rubs, or imbalance.

• Centrifugal Compressors – Providing early warnings for surge conditions or mechanical looseness.

• Pumps – Detecting cavitation, misalignment, and bearing wear.

• Electric Motors and Generators – Tracking shaft behavior to prevent rotor-to-stator contact and catastrophic failures.

• Industrial Fans and Blowers – Ensuring operational stability by detecting early vibration anomalies.

Product Advantages

• High Accuracy and Reliability – Provides precise displacement measurements, ensuring dependable machine protection.

• Extended Operating Range – Designed for wide temperature tolerance and stable operation under demanding conditions.

• Superior Linearity – Maintains consistent performance across the entire measurement range.

• Rugged Design – Resistant to harsh environments, including high temperature, pressure, and vibration.

• Seamless Compatibility – Fully compatible with Bently Nevada proximitor and monitoring systems, ensuring easy integration.

• API 670 Compliance – Meets the stringent requirements for machinery protection systems.

• Reduced Downtime – Enables predictive maintenance strategies, lowering unplanned shutdown risks.

Frequently Asked Questions (FAQ)

1. What is the typical output sensitivity of this probe?
   The system provides 200 mV/mil (7.87 mV/µm), which ensures precise displacement monitoring.

2. Can this probe be used in high-temperature environments?
   Yes, it is designed to operate in temperatures from -35 °C to +177 °C.

3. How does the probe maintain measurement stability under electrical noise?
   The probe features enhanced shielding and coaxial cabling, minimizing interference from electromagnetic noise.

4. Is the probe suitable for API 670-compliant monitoring systems?
   Yes, it fully meets API 670 standards for machine protection applications.

5. What is the frequency response of the probe system?
   The system frequency response extends from 0 to 10 kHz, covering most machinery monitoring requirements.

6. Can this probe be installed in pressurized environments?
   Yes, with appropriate mounting hardware, it can handle pressures up to 200 psi.

7. How does the probe detect shaft vibration?
   It uses eddy-current technology to measure changes in the distance between the probe tip and the rotating shaft surface.

8. What type of connector is used with this probe?
   The probe uses a miniature coaxial connector for secure and reliable signal transmission.

9. Can it be paired with extension cables of different lengths?
   Yes, it can be paired with Bently Nevada extension cables and proximitor units to form a complete system.

10. Does the probe support both vibration and position measurements?
    Yes, it is capable of monitoring both shaft vibration and displacement, making it versatile for critical machinery monitoring.
