Product Introduction

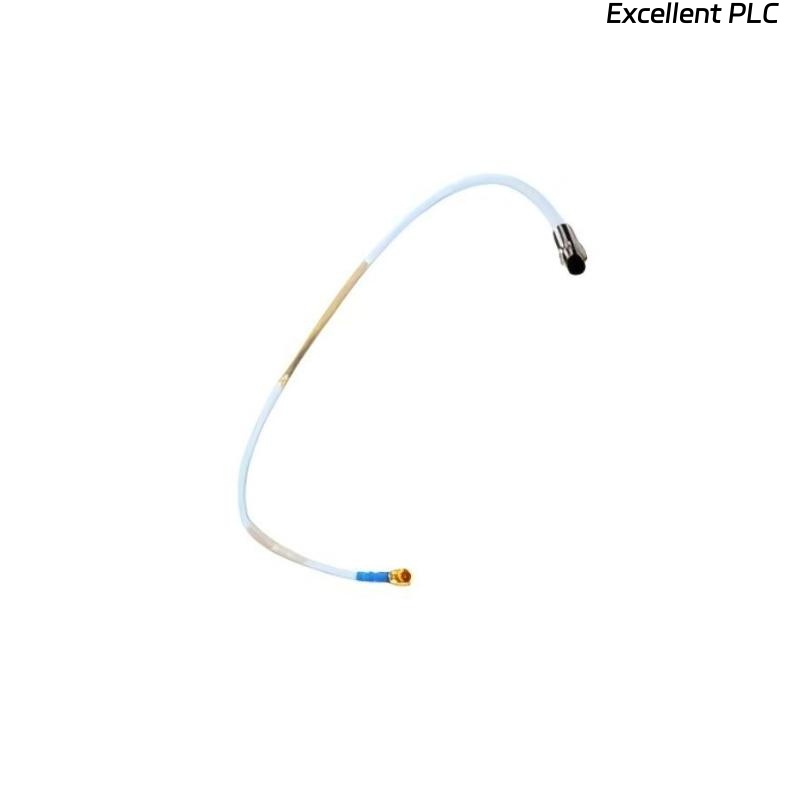

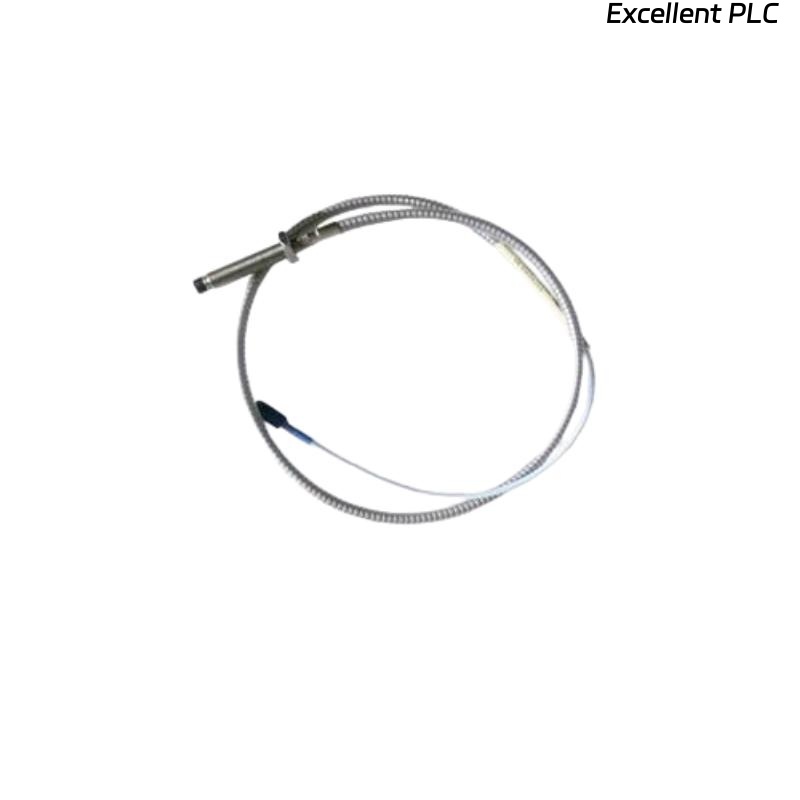

The Bently Nevada 330103-11-16-10-12-RU is a high-performance 3300 XL 8 mm proximity probe, engineered for accurate vibration and position monitoring in rotating machinery. As part of the 3300 XL Series, this probe is optimized for reliability, durability, and precision, even in the most demanding industrial environments.
This metric version is widely applied across industries such as oil and gas, power generation, petrochemicals, and heavy manufacturing, where precise monitoring of shaft vibration, radial displacement, and rotor dynamics is critical for maintaining equipment performance and operational safety. Designed to work seamlessly with the 3300 XL Proximitor Sensor, this probe offers unmatched accuracy, ensuring consistent results for predictive maintenance and condition-based monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-11-16-10-12-RU |
| Series | 3300 XL 8 mm Proximity Probe (Metric) |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 x 1.0 thread |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Cable Length | 10 meters (integrated cable) |
| Linear Range | 2 mm (80 mils) |
| Measurement Range | Up to 80 mils (2 mm) dynamic vibration |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35°C to +177°C (probe tip) |
| Accuracy | ±0.025 mm (1.0 mil) |
| Mounting Options | Threaded mounting with lock nuts |
| Compliance | API 670, CE, and RoHS |
Applications
-
Turbomachinery Monitoring
Provides precise shaft vibration and displacement measurements in turbines, compressors, and generators for critical system protection. -
Pump and Motor Systems
Enables real-time condition monitoring to prevent failures and extend equipment lifespan. -
Gearboxes and Coupled Systems
Detects early-stage mechanical anomalies, minimizing downtime in high-demand industrial processes. -
Industrial Compressors
Monitors rotor movement and vibration to optimize efficiency and reduce operational risks. -
Power Generation
Supports predictive maintenance strategies in thermal, hydro, and gas power plants. -
Refinery and Petrochemical Equipment
Ensures safe and continuous operation by delivering accurate feedback on high-speed rotating assets.
Advantages
-
Exceptional Measurement Accuracy
Delivers reliable vibration and displacement data for enhanced asset diagnostics. -
Robust Design for Harsh Environments
Engineered to withstand high temperatures, chemical exposure, and mechanical stress. -
Seamless Compatibility
Works flawlessly with Bently Nevada 3300 XL Proximitor Systems, ensuring smooth integration into existing setups. -
Extended Signal Integrity
Maintains stable and interference-free signals across extended cable lengths. -
API 670 Compliant
Meets industry standards for quality, safety, and reliability in critical machinery applications. -
Low Maintenance Requirements
Provides long-term stability with minimal recalibration, reducing maintenance costs. -
Versatile Application Range
Suitable for a wide range of industrial machines, from compact pumps to large turbines. -
Proven Field Performance
Extensively tested and trusted globally for continuous and precise monitoring.
FAQ
Q1: What is the primary use of the 330103-11-16-10-12-RU probe?
A1: It measures shaft vibration and position for rotating equipment in critical industrial applications.
Q2: Which sensor system is this probe compatible with?
A2: It is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor.
Q3: What is the linear measurement range of this probe?
A3: The probe offers a linear range of 2 mm (80 mils) for accurate vibration monitoring.
Q4: Can this probe operate in high-temperature environments?
A4: Yes, the probe tip can withstand operating temperatures up to +177°C, ideal for harsh conditions.
Q5: Does the probe meet global industry standards?
A5: Yes, it complies with API 670, CE, and RoHS standards for safety and performance.
Q6: How stable is the probe’s signal over long cable lengths?
A6: It provides excellent signal integrity even with 10-meter cable configurations.
Q7: What is the frequency response range of this model?
A7: The frequency range is DC to 10 kHz, suitable for high-speed machinery.
Q8: Can it detect early-stage equipment failures?
A8: Yes, its precision allows for early anomaly detection, reducing downtime and repair costs.
Q9: Is the probe suitable for integration in condition monitoring systems?
A9: Absolutely. It integrates seamlessly with Bently Nevada monitoring platforms for predictive maintenance.
Q10: What industries benefit most from using this probe?
A10: Common industries include oil and gas, power generation, petrochemical plants, and heavy manufacturing.
