Product Overview

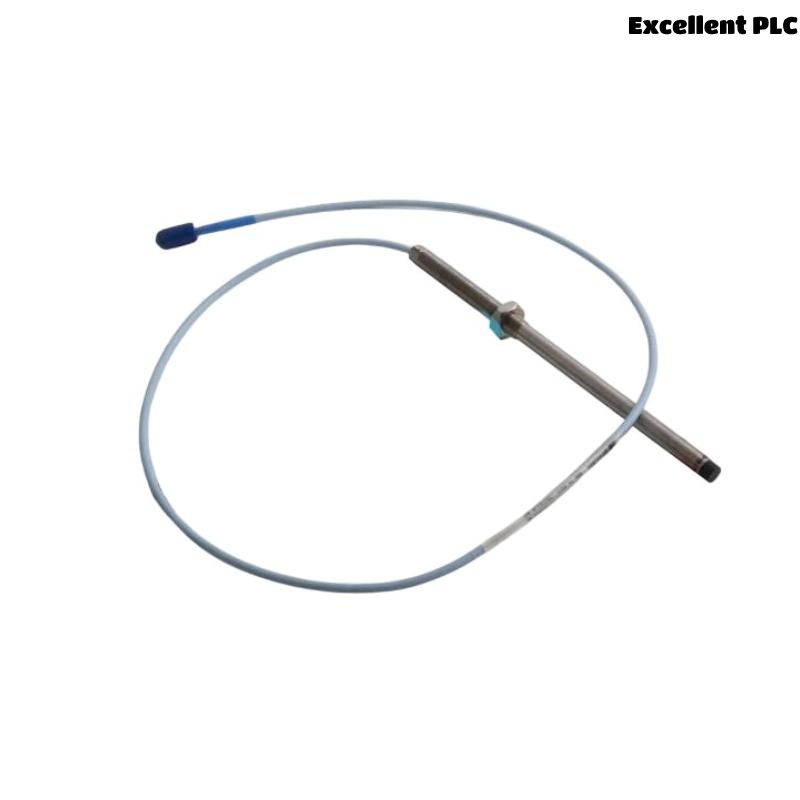

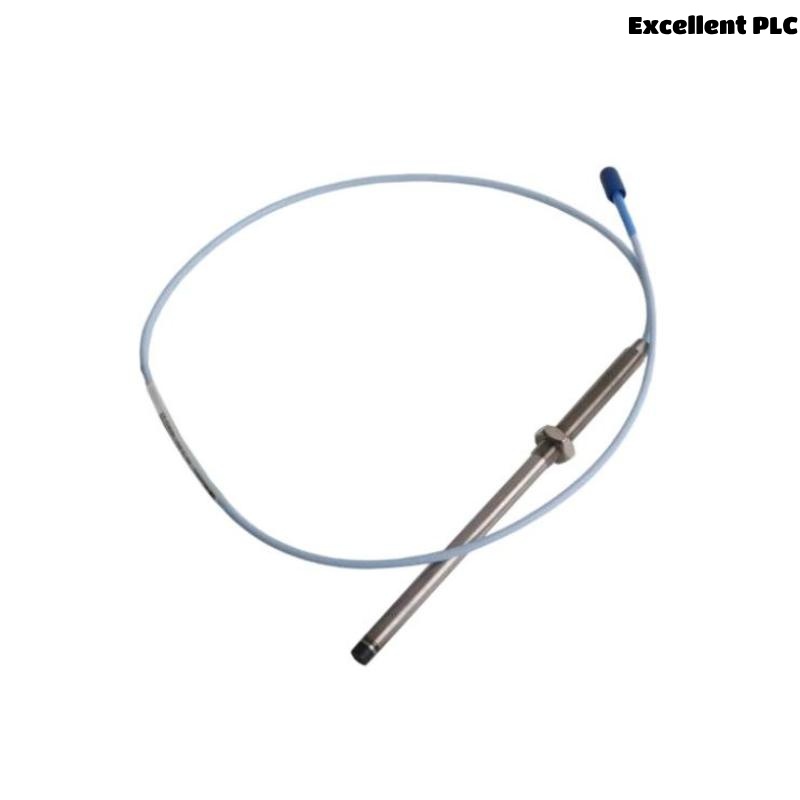

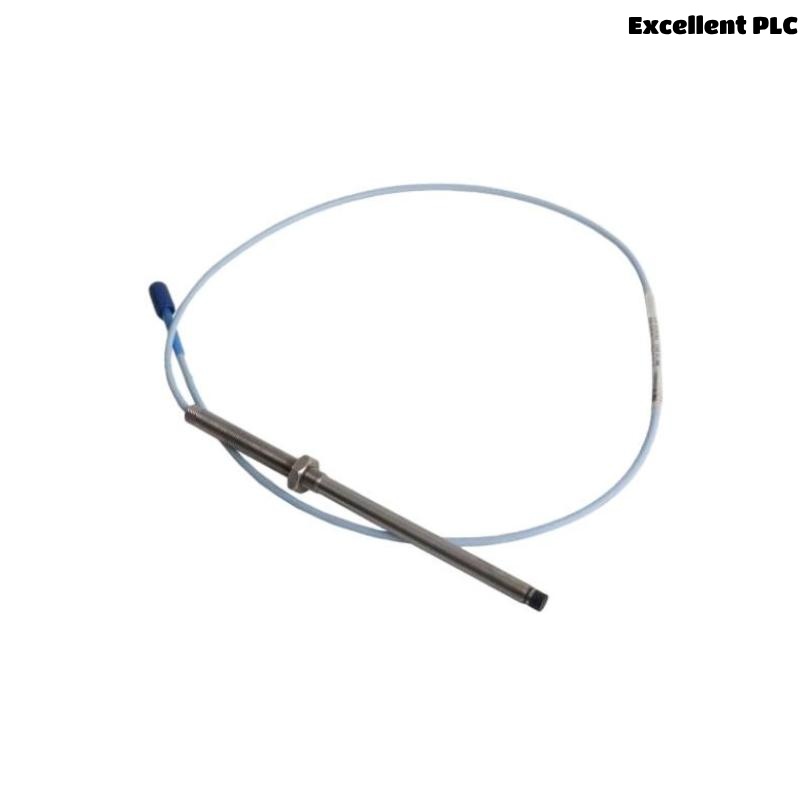

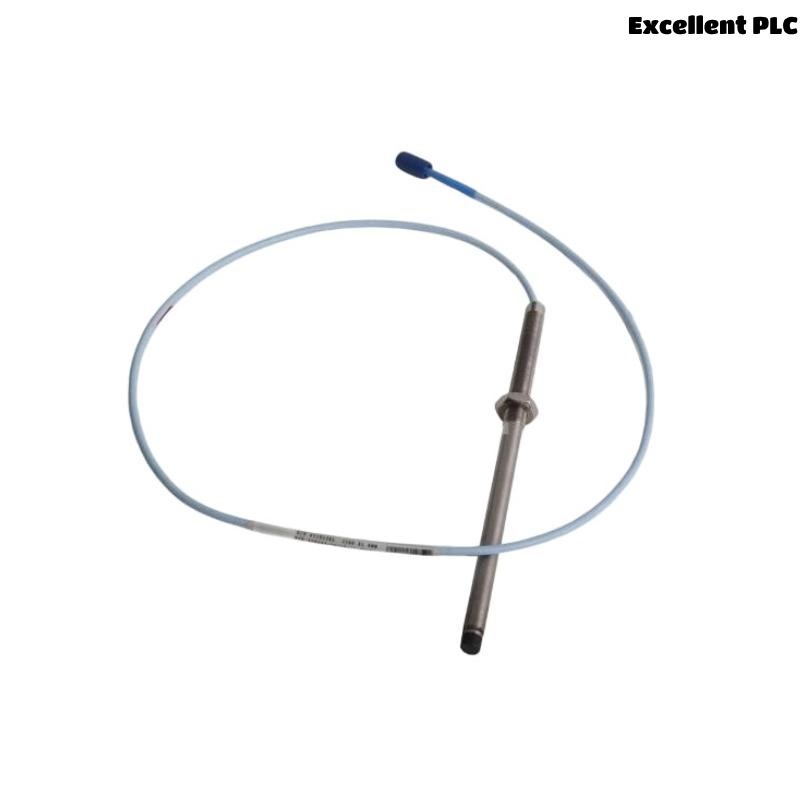

The Bently Nevada 330103-11-19-10-02-00 is part of the industry-leading 3300 XL 8 mm Proximity Probe series, engineered for accurate non-contact measurement of shaft vibration and position. This model includes a 19-foot integral cable and is tailored for use in demanding industrial environments, providing superior reliability in high-temperature, high-vibration conditions.
With robust EMI/RFI shielding and compliance with API 670 standards, this proximity probe is widely trusted in rotating machinery monitoring applications such as turbines, compressors, and large motors. It integrates seamlessly with 3300 XL Proximitor® sensors and extension cables to deliver dependable and consistent data for predictive maintenance systems.
Key Features
-
8 mm sensing diameter for precise vibration and position measurements
-
19-foot (5.8 meters) integral coaxial cable for long-range connectivity
-
Rugged stainless steel housing with PPS sensing tip for durability
-
Compatible with 3300 XL Proximitor® and extension cables
-
Designed for harsh environments, including hazardous zones
-
Complies with API 670 for critical machinery protection systems
-
Threaded 3/8-24 UNF installation for quick and secure mounting
-
Wide operating temperature range for thermal resilience
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | 330103-11-19-10-02-00 |
| Series | 3300 XL 8 mm |
| Sensing Tip Diameter | 8 mm |
| Cable Length | 19 feet (5.8 meters), integral |
| Connector Type | Molded coaxial connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 0.5 mm to 2.0 mm (20 to 80 mils) |
| Material – Body | AISI 303 Stainless Steel |
| Material – Tip | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Shock Limit | 1000 g, 1 ms, half-sine |
| Vibration Limit | 10 g peak, 10–2000 Hz |
| Environmental Rating | IP68 (probe only) |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
Industry Applications
-
Steam and gas turbines
-
Centrifugal compressors
-
Electric motors and pumps
-
Industrial blowers and fans
-
Gearboxes and rotating equipment
-
Oil & gas refining and petrochemical plants
-
Power generation facilities
-
Pulp, paper, and mining industries
Product Advantages
-
High-precision non-contact sensing for real-time vibration monitoring
-
Long-distance connectivity with molded coaxial cable minimizes signal loss
-
Superior mechanical resilience under thermal, shock, and vibration stress
-
EMI/RFI immunity ensures stable output in industrial conditions
-
Meets global API 670 standards for machinery protection
-
Versatile compatibility with Bently Nevada 3300 XL monitoring systems
-
Low maintenance requirement due to stable calibration and rugged design
-
Simplified installation with standard thread mount and factory assembly
Frequently Asked Questions (FAQ)
-
What is the cable length of this model?
It includes a 19-foot (5.8 m) integral cable. -
Which monitoring systems is it compatible with?
It works with 3300 XL Proximitor® sensors and extension cables. -
Is the probe tip resistant to chemicals and heat?
Yes, the PPS tip offers excellent chemical and thermal resistance. -
Can this probe be used in hazardous locations?
Yes, it is built for use in harsh and hazardous industrial zones. -
What is the recommended thread mount?
3/8-24 UNF thread, standard for proximity probe mounting. -
What is the environmental protection rating?
The probe is IP68 rated for excellent dust and water resistance. -
What are the probe’s dimensions?
Diameter: 8 mm; Length: approx. 195–235 mm excluding the cable. -
Does it meet API 670 requirements?
Yes, it is compliant with API 670 standards for machinery protection. -
What is the linear range of measurement?
0.5 mm to 2.0 mm (20 to 80 mils). -
Is this probe suitable for high-speed rotating machines?
Absolutely. It’s ideal for turbines, compressors, and similar equipment.
Related Models
| Model Number | Description |
|---|---|
| 330103-00-13-10-12-05 | 13 ft cable, standard probe |
| 330103-07-18-10-02-00 | 18 ft cable, high-temperature rating |
| 330103-08-13-05-02-00 | 13 ft cable, compact configuration |
| 330103-10-14-10-02-CN | 14 ft cable, China localization |
| 330103-00-20-50-02-00 | 20 ft cable, extended range |
