Product Overview

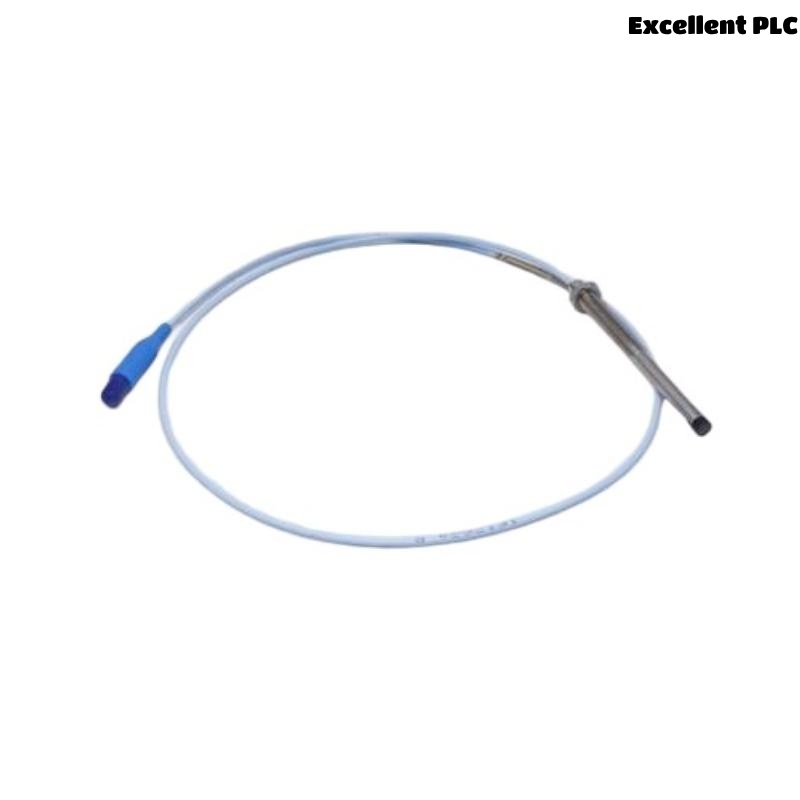

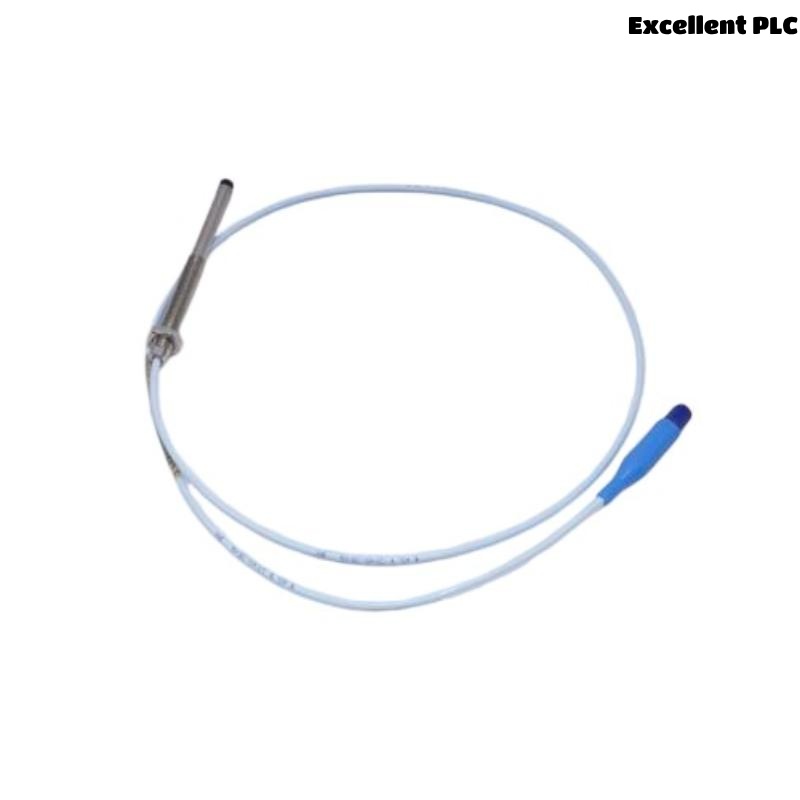

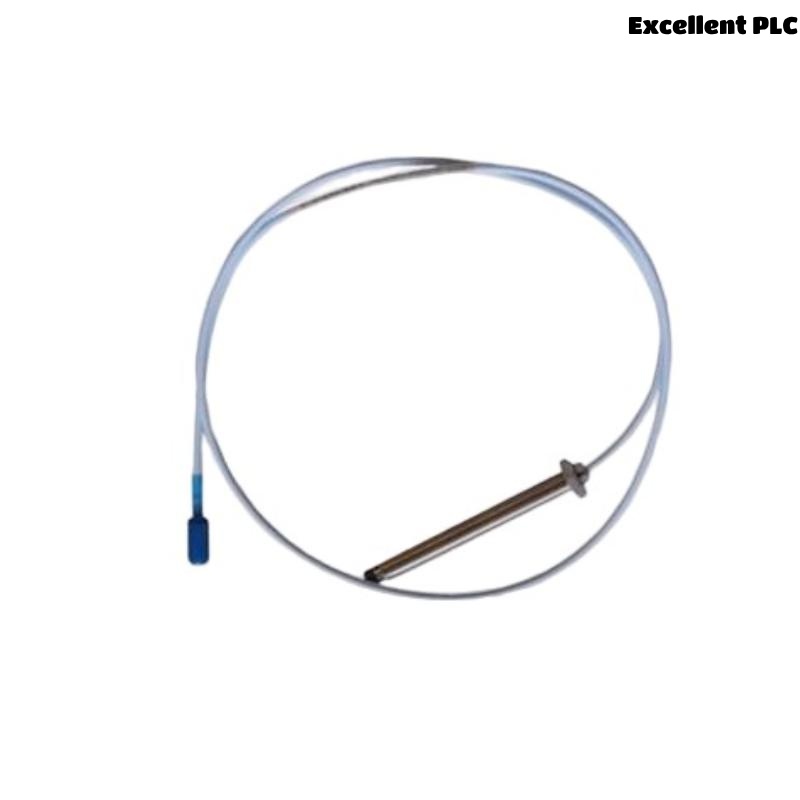

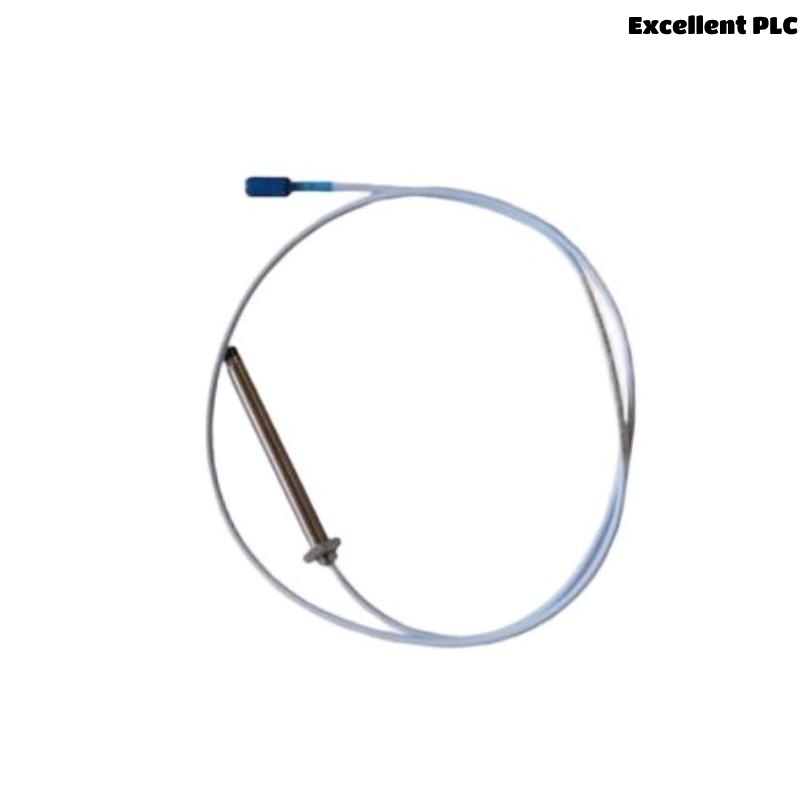

The Bently Nevada 330103-12-16-10-02-05 proximity probe is part of the highly reliable 3300 XL 8 mm series, designed for non-contact measurement of shaft position and vibration in rotating machinery. This model integrates a 16-foot cable directly molded to the probe, eliminating connector-related vulnerabilities and ensuring robust signal integrity over longer distances.
Used extensively in critical industrial applications, including turbines, compressors, pumps, and motors, the 330103-12-16-10-02-05 is built to deliver long-term accuracy and durability in challenging environments. It is compatible with 3300 XL Proximitor® sensors and complies with API 670 specifications.
Key Features
-
8 mm tip diameter for precise vibration and displacement monitoring
-
Factory-assembled 16-foot (4.9 m) molded cable for secure connectivity
-
PPS sensing tip and stainless-steel body for environmental durability
-
Threaded mounting (3/8-24 UNF) for easy and secure installation
-
API 670 compliant for critical machinery protection applications
-
Broad temperature and vibration tolerance for extreme conditions
-
Compatible with 3300 XL Proximitor® and extension systems
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | 330103-12-16-10-02-05 |
| Series | 3300 XL 8 mm |
| Sensing Tip Diameter | 8 mm |
| Cable Length | 16 feet (4.9 meters), molded integral |
| Connector Type | Molded coaxial connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 0.5 mm to 2.0 mm (20 to 80 mils) |
| Material – Probe Body | AISI 303 Stainless Steel |
| Material – Tip | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g, 10–2000 Hz |
| Shock Limit | 1000 g, 1 ms, half-sine |
| Environmental Rating | IP68 (probe only) |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
Industry Applications
-
Gas and steam turbines
-
Centrifugal and axial compressors
-
Industrial motors and pumps
-
Gearboxes and mechanical drives
-
Blowers and fans
-
Oil & gas refineries and petrochemical plants
-
Power generation systems
-
Mining and pulp/paper manufacturing
Product Advantages
-
Long-term performance in high-temperature and high-vibration conditions
-
Direct-molded cable ensures reliable data transmission over long runs
-
EMI and RFI resistance for enhanced signal integrity in noisy environments
-
Meets API 670 for dependable machinery condition monitoring
-
Standardized mounting thread makes installation straightforward
-
Low-maintenance design with minimal recalibration needed
-
Wide industry compatibility with other Bently Nevada monitoring solutions
-
Proven in harsh environments for consistent operation
Frequently Asked Questions (FAQ)
-
What is the integrated cable length of this model?
It comes with a factory-molded 16-foot (4.9 meters) coaxial cable. -
What thread is used for mounting?
The probe uses a standard 3/8-24 UNF thread. -
Which systems is this probe compatible with?
It is designed for use with 3300 XL Proximitor® sensors and systems. -
Is this model compliant with API 670?
Yes, it meets API 670 requirements for critical machinery protection. -
Can this be used in hazardous industrial environments?
Yes, it is built for rugged applications including oil, gas, and power plants. -
What are the dimensions of the probe body?
The diameter is 8 mm; length varies between 195–235 mm excluding the cable. -
What kind of signal shielding does it have?
It features excellent EMI/RFI shielding for industrial environments. -
What is the maximum vibration it can withstand?
It is rated for up to 10 g in the 10–2000 Hz frequency range. -
Is it waterproof?
The probe itself is IP68 rated for dust and water ingress protection. -
What materials are used in construction?
It is built with a stainless-steel body and a PPS sensing tip for durability.
Related Models
| Model Number | Description |
|---|---|
| 330103-11-19-10-02-00 | 19 ft cable, standard configuration |
| 330103-10-20-05-02-CN | 20 ft cable, localized for China market |
| 330103-08-13-05-02-00 | 13 ft cable, short length configuration |
| 330103-07-18-10-02-00 | 18 ft cable, high-precision application |
| 330103-00-13-10-12-05 | 13 ft cable, standard probe |
| 330103-12-16-10-02-00 | Variant of this model with slight config changes |
