Product Overview

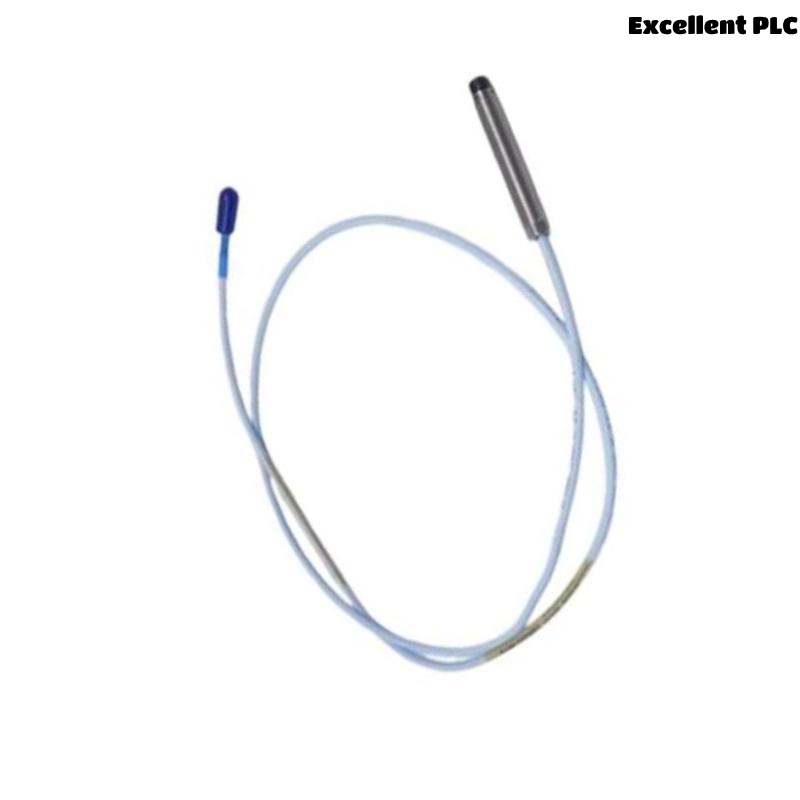

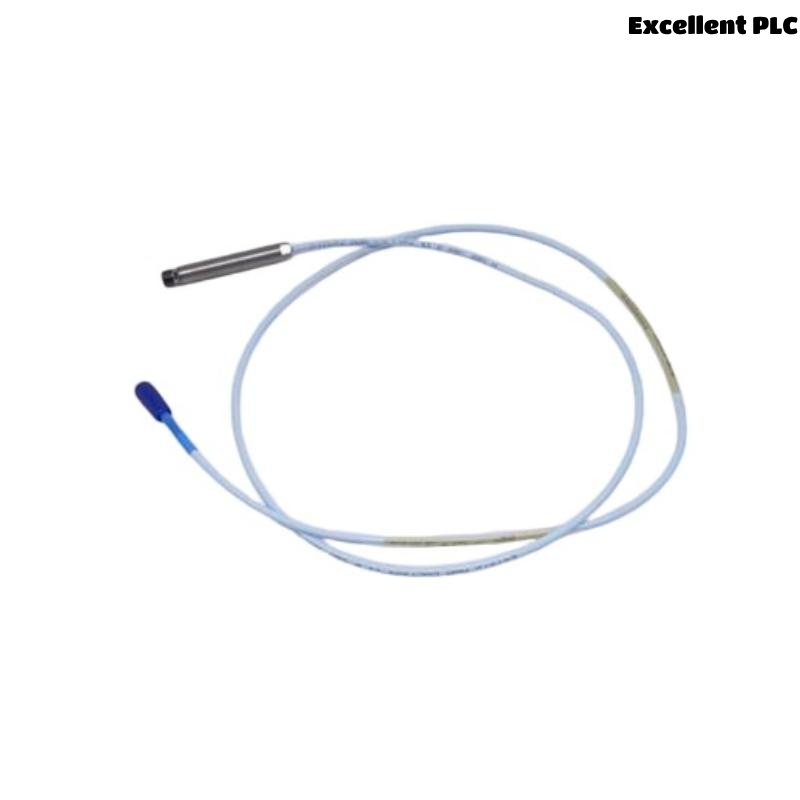

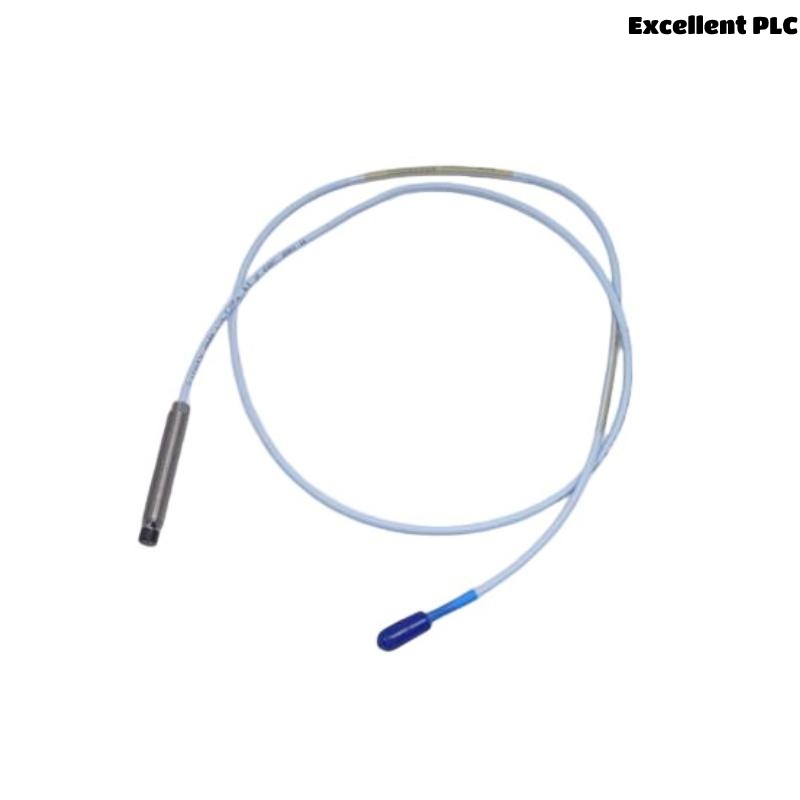

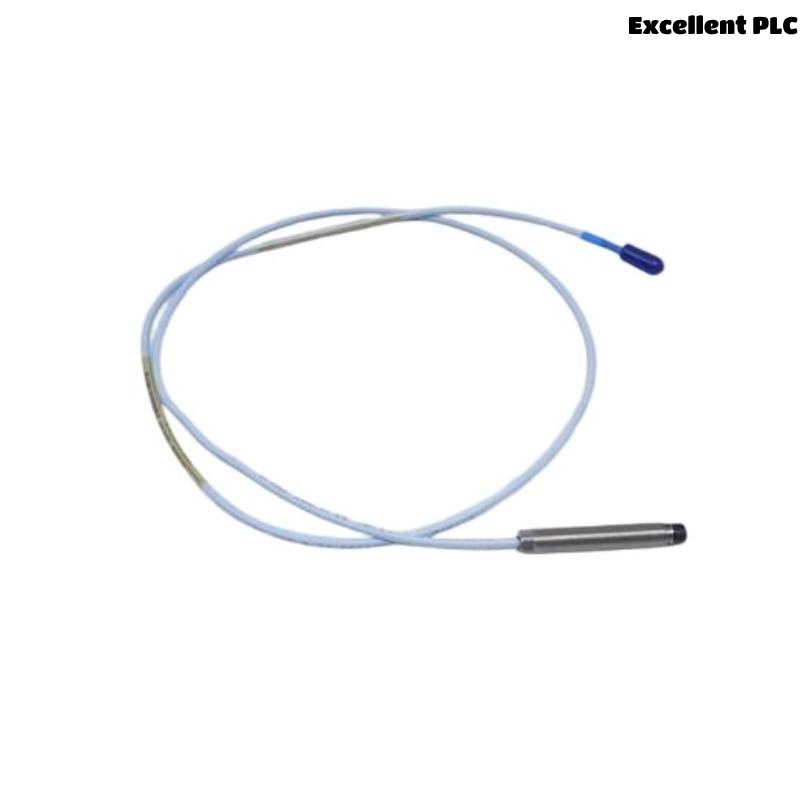

The Bently Nevada 330103-12-23-05-02-00 is a high-performance non-contact proximity probe from the trusted 3300 XL 8 mm series. It is engineered to provide precise and stable measurements of shaft displacement and vibration in critical rotating equipment. With a factory-integrated 23-foot cable and a durable design, this probe ensures long-term reliability and meets API 670 standards, making it ideal for use in turbines, compressors, motors, and pumps across industries.
Key Features
-
8 mm tip diameter for optimal shaft monitoring
-
23-foot molded cable ensures secure signal integrity
-
Threaded stainless-steel body (3/8-24 UNF) for robust mounting
-
High EMI/RFI immunity for electrically noisy environments
-
PPS plastic sensing tip for high-temperature durability
-
API 670 compliant for critical machinery protection
-
Fully compatible with 3300 XL Proximitor® sensors
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | 330103-12-23-05-02-00 |
| Series | 3300 XL 8 mm |
| Sensing Tip Diameter | 8 mm |
| Cable Length | 23 feet (7.0 meters), molded integral |
| Connector Type | Molded coaxial connector |
| Mounting Thread | 3/8-24 UNF |
| Linear Measurement Range | 0.5 mm to 2.0 mm (20 to 80 mils) |
| Material – Probe Body | AISI 303 Stainless Steel |
| Material – Tip | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g, 10–2000 Hz |
| Shock Limit | 1000 g, 1 ms, half-sine |
| Environmental Rating | IP68 (probe only) |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
Industry Applications
-
Gas and steam turbines
-
Industrial compressors
-
Motors and generators
-
Pumps and gearboxes
-
Blowers and fans
-
Petrochemical and refining facilities
-
Pulp and paper mills
-
Power generation systems
Product Advantages
-
Long cable reach for flexible installations
-
High mechanical and electrical durability
-
Pre-molded cable avoids connection errors
-
Compliant with industrial standards (API 670)
-
Robust stainless steel construction
-
Suitable for harsh operating environments
-
Low maintenance and long service life
-
Wide system compatibility with Bently Nevada infrastructure
Frequently Asked Questions (FAQ)
-
What is the cable length of this model?
It features a 23-foot (7.0 m) integrated molded cable. -
What is the thread size used for installation?
3/8-24 UNF, which is standard for 3300 XL probes. -
Is this probe suitable for high-temperature environments?
Yes, it operates reliably up to 177°C. -
Does this model meet API 670 requirements?
Yes, it is compliant with API 670 for machinery protection. -
What is the sensing tip material?
PPS (Polyphenylene Sulfide), a high-performance engineering plastic. -
Can this be used with a 3300 XL Proximitor® sensor?
Yes, it is fully compatible. -
What is the measurement range?
0.5 mm to 2.0 mm (20 to 80 mils). -
What type of signal connector is used?
A factory-molded coaxial connector is included. -
How durable is this probe in vibration-heavy areas?
It withstands 10 g vibration in the 10–2000 Hz range. -
What ingress protection rating does it have?
It is rated IP68 for excellent environmental sealing.
