Product Introduction

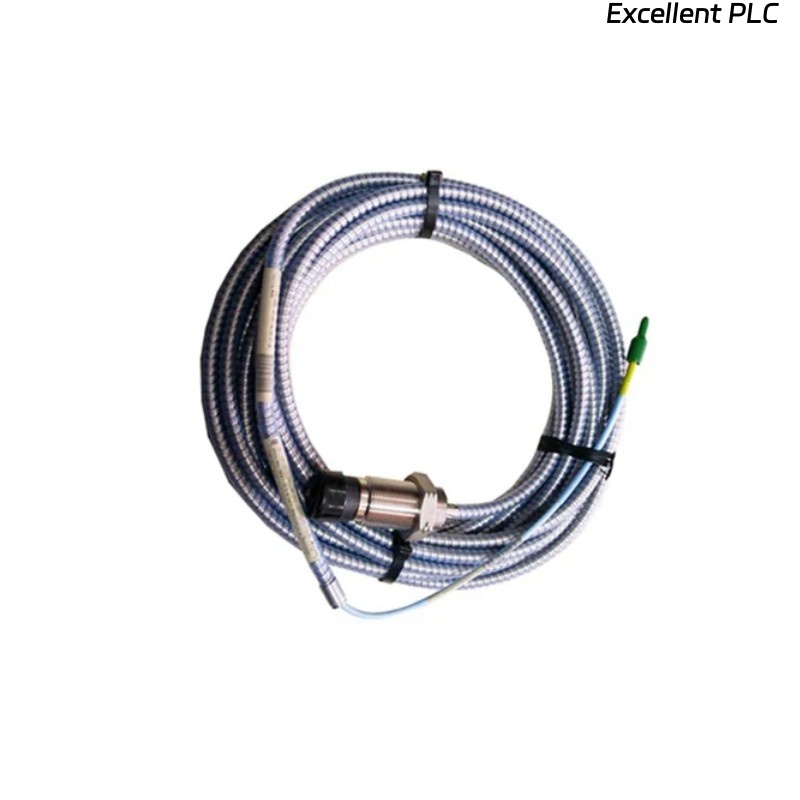

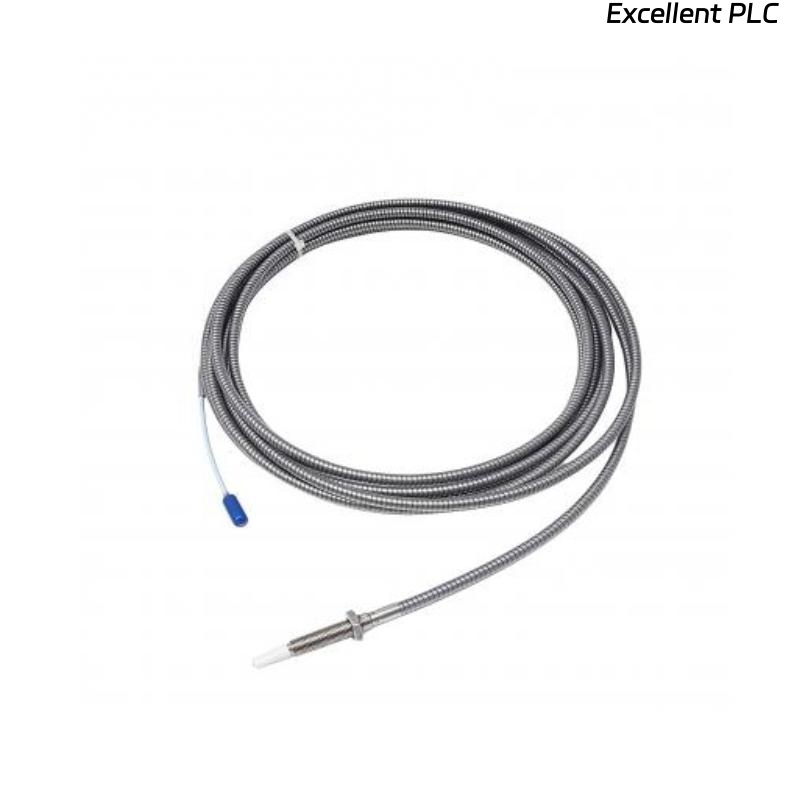

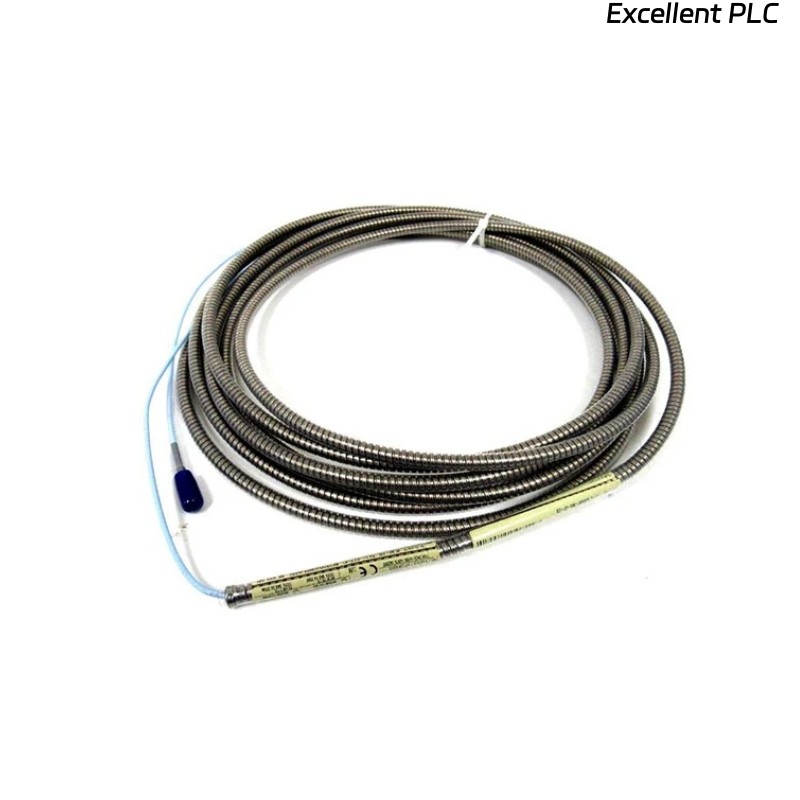

The Bently Nevada 330104-00-02-50-02-05 3300 XL 8 mm Proximity Probe is part of the renowned 3300 XL series, designed to deliver reliable, accurate, and durable proximity sensing for rotating machinery. Built for industrial environments, it provides precise shaft position and vibration measurements when paired with appropriate extension cables and Proximitor sensors. The probe ensures accurate gap control and stability across a wide range of operating conditions, making it essential in machinery protection and monitoring systems.
Product Advantages
-
High Accuracy: Provides consistent and reliable vibration and position measurements.
-
Extended Operating Range: Designed for harsh environments and capable of stable performance in difficult industrial conditions.
-
Robust Build: Withstands temperature variations, electrical noise, and mechanical stress.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL systems, ensuring seamless integration.
-
Long-Term Stability: Excellent linearity and reduced drift ensure dependable long-term monitoring.
-
Application Flexibility: Suitable for turbines, compressors, motors, and other rotating machinery.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330104-00-02-50-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Total Length | 5 m |
| Weight | 1.615 kg |
| Material | Stainless steel probe housing |
| Linear Range | Up to 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -40 °C to +200 °C |
| Cable Type | Integral coaxial cable with connector |
| Insulation Resistance | > 10 MΩ at 500 VDC |
| Compatible Sensor | Bently Nevada 3300 XL Proximitor® Sensor |
| Compliance | CE, RoHS |
Product Applications
-
Steam and gas turbines
-
Centrifugal compressors
-
Electric motors and generators
-
Industrial pumps
-
Gearboxes and fans
-
High-speed rotating equipment in oil, gas, and power industries
Product Advantages in Use
-
Ensures reliable operation of protection systems in demanding conditions.
-
Reduces downtime and maintenance costs by enabling predictive diagnostics.
-
Provides high immunity to electrical interference for stable measurements.
-
Optimized for compatibility with standard Bently Nevada monitoring systems.
-
Designed for long service life with robust mechanical and electrical integrity.
FAQ
Q1: What is the sensitivity rating of this probe?
A1: The probe has a sensitivity of 200 mV/mil (7.87 mV/μm), ensuring precise vibration and displacement measurements.
Q2: Can the probe operate in high-temperature environments?
A2: Yes, it operates reliably between -35 °C and +177 °C, with storage tolerance up to +200 °C.
Q3: What is the linear measurement range of the probe?
A3: It provides a linear range of up to 2 mm (80 mils), suitable for most machinery monitoring needs.
Q4: Which monitoring systems are compatible with this probe?
A4: It is fully compatible with Bently Nevada 3300 XL Proximitor Sensors and associated monitoring systems.
Q5: How does the probe handle electromagnetic interference?
A5: The design incorporates high immunity shielding, ensuring stable operation even in electrically noisy environments.
Q6: Is this probe interchangeable with other Bently Nevada probes?
A6: Yes, within the 3300 XL series, the probe can be interchanged with matching extension cables and Proximitor® units.
Q7: What is the maximum cable length supported?
A7: The 3300 XL system allows flexibility in probe and cable combinations, supporting standard lengths for proper calibration.
Q8: How is calibration ensured?
A8: Each probe undergoes factory calibration to guarantee accuracy when used with corresponding extension cables and Proximitor sensors.
Q9: Can this probe be used for axial as well as radial measurements?
A9: Yes, it is suitable for both axial position and radial vibration measurements on rotating machinery.
Q10: What type of output signal does the probe deliver?
A10: The probe outputs a voltage signal proportional to the shaft displacement, with a sensitivity of 200 mV/mil.
