Product Overview

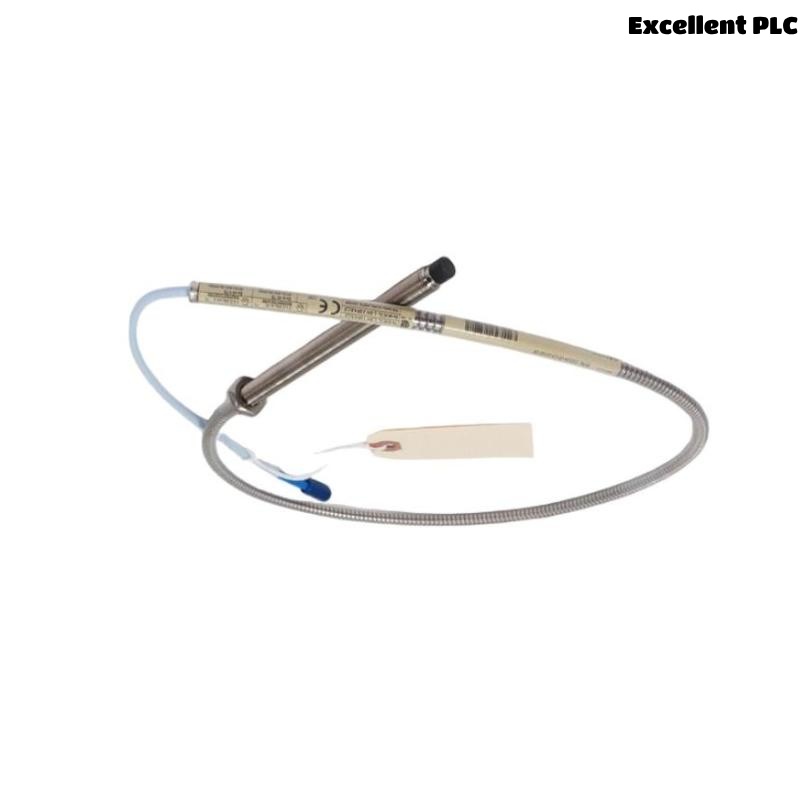

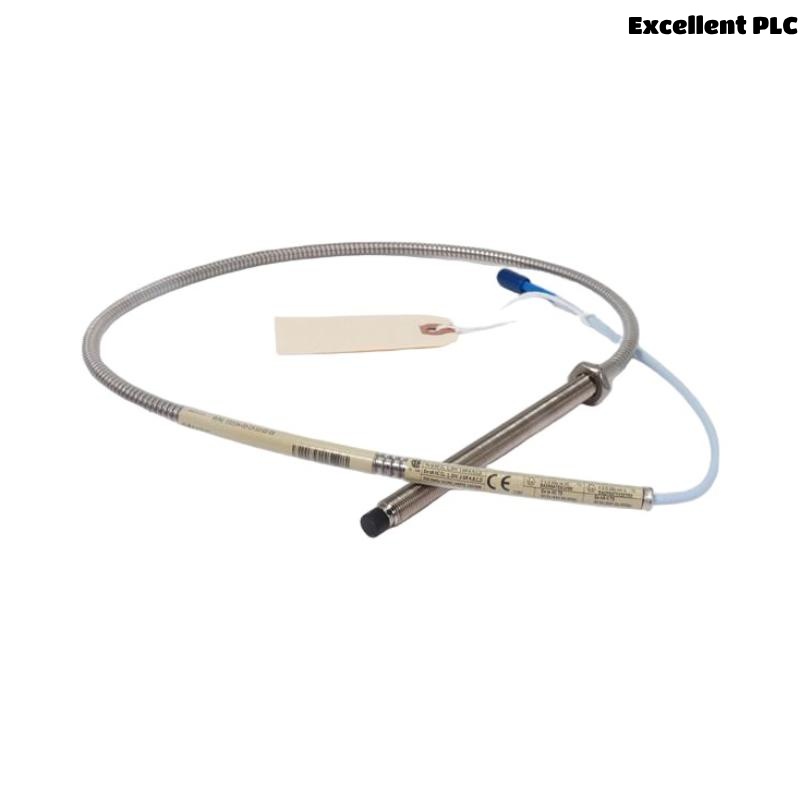

The Bently Nevada 330104-00-03-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed to measure the displacement and vibration of rotating machinery in demanding industrial environments. This probe is part of the renowned 3300 XL Series and is engineered for critical applications in industries such as power generation, oil & gas, chemical processing, and manufacturing. Its 8 mm gap design enables precise displacement measurement, helping ensure the efficient and reliable operation of machinery.
The 3300 XL 8 mm Proximity Probe works seamlessly with Bently Nevada’s Proximitor Sensors, providing continuous real-time data for condition monitoring and predictive maintenance. This non-contact measuring device is engineered to offer long-term reliability, high accuracy, and exceptional durability, even in harsh operating environments.
Key Features
-
High Precision Displacement Measurement: Provides ±0.50 mm range for accurate displacement detection, making it ideal for high-precision machinery monitoring.
-
Eddy Current Technology: Utilizes non-contact eddy current sensing for wear-free and maintenance-free operation.
-
Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to +85°C (-40°F to +185°F), making it suitable for harsh environments.
-
Rugged Construction: Manufactured with stainless steel housing, the probe offers high resistance to corrosion, vibration, and physical damage.
-
Seamless Integration: Fully compatible with the Bently Nevada 3300 XL Proximitor Sensors for vibration and displacement monitoring.
-
High Durability: Designed to withstand extreme industrial conditions, including high vibration and exposure to chemicals and moisture.
-
Real-Time Data: Provides continuous monitoring to detect early signs of machine faults, improving predictive maintenance efforts.
-
CE Certified: Meets the latest international standards for safety, performance, and environmental compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-03-05-02-00 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard threaded mounting for easy installation |
| Cable Length | Customizable (Up to 10 meters) |
| Output | Compatible with 3300 XL Proximitor Sensors |
| Weight | 0.161 kg |
| Dimensions | Total Length : 0.5 meter |
| Material | Stainless Steel Housing |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330104-00-03-05-02-00 3300 XL 8 mm Proximity Probe is widely used in various industries for monitoring and maintaining critical rotating equipment. Its ability to measure displacement and vibration with high accuracy makes it indispensable in applications such as:
-
Power Generation: Used to monitor turbines, compressors, and generators for potential issues such as imbalance, misalignment, and wear.
-
Oil & Gas: Ideal for continuous monitoring of equipment such as pumps, compressors, and turbines in offshore and onshore oil rigs and refineries.
-
Chemical Processing: Ensures the safe and reliable operation of reactors, mixers, and other machinery in chemical plants.
-
Manufacturing: Suitable for monitoring motors, conveyors, and other production machinery to detect early signs of failure and optimize maintenance schedules.
-
Mining: Provides real-time monitoring of crushers, mills, and other heavy machinery used in mining operations.
-
Transportation: Monitors critical systems such as turbines, engines, and rotating components in the transportation industry.
Product Advantages
-
Accurate Displacement and Vibration Measurement: Offers high-precision measurement, helping to ensure that machinery operates within its optimal parameters.
-
Durable Construction: Built with a rugged stainless steel housing to withstand physical damage, exposure to moisture, and extreme operating conditions.
-
Non-contact Sensing: The eddy current technology used in the probe provides wear-free operation, leading to longer service life and lower maintenance requirements.
-
High Environmental Resistance: Withstands a wide range of environmental conditions, including extreme temperatures and vibrations.
-
Real-Time Data: Helps reduce unplanned downtime and optimize maintenance schedules by providing continuous real-time monitoring data.
-
Easy Installation: The standard threaded mounting design allows for quick and simple installation on machinery.
-
Enhanced Safety: CE certified, meeting international standards for operational safety.
Frequently Asked Questions (FAQ)
-
Q: What is the function of the Bently Nevada 330104-00-03-05-02-00 3300 XL 8 mm Proximity Probe?
A: This probe is used to measure displacement and vibration in rotating machinery to provide real-time monitoring data for predictive maintenance. -
Q: How does the probe measure displacement?
A: The probe utilizes eddy current technology, a non-contact method, to measure the displacement of machinery without physical wear or damage. -
Q: What industries use this probe?
A: It is used in industries such as power generation, oil & gas, manufacturing, chemical processing, mining, and transportation. -
Q: What is the measuring range of the probe?
A: The probe measures displacement within a range of ±0.50 mm. -
Q: What is the operating temperature range for the probe?
A: The probe operates effectively within a temperature range of -40°C to +85°C (-40°F to +185°F). -
Q: Can the probe be used in harsh environments?
A: Yes, the probe is designed to withstand extreme conditions such as high vibration, moisture, and exposure to chemicals. -
Q: How does this probe help with predictive maintenance?
A: By providing real-time data on displacement, the probe allows early detection of potential issues, helping to prevent unexpected failures and reduce downtime. -
Q: Can this probe be used with other monitoring systems?
A: The probe is designed to integrate seamlessly with Bently Nevada 3300 XL Proximitor Sensors for comprehensive monitoring. -
Q: Is the probe easy to install?
A: Yes, the probe features a standard threaded mounting design, making installation quick and easy. -
Q: Is this probe CE certified?
A: Yes, the probe is CE certified, ensuring it meets international safety and performance standards.
