Product Introduction

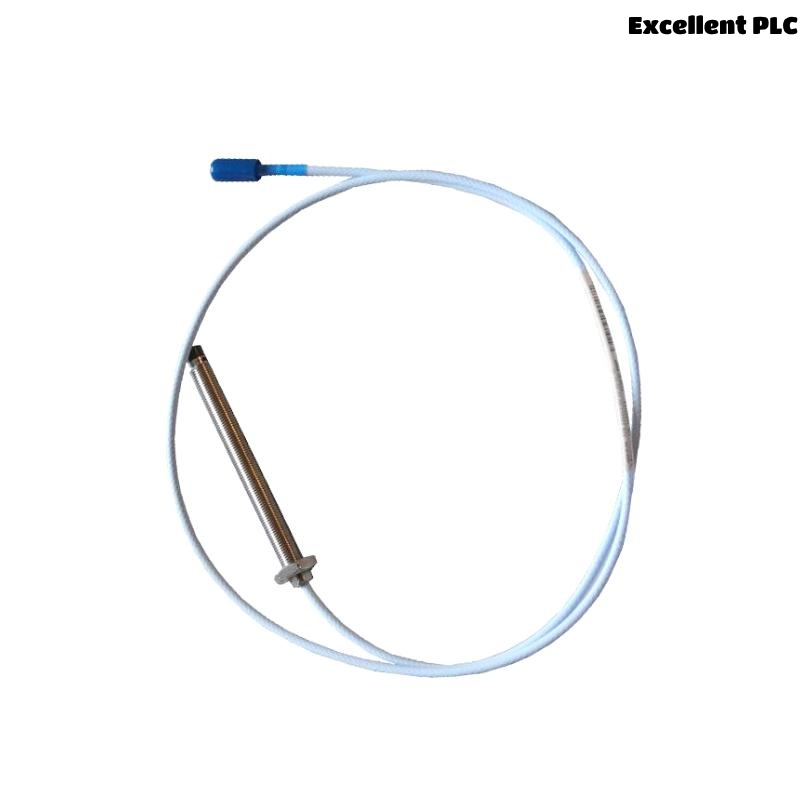

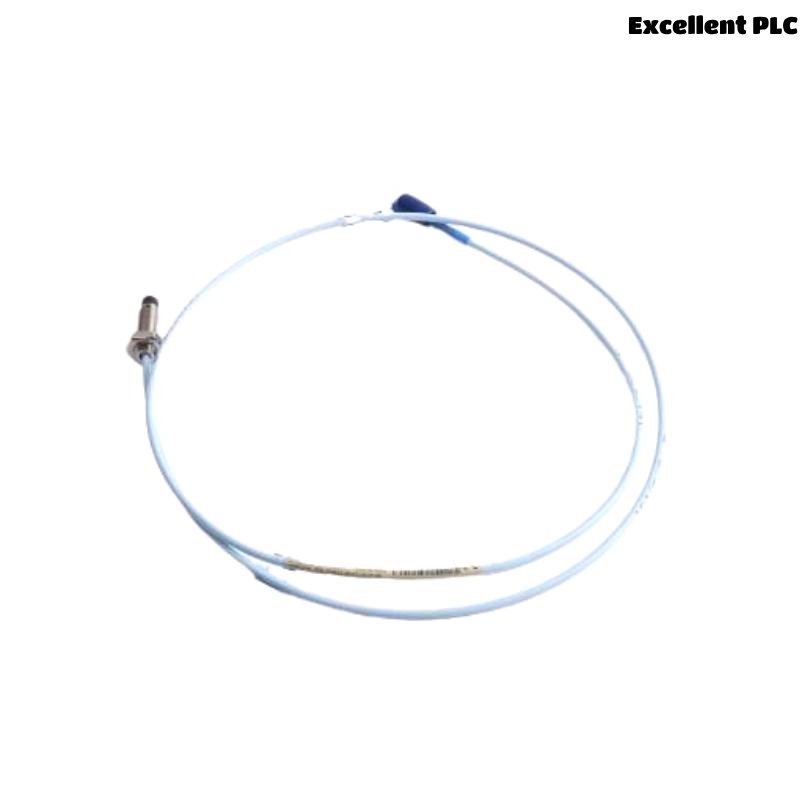

The Bently Nevada 330104-00-04-10-02-CN 3300 XL 8mm Proximity Probe is an advanced industrial sensor designed to deliver accurate, real-time measurements of shaft position and vibration in critical rotating equipment. As a member of the globally trusted 3300 XL 8mm Proximity Probe series from Bently Nevada (a Baker Hughes company), this product ensures compliance with API 670 standards for machine protection and condition monitoring.
Engineered with precision stainless steel construction and high-durability cabling, the 330104-00-04-10-02-CN model is well-suited for harsh industrial environments. This specific version features a 1 meter total length, providing flexibility for a wide range of installation needs. Combined with a robust sensing range and superior stability, it plays a vital role in reducing equipment failures, preventing downtime, and optimizing the performance of high-value machinery assets.
Product Specifications
| Specification | Details |
|---|---|
| Model | 330104-00-04-10-02-CN |
| Series | 3300 XL 8mm Proximity Probes |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Sensing Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2 mm (10 mils to 80 mils) |
| Non-linearity | ±0.75% of full-scale range |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Extension Cable Length | Varies (usually ordered separately) |
| Thread Type | 3/8-24 UNF |
| Probe Body Material | Stainless Steel |
| Cable Jacket Material | Polyethylene (PE) or optional FEP |
| Operating Temperature (Probe) | -35°C to +177°C |
| Operating Temperature (Cable) | -51°C to +177°C |
| System Compatibility | 3300 XL Proximitor drivers & monitors |
| Compliance | API 670 certified |
| Weight | 0.323 kg |
Applications
The Bently Nevada 330104-00-04-10-02-CN Proximity Probe is employed in diverse industrial sectors that rely on precision monitoring of shaft movement and vibration:
-
Power Generation
For shaft position and vibration monitoring in steam, gas, and hydro turbines, as well as critical plant pumps and generators. -
Oil & Gas
Monitoring compressors, pumps, motors, and expanders in upstream production, pipelines, and downstream refining. -
Chemical & Petrochemical Processing
Providing essential machine protection in high-risk environments such as chemical plants and refineries. -
Pulp & Paper
Monitoring high-speed rollers and paper machines for vibration trends and early fault detection. -
Metals and Mining
Tracking motor vibration, gearbox condition, and rolling mill equipment health. -
Marine & Offshore
Used on propulsion systems, auxiliary engines, and generator sets aboard ships and offshore platforms.
Advantages
The 330104-00-04-10-02-CN 8mm Proximity Probe offers a variety of advantages to plant operators, maintenance professionals, and reliability engineers:
-
High Measurement Accuracy
Delivers excellent linearity and repeatability, ensuring accurate shaft position and vibration data. -
API 670 Compliance
Engineered to meet API 670 standards for rotating machinery protection. -
Rugged Construction
Stainless steel body and robust cabling are designed to survive in harsh industrial environments. -
Wide Operating Temperature Range
Ensures stable performance in extreme temperatures, from arctic to high-temperature service. -
Flexible Installation
The 1 meter probe cable supports applications where space or cable routing is constrained. -
Seamless Integration
Fully compatible with Bently Nevada 3300 XL drivers and monitoring systems. -
Low Drift, High Stability
Maintains measurement accuracy over long operating periods with minimal need for recalibration. -
Proven Industry Performance
Field-proven reliability across power generation, oil & gas, chemical, marine, and metals industries.
FAQs
-
What is the sensing range of this probe?
It offers a sensing range of 0 to 2 mm (80 mils). -
What is the linear range?
0.25 mm to 2 mm (10 mils to 80 mils). -
What system length is supported?
The probe comes with a 1 meter cable; extension cables can be ordered as needed. -
Is the probe API 670 certified?
Yes, this model meets API 670 compliance. -
What thread type does it use?
The probe uses a 3/8-24 UNF mounting thread. -
What are its temperature ratings?
Probe: -35°C to +177°C; Cable: -51°C to +177°C. -
Which industries typically use this probe?
It is widely used in power generation, oil & gas, chemical processing, pulp & paper, mining, and marine industries. -
Is the probe compatible with older 3300 XL systems?
Yes, it is compatible with 3300 XL drivers and monitors. -
How often should the probe be recalibrated?
The probe offers long-term stability with very low drift, minimizing recalibration needs. -
Can it be used in offshore environments?
Yes, it is fully suitable for offshore marine platforms and vessels.
Related Models
| Model | Description | Key Features |
|---|---|---|
| 330103-06-13-10-02-00 | 8mm Proximity Probe (6 m probe, 13 m cable) | Flexible installation, API 670 compliant |
| 330103-07-12-10-02-00 | 8mm Proximity Probe (7 m probe, 12 m cable) | Longer cable for mid-size equipment |
| 330103-06-25-10-02-00 | 8mm Proximity Probe (6 m probe, 25 m cable) | Extended reach for large installations |
| 330104-00-10-10-02-05 | 11mm Proximity Probe | Extended tip for large shaft gaps |
| 330105-02-12-10-02-05 | 25mm Proximity Probe | Large shaft monitoring applications |
| 330106-05-10-10-02-05 | NSv Narrow Surface Probe | For space-constrained installations |
