Product Overview

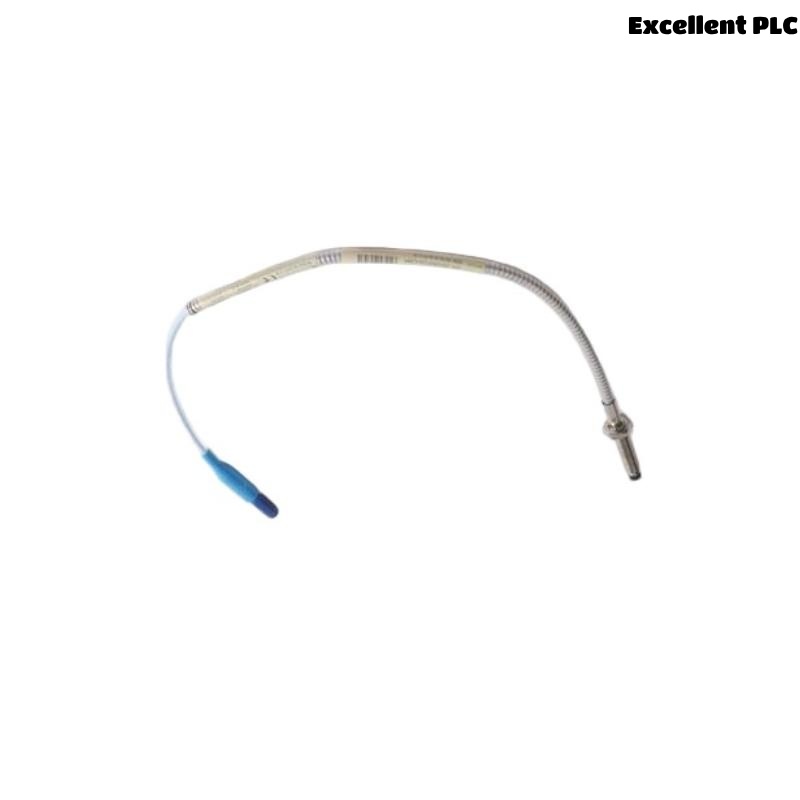

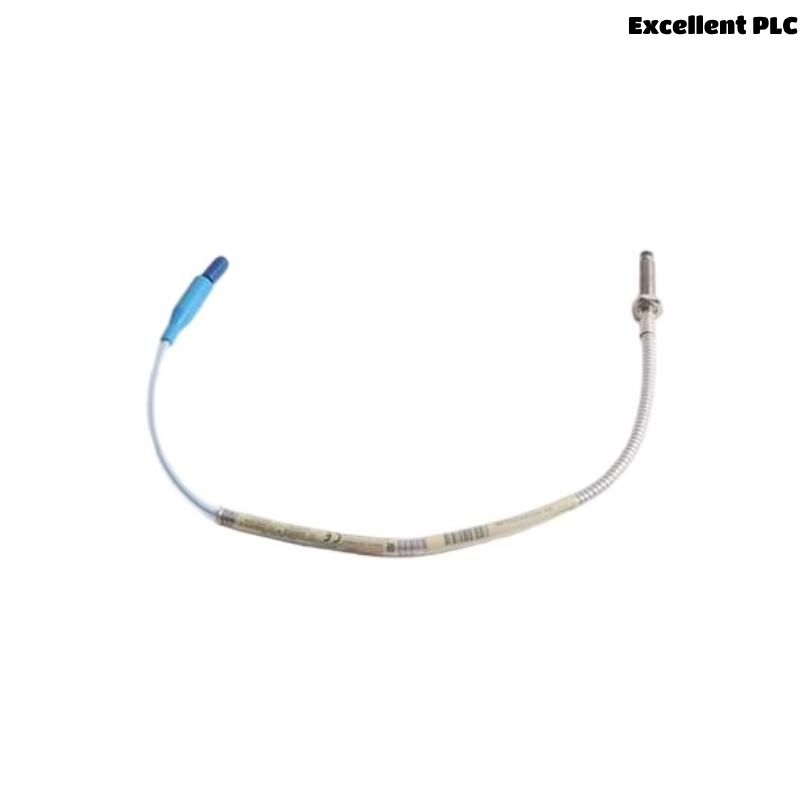

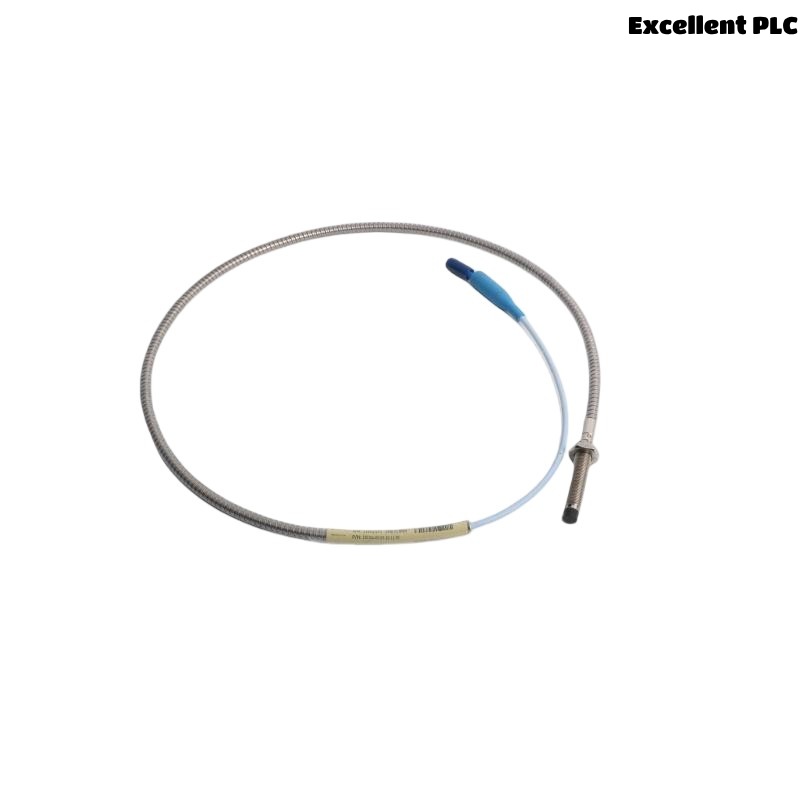

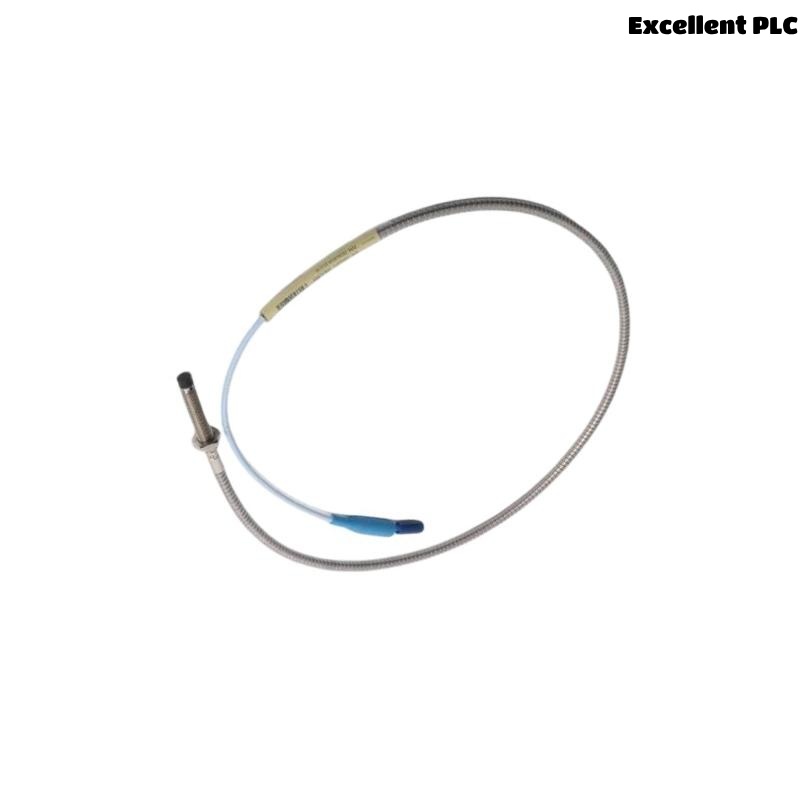

The Bently Nevada 330104-00-05-05-01-CN 3300 XL 8 mm Proximity Probe is a highly precise, rugged sensor designed to monitor the vibration and displacement of rotating machinery in industrial applications. Specifically engineered for use with Bently Nevada’s 3300 XL series, this proximity probe is capable of measuring the proximity (distance) between the probe and a target, making it an essential tool for condition monitoring and predictive maintenance.
The 3300 XL 8 mm probe offers exceptional accuracy, high reliability, and is designed to perform in challenging environments, providing real-time feedback to control systems. This allows operators to detect potential mechanical faults before they lead to machine failure, reducing downtime and improving overall equipment effectiveness (OEE).
With a robust mechanical construction, the probe features a hermetically sealed design for protection against harsh industrial environments such as high temperatures, vibrations, and corrosive atmospheres.
Technical Specifications
Specification | Description |
---|---|
Model Number | 330104-00-05-05-01-CN |
Probe Type | 3300 XL 8 mm Proximity Probe |
Measurement Type | Displacement (Proximity) |
Sensing Range | 8 mm |
Accuracy | ±0.001 mm |
Output Type | Linear voltage output |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -40°C to +100°C |
Environmental Protection | IP67 (Hermetically sealed) |
Housing Material | Stainless Steel (Corrosion resistant) |
Target Material | Ferrous metal (typically) |
Mounting Type | Direct mount to machinery or bearing housing |
Dimensions | Total Length : 0.5 meter |
Weight | 0.161 kg |
Certifications | CE, UL, RoHS, and other industry certifications |
Industry Applications
-
Power Generation: Monitoring critical machinery in power plants, including turbines and compressors.
-
Oil & Gas: Condition monitoring of pumps, compressors, and other critical rotating equipment.
-
Chemical Processing: Vibration analysis for mixers, reactors, and pumps.
-
Mining & Metals: Monitoring of crushers, mills, and conveyors to prevent unplanned downtime.
-
Water & Wastewater: Vibration monitoring of pumps, mixers, and aerators in treatment facilities.
-
Pulp & Paper: Condition monitoring of motors, drives, and fans in paper mills.
-
Manufacturing: Vibration detection in high-speed machinery such as CNC machines and motors.
Key Advantages
-
Precision Measurement: Offers high accuracy (±0.001 mm) for precise displacement and vibration monitoring.
-
Rugged Construction: Hermetically sealed design ensures protection against harsh environments and contaminants.
-
Wide Operating Range: Can operate across a broad temperature range of -40°C to +85°C, making it suitable for extreme environments.
-
High Reliability: Designed to work reliably under continuous operation, enhancing equipment uptime.
-
Cost-Effective: Reduces maintenance costs by identifying potential issues before they lead to catastrophic failures.
-
Easy Installation: Directly mounts to machinery or bearing housings, simplifying setup.
-
Compatibility: Fully compatible with Bently Nevada 3300 XL series monitoring systems, ensuring seamless integration.
-
Low Power Consumption: Operates on 24 V DC, minimizing energy costs.
Frequently Asked Questions (FAQ)
-
What is the sensing range of the 3300 XL 8 mm proximity probe?
The probe has a sensing range of 8 mm. -
What is the accuracy of the 3300 XL proximity probe?
The probe offers an accuracy of ±0.001 mm. -
What type of output does the probe provide?
The probe provides a linear voltage output. -
What is the operating temperature range of the probe?
The probe operates in temperatures ranging from -40°C to +85°C. -
What kind of protection does the probe have?
The probe has an IP67 rating, ensuring it is hermetically sealed and protected from dust and water. -
Can the probe be used in high-vibration environments?
Yes, the probe is designed to operate reliably in high-vibration environments. -
Is the probe suitable for use in harsh industrial conditions?
Yes, the stainless steel housing and hermetically sealed design make it ideal for harsh industrial environments. -
What is the weight of the 3300 XL proximity probe?
The probe weighs approximately 0.161 kg. -
What kind of machinery can the probe be used to monitor?
The probe is used to monitor rotating machinery such as motors, turbines, pumps, and compressors. -
Is the 3300 XL 8 mm proximity probe compatible with other Bently Nevada systems?
Yes, it is fully compatible with Bently Nevada 3300 XL series systems.
