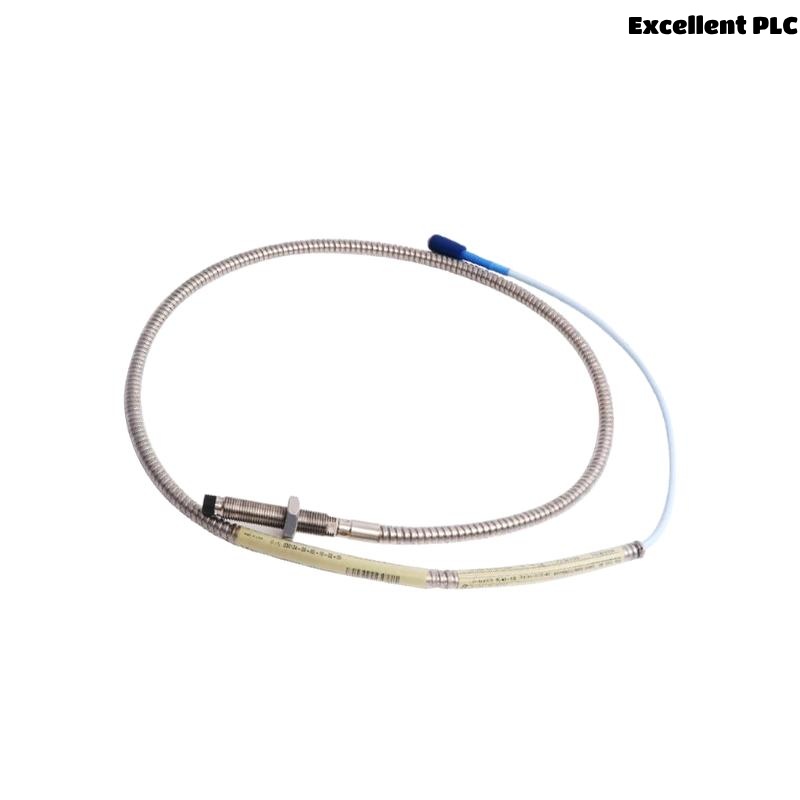

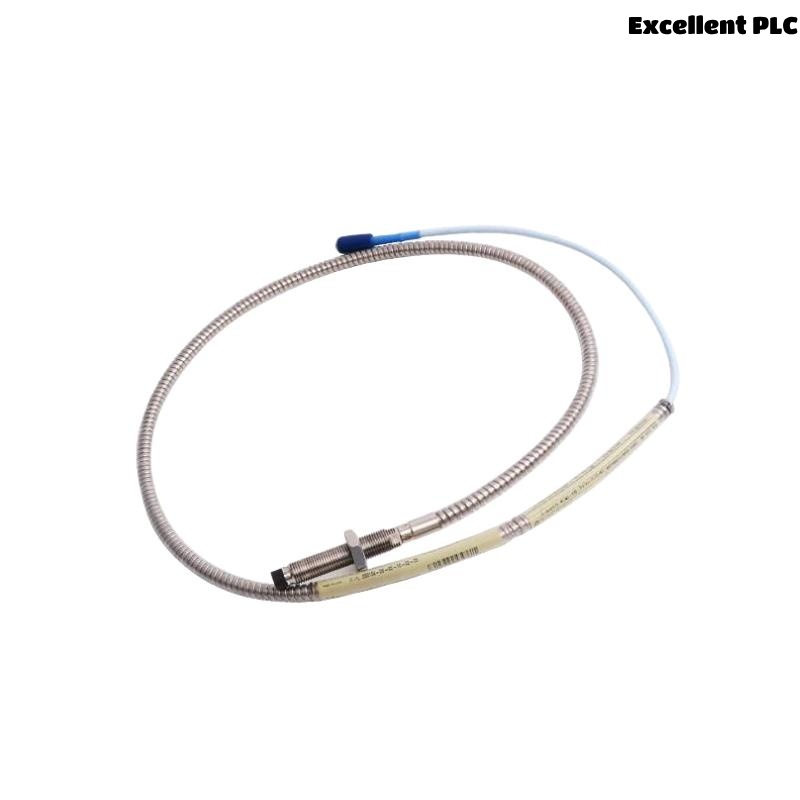

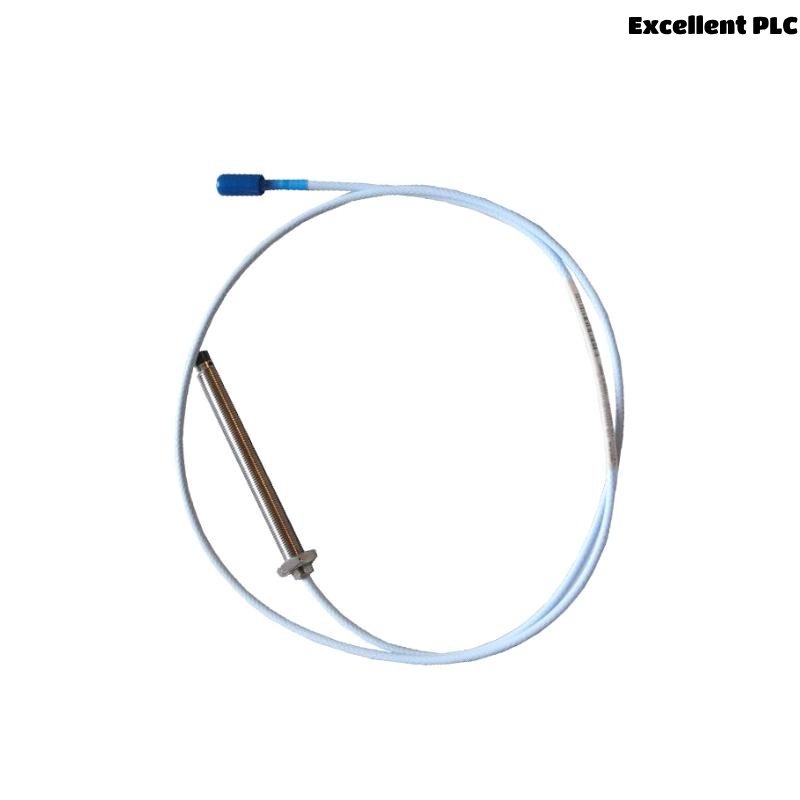

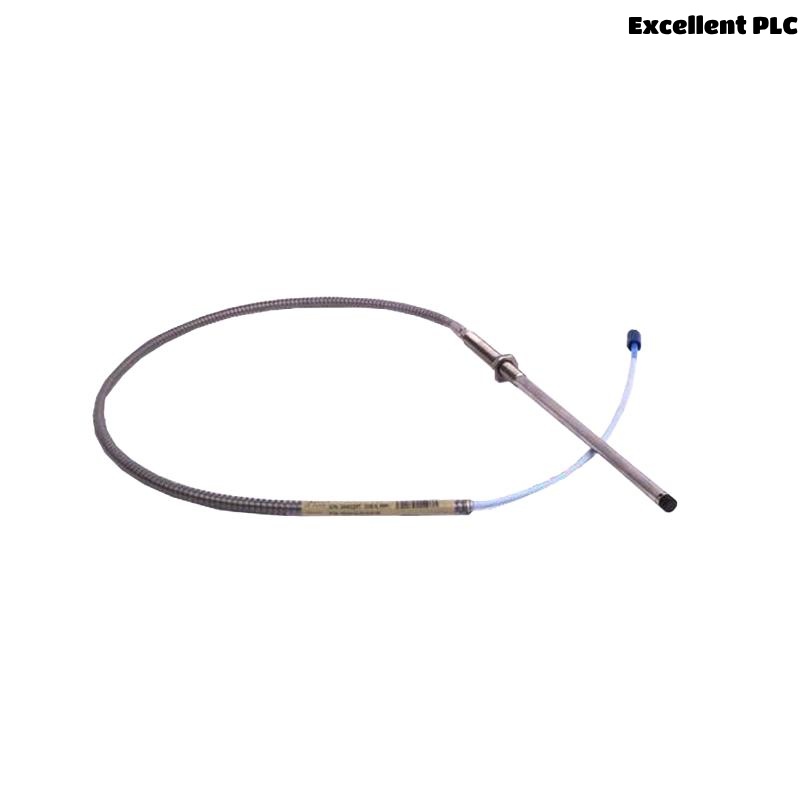

Bently Nevada 330104-00-05-20-02-05 3300 XL 8 mm Proximity Probes

Product Introduction

The Bently Nevada 330104-00-05-20-02-05 belongs to the trusted 3300 XL 8 mm Proximity Transducer System, known across industries for its high reliability and precision in non-contact position and vibration measurement. This probe is specifically engineered for use in industrial machinery where accurate monitoring of shaft position and movement is critical to protecting equipment and ensuring operational efficiency.

This model features an M10 x 1 threaded body, a 0.5-meter integral cable, and a special connector configuration designed for systems with specific mounting constraints or environmental needs. The 3300 XL system components (probe, extension cable, and Proximitor® sensor) are all calibrated as a set to ensure exceptional measurement accuracy.

Commonly used in turbines, compressors, motors, and pumps, this probe delivers outstanding performance in hazardous and non-hazardous locations alike. The XL series is also well regarded for its resistance to electrical interference, temperature extremes, and physical vibration—ensuring consistent operation in tough industrial environments.

Technical Specifications

Applications

The 330104-00-05-20-02-05 proximity probe is utilized for machine condition monitoring in industries requiring precise, high-speed measurements of dynamic motion. Typical applications include:

• Gas and Steam Turbines – Monitoring rotor shaft vibration and axial displacement.

• Compressors – Ensuring real-time shaft position feedback in high-speed rotating machinery.

• Motors and Generators – Detecting mechanical wear, misalignment, or unbalance.

• Industrial Pumps – Preventing bearing failure or rotor-to-stator contact.

• Centrifugal Machinery – Vibration monitoring in high-speed impellers and fans.

• Gearboxes – Monitoring gear movement for early fault detection.

Product Advantages

• Compact M10 Threaded Design – Ideal for tight installation areas or OEM-specific housings.

• Excellent Environmental Resistance – Operates reliably in high-temperature and high-vibration settings.

• Calibration Stability – System-calibrated probe ensures consistent performance with Proximitor® sensors.

• Non-Contact Measurement – Prevents mechanical wear and allows continuous monitoring of critical assets.

• Versatile Application Use – Compatible with a wide range of rotating machinery across industries.

• Low Signal Noise – Enhanced shielding minimizes electromagnetic interference in high-voltage environments.

Frequently Asked Questions (FAQ)

1. What is the main function of this proximity probe?
   It measures the distance between the probe tip and a conductive surface, typically a rotating shaft.

2. Is the 330104-00-05-20-02-05 compatible with standard 3300 XL Proximitor® sensors?
   Yes, it’s designed to work seamlessly with standard Bently Nevada 3300 XL extension cables and Proximitor® modules.

3. What is the significance of the M10 thread?
   The M10 x 1 thread allows for installation in metric-threaded mounting ports, often used in European or OEM equipment.

4. Can I use this probe in high-temperature environments?
   Yes, it supports operation up to 177°C (350°F), suitable for most industrial machinery.

5. Does this probe require calibration on-site?
   No. It comes factory-calibrated and is ready to use when paired with the correct extension cable and sensor.

6. What is the function of the special connector?
   It ensures secure and orientation-specific connections, often used in confined or high-vibration areas.

7. Can this probe be used in hazardous locations?
   The probe itself is not certified intrinsically safe; system-wide certification is required for hazardous zones.

8. How far can I extend the cable?
   Use matched Bently Nevada extension cables to ensure system accuracy over longer distances.

9. Is the probe sensitive to electromagnetic interference?
   It is well shielded and designed to resist EMI typically present in industrial environments.

10. What is the IP rating of this device?
    When properly installed and sealed, the system offers IP65 protection against dust and water ingress.
