Product Introduction

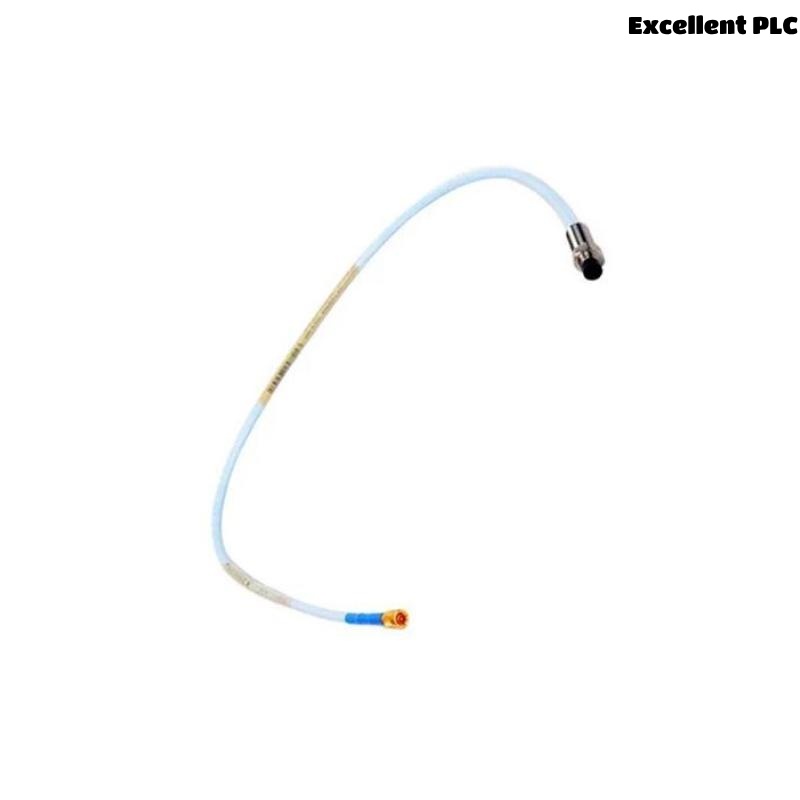

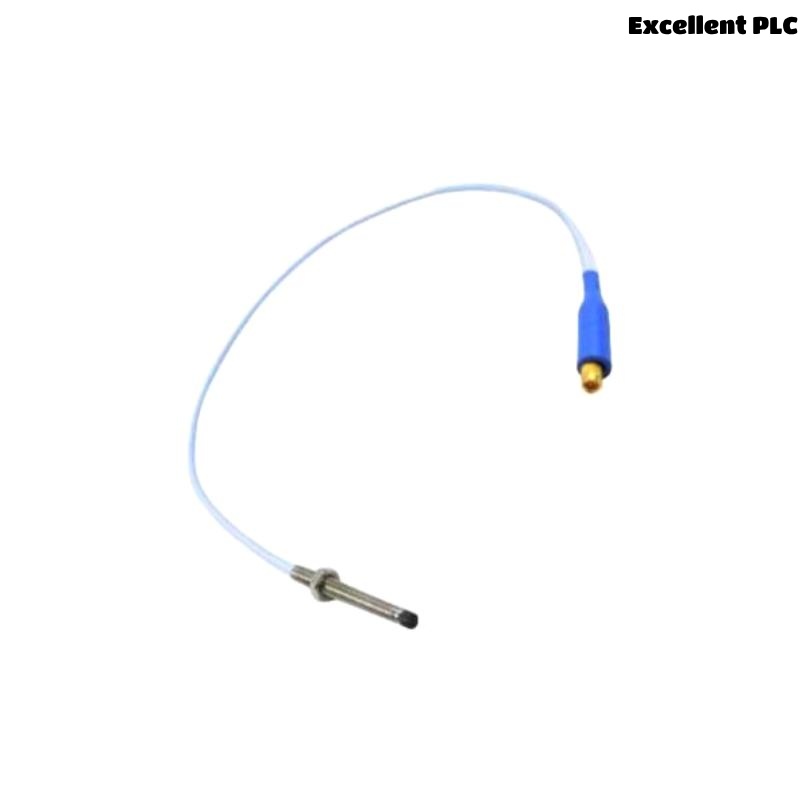

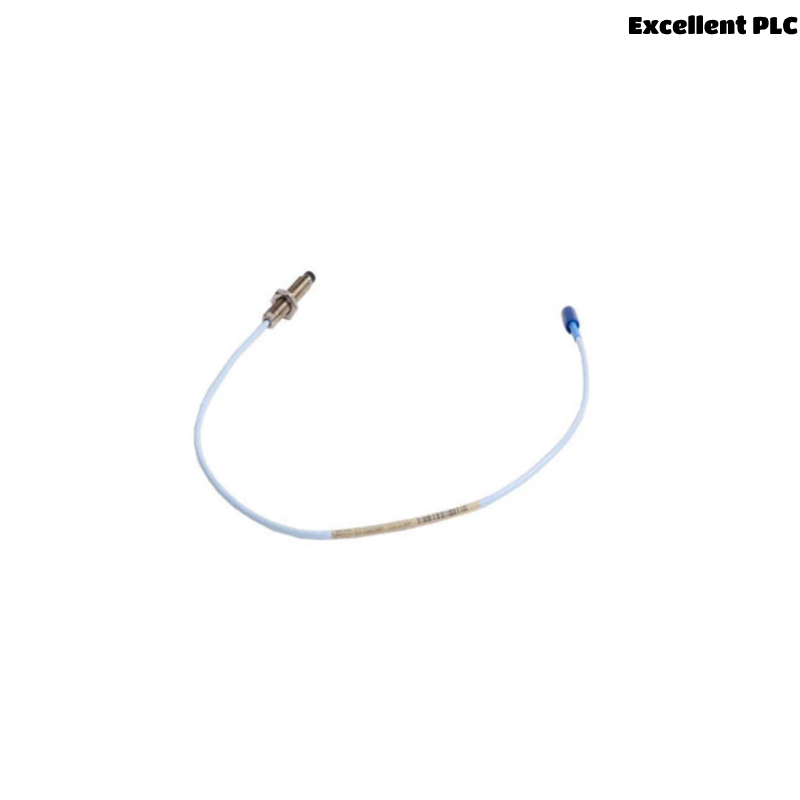

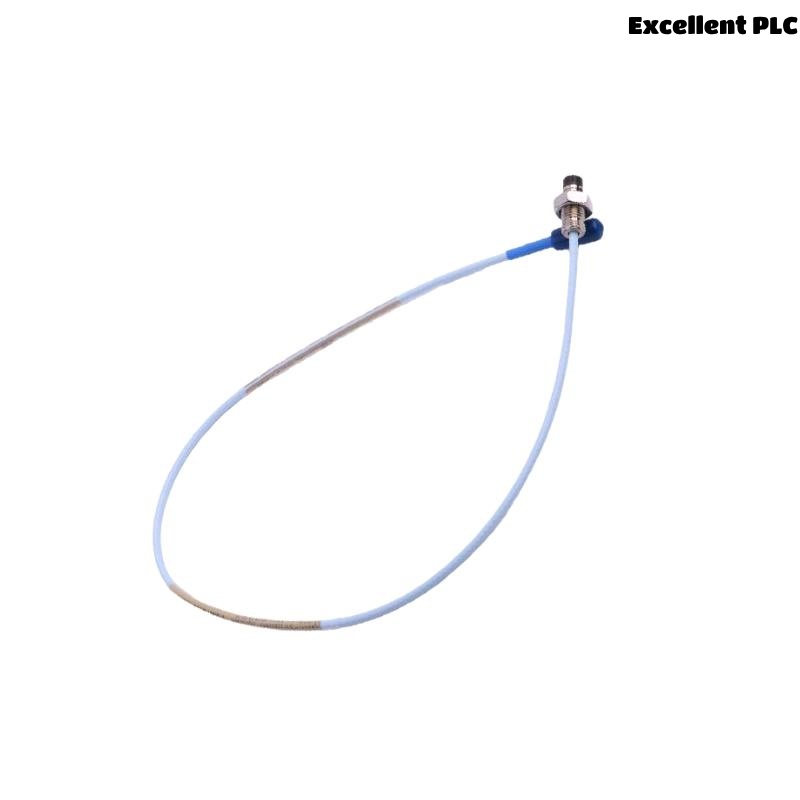

The Bently Nevada 330104-00-06-05-01-05 is a high-performance vibration monitoring system designed for industrial and machinery applications. It offers real-time monitoring of machinery conditions, detecting abnormal vibrations that could indicate potential faults or wear. With its robust design, this product ensures long-term reliability and accuracy in challenging industrial environments.
The system integrates seamlessly into predictive maintenance setups, providing key insights into machine health, thus preventing unplanned downtime and improving operational efficiency. It features advanced sensing technology, offering precise measurement capabilities and comprehensive data analysis.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-00-06-05-01-05 |
| Cable length | 0.5 m |
| Weight | 0.162 kg |
| Input Voltage | 24 VDC |
| Frequency Range | 1 Hz to 10 kHz |
| Temperature Range | -20°C to 70°C |
| Output Signal | 4-20 mA |
| Connector Type | M12 |
| Mounting Type | Panel Mount |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
| Vibration Range | ±0.2 g to ±5 g |
| Communication Protocol | Modbus RTU |
Applications
The Bently Nevada 330104-00-06-05-01-05 vibration monitoring system is ideal for the following applications:
-
Industrial Machinery: Ensuring the operational health of motors, pumps, fans, and compressors.
-
Power Plants: Monitoring turbine health and other rotating equipment in power generation facilities.
-
Oil and Gas: Keeping track of the performance of critical machinery in oil refineries, pipelines, and offshore platforms.
-
Mining: Detecting issues in large mining equipment such as crushers and mills.
-
Aerospace: Used for monitoring the vibration levels in jet engines and aircraft systems.
Advantages
-
Enhanced Accuracy: With its wide frequency range and sensitivity, the Bently Nevada 330104-00-06-05-01-05 provides precise and reliable vibration data.
-
Real-Time Monitoring: Continuous monitoring helps in early fault detection, ensuring machinery operates at peak efficiency.
-
Durability: Built to withstand harsh environments with high resilience to temperature, vibration, and humidity fluctuations.
-
Easy Integration: Designed to seamlessly integrate with various predictive maintenance systems, including SCADA and industrial IoT solutions.
-
Energy Efficient: Low power consumption with a 24V DC input and energy-efficient design.
-
Scalability: Can be used as part of a larger monitoring network, making it suitable for both small and large-scale operations.
FAQs
Q1: What kind of machinery is compatible with the Bently Nevada 330104-00-06-05-01-05?
A1: The Bently Nevada 330104-00-06-05-01-05 is designed for rotating equipment, including motors, pumps, compressors, turbines, and large industrial machinery across various industries such as oil & gas, power generation, and manufacturing.
Q2: What is the power consumption of the Bently Nevada 330104-00-06-05-01-05?
A2: The Bently Nevada 330104-00-06-05-01-05 operates on 24V DC with minimal power consumption, making it energy-efficient.
Q3: How do I install the Bently Nevada 330104-00-06-05-01-05?
A3: The unit can be panel-mounted. Ensure a stable installation with proper vibration isolation and grounding to avoid electrical noise interference.
Q4: Can the system integrate with existing condition monitoring software?
A4: Yes, the Bently Nevada 330104-00-06-05-01-05 is compatible with major industrial software platforms like SCADA, and can also communicate via Modbus RTU for integration into predictive maintenance systems.
Q5: What is the maximum operating temperature for this product?
A5: The Bently Nevada 330104-00-06-05-01-05 operates effectively in temperatures ranging from -20°C to 70°C.
Q6: How accurate is the vibration measurement?
A6: The product can detect vibrations within a frequency range of 1 Hz to 10 kHz, with high precision for early fault detection.
Q7: Is the product resistant to environmental factors?
A7: Yes, it is designed to be resistant to temperature variations, humidity, and harsh industrial conditions, making it highly durable in challenging environments.
Q8: What kind of output signal does the unit provide?
A8: It provides a 4-20 mA output signal that can be integrated into monitoring systems for continuous analysis.
Q9: Can the system be used in a hazardous environment?
A9: The Bently Nevada 330104-00-06-05-01-05 is suitable for industrial environments but should be assessed for specific hazardous location approvals based on the local standards and requirements.
Q10: How long does the product last?
A10: The Bently Nevada 330104-00-06-05-01-05 is designed for long-lasting durability. With regular maintenance and proper installation, it can last for many years.
Recommended Models
6 Related or Same-Series Models
| Model | Specifications |
|---|---|
| 330104-00-06-05-01-06 | 4-20 mA Output, 24V DC, 1Hz-10kHz Frequency Range |
| 330104-00-06-05-01-04 | 4-20 mA Output, 24V DC, Enhanced Vibration Range |
| 330104-00-06-05-01-03 | 4-20 mA Output, Wide Temperature Range (-40°C to 85°C) |
| 330104-00-06-05-01-02 | 4-20 mA Output, Panel Mount, 1 Hz to 1 kHz Frequency Range |
| 330104-00-06-05-01-01 | 4-20 mA Output, Modbus RTU Communication |
| 330104-00-06-05-01-00 | 4-20 mA Output, Extended Vibration Measurement Range |
