Product Overview

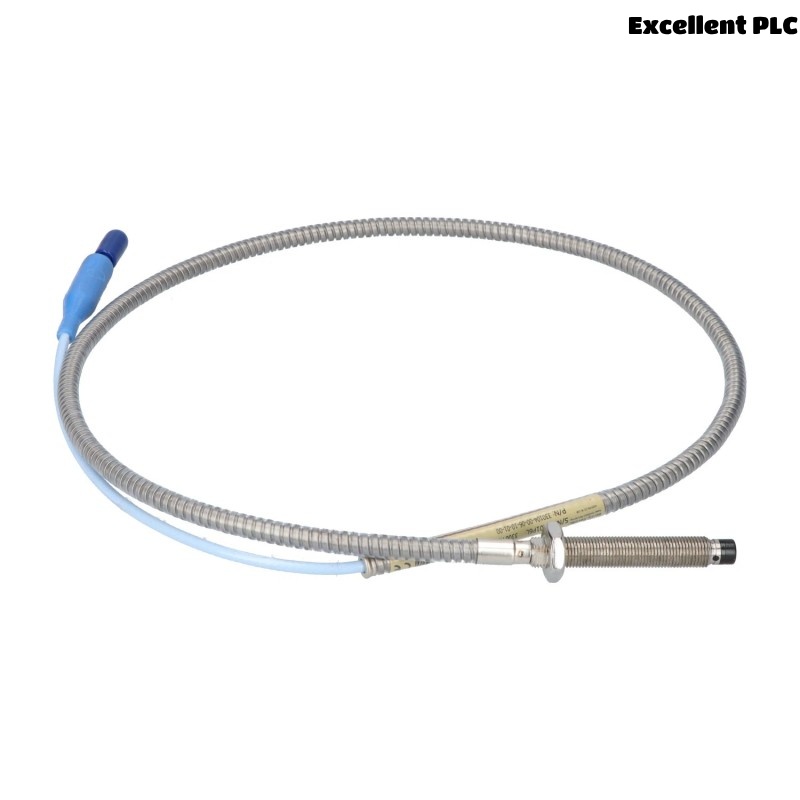

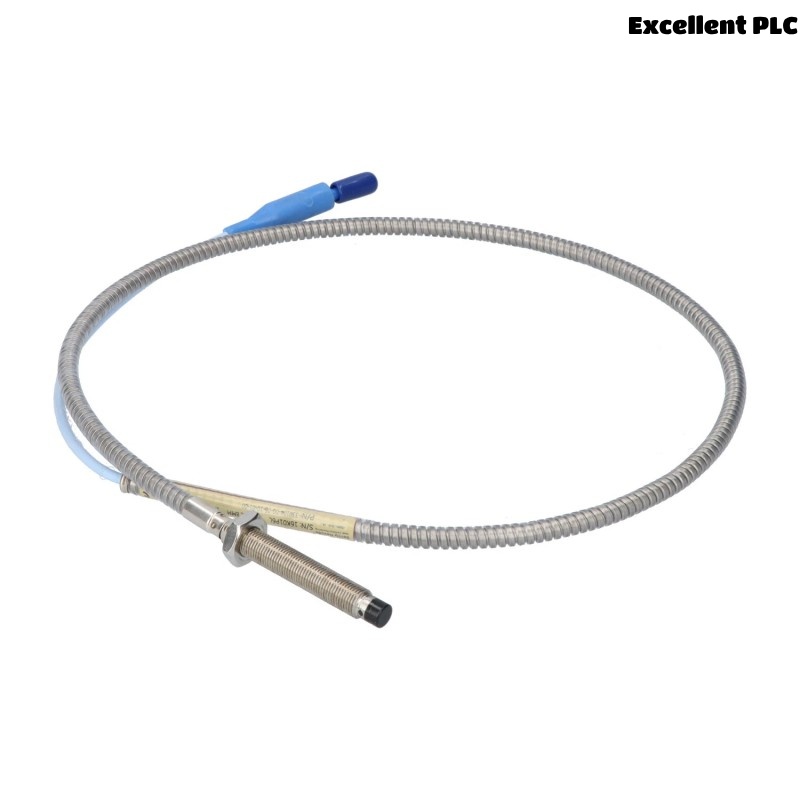

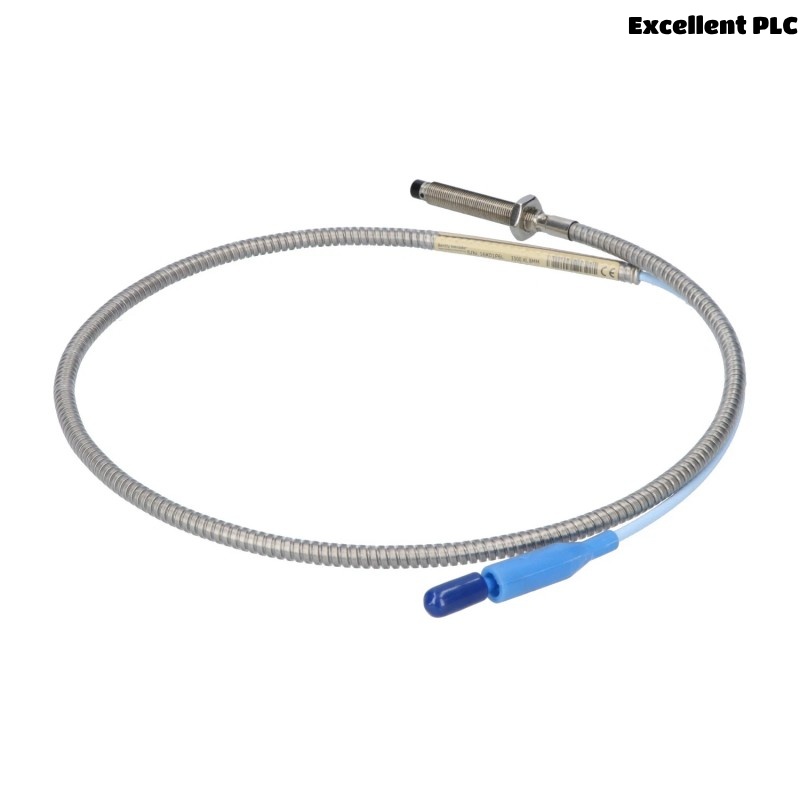

The Bently Nevada 330104-00-06-10-11-00 is a robust proximity probe designed for vibration and position monitoring in industrial rotating machinery. It forms part of the 3300 XL 8 mm transducer system, offering advanced reliability, precise measurements, and compliance with API 670.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (0.71 lb) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc gold-plated coaxial connector |
| Max Operating Temperature | +177°C (Standard), +218°C (ETR tip), +260°C (ETR cable) |
| Min Operating Temperature | -52°C |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% or ±6.5% based on system length |
Applications
-
Vibration and position measurement for fluid-film bearing machines
-
Shaft displacement and radial vibration analysis
-
Keyphasor® reference signal generation
-
Speed and overspeed monitoring (with caution)
-
Integration into condition monitoring systems in compressors, turbines, motors, and pumps
Product Advantages
-
API 670 Compliant: Meets industry standards for mechanical configuration and accuracy
-
Fully Interchangeable: No need for matched calibration of probe, cable, and sensor
-
Rugged Design: TipLoc and CableLoc technologies ensure high mechanical robustness
-
Wide Temperature Range: Suitable for both standard and high-temperature environments
-
Enhanced RFI/EMI Immunity: Allows flexible installation in industrial environments
-
Easy Installation: ClickLoc connectors with built-in locking and no tools required
FAQ
Q1: What material is the probe tip made of?
A1: It is made of molded PPS (Polyphenylene Sulfide) plastic for durability.
Q2: Can this probe be used in hazardous environments?
A2: Yes, it is approved for use in hazardous areas (ATEX, CSA, IECEx).
Q3: Does the probe require calibration to the target surface?
A3: It is factory-calibrated to AISI 4140 steel. Calibration to other targets is optional.
Q4: Can it be used with non-XL components?
A4: Yes, it is backward compatible with non-XL 3300 8 mm and 5 mm systems.
Q5: What is the benefit of the armored cable version?
A5: It provides additional mechanical protection and resistance to harsh environments.
Q6: Is this probe suitable for high-temperature zones?
A6: Yes, with the ETR (Extended Temperature Range) option, it supports up to 260°C.
Q7: What is the linear range of this proximity probe?
A7: 2 mm (from 0.25 mm to 2.3 mm) with high accuracy throughout the range.
Q8: What type of connector does it use?
A8: It uses a gold-plated ClickLoc miniature coaxial connector.
Q9: How is the probe mounted?
A9: It is threaded (M10 x 1) and designed for direct mounting with torque limits.
Q10: Is field wiring required?
A10: Yes, shielded triad field wiring (16 to 24 AWG) is recommended for sensor-to-monitor connections.
Related Models (Same Series)
| Model Number | Thread Type | Armor | Temp Range | Cable Length |
|---|---|---|---|---|
| 330103-00-05-10-02-00 | M10 x 1 | No | Standard | 0.5 m |
| 330104-01-05-50-02-00 | M10 x 1 | Yes | Standard | 5.0 m |
| 330194-00-05-10-12-00 | M10 x 1 | Yes | Extended Temp | 0.5 m |
| 330106-05-30-10-02-05 | M10 x 1 | No | Standard | 1.0 m |
| 330193-00-05-20-12-05 | M10 x 1 | No | Extended Temp | 2.0 m |
| 330104-00-06-10-11-05 | M10 x 1 | Yes | FluidLoc | 1.0 m |
