Product Overview

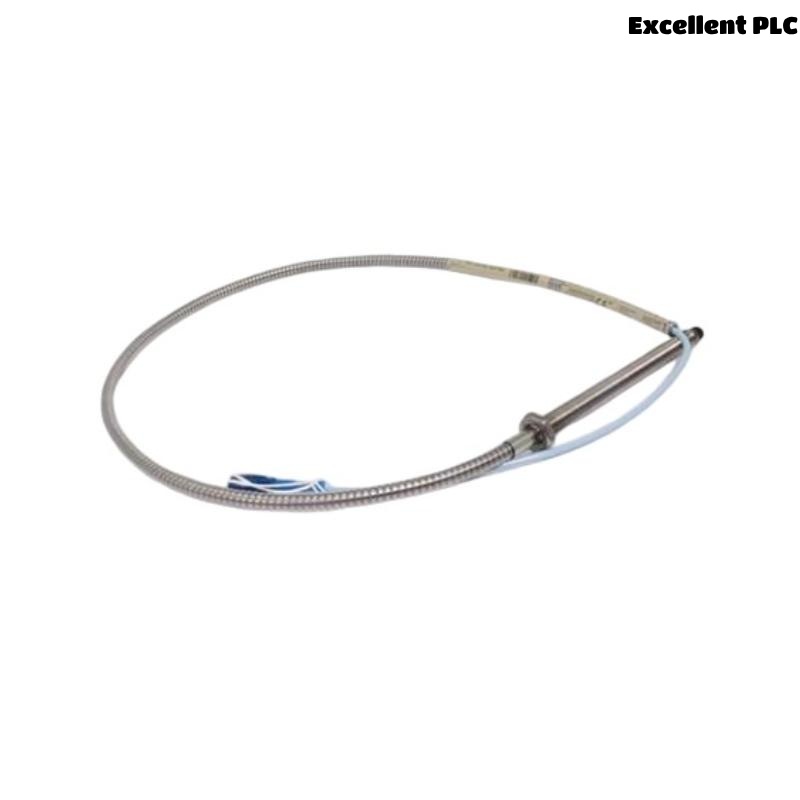

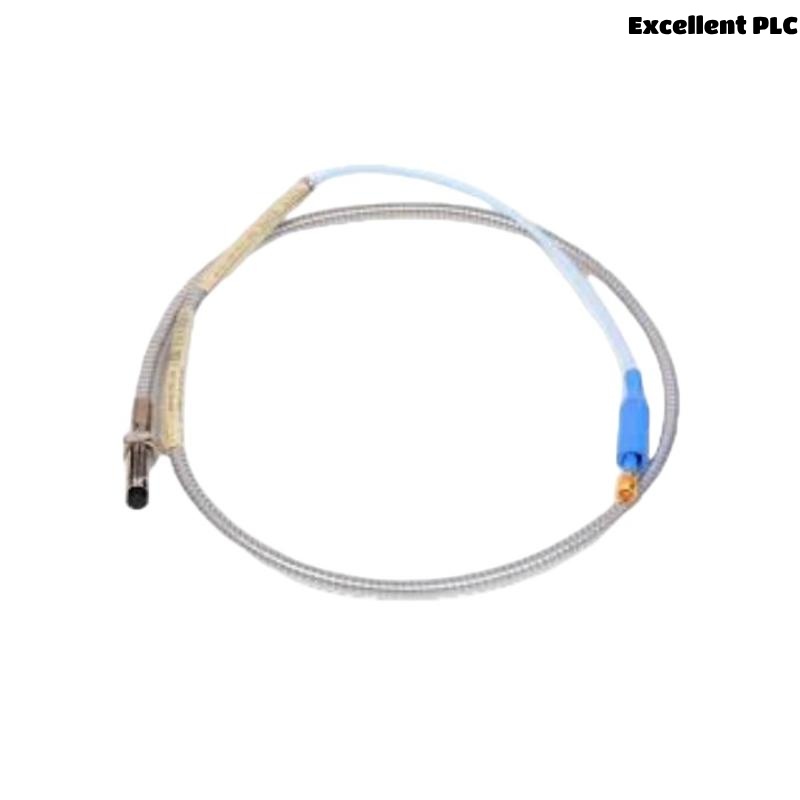

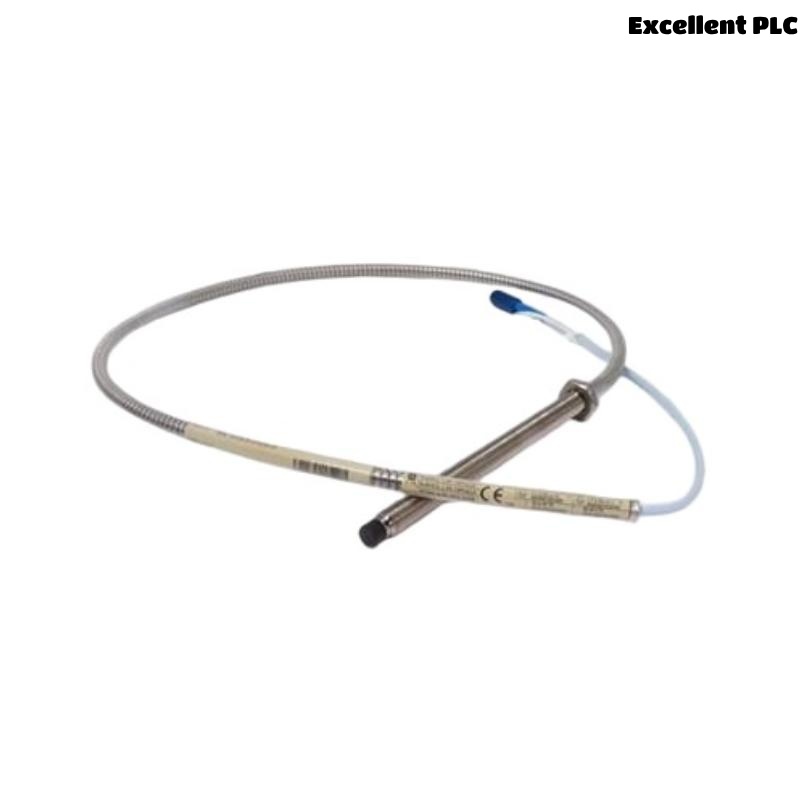

The Bently Nevada 330104-00-06-50-12-05 3300 XL 8 mm Proximity Probe is an advanced eddy current displacement sensor designed for high-precision measurement of rotating machinery. As part of the 3300 XL Series, this probe is engineered to provide reliable, continuous monitoring of critical equipment in demanding industrial applications such as power generation, oil & gas, and heavy manufacturing. The 8 mm gap design enables it to measure vibration and displacement with excellent accuracy, ensuring the detection of potential machinery issues before they lead to costly failures or downtime.
This probe is a non-contact sensor, offering long-term reliability, low maintenance, and high precision. It integrates seamlessly with Bently Nevada’s Proximitor Sensors to deliver real-time performance data, helping optimize maintenance schedules and improve asset reliability.
Key Features
-
High Precision Measurement: Provides accurate displacement and vibration measurements, crucial for effective condition monitoring.
-
Non-Contact Eddy Current Technology: Ensures zero wear and tear, offering long operational lifespans with minimal maintenance.
-
8 mm Gap Design: Suitable for general machinery with 8 mm displacement, widely used in various industrial settings.
-
Wide Temperature Range: Operates effectively within the temperature range of -40°C to +85°C (-40°F to +185°F).
-
Rugged Construction: Stainless steel housing ensures resistance to extreme environmental conditions, including high vibrations and exposure to chemicals.
-
Seamless Integration: Compatible with Bently Nevada 3300 XL Proximitor Sensors for continuous monitoring of machinery health.
-
CE Certified: Meets stringent international standards for safety and performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-06-50-12-05 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard threaded mounting |
| Cable Length | Customizable (Up to 10 meters) |
| Output | Compatible with 3300 XL Proximitor Sensors |
| Weight | 1.165 kg |
| Dimensions | Total Length : 5.0 meters |
| Material | Stainless Steel Housing |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330104-00-06-50-12-05 3300 XL 8 mm Proximity Probe is widely used across industries where accurate monitoring of rotating equipment is essential. Its high precision and durable design make it suitable for:
-
Power Generation: For monitoring turbines, compressors, and generators to detect imbalances or misalignments.
-
Oil & Gas: Ensures real-time monitoring of pumps, motors, compressors, and turbines in offshore rigs and refineries.
-
Chemical Processing: Suitable for maintaining reactors, mixers, and other machinery that require continuous performance monitoring.
-
Heavy Manufacturing: Ideal for monitoring production machinery such as motors, conveyors, and pumps to optimize performance and reduce unexpected downtime.
-
Mining: Used to monitor critical equipment such as crushers, mills, and conveyors in harsh environments.
-
Aerospace and Defense: Provides reliable monitoring for critical applications in aerospace components, including turbines and motors.
Product Advantages
-
Accuracy and Precision: The 8 mm gap design provides accurate and repeatable measurements, crucial for early fault detection.
-
Non-Wear Technology: With its non-contact eddy current sensing, this probe ensures longevity and requires minimal maintenance, reducing downtime and repair costs.
-
Durability: The rugged stainless steel housing ensures the probe can withstand extreme operational conditions, including high vibrations and exposure to harsh chemicals.
-
Wide Operating Temperature: Suitable for use in extreme temperatures, from -40°C to +85°C, allowing flexibility across various industrial applications.
-
Easy Installation: The probe features a standard threaded mounting for quick and efficient installation.
-
Predictive Maintenance: Continuous real-time data enables predictive maintenance, reducing unplanned downtime and improving equipment longevity.
-
Global Standards Compliance: CE and RoHS certification assures users that the product meets high-quality and environmental standards.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the Bently Nevada 330104-00-06-50-12-05 3300 XL 8 mm Proximity Probe?
A: This probe is designed to measure displacement and vibration in rotating machinery, providing real-time monitoring to prevent issues and reduce downtime. -
Q: How does the probe detect displacement?
A: It uses non-contact eddy current technology, which accurately measures the displacement of machinery without physical wear. -
Q: What industries use this proximity probe?
A: It is used in power generation, oil & gas, chemical processing, heavy manufacturing, mining, and aerospace for monitoring critical equipment. -
Q: What is the maximum temperature range for the probe?
A: The probe operates effectively between -40°C to +85°C (-40°F to +185°F), making it suitable for harsh environments. -
Q: How does this probe help with predictive maintenance?
A: By providing continuous real-time data, it allows operators to detect potential issues before they cause failures, reducing unexpected downtime. -
Q: Can the probe be used in high-vibration environments?
A: Yes, the probe is designed to withstand high-vibration environments, making it ideal for use in heavy machinery and critical industrial equipment. -
Q: Is the Bently Nevada 330104-00-06-50-12-05 3300 XL 8 mm Proximity Probe compatible with other monitoring systems?
A: Yes, it integrates seamlessly with Bently Nevada’s 3300 XL Proximitor Sensors for vibration and displacement monitoring. -
Q: What type of mounting does this probe have?
A: The probe features a standard threaded mounting for easy installation on equipment. -
Q: Is the probe maintenance-free?
A: While the probe is designed to be maintenance-free due to its non-contact sensing technology, periodic checks and calibration may be required. -
Q: Does the probe meet any safety or environmental certifications?
A: Yes, it is CE certified and complies with RoHS standards, ensuring it meets international safety and environmental requirements.
Related or Similar Bently Nevada Modules
| Model | Description |
|---|---|
| 3300 XL 8 mm Probe | High-accuracy 8 mm proximity probe for rotating machinery |
| 3300 XL 5 mm Probe | 5 mm gap probe for applications requiring smaller displacement measurements |
| 3300 XL Proximitor Sensor | Sensor designed to work with the 8 mm proximity probe for precise vibration monitoring |
| 3300/47-09-03-01-00 | Differential swell monitor for complementary input with proximity probes |
| 3300 XL Probe Extension Cable | Extension cables for the 3300 XL probes to expand the measurement range |
| 3300 XL Proximitor | Vibration and displacement monitoring system compatible with 3300 XL probes |
