Product Introduction

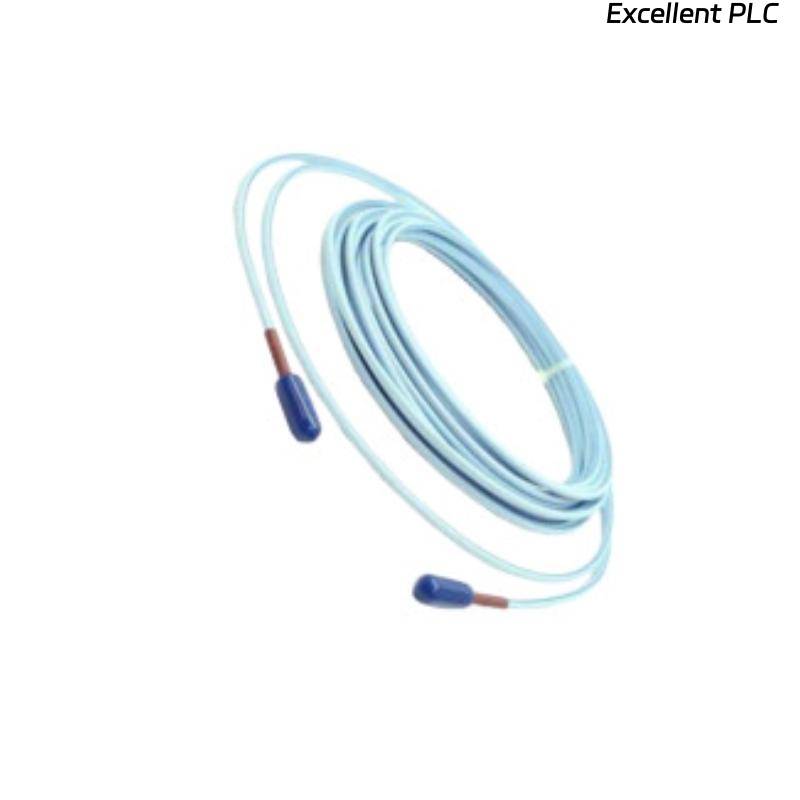

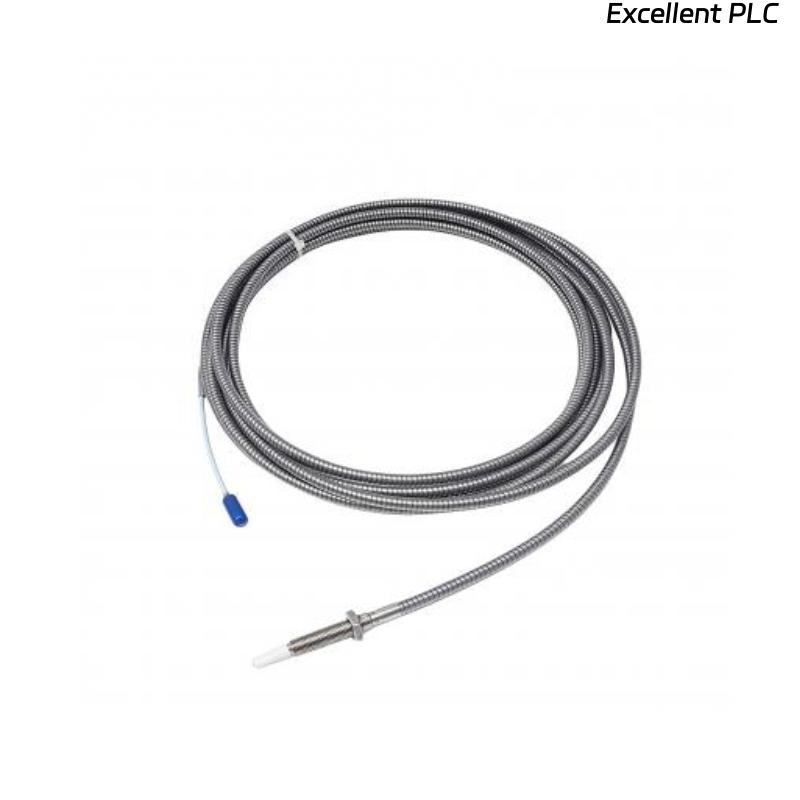

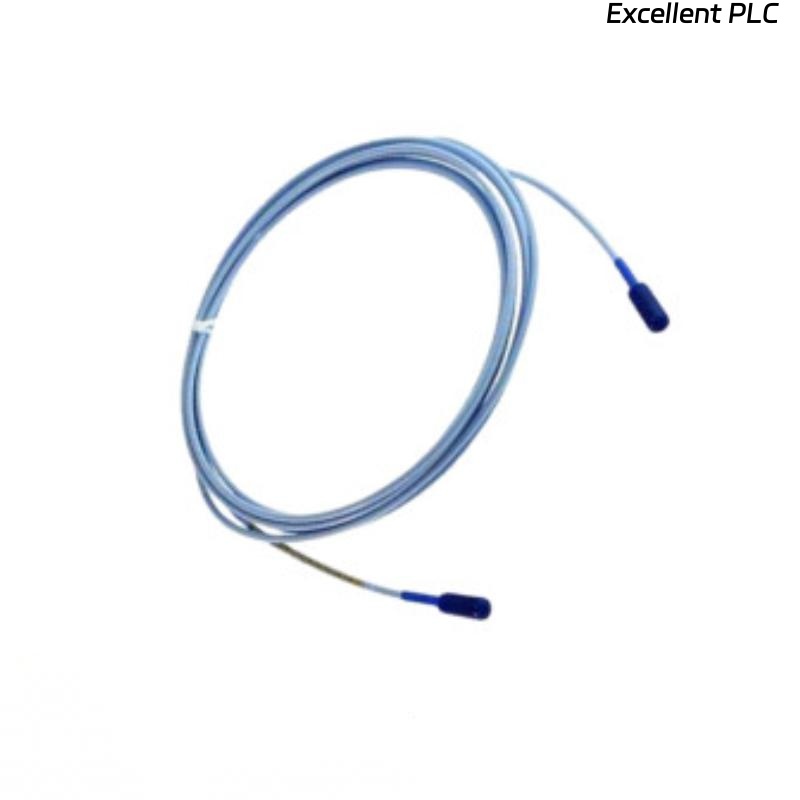

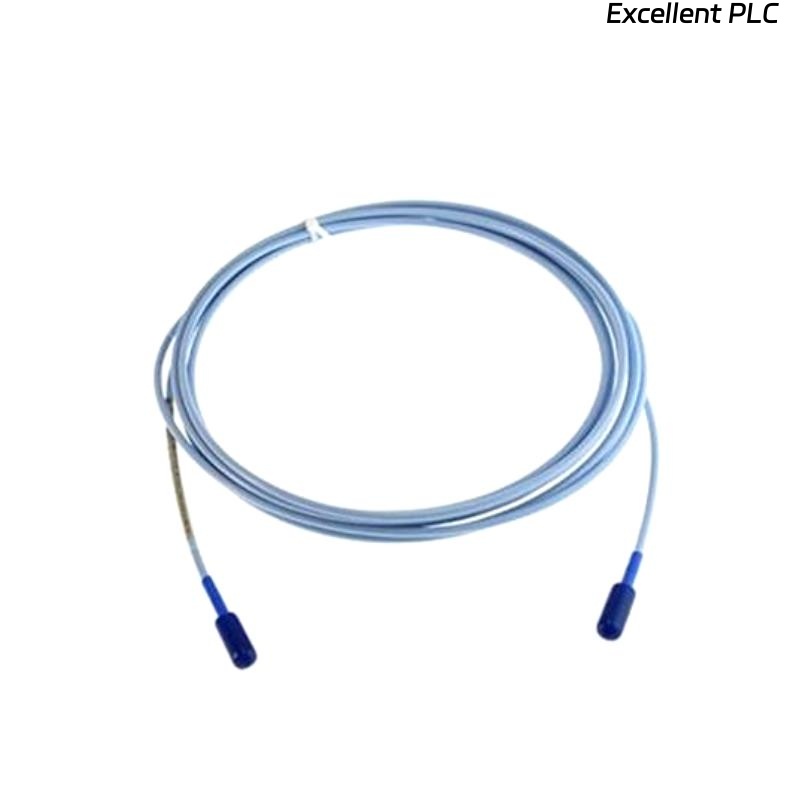

Bently Nevada 330104-00-07-50-12-05 is an 8mm proximity probe system from the 3300 XL series. It is used for monitoring vibration and position on rotating machinery like turbines and compressors to prevent failures.
Product Parameters
| Parameter | Specification |
|---|---|
| Part Number | 330104-00-07-50-12-05 |
| Probe Diameter | 8 mm |
| Cable Length | 5 m |
| Connector | 3-Pin Military-Style |
| Linear Range | 2 mm |
| Scale Factor | 200 mV/mil |
| Operating Temp | -35°C to 150°C |
| Weight | 1.615 kg |
Product Applications
Measures radial vibration and axial position on critical equipment such as turbines, compressors, pumps, and motors.
Product Advantages
-
High accuracy and reliability.
-
Robust for harsh environments.
-
Globally supported and easily integrated.
FAQ
1. What target material is required?
AISI 4140 steel or equivalent.
2. Can the probe and cable be replaced separately?
No, they are a calibrated set and must be replaced together.
3. What does a -24 Vdc output mean?
It indicates a short circuit in the system.
4. How is the gap voltage set?
By mechanically adjusting the probe’s distance from the shaft.
5. Can it measure gear teeth?
No, it requires a flat, continuous surface.
6. What affects the signal?
Shaft coatings, scratches, or electrical runout.
7. What is an ungrounded tip?
An insulated tip immune to electrical shaft currents.
8. How is system health checked?
By trending the gap voltage for drift or sudden changes.
9. Is it intrinsically safe?
The probe is passive; the connected monitor must be certified for safety.
10. What is the output with no target?
The output will be near 0 Vdc.
