Product Overview

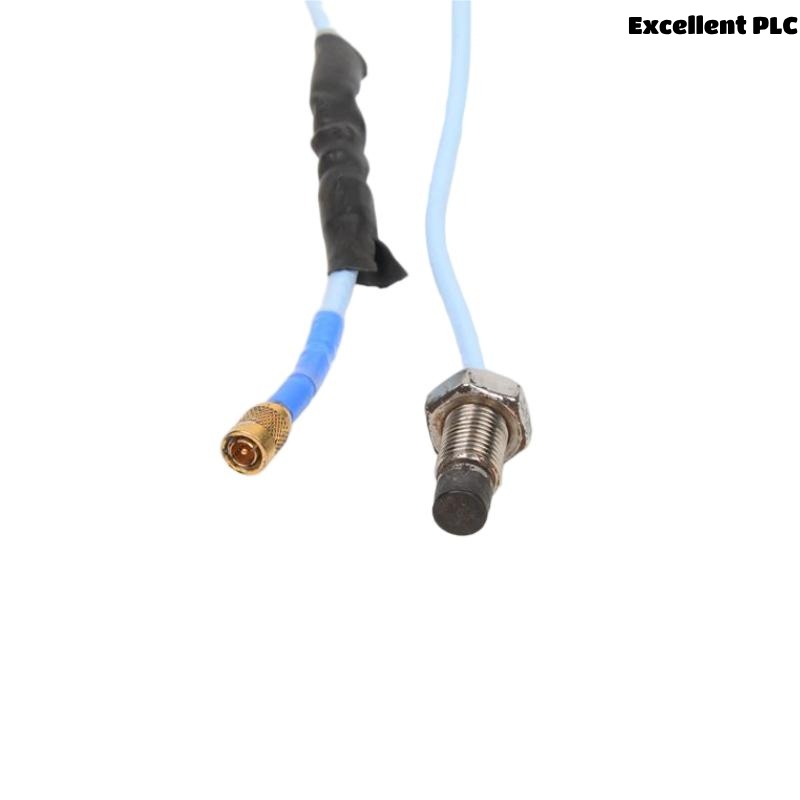

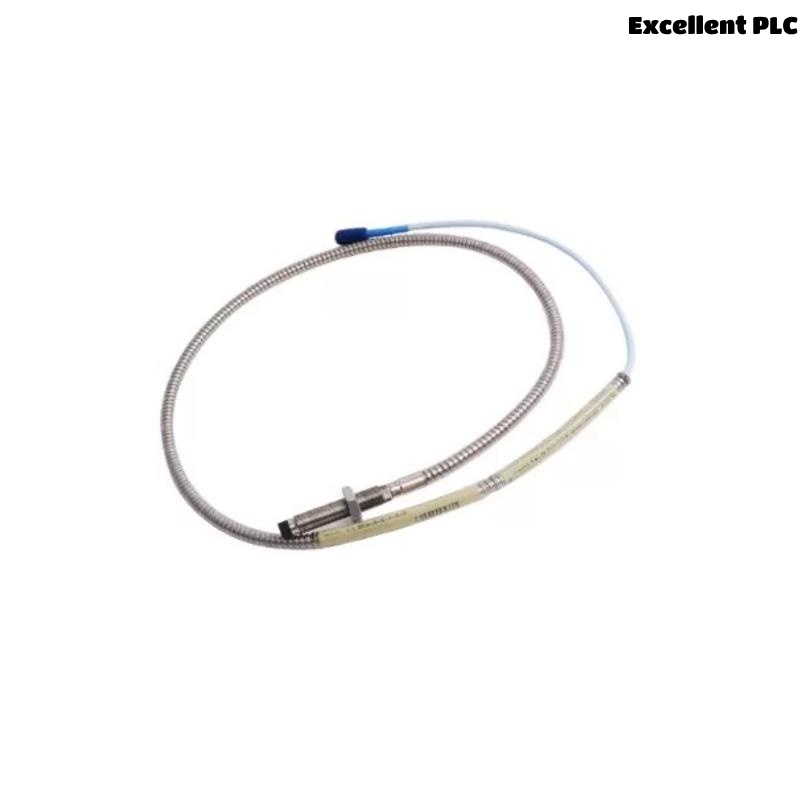

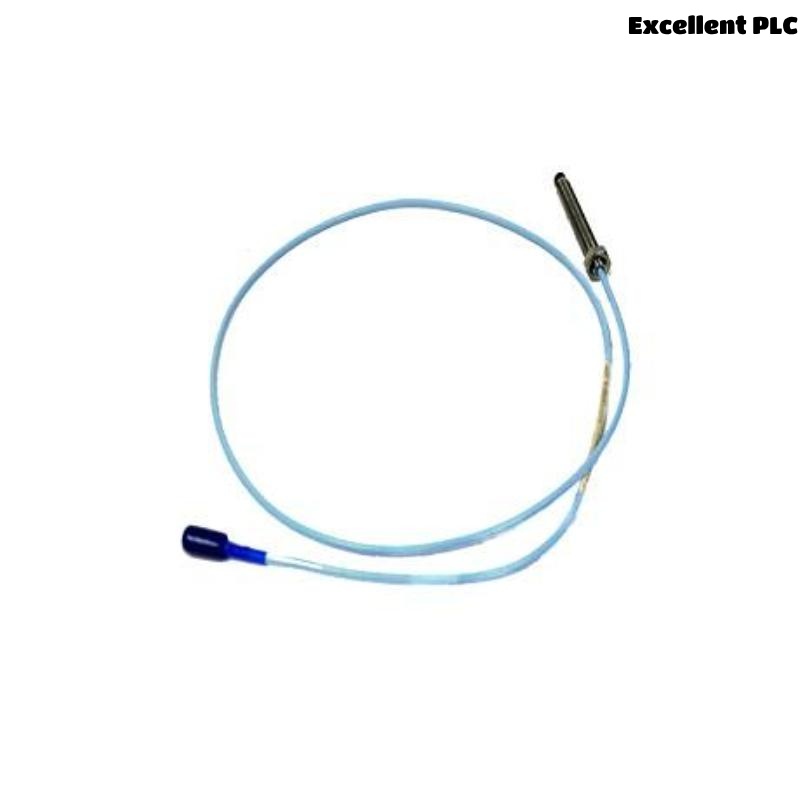

The Bently Nevada 330104-00-08-10-12-00 3300 XL 8 mm Proximity Probe is a high-precision displacement and vibration sensor designed for accurate condition monitoring of rotating equipment. This probe is a part of the renowned 3300 XL Series of proximity probes and is engineered to deliver reliable, real-time performance data in demanding industrial environments. With an 8 mm gap design, this probe is widely used for measuring the displacement of machinery components, detecting imbalances, misalignments, and other faults that can lead to equipment failure.
As a non-contact sensor, it uses eddy current technology to measure the displacement without physical contact with the monitored surface. This ensures that the probe has an extended operational life and requires minimal maintenance, making it an essential tool for predictive maintenance programs.
Key Features
-
Eddy Current Technology: Non-contact sensor technology that reduces wear and tear and offers high durability.
-
8 mm Gap Design: Ideal for measuring the displacement of rotating machinery components with a standard gap of 8 mm.
-
Real-Time Monitoring: Provides continuous feedback on the health of machinery to predict potential failures and reduce downtime.
-
High Precision: Offers highly accurate measurements, ensuring precise detection of displacement and vibration issues.
-
Wide Operating Temperature: This probe is designed to function within a wide temperature range of -40°C to +85°C (-40°F to +185°F).
-
Rugged and Durable: Constructed with a stainless steel housing to withstand harsh industrial environments.
-
Easy Integration: Works seamlessly with Bently Nevada’s Proximitor Sensors and 3500 Series Monitoring Systems.
-
CE and RoHS Certified: Meets international safety and environmental standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-10-12-00 |
| Type | 8 mm Proximity Probe |
| Measuring Range | ± 0.50 mm |
| Gap Distance | 8 mm nominal |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Sensor Type | Eddy Current (Non-contact) |
| Mounting | Standard threaded mounting |
| Cable Length | Customizable (Up to 10 meters) |
| Output | Compatible with 3300 XL Proximitor Sensors |
| Weight | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
| Material | Stainless Steel Housing |
| Certification | CE, RoHS |
| Compliance | Meets relevant industrial standards for vibration monitoring |
Industry Applications
The Bently Nevada 330104-00-08-10-12-00 3300 XL 8 mm Proximity Probe is designed for industrial environments where precision monitoring of rotating machinery is crucial. Its wide application includes:
-
Power Generation: Monitoring turbines, compressors, and generators to detect mechanical faults such as imbalances or misalignments.
-
Oil & Gas: Used for monitoring pumps, compressors, and turbines in offshore rigs and refineries.
-
Chemical Processing: Ideal for monitoring critical machinery such as reactors, mixers, and agitators in the chemical industry.
-
Heavy Manufacturing: Ensures the health of motors, conveyors, and other critical production equipment.
-
Mining: Perfect for monitoring crushers, mills, and conveyors in mining operations.
-
Aerospace: Utilized for monitoring turbines and motors in aerospace applications where reliability is crucial.
Product Advantages
-
Non-Wear Technology: The eddy current sensing technology ensures that the probe is wear-free, providing a longer operational lifespan with minimal maintenance.
-
High Measurement Accuracy: The 8 mm gap design offers precise measurements, crucial for detecting early signs of mechanical issues such as misalignment or imbalance.
-
Durability in Harsh Conditions: Constructed with a rugged stainless steel housing, it is resistant to high vibrations, harsh chemicals, and extreme temperatures, making it suitable for use in a wide range of industrial environments.
-
Real-Time Data: Continuous data acquisition provides operators with the information they need to take proactive maintenance actions before problems escalate.
-
Flexible Integration: This probe integrates seamlessly with Bently Nevada 3300 XL Proximitor Sensors, offering a full suite of vibration and displacement monitoring capabilities.
-
Compliance with Global Standards: CE and RoHS certifications ensure that the probe meets international quality, safety, and environmental standards.
Frequently Asked Questions (FAQ)
-
Q: What is the purpose of the Bently Nevada 330104-00-08-10-12-00 3300 XL 8 mm Proximity Probe?
A: It is designed to measure the displacement and vibration of rotating machinery, helping predict mechanical failures and reduce downtime. -
Q: How does the probe detect displacement?
A: The probe uses non-contact eddy current technology to measure the displacement of the machinery without physical contact, ensuring high precision and reliability. -
Q: In which industries is the 3300 XL 8 mm Proximity Probe used?
A: It is used in power generation, oil & gas, chemical processing, heavy manufacturing, mining, and aerospace industries for machinery condition monitoring. -
Q: What is the maximum operating temperature of the probe?
A: The probe operates within a temperature range of -40°C to +85°C (-40°F to +185°F). -
Q: Can the probe be used in high-vibration environments?
A: Yes, the probe is designed to withstand high-vibration environments, making it ideal for use in machinery that experiences significant mechanical stress. -
Q: How does the Bently Nevada 330104-00-08-10-12-00 integrate with other systems?
A: It integrates seamlessly with Bently Nevada 3300 XL Proximitor Sensors for continuous vibration and displacement monitoring. -
Q: Is the probe suitable for offshore applications?
A: Yes, the probe is designed to withstand harsh conditions, including those found in offshore oil & gas platforms, where reliability is critical. -
Q: How often does the probe need to be calibrated?
A: The probe generally does not require frequent calibration due to its non-contact sensing technology, though periodic checks are recommended for optimal performance. -
Q: What type of maintenance is required for the 3300 XL probe?
A: The probe requires minimal maintenance, thanks to its non-contact technology. Regular checks and cleaning of the probe may be necessary depending on the environment. -
Q: Does the probe meet any environmental or safety certifications?
A: Yes, the probe is CE and RoHS certified, ensuring compliance with international safety and environmental standards.
