Product Description

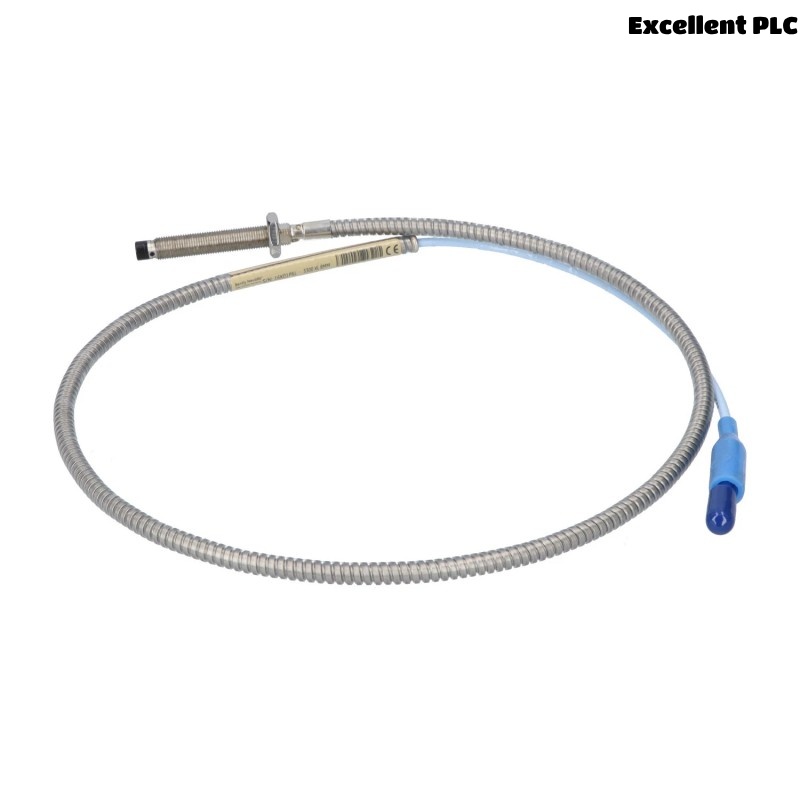

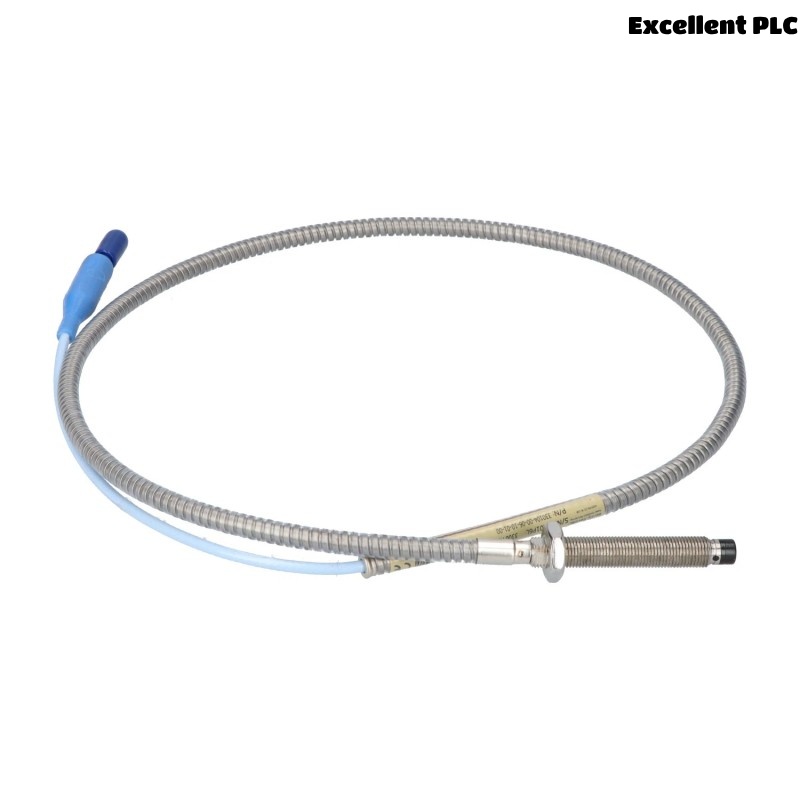

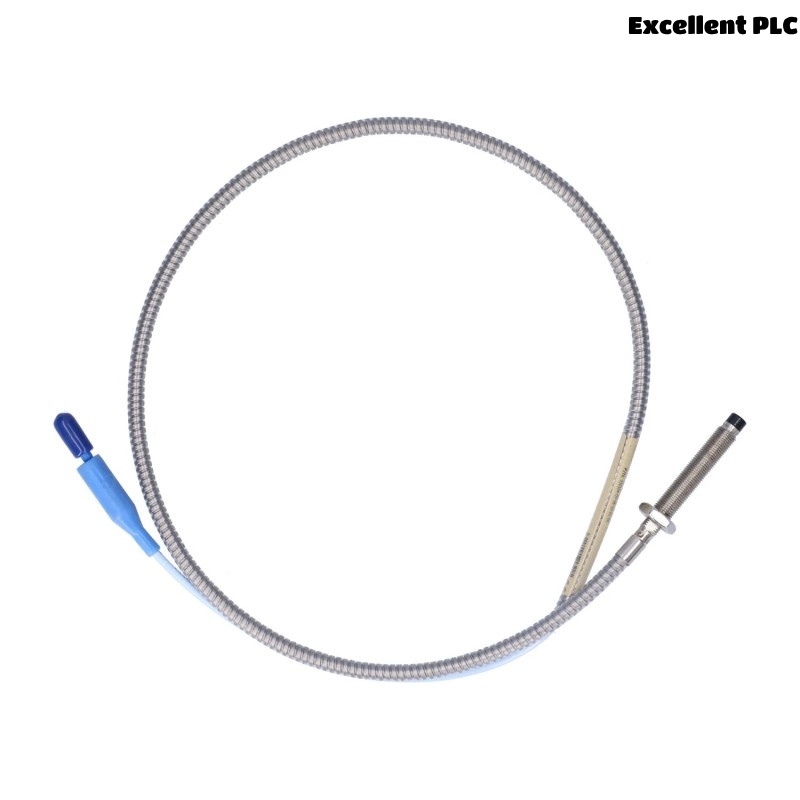

The Bently Nevada 330104-00-09-05-02-CN is part of the 3300 XL 8 mm Proximity Transducer System. It measures the distance between its tip and a conductive surface, providing static (position) and dynamic (vibration) data. This model features M10 x 1 thread, armored construction, and a robust design for demanding environments, compliant with API 670 standards. It ensures precise measurements for fluid-film bearing machines, shaft vibration, position, and Keyphasor applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-00-09-05-02-CN |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel AISI 303/304 |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter (1.6 ft) |
| Weight | 0.162 kg (0.36 lbs) |
| Linear Range | 2 mm (80 mils) |
| Operating Temp. Range | -52°C to +177°C (-62°F to +350°F) |
| Storage Temp. Range | -52°C to +177°C (-62°F to +350°F) |
| Humidity | <3% ASF change @ 93% RH (IEC 68-2-3) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) ±5% |
| Minimum Shaft Diameter | 50.8 mm recommended (≥76.2 mm preferred) |
| Connector Type | Miniature coaxial ClickLoc, armored |
Applications
-
Shaft vibration monitoring on turbines, compressors, and pumps
-
Position monitoring in fluid-film bearing machines
-
Keyphasor signal generation for rotational speed and phase reference
-
Critical overspeed protection systems
Advantages
-
API 670 compliant for linearity, stability, and accuracy
-
Interchangeable components without re-calibration
-
Enhanced RFI/EMI immunity for installation flexibility
-
Armored cable for mechanical protection and durability
-
Patented TipLoc and CableLoc technology for improved reliability
-
Compact M10 thread design for confined spaces
Frequently Asked Questions (FAQ)
Q1: What is the linear range of this probe?
A1: It has a linear range of 2 mm (80 mils).
Q2: Is the probe suitable for high-temperature environments?
A2: Yes, it operates up to +177°C (350°F).
Q3: Can I mix XL and non-XL components?
A3: Yes, but the system performance is limited to the lowest specification.
Q4: Is it compliant with API 670?
A4: Yes, it meets API 670 requirements for accuracy and configuration.
Q5: What is the minimum shaft diameter recommended?
A5: Minimum 50.8 mm, but 76.2 mm or greater is preferred for best accuracy.
Q6: Does it need special tools for installation?
A6: No, the ClickLoc connectors are finger-tightened with a locking mechanism.
Q7: Is the probe cable fluid-resistant?
A7: Yes, it includes armored protection with sealed construction.
Q8: Can the probe be used for Keyphasor signals?
A8: Yes, it supports Keyphasor and overspeed applications.
Q9: What is the frequency response of the probe?
A9: The system response is 0–10 kHz, +0, -3 dB.
Q10: Is the probe interchangeable with other lengths or models?
A10: Yes, all 3300 XL 8 mm components are fully interchangeable.
