Product Overview

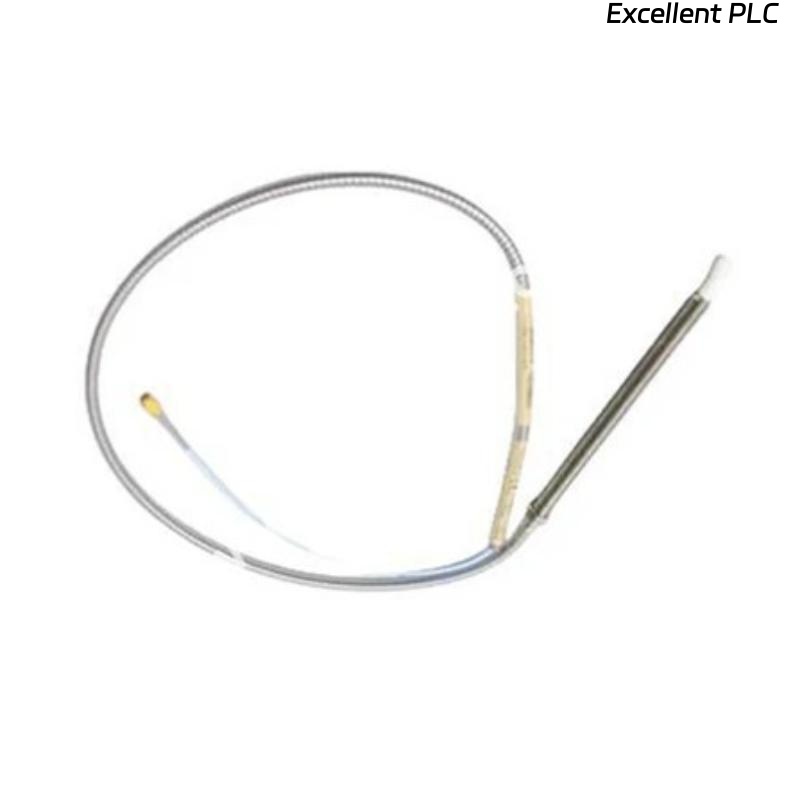

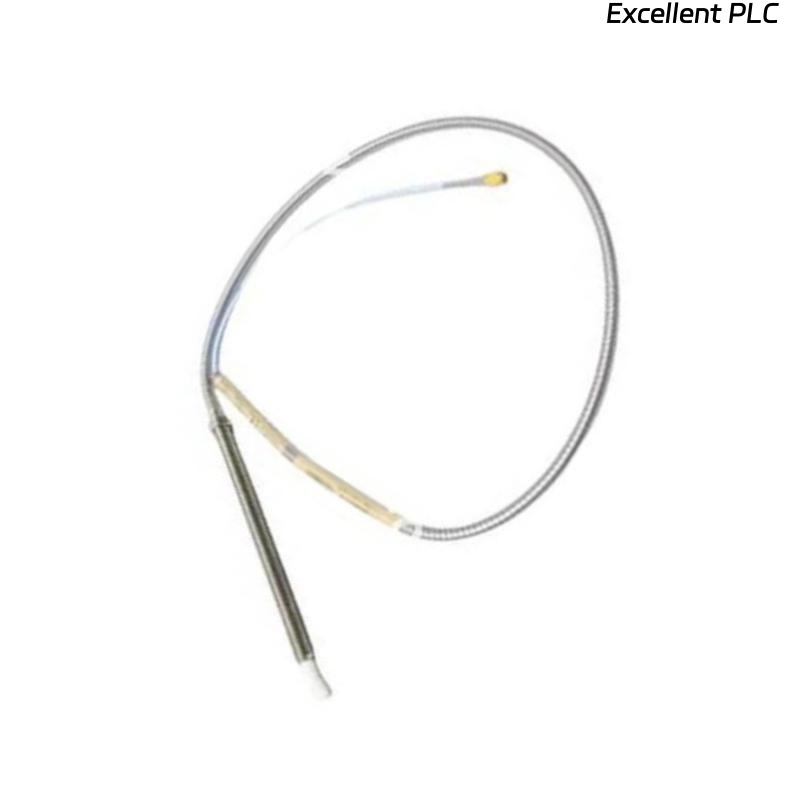

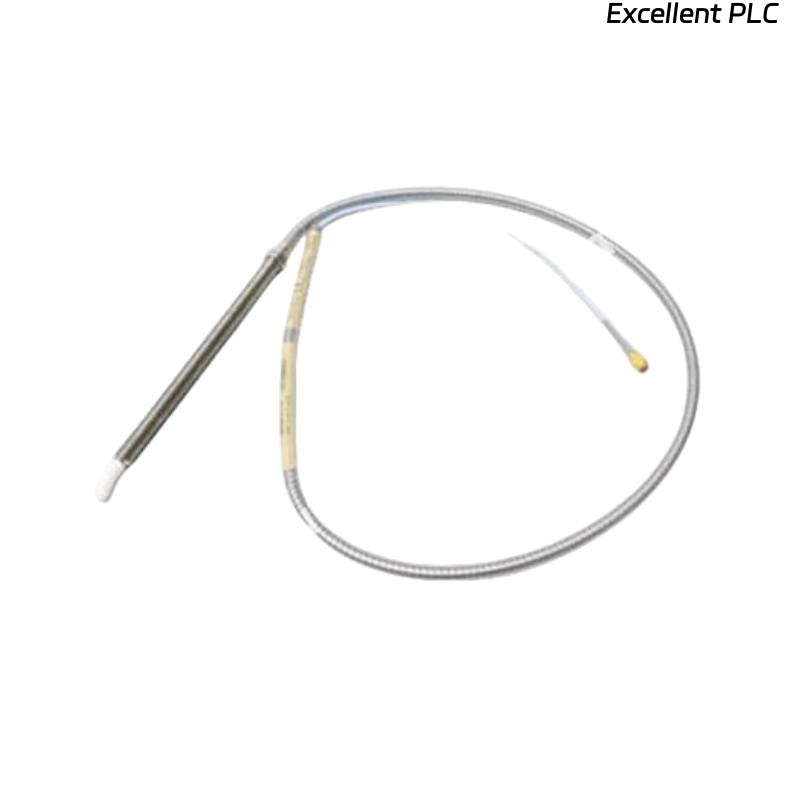

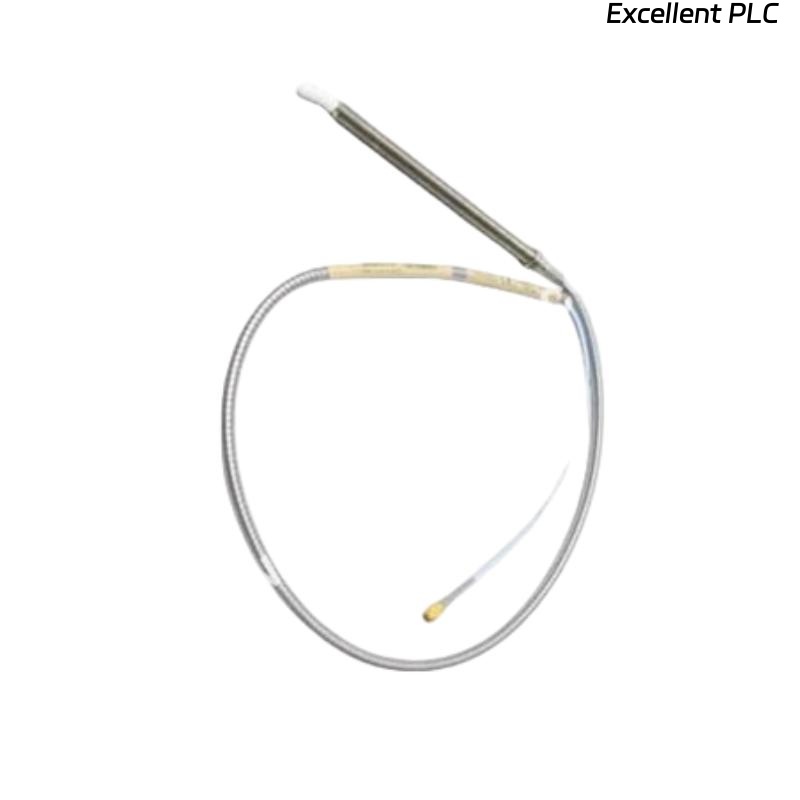

The Bently Nevada 330104-00-09-05-11-05 3300 XL 8 mm Proximity Probe is engineered for precise non-contact measurement of shaft vibration and axial displacement in critical rotating machinery. Part of the trusted 3300 XL series, it delivers reliable performance, long-term stability, and compliance with API 670 standards for machine protection and condition monitoring.
Key Features
-
8 mm probe tip for versatile vibration and displacement measurements
-
Non-contact design for continuous machinery protection
-
API 670 compliance for global standard performance
-
Rugged threaded mounting ensures secure installation
-
Stable performance across wide operating temperatures
-
Optimized for 3300 XL system compatibility
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330104-00-09-05-11-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm |
| System Compatibility | Bently Nevada 3300 XL systems |
| Application | Shaft vibration and displacement monitoring |
| Dimensions | Total Length : 0.5 meter |
| Compliance | API 670 |
| Operating Temperature | -35 °C to +180 °C (probe only) |
| Weight | 0.161 kg |
| Connector Type | Coaxial connector |
| Mounting | Threaded mounting |
Industry Applications
-
Power Generation – Turbines, generators, and rotating equipment
-
Oil & Gas – Compressors, pumps, and offshore machinery
-
Petrochemical – Refinery and processing plant machinery
-
Manufacturing – Motors, gearboxes, and industrial drives
-
Water & Wastewater – Critical pump and motor installations
Advantages
-
Provides high-precision measurement of vibration and displacement
-
Improves machinery reliability by preventing unexpected failures
-
Designed for long-term stability and durability
-
Meets API 670 requirements for machine protection
-
Supports predictive and preventive maintenance strategies
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330104-00-09-05-11-05 probe?
It is used to measure shaft vibration and displacement in rotating machinery.
Q2: What is the tip size of this probe?
It features an 8 mm tip diameter.
Q3: Is it compatible with other Bently Nevada systems?
It is designed for use with Bently Nevada 3300 XL systems.
Q4: What is the weight of the probe?
It weighs approximately 0.161 kg.
Q5: Does it meet industry standards?
Yes, it complies with API 670.
Q6: What temperature range does it support?
It operates from -35 °C to +180 °C.
Q7: How is the probe mounted?
It uses threaded mounting for secure and stable installation.
Q8: Can it be used in petrochemical plants?
Yes, it is well-suited for refinery and processing equipment.
Q9: What accessories are needed for operation?
It must be paired with Bently Nevada Proximitor sensors and extension cables.
Q10: Which industries benefit most from this probe?
Industries include oil & gas, power generation, petrochemical, and manufacturing.
